Product Status Notice
This product is EOL (End of Life).
Please order the new version:
M5StickS3 ESP32S3 Mini IoT Dev Kit
Description
StickC-Plus2 Watch Kit is a smartwatch kit that includes the M5StickC Plus2 IoT development board and a series of watch strap accessories. Leveraging the powerful hardware resources and expandability of the StickC-Plus2 itself, it can be used not only for time display but also for applications such as activity monitoring and smart home control. When paired with the M5Stack HAT hardware ecosystem for secondary development, it can unleash even more application possibilities for smart wearables.
Features
- Personalized support for custom display
- 200mAh battery
- Lightweight and portable
Includes
- 1 x StickC-Plus2
- 1 x LEGO adapter
- 1 x Wall/1515
- 1 x Watch strap
- 1 x Type-C USB (50cm)
Applications
- Smartwatch
Specifications
| Specification | Parameter |
|---|---|
| SoC | ESP32-PICO-V3-02@Dual-Core Processor, 240MHz Main Frequency |
| Flash | 8MB |
| PSRAM | 2MB |
| Wi-Fi | 2.4 GHz Wi-Fi |
| Input Voltage | 5V@500mA |
| Interface | USB Type-C x1, GROVE (I2C+I/O+UART) x1 |
| LCD Screen | 1.14 inch, 135 x 240 Colorful TFT LCD, ST7789v2 |
| Microphone | SPM1423 |
| Buttons | Custom Buttons x3 |
| Power Indicator LED | Green LED x1 (Non-Programmable) |
| RTC | BM8563 |
| Buzzer | Onboard Buzzer |
| MEMS | MPU6886 |
| Antenna | 2.4G 3D Antenna |
| External Pins | G0, G25/G26, G36, G32, G33 |
| Battery | 200mAh@3.7V, inside |
| Operating Temperature | 0~40°C |

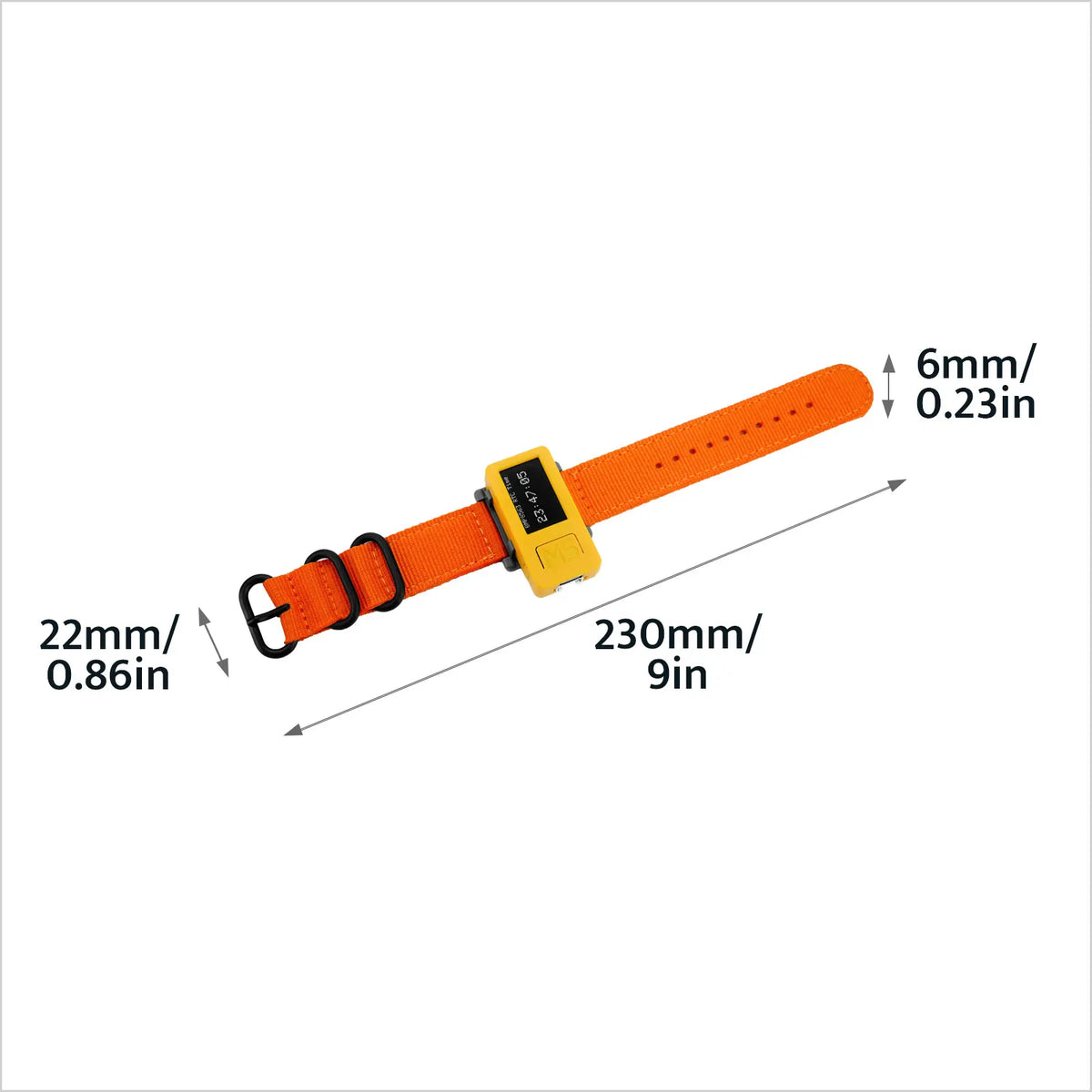

| Strap Size & Weight | 230 x 22 x 6mm / 12.3g |
| Product Size | 38.0 x 26.7 x 10.6mm |
| Product Weight | 28.8g |
| Package Size | 125.0 x 65.0 x 23.0mm |
| Gross Weight | 72.0g |
