Description

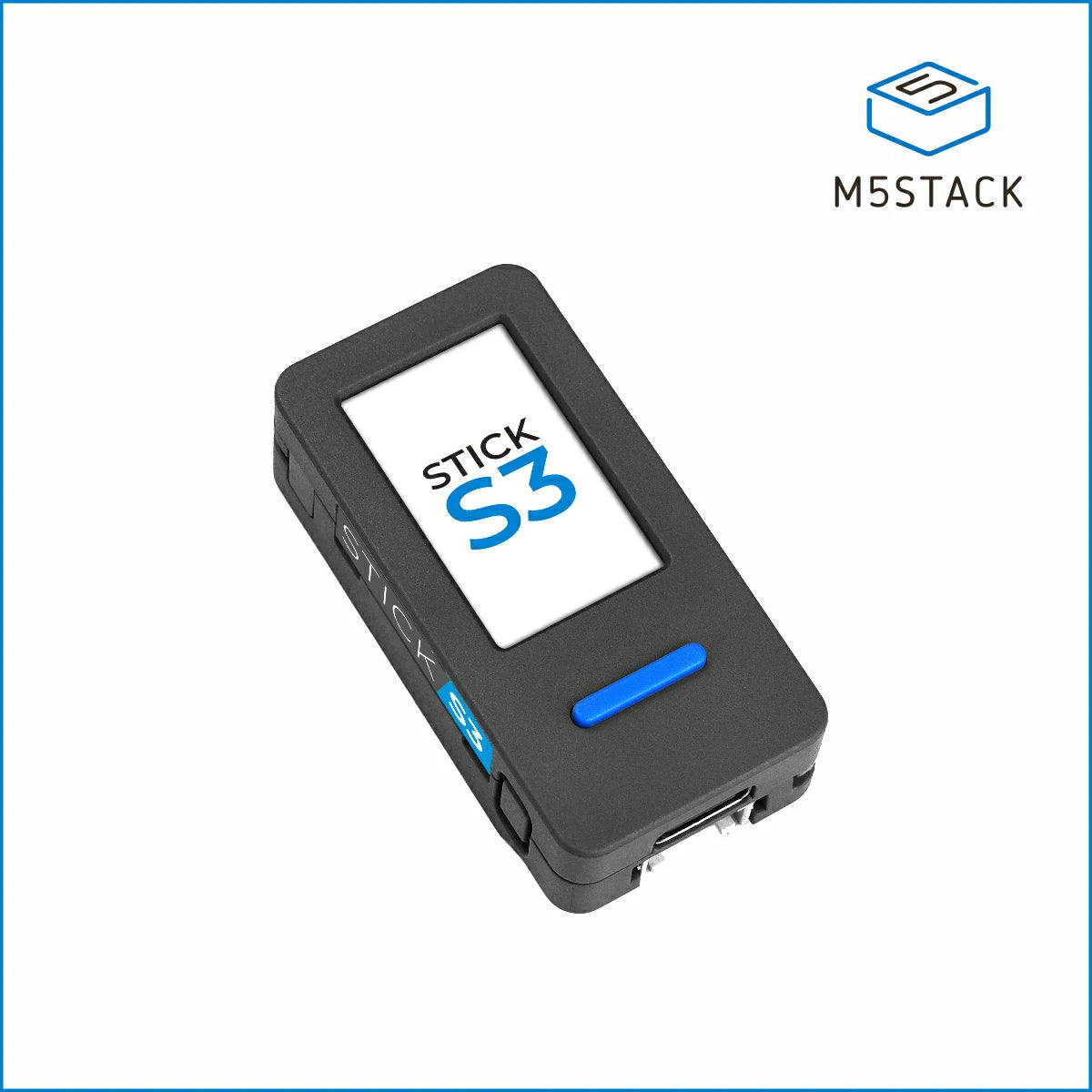

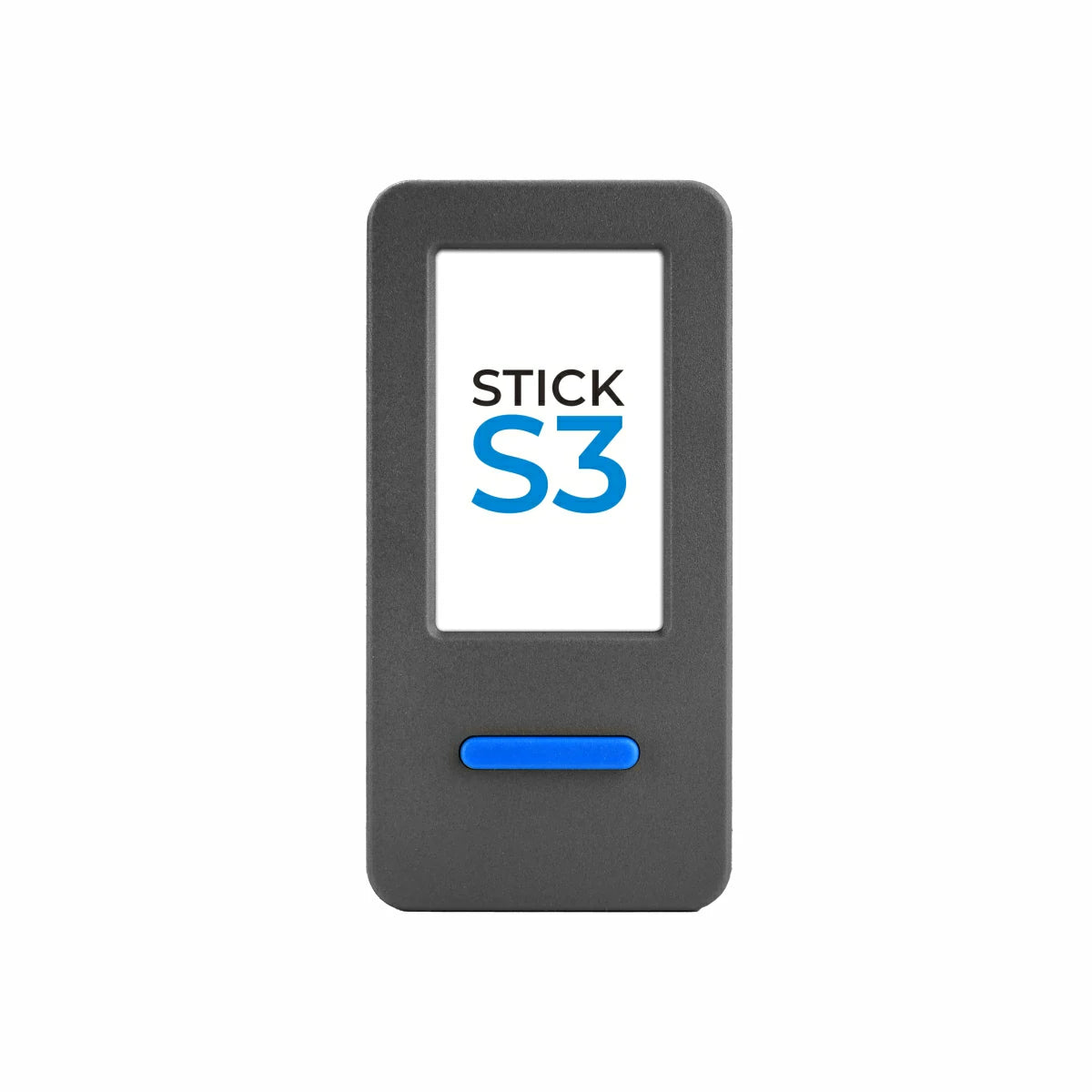

StickS3 is a compact and high-performance programmable controller designed for remote control and IoT applications. It is powered by the ESP32-S3-PICO-1-N8R8 main control chip, supporting 2.4 GHz Wi-Fi wireless communication, with built-in 8MB Flash and 8MB PSRAM to meet diverse application development needs, delivering excellent performance and scalability.
For human–machine interaction, it features a 1.14" LCD display, a 6-axis IMU sensor, and programmable buttons. The audio system adopts the ES8311 mono audio codec, combined with a high-sensitivity MEMS microphone and AW8737 power amplifier, enabling clear audio capture and high-fidelity audio output, empowering voice recognition and interactive experiences. It also integrates IR transmitter and receiver, a 250mAh lithium battery, making it suitable for smart home control, AI voice assistants, and IoT project development scenarios.
Features

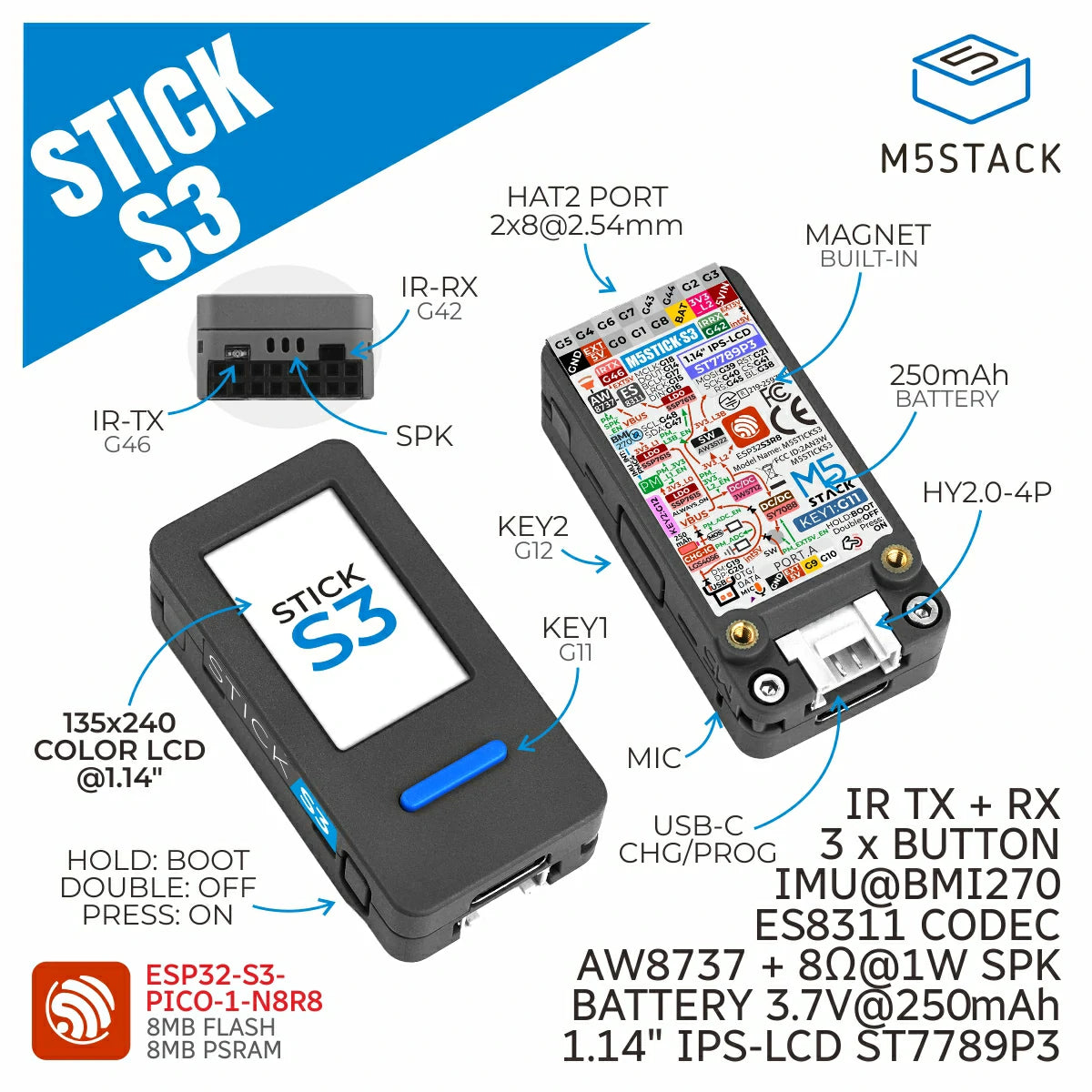

- Integrated ESP32-S3-PICO-1-N8R8 main controller
- 8MB Flash and 8MB PSRAM
- ES8311 mono audio codec chip
- MEMS microphone + speaker
- Integrated IR transmitter + IR receiver
- Magnetic back design
- Expansion interfaces:

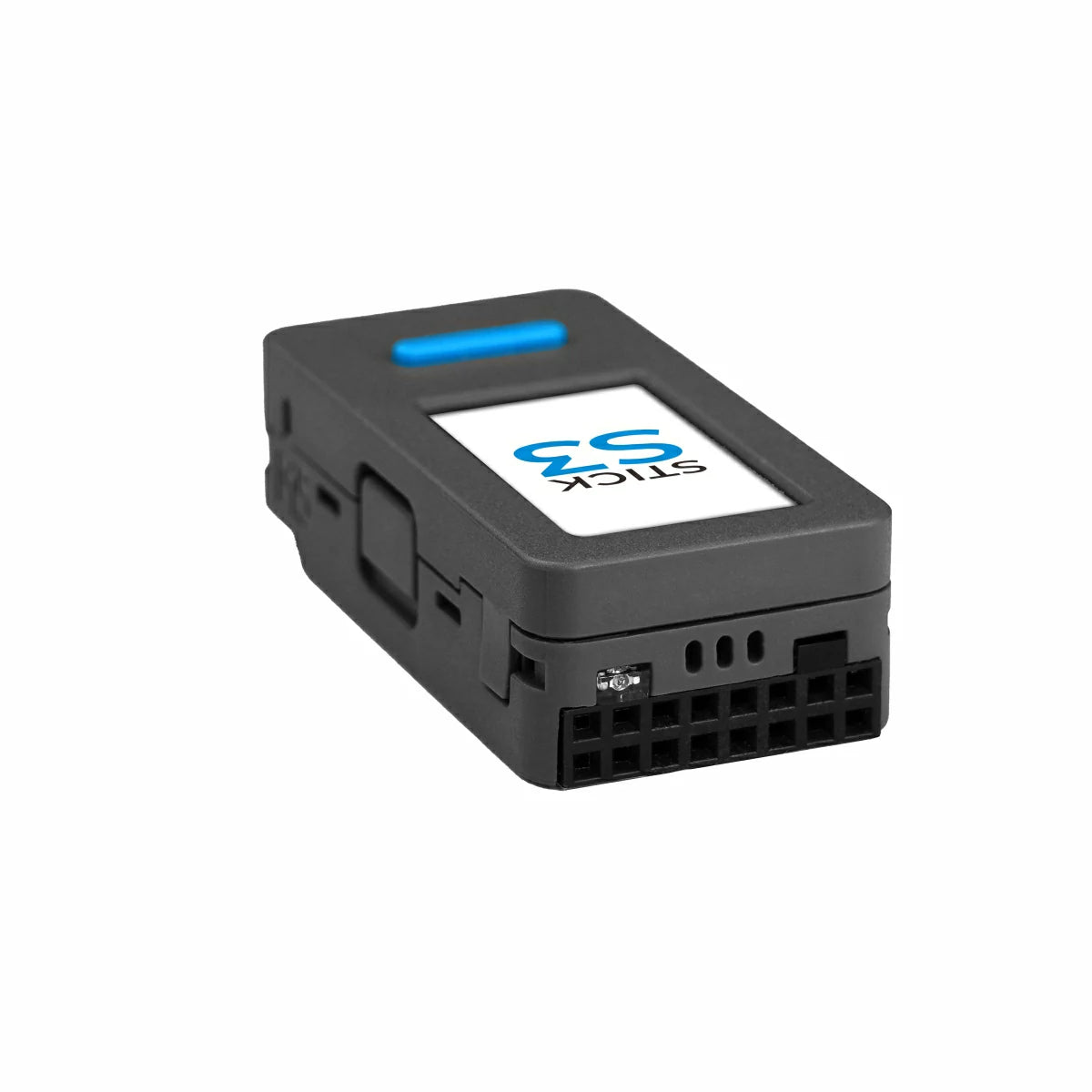

- Expandable Hat2 bus (2.54-16P)
- HY2.0-4P interface
- Development Platform
- Arduino
- UiFlow2
- ESP-IDF
- PlatformIO
Includes
- 1 x StickS3
Applications
- Smart home control
- AI voice assistant
- IoT project development
Specifications
| Specification | Parameter |
|---|---|
| SoC | ESP32-S3-PICO-1-N8R8 @ Dual-core Xtensa LX7 processor, up to 240MHz |
| Flash | 8MB |
| PSRAM | 8MB |
| Wi-Fi | 2.4 GHz Wi-Fi |
| Display | Model: ST7789P3 Resolution: 135x240 |
| Input Power | USB Type-C DC 5V |
| Audio Codec | ES8311: 24-bit resolution, I2S protocol |
| Microphone | MEMS microphone, Signal-to-Noise Ratio (SNR): 65 dB |
| Speaker | AW8737 power amplifier + 8Ω@1W 2011 cavity speaker |
| Operating Temperature | 0 ~ 40°C |
| Battery Capacity | 250mAh |
| Grove Load Capacity | No load: 5V Max: 4.88V@0.38A |
| Power Consumption | Power off: 4.2V@14.02uA L1 state: 4.2V@52.47uA L2 state: 4.2V@102.40uA L3A state: 4.2V@36.69mA Full load: 4.2V@519.02mA |
| Product Size | 48.0 x 24.0 x 15.0mm |
| Product Weight | 20.0g |
| Package Size | 110.0 x 65.0 x 15.0mm |
| Gross Weight | 29.3g |
