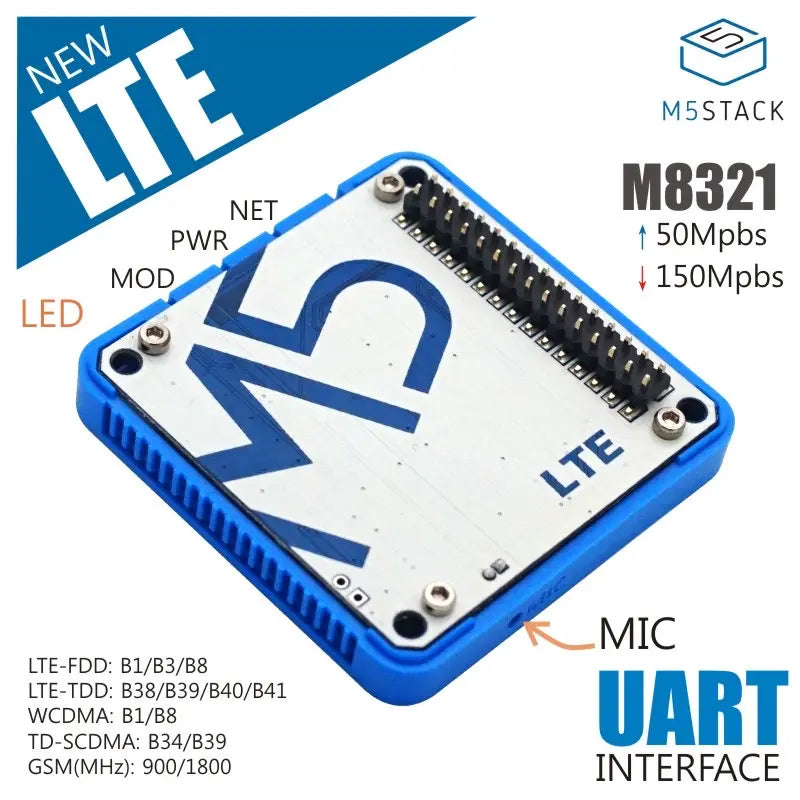

This is a wireless communication module with integrated M8321 module that released by China Mobile, provided TD-LTE/FDD-LTE/WCDMA/TD- SCDMA/GSM/GPRS/EDGE Frequency Band and LCC+LGA package type.
This product is EOL now, we've released the updated version COM.LTE Module(SIM7600G) which is fully compatible with this product.
The LTE M8321 module has plentiful of integrated Internet protocols, field standard interface and functions.
Supported by the most popular operation systems such as WindowsXP, Windows7, Windows8, Windows10, Linux and Android USB driver.
In the LTE-4G module scheme, we added more hardware resources, 1 reserved speaker solder panel, 3 LEDs, exported USB interface, double antenna is allowed.
M8321 is 4V power input, so in the hardware of LTE-4G module, we added a Bidirectional Voltage-Level Translator (TXS0104E), to switch the power supply to 4V.


In telecommunication, Long-Term Evolution (LTE) is a standard for wireless broadband communication for mobile devices and data terminals, based on the GSM/EDGE and UMTS/HSPA technologies. It increases the capacity and speed using a different radio interface together with core network improvements.
M5Stack Fire has occupied GPIO16 / 17 to connect with the PSRAM by default, it's conflict with TXD / RXD (GPIO16, GPIO17) of LTE module. Therefore, when using the LTE module with the M5Stack Fire, you might have to cut the TXD and RXD from LTE module and wire fly to another set of UART pin
Product Features
Product Feature:
- Double Antenna
- Resolved Speaker on board(I2S)
- Power Input: 5V
- Serial Communication: Uart2 16/17
- M8321
- Tem:-40°C ~ + 85°C
- Frequency Band:
- LTE-TDD:B38/B39/B40/B41
- LTE-FDD:B1/B3/B8
- TD-SCDMA:B34/B39
- WCDMA:B1/B8
- GSM(MHz):900/1800
- Data Transmit:
- LTE speed: (Mbps) LTE-FDD 50(UL)/150(DL) LTE-TDD 50(UL)/100(DL)
- HSPA+ speed: (Mbps) 5.76(UL)/21.6(DL)
- TD-SCDMA speed: (Mbps) 2.2(UL)/2.8(DL)
- EDGE speed: (Kbps) 384(UL)/384(DL)
- GPRS speed: (Kbps) 85.6(UL)/85.6(DL)
- SMS supported PDU/TEXT mode
- Network Protocol: IPV4/IPV6/TCP/PPP/UDP/FTP/HTTP/NTP
- Consumption:
- 17uA@Poweroff
- 3mA@Sleep
- 45mA@Idle
Include
- 1x Antenna
- 1x LTE module
Applications
- M2M industrial
- Vehicle-mounted
- Video
- Security
- CPE
- Router
- POC
Specification
Resources | Parameter |
Net weight | 18g |
Gross weight | 29g |
Product Size | 54.2*54.2*12.8mm |
Package Size | 60*57*17mm |
