- PRODUCT DETAILS

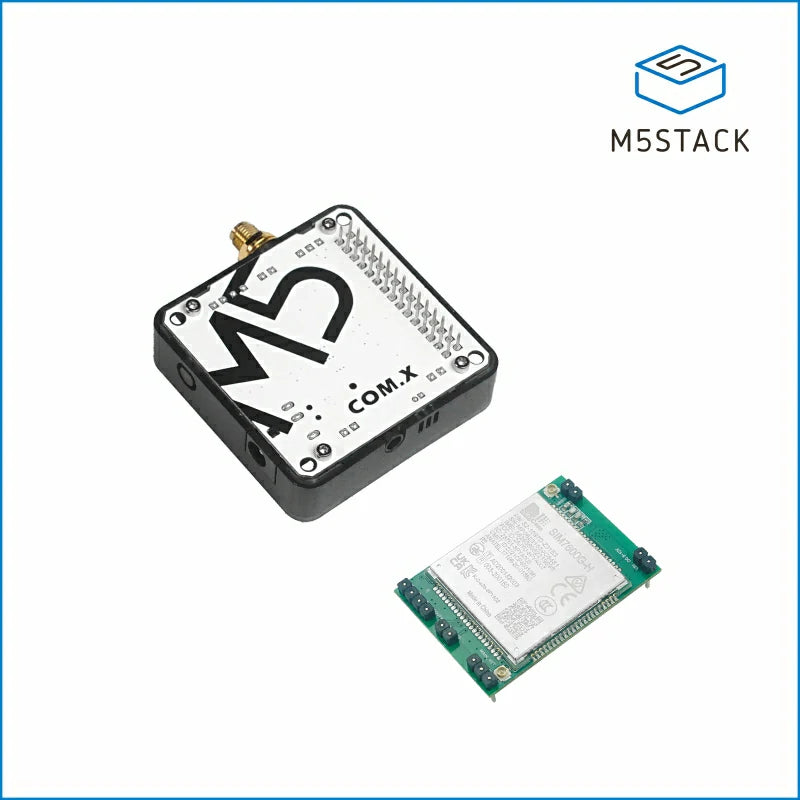

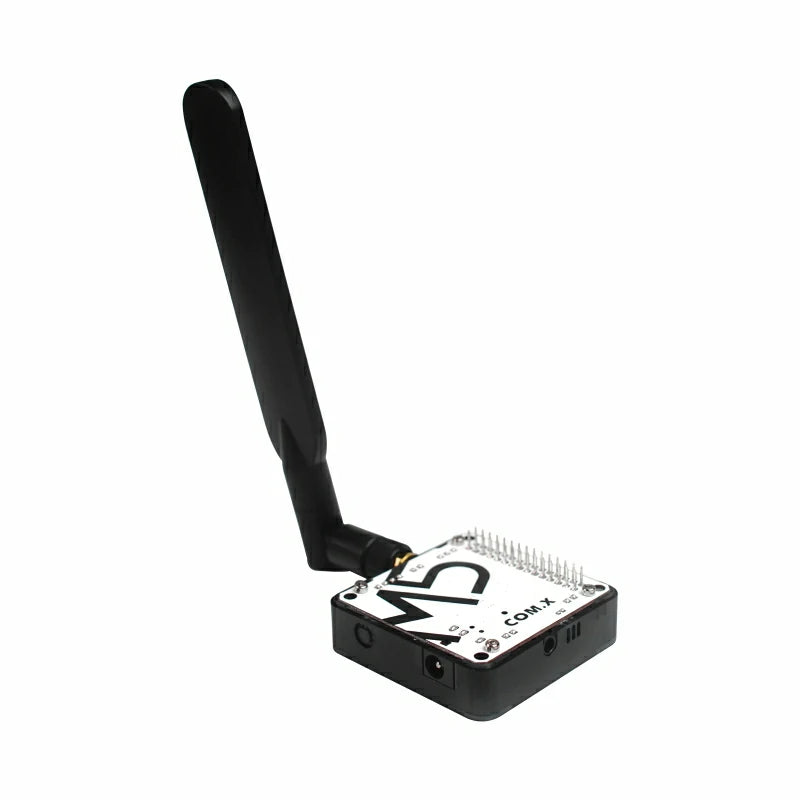

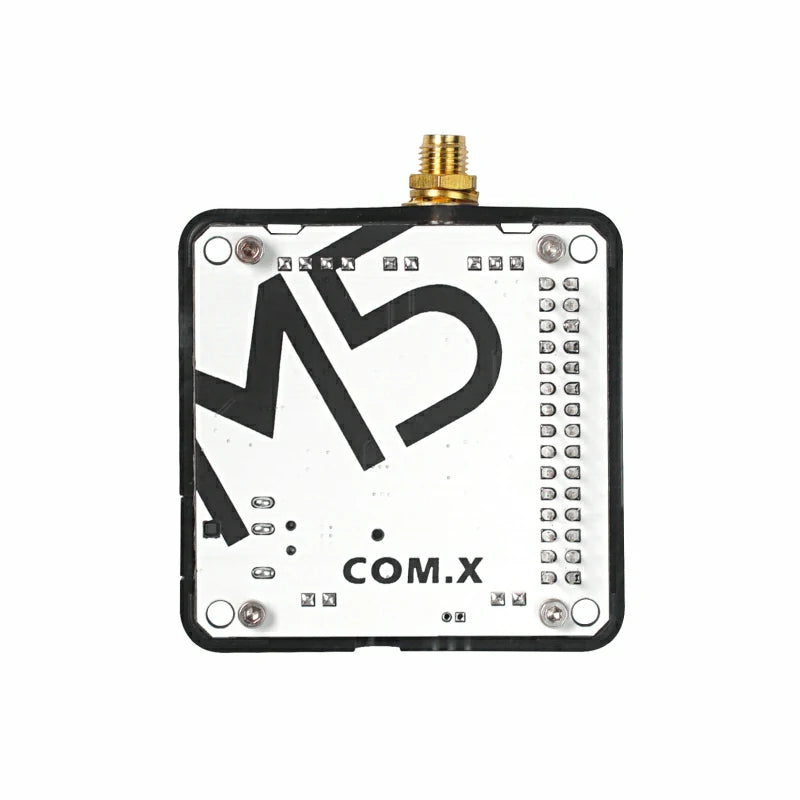

COM.LTE(4G) is a stackable multifunctional LTE communication module, built-in LTE communication module SIM7600G, supports LTE-TDD/LTE-FDD/WCDMA and GSM frequency bands, supports LTE.CAT4 (downlink speed is 150Mbps), supports voice calls SMS with SMS.
It has stable performance, small appearance, high cost performance, and can realize the transmission of SMS and data information with low power consumption. The module has a DC power input and can provide 5V-12V power supply through an external power supply.

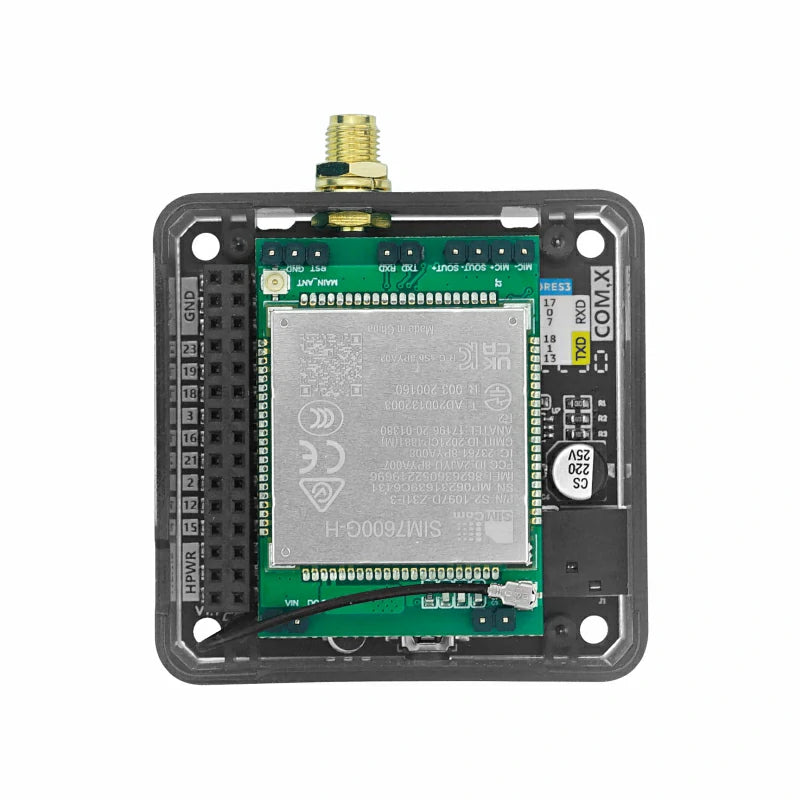

In order to facilitate the user to configure the pin, the DIP switch is used to set the pin. The onboard microphone and 3.5mm headphone jack support the insertion of headphone with microphone. This module is especially suitable for scenarios that require high-speed network connections, such as video calls, drone data transmission, industrial Internet of Things, etc.
When used with the FIRE main control, due to the PSRAM pin conflict, please switch the DIP switch pins of the module base to TX(0/13), RX(5/15), and the device can use USB/ External DC is used for power supply.
When used with Core2 series main control, due to the different order of the base pin array, COM.X base pins TX(16), RX(17) correspond to the actual pins TX(14), RX of the Core2 main control (13) The equipment needs to use external DC for power supply.
Note: When using the CORE2 or CORE2-FOR-AWS main control to drive the module, please use the DC power input of the base and set the power mode to input mode (refer to the code below), otherwise it will not start normally //mbus_mode_t: //kMBusModeOutput: Use USB or battery power //kMBusModeInput: Use external power supply 5V, or DC interface M5.begin(true, true, true, false, kMBusModeInput); //Initialize Serial according to the actual connected pins Serial2.begin(115200, SERIAL_8N1, 13, 14);

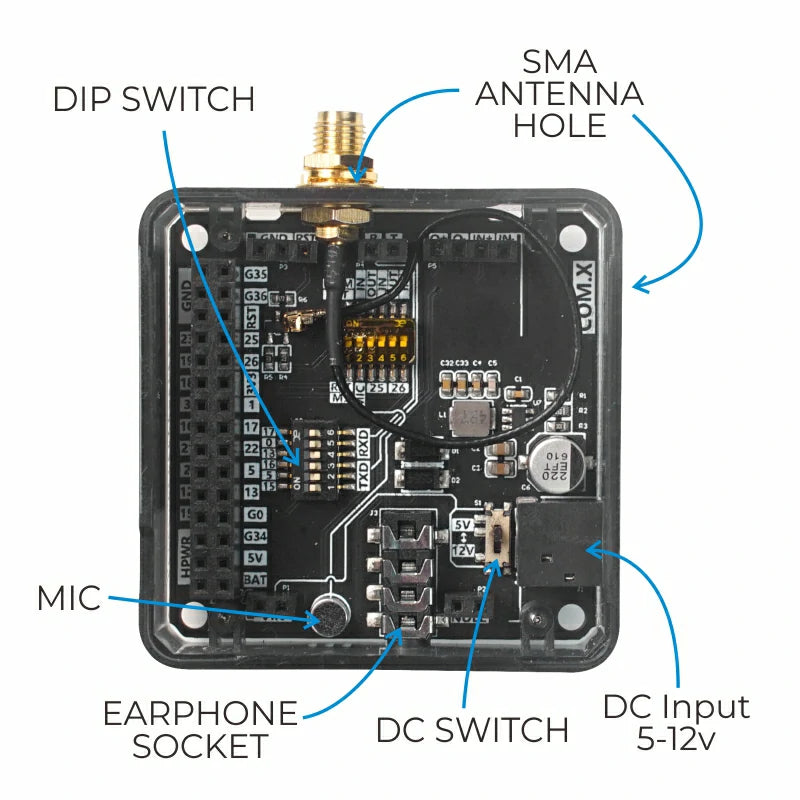

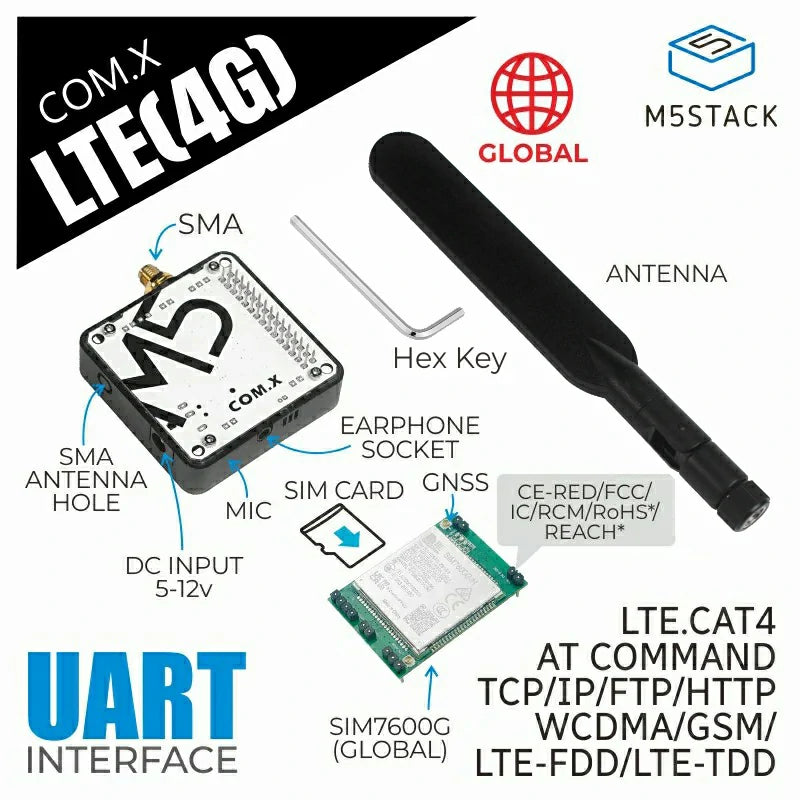

The module base has a DC power input interface. Please strictly follow the input range (5-12V) to prevent damage to the module when using this interface to connect to the power supply. The internal power DIP switch can adjust the voltage level of the internal terminal VIN to adapt to different modules.
- Stackable design
- Support voice calls, SMS text messages, cellular data transmission
- Independent external power supply
- Built-in microphone
- AT command control
- SIM card type: MicroSIM
- Status signal: two LED indicators
- External antenna: SMA antenna
- Serial communication: UART 115200bps
- LTE-TDD B34/B38/B39/B40/B41
- LTE_FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/B19/B20/B25/B26/B28/B66
- WCDMA B1/B2/B4/B5/B6/B8/B19
- GSM/GPRS/EDGE 850/900/1800/1900MHz
Data transmission speed:
- TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS
- 1x COM.LTE module

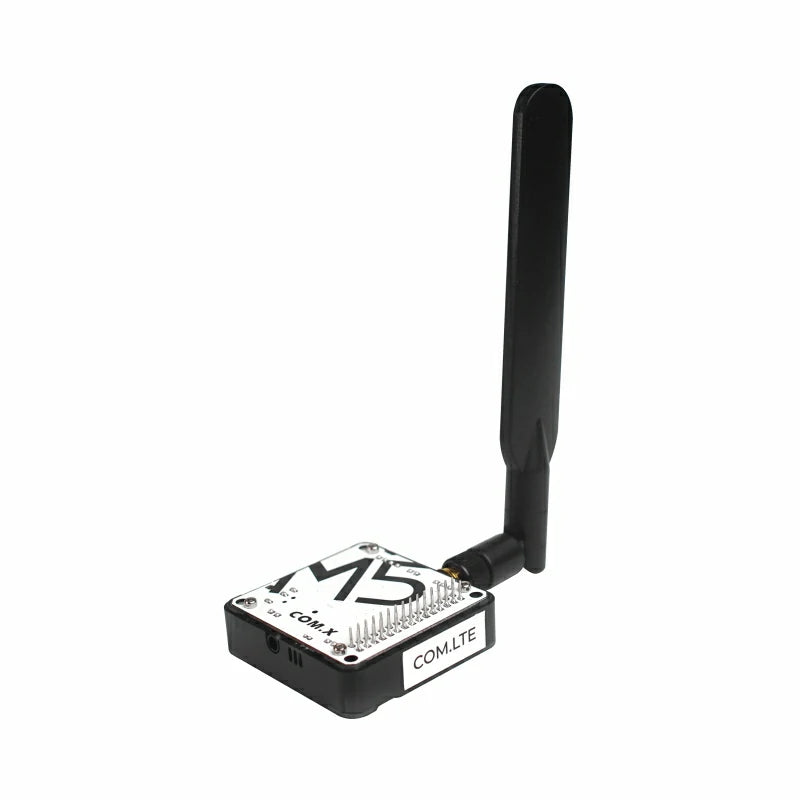

- 1x SMA antenna
- Remote meter reading system
- Automatic Web Spider SMS-notifier
- Wireless communication
- M2M industrial
|Network protocol||TTCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS etc.|
|DC interface specifications||5.5mm|
