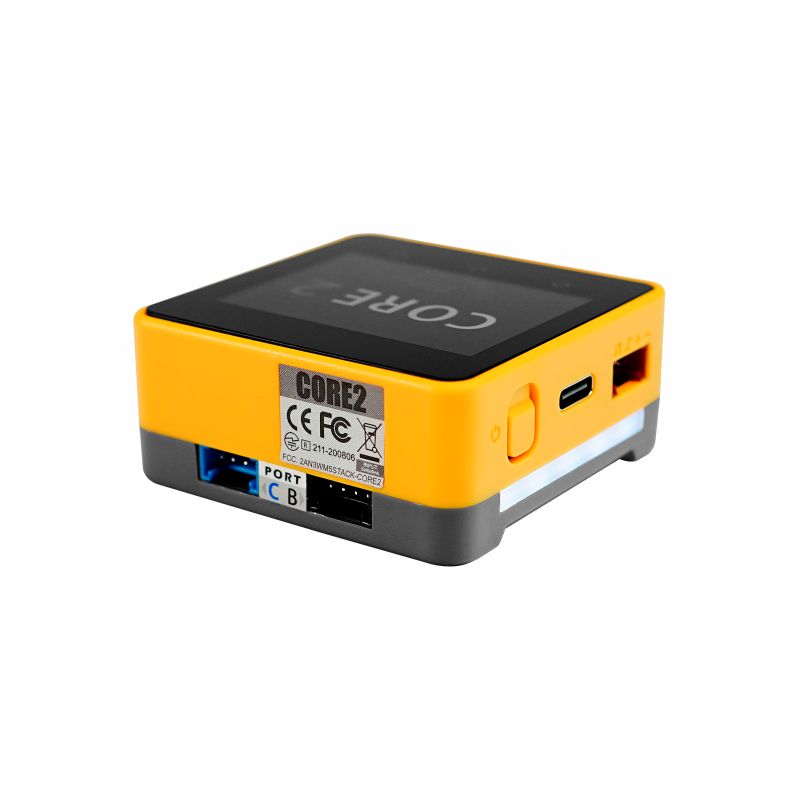

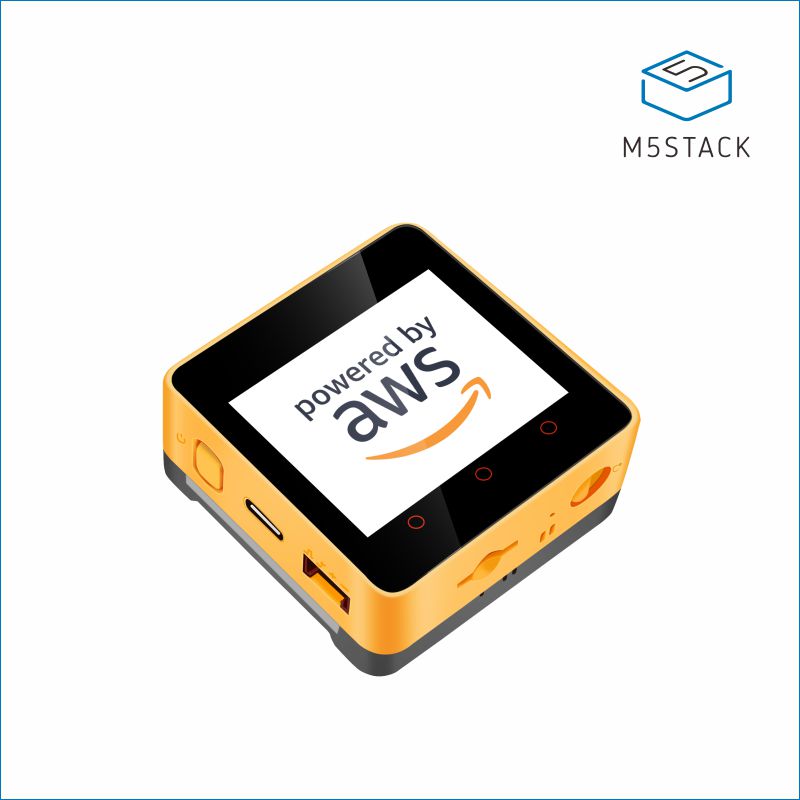

M5Stack Core2 ESP32 IoT Development Kit for AWS IoT Kit

SKU:K010-AWS

Regular price $49.90

10+ In Stock

Shipping calculated at checkout.
PRODUCT DETAILS

Description

Core2 for AWS is the reference hardware kit for AWS IoT Kit – a prescriptive learning program from AWS which makes it easy and cost effective to learn how to build IoT applications using AWS services. It comes equipped with a Microchip ATECC608 Trust&GO pre-provisioned secure element, in addition to the existing features of the standard M5Stack Core2 and M5GO Bottom2. The Core2 for AWS is a feature rich, plug and play extensible, and secure hardware kit for learning and building a wide range of IoT applications.

To learn more about the Core2 for AWS IoT Kit program, visit https://core2-for-aws-docs.m5stack.com.

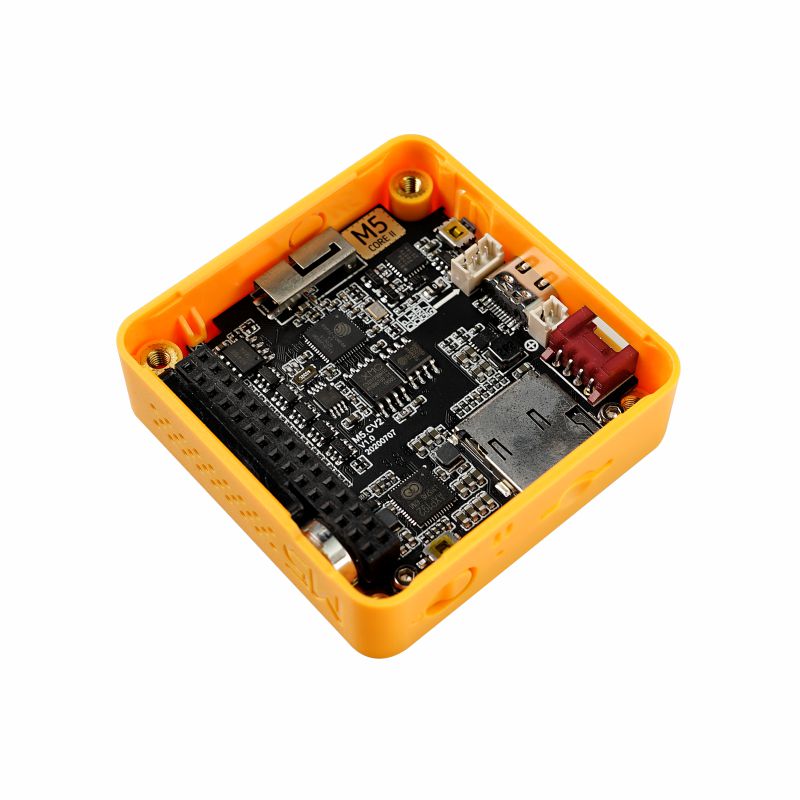

The Core2 for AWS comes with an ESP32-D0WDQ6-V3 micro controller, which features dual Xtensa 32-bit LX6 cores and a main frequency up to 240Mhz, with 2.4GHz Wi-Fi. Comes with 8MB PSRAM and 16MB flash on board.

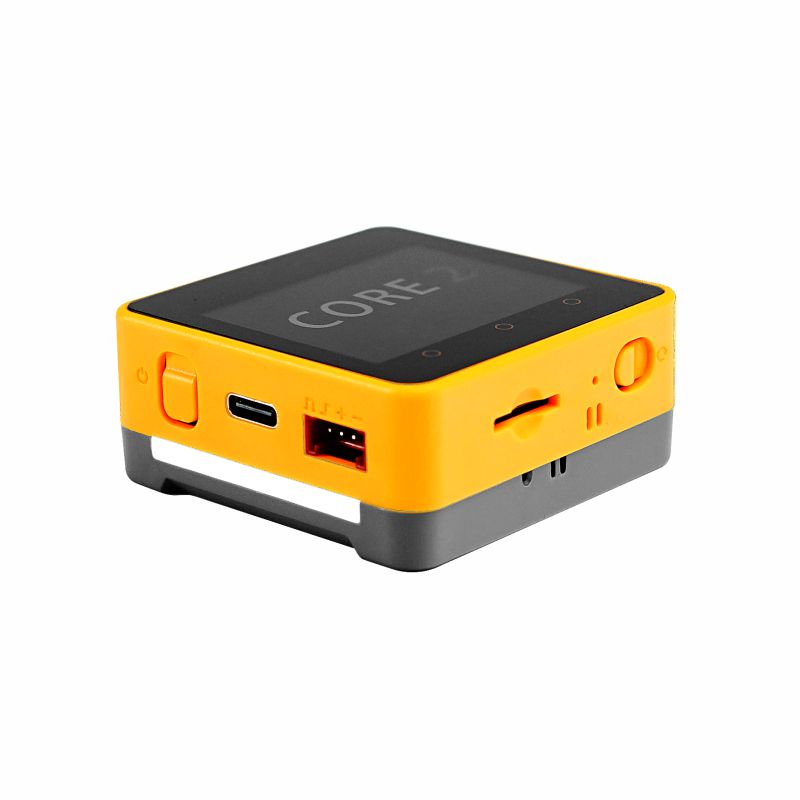

The main unit is equipped with a 2.0-inch capacitive touch screen that provides a smooth and responsive human machine interface. The built-in vibration motor can be used to provide haptic feedback or alerts. Onboard RTC module provides accurate time of day. Power is supplied through an AXP192 power management chip, to monitor and control power attributes of the device. The included TF card slot supports microSD cards up to 16GB. The on-board speaker is paired with an I2S digital audio interface power amplifier chip to reduce signal distortion and provide clearer audio output. There are independent physical power and reset (RST) buttons on the sides of Core2 for AWS, with 3 programmable touch buttons on the front of the screen.

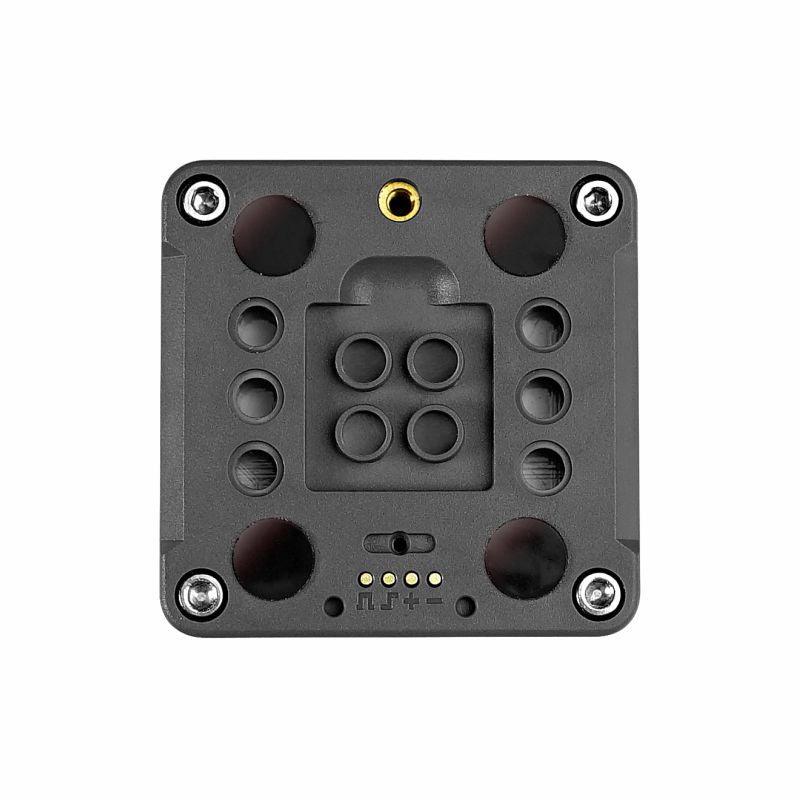

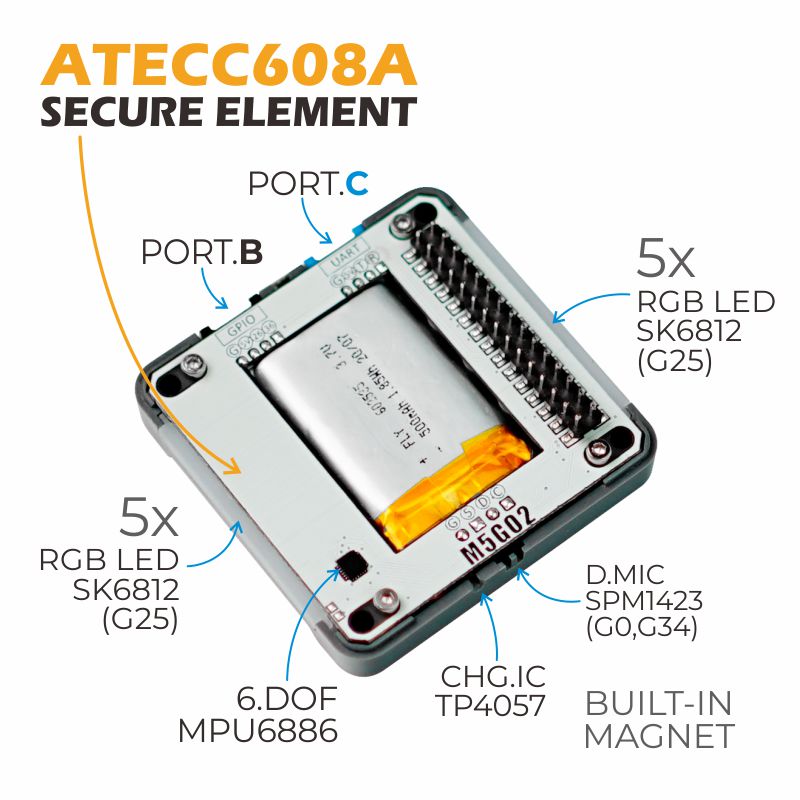

The M5GO Bottom2 for AWS adds additional features and security for IoT applications. The MPU6886 provides 6-axis internal IMU and temperature, the SPM1423 digital microphone captures audio for recording or creating voice applications, 10 individually programmable RGB LEDs via SK6812 to create customized and animated light effects, a 500mAh lithium-ion battery provides power on the go, the onboard Microchip ATECC608 Trust&GO crypto-authentication chip is pre-provisioned with secure keys to simplify connectivity to AWS and accelerate cryptographic computation.The CP2104 chip interface is reserved on the PCB of Core2 for AWS to interface with the lithium battery.

For all questions or issue regarding this device, pls visit our forum: https://forum.m5stack.com/category/41/core2-for-aws

Power Management

Operations:
Power on: One click the power button on the left
Power off: Long press the left power button for 6 seconds
Reset: Click the RST button on the bottom side

Extensions

The vibration sensor of M5Core2 and M5 Base series are incompatible in mechanical design. Please do not stack them together.

Some of the screen edges will have touch non-linearity problem, you can try to use M5Tool to upgrade the screen firmware to solve this problem.

Product Feature

  • Reference hardware kit for use with AWS IoT Kit
  • ESP32-D0WDQ6-V3, supports 2.4GHz Wi-Fi
  • 16M Flash, 8M PSRAM
  • Built-in ATECC608 hardware encryption chip
  • Capacitive touch screen
  • Built-in PDM microphone, power indicator, 6-Axis IMU, vibration motor, I2S codec, Amplifier, Speaker, RTC, power button, reset button, 10 x RGB LEDs
  • TF card slot (support up to 16GB)
  • Built-in 500mAh Lithium ion battery, equipped with power management chip
  • Validated through AWS Device Qualification Program
  • Compatible with multi-platform development:

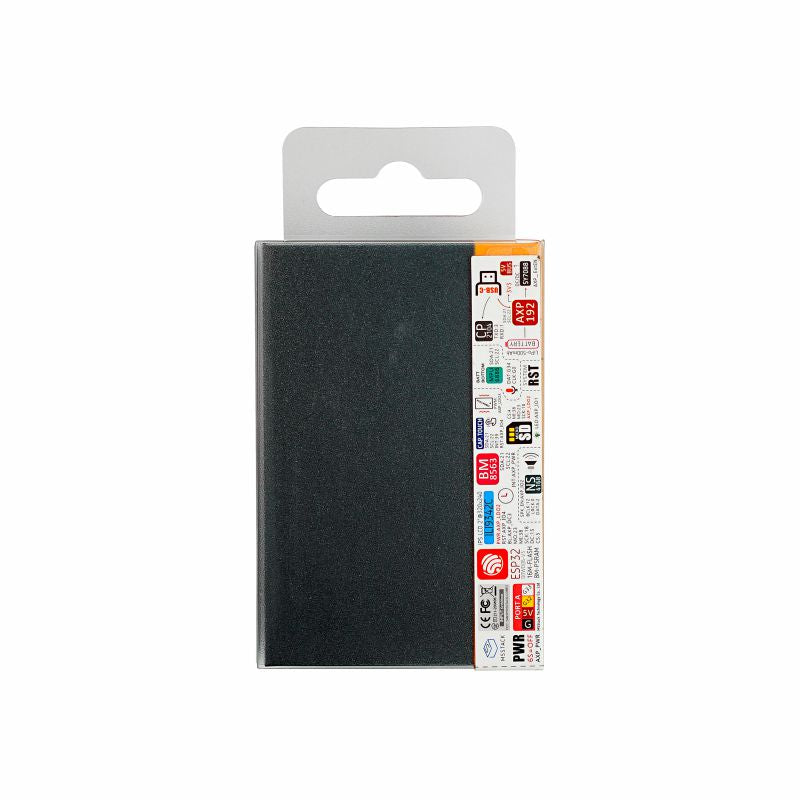

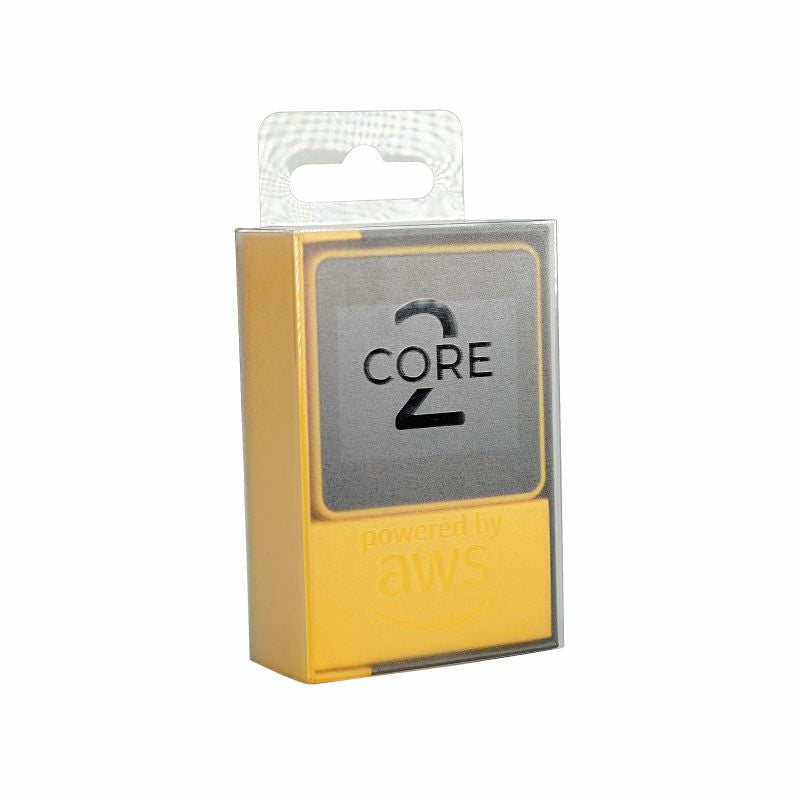

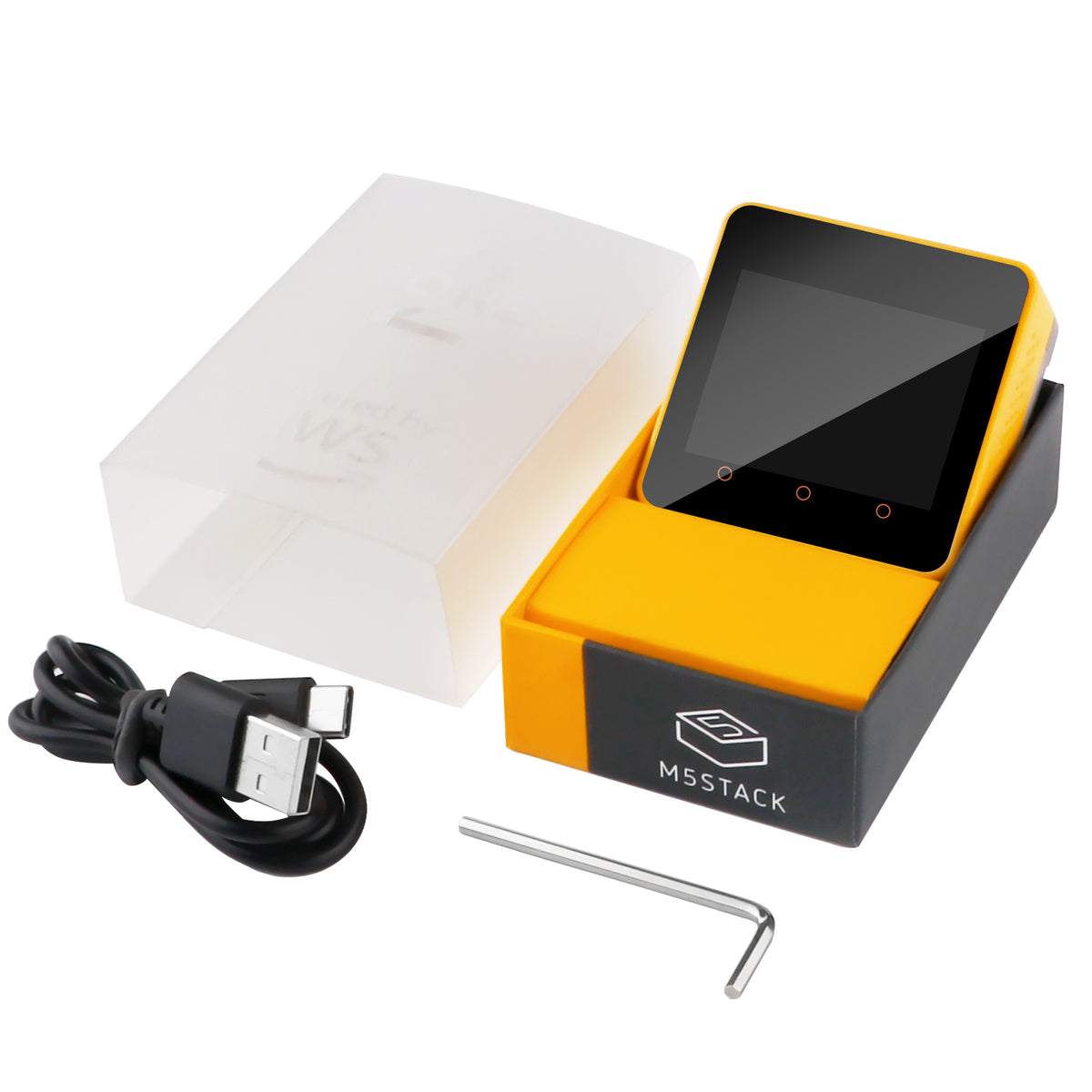

Include

  • 1x M5Stack Core2
  • 1x M5GO Bottom2 for AWS
  • 1x Type-C USB (50cm)
  • 1x HEX KEY

Application

  • Internet of Things Controller
  • STEM Education
  • DIY projects

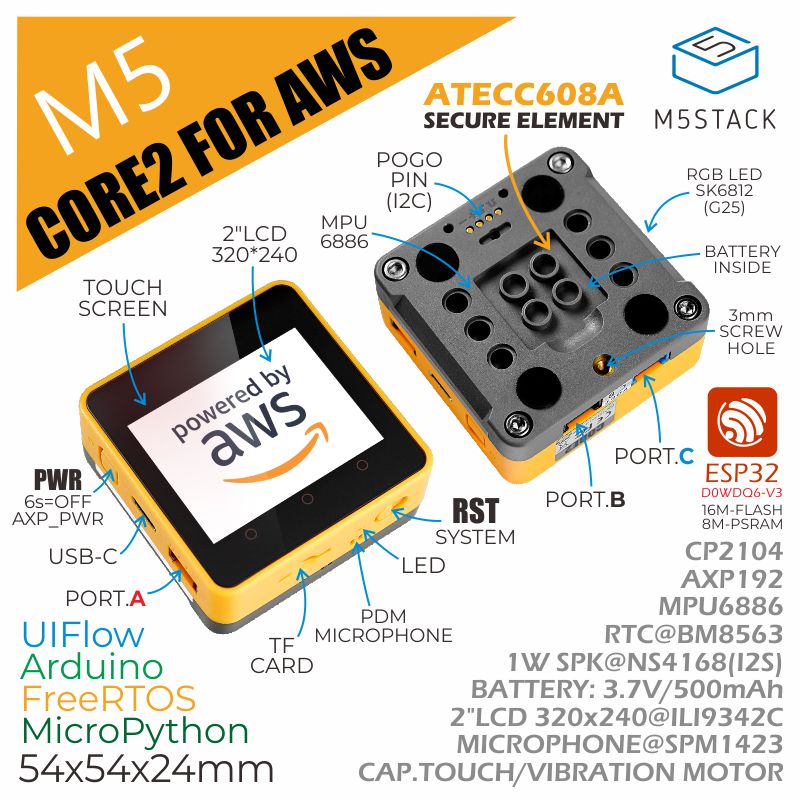

Specification

Resources Parameter
ESP32-D0WDQ6-V3 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash 16MB
PSRAM 8MB
Hardware encryption chip ATECC608B-TNGTLSU-G (addr 0x35)
Input voltage 5V @ 500mA
Host interface TypeC x1, POGO PIN x1, I2C x1, GPIO x1, UART x1
Programmable LED light SK6812*10
Button Power button, RST button, virtual screen button * 3
Vibration reminder Vibration motor
IPS LCD screen 2.0"@320*240 ILI9342C
Capacitive touch screen IC FT6336U
Speaker 1W-0928
Microphone SPM1423
I2S power amplifier NS4168
IMU MPU6886
RTC BM8563
PMU AXP192
USB chip CP2104
DC-DC boost SY7088
TF card slot Support up to 16G
Lithium battery 500mAh @ 3.7V
Antenna 2.4G 3D antenna
Working temperature 32°F to 104°F (0°C to 40°C )
Net weight 101g
Gross weight 108g
Product size 54 x 54 x 24mm
Package size 90 x 60 x 27mm
Shell material Plastic (PC )

LEARN AND DOCUMENTS

  • DOCUMENTS
  • This tutorial will show you how to control Core2 for AWS devices through the UIFlow graphical programming platform
    This tutorial will show you how to program and control Core2 for AWS devices through Arduino IDE
    This tutorial will show you how to control Core2 for AWS devices through Micropython programming
    This tutorial will show you how to control Core2 for AWS devices through AWS FreeRTOS programming
    It is a device that assists in verifying body temperature information so that people can meet with ease at the Corona disaster.
