M5Stack Core2 for AWS Kit v1.3

Description

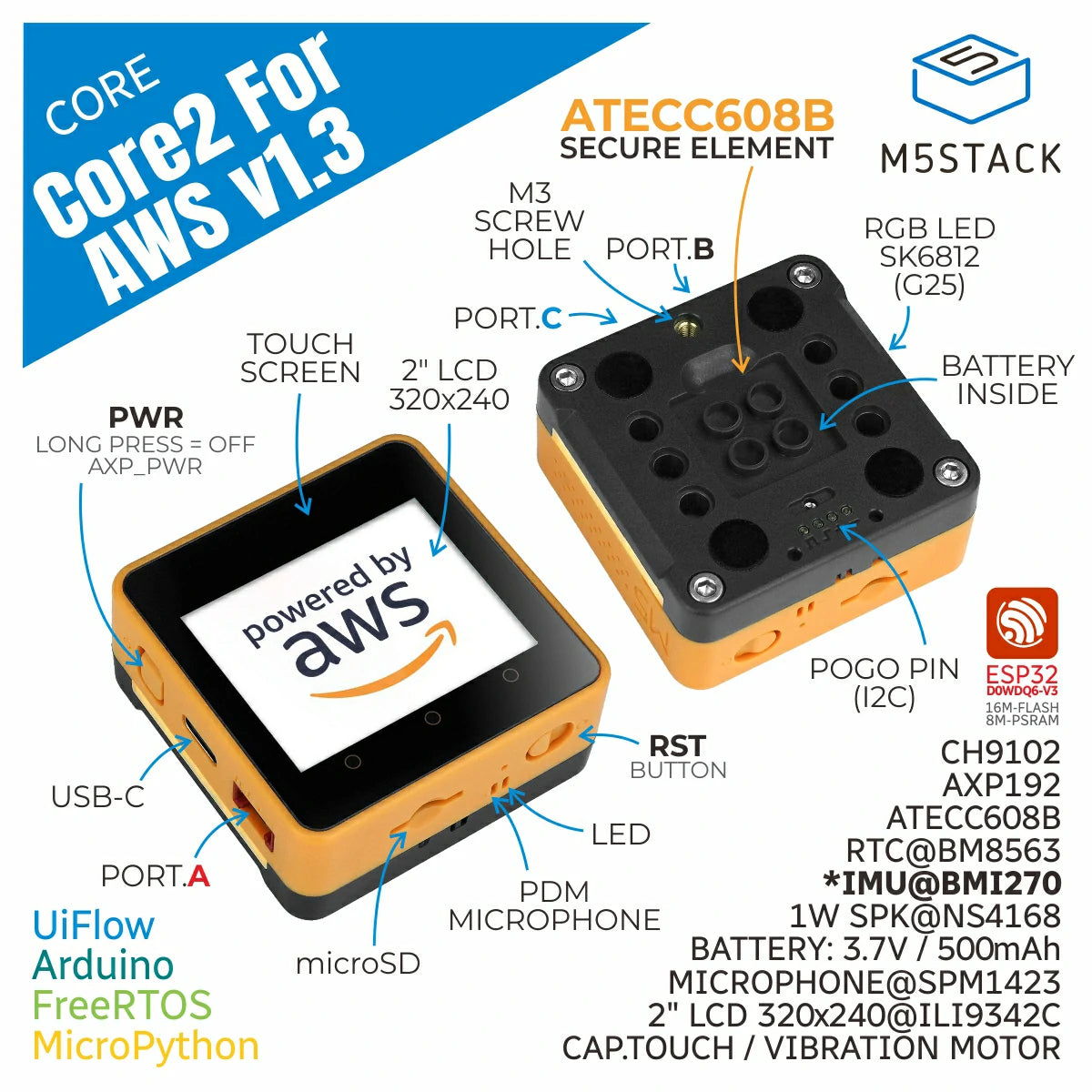

Core2 For AWS v1.3 is a development kit designed for AWS IoT learning and security projects, consisting of the M5Stack Core2 main controller and the Base M5GO Bottom2 v1.3 expansion base with an integrated cryptographic chip.

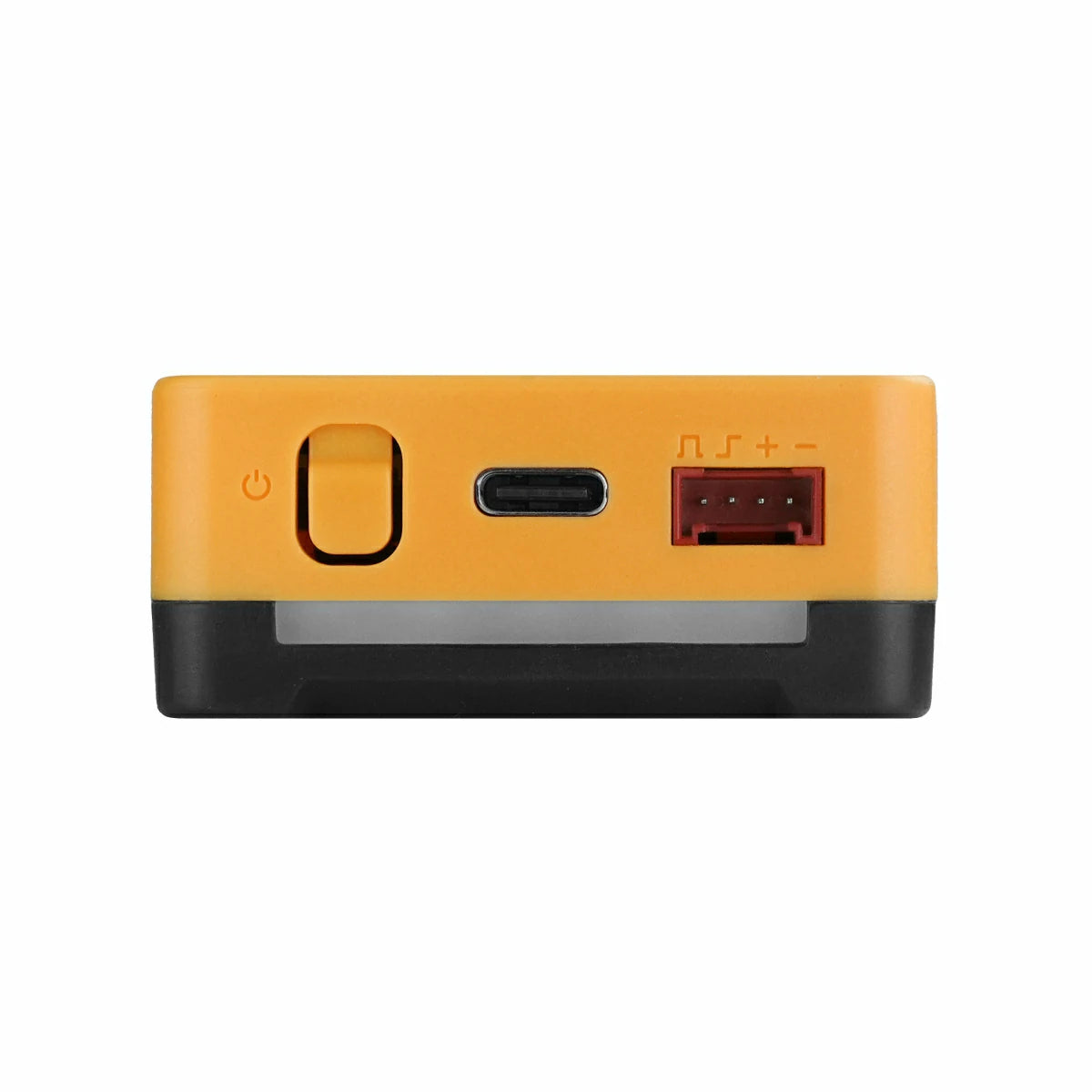

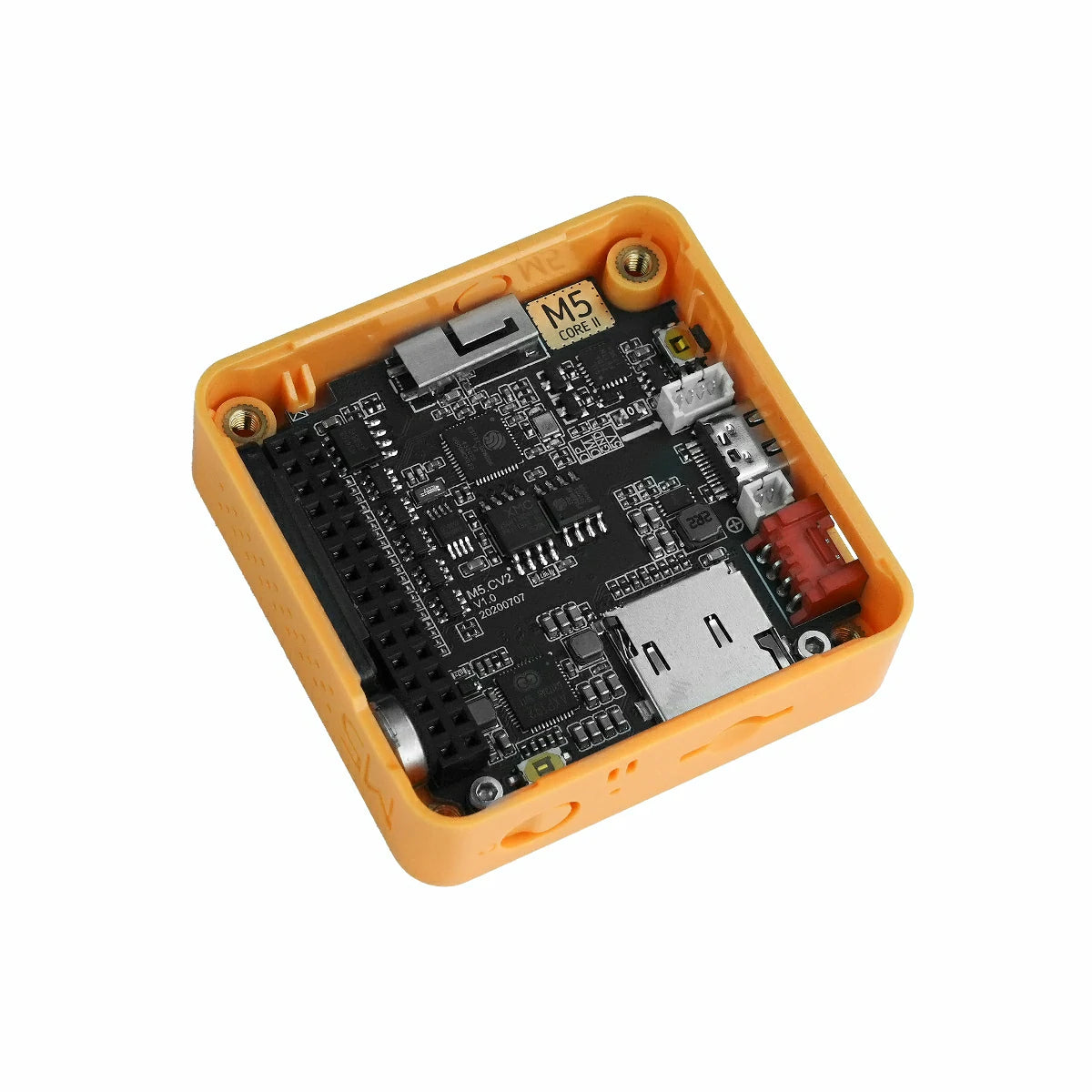

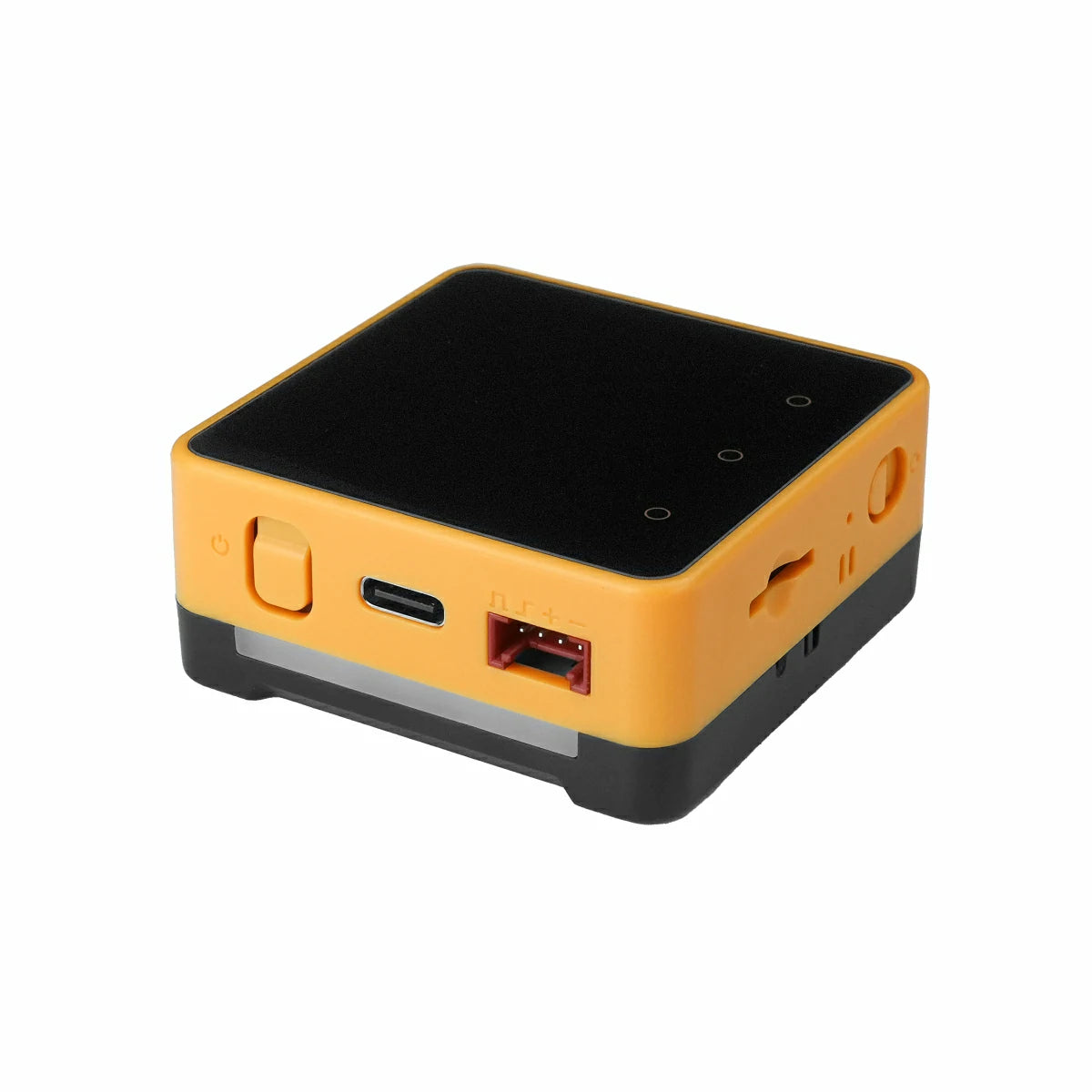

The main controller is built around the dual-core ESP32-D0WDQ6-V3 running at 240 MHz, equipped with 16MB Flash, 8MB PSRAM, and a 2.0-inch capacitive touchscreen with Wi-Fi connectivity. It features a built-in vibration motor, an RTC module, an AXP192 power management unit, and a green power indicator LED. A TF card slot is provided, along with an I2C audio amplifier and speaker. A power button is located on the left side, a reset button on the bottom, and three virtual programmable buttons on the front panel.

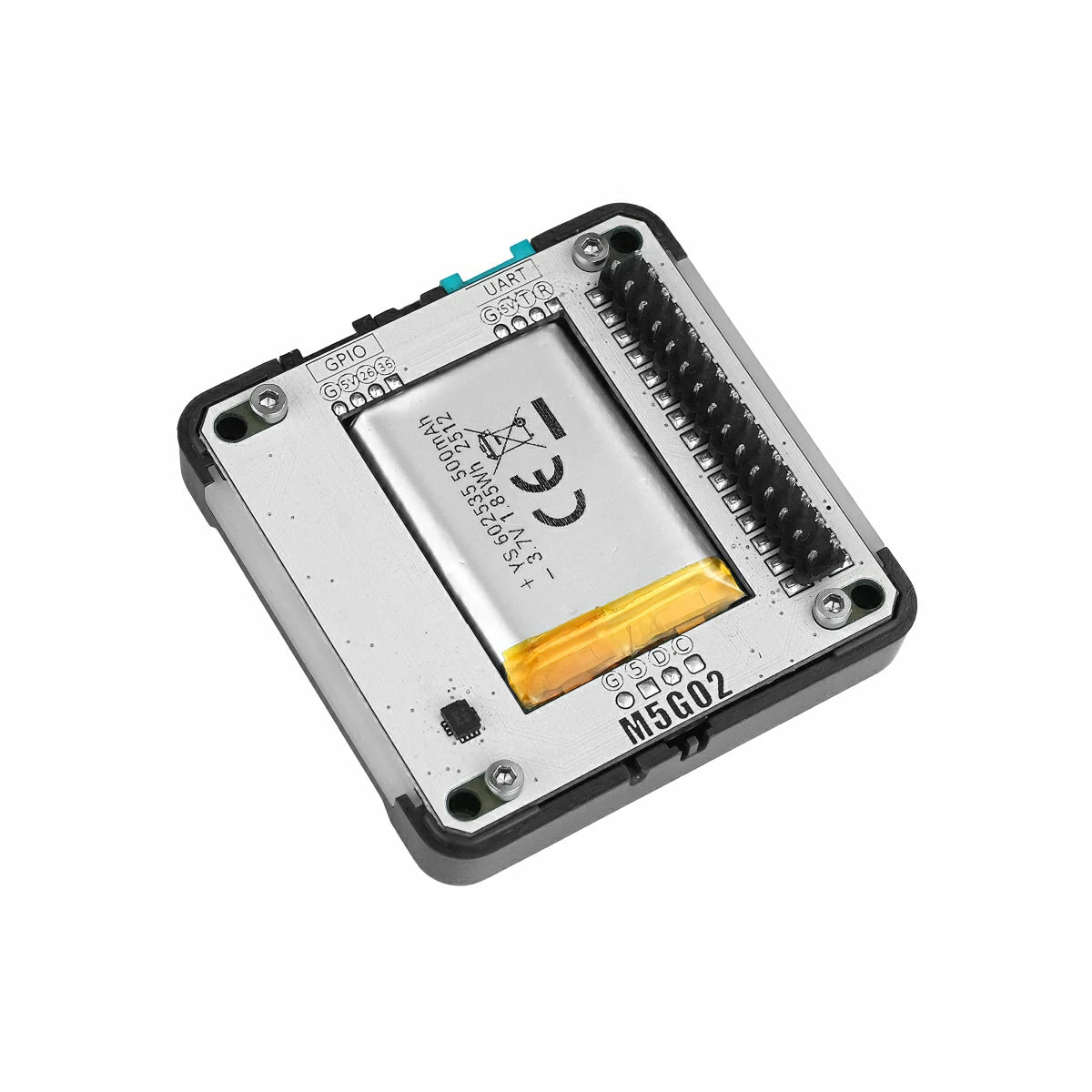

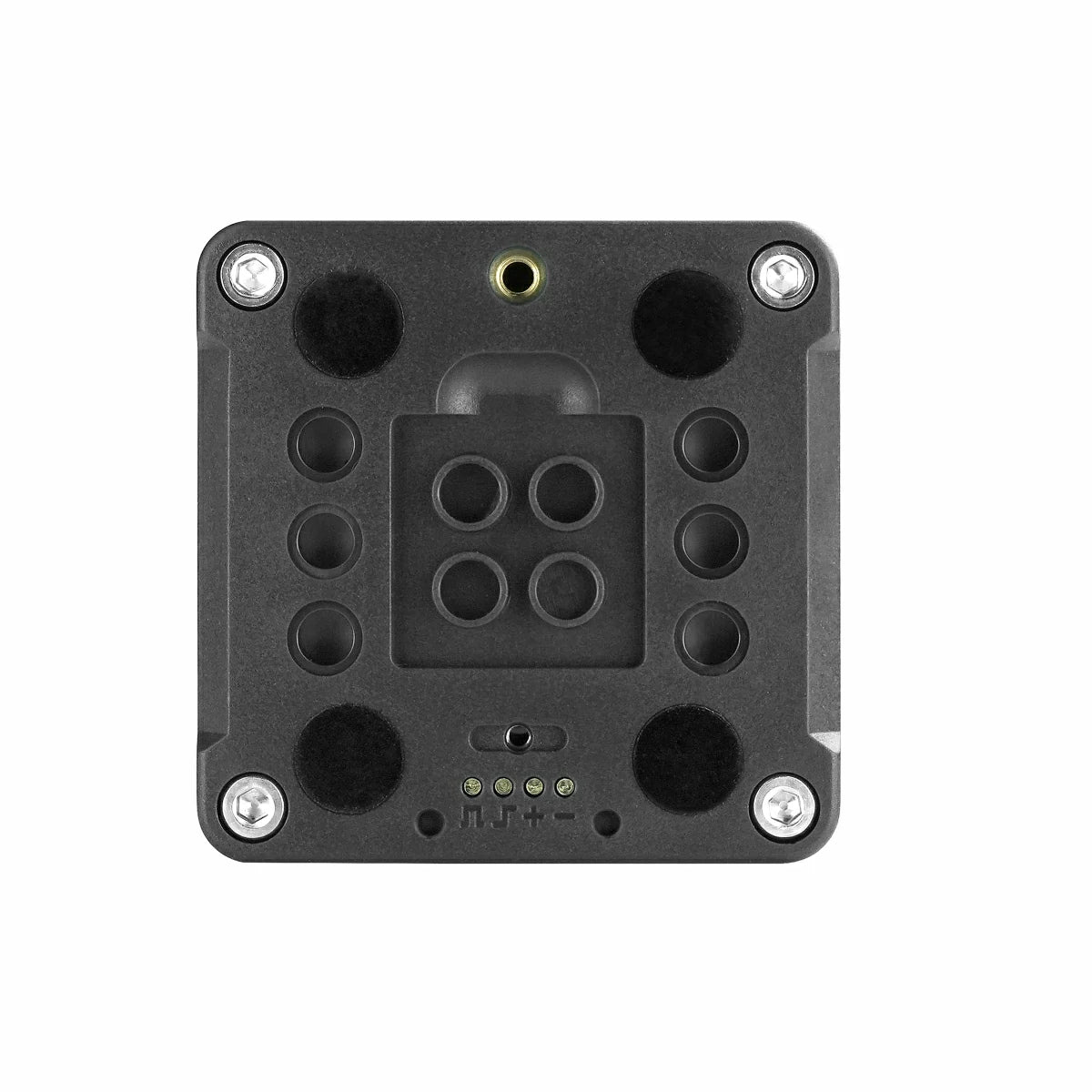

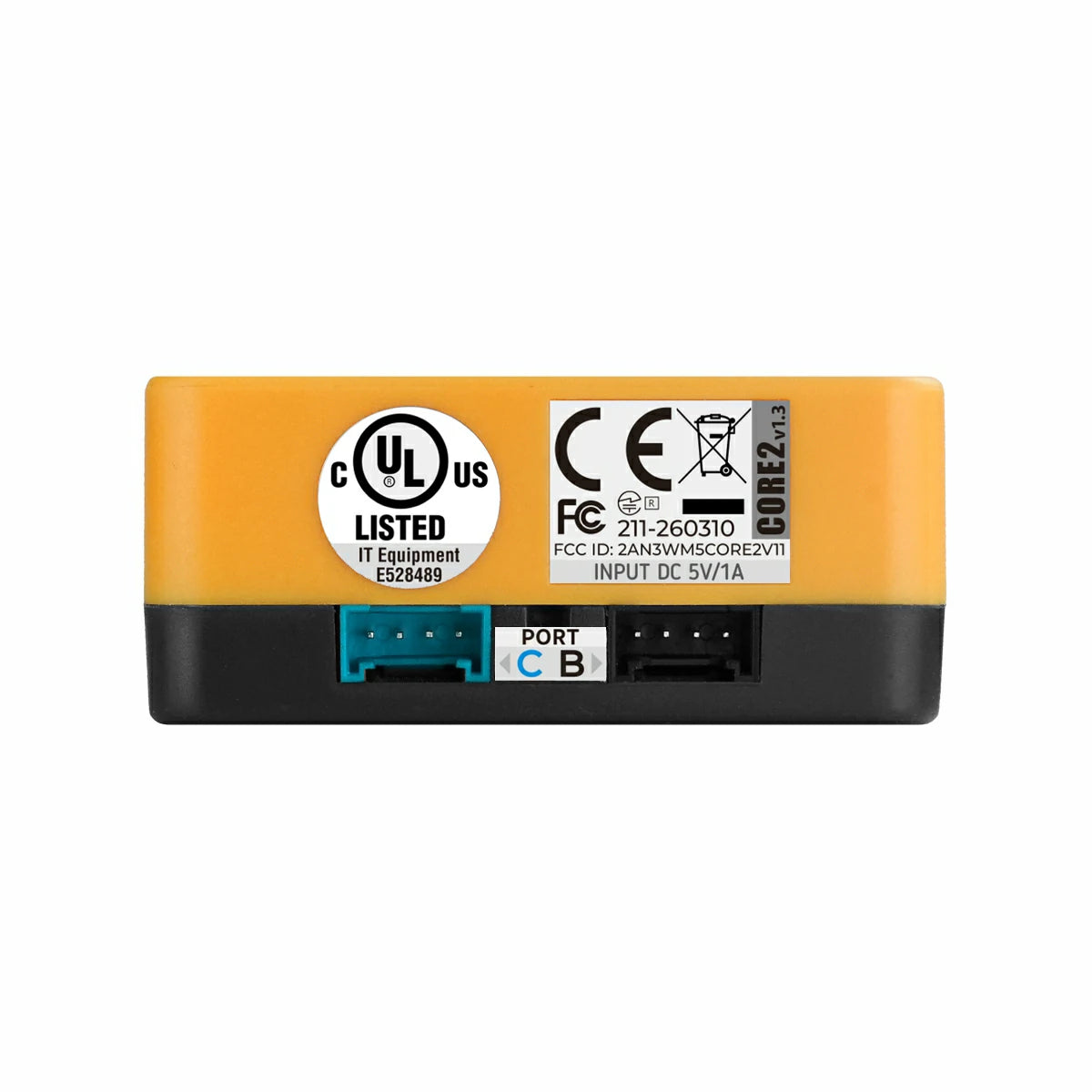

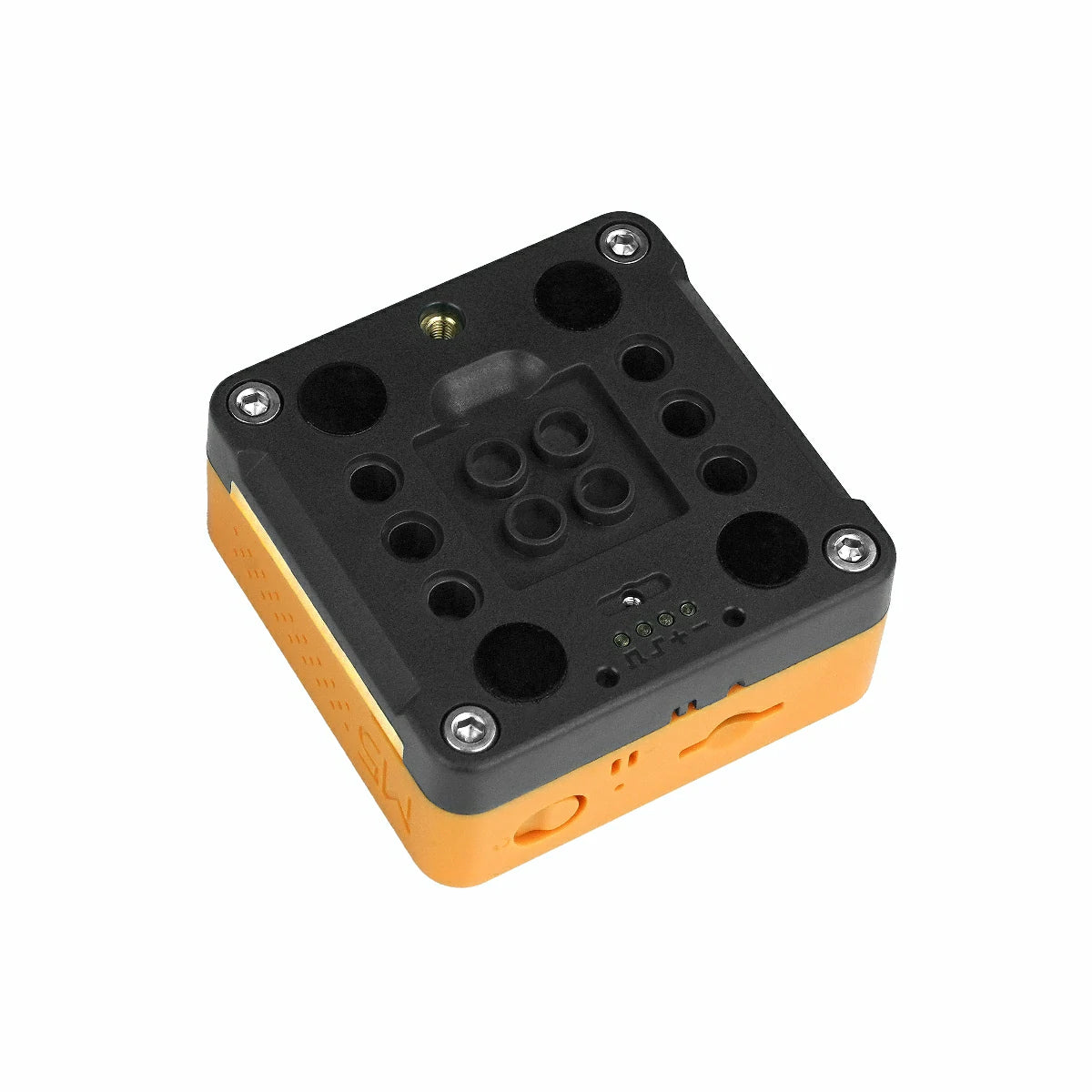

The expansion base integrates an ATECC608 cryptographic chip, a BMI270 6-axis IMU, an SPM1423 digital microphone, and a 500mAh Li-ion battery. Two HY2.0-4P ports supporting ADC, DAC, and UART are provided. Ten SK6812 RGB LEDs with frosted light guides are distributed on both sides. The bottom features a Pogo Pin magnetic charging port with a built-in TP4057 charging IC, which also exposes the I2C bus. The base includes built-in magnets and LEGO-compatible mounting holes, with reserved footprints for a CP2104 and a Li-ion battery connector for future expansion. It is well-suited for smart home security terminal prototyping, trusted data acquisition at the edge, and cloud data upload.

Note

• The vibration motor built into the M5Core2 physically conflicts with the M5 Base series expansion bases. To prevent device damage, do not stack the M5Core2 with any M5 Base series functional base.

• Some units may exhibit non-linear touch response near the screen edges. You can try upgrading the screen firmware using M5Tool to resolve this issue.

Features

• ESP32-D0WDQ6-V3 main controller
• Built-in ATECC608 hardware cryptographic chip
• 16MB Flash
• 8MB PSRAM
• 2.4 GHz Wi-Fi
• Built-in speaker
• Power indicator LED
• Vibration motor
• RTC clock
• Capacitive touchscreen
• Built-in Li-ion battery
• Independent peripheral expansion board
  • Built-in BMI270 6-axis IMU
  • PDM microphone
• AXP192 power management
• microSD card slot
• HY2.0-4P expansion interface
• Development Platform:
  • UiFlow1
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 x Core2 For AWS v1.3
• 1 x USB Type-C Cable (50cm)
• 1 x Hex Key L-Shape 2.5mm (For M3 Screw)

Applications

• IoT controller
• DIY projects

Specifications
