[EOL] M5GO Lite IoT Development Kit

SKU:K022

Regular price $49.95

EOL

Shipping calculated at checkout.
Description

Description

M5GO Lite is a light pack of M5GO kit, instead of having 6 M5units, M5GO-Lite provides 1 ENV + accessories and the same M5 controller as M5GO. M5GO-Lite is also designed for STEM education. M5GO controller itself is already a full-feathered, highly integrated, upgraded development board(which) provides plenty of hardware resources, such as LCD screen, speaker, Led bar, 16M flash, microphone and more. Light(Last) but not least.

all M5stack development board can be programmed by using Arduino IDE, WebIDE UIFlow, Micropython and Blockly. It greatly simplifies the development process for those projects which require a joint hardware and software solution. Not only does M5stack have far-reaching IoT applications in industry, agriculture, and home, but it also empowers students to learn to code in STEM classrooms.

This product is EOL now, we've released the updated version M5GO IoT Starter Kit which is fully compatible with this product.

Power on/off:

  • Power on: click the red power button on the left

  • Power off: Quickly double-click the red power button on the left

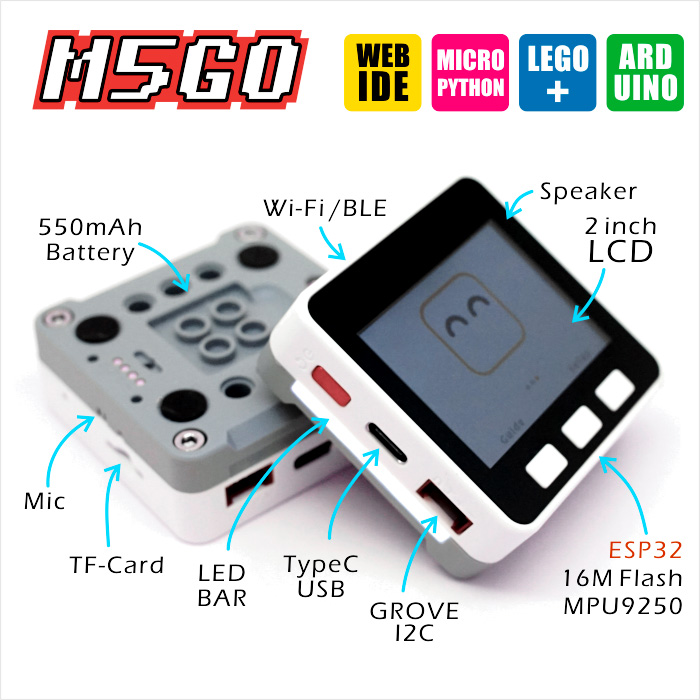

Product Features

  • ESP32-based
  • Built-in Speaker, Buttons,Color LCD(320*240)
  • TF card slot (16G Maximum size)
  • Extendable Pins & Holes
  • M-Bus Socket & Pins
  • Development Platform UIFlow, MicroPython, Arduino

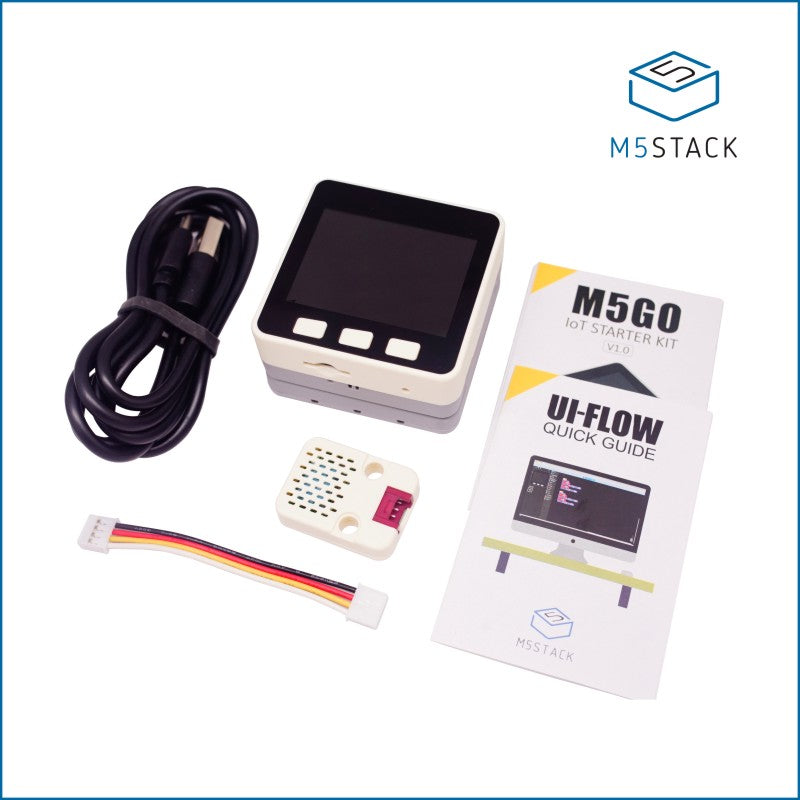

Include

  • 1x M5GO
  • 1x ENV Unit
  • 1x GROVE Cable
  • 1x Type-C USB(20cm)
  • 1x User Manual

Applications

  • Internet of things terminal controller
  • Stem education product
  • DIY creation

Specification

Resources Parameter
ESP32 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash Memory 16MB
Power Input 5V @ 500mA
Port TypeC x 1, GROVE(I2C+I/0+UART) x 1
IPS Screen 2 inch, 320x240 Colorful TFT LCD, ILI9342C, max brightness 853nit
Speaker 1W-0928
MEMS BMM150 + MPU6886
MIC Analog mic
Button Custom button x 3
Battery 500 mAh @ 3.7V
Antenna 2.4G 3D Antenna
Operating Temperature 32°F to 104°F ( 0°C to 40°C )
Net weight 14g
Gross weight 159g
Product Size 54 x 54 x 21 mm
Package Size 105 x 65 x 40 mm
Case Material Plastic ( PC )
