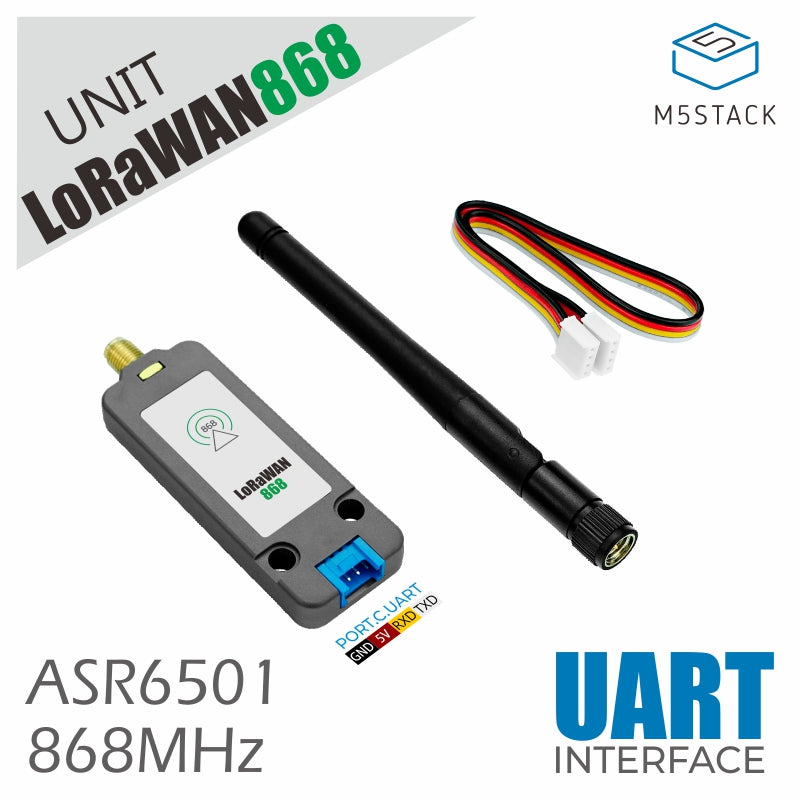

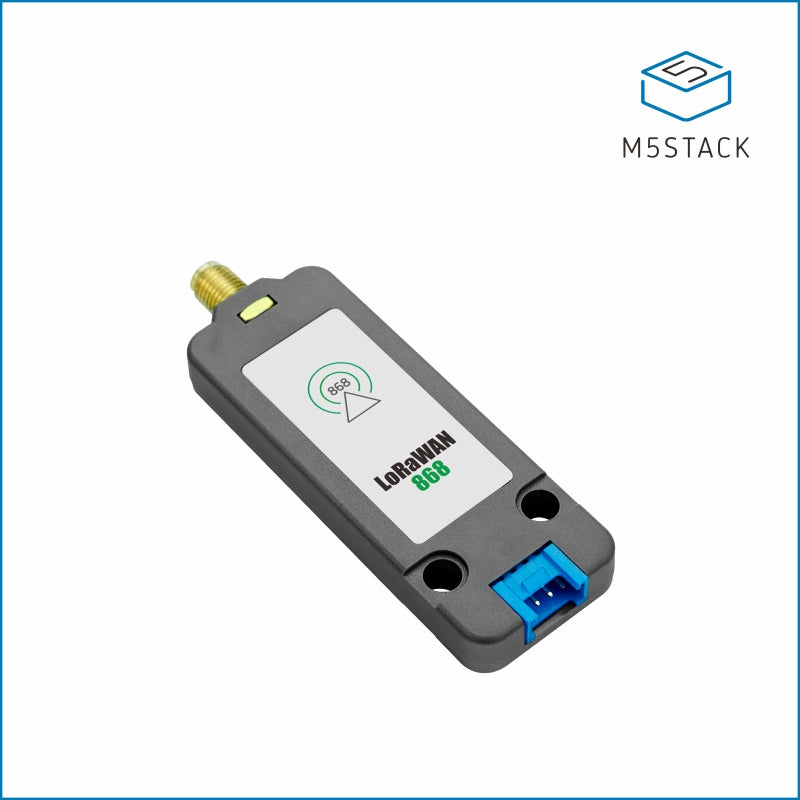

[EOL] LoRaWAN UNIT 868MHz (ASR6501) with Antenna

SKU:U117

Regular price $14.95

EOL

Shipping calculated at checkout.
PRODUCT DETAILS

Description

LoRaWAN868 Unit is a LoRaWAN communication module designed for the 868MHz frequency range. It is developed by M5Stack and provides long-range communication capabilities using the LoRaWAN protocol.

The module is based on the ASR6501 scheme, which offers a combination of low power consumption and high sensitivity. This makes it ideal for energy-efficient applications that require long-distance communication. The LoRaWAN868 Unit integrates the LoRaWAN protocol stack, simplifying the implementation of LoRaWAN communication.

The module utilizes a serial communication interface and can be controlled using the AT command set. This interface allows for easy integration with other devices and provides a convenient means of configuring and controlling the module's functions.

When deployed, the LoRaWAN868 Unit can act as a collection node, connecting to multiple gateways for data collection and management. This enables the module to efficiently gather and transmit data from various sensors or devices to a centralized system.

LoRaWAN868 Unit is well-suited for long-distance, low-power IoT communication applications. Examples include the deployment of environmental monitoring nodes, where the module can transmit sensor data over long distances while operating on low power. This makes it a reliable choice for IoT applications that require efficient and long-range communication.

Product Features

  • ASR6501
  • Operating frequency: 868MHz
  • SMA antenna

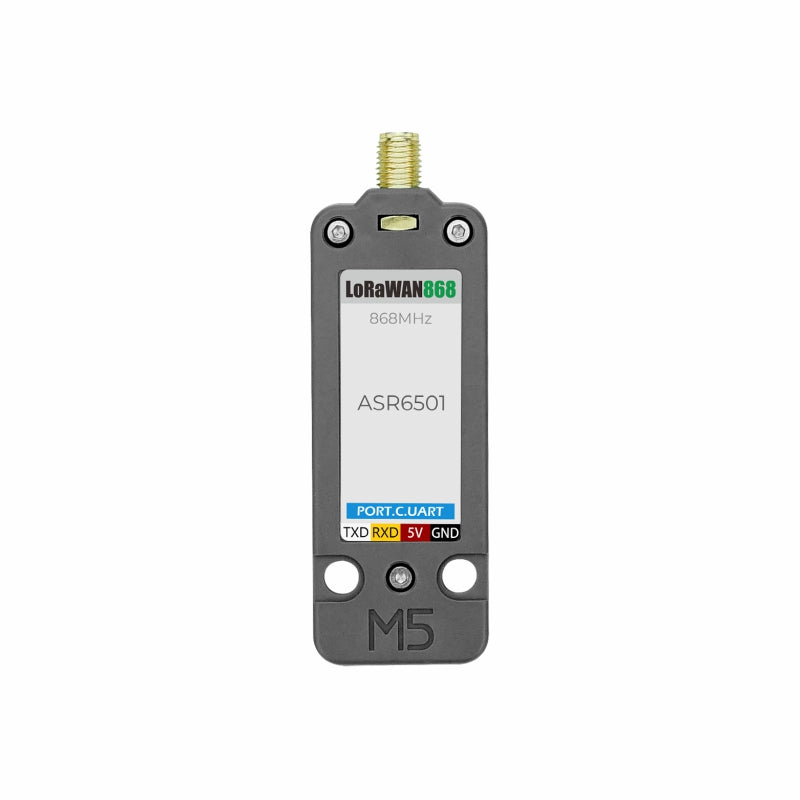

  • Communication interface: UART
  • Command protocol: AT command

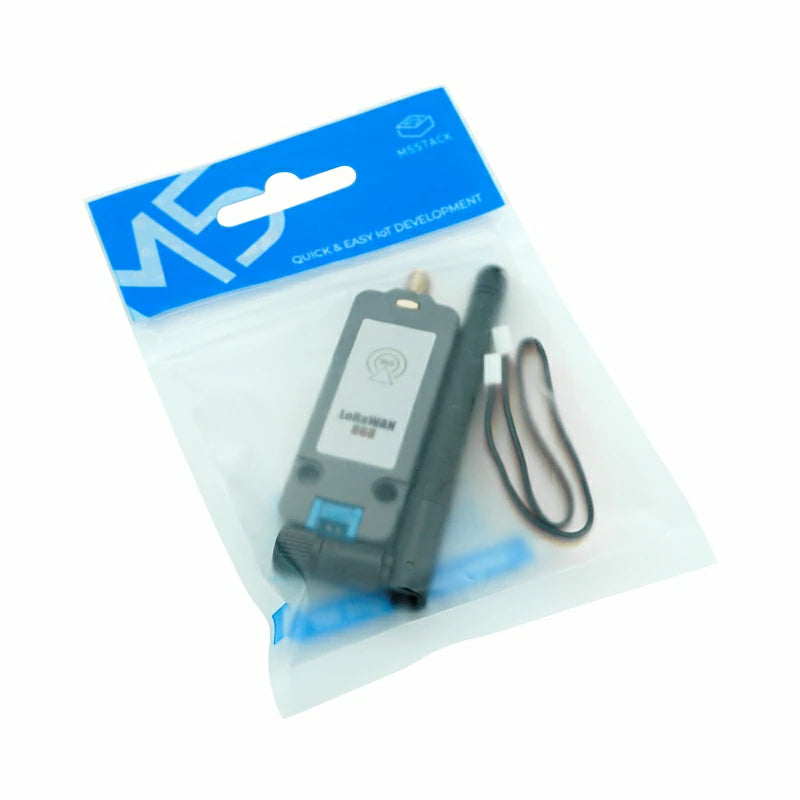

Includes

  • 1x Unit LoRaWAN868
  • 1x SMA antenna

Applications

  • Automatic remote meter reading
  • Intelligent traffic intelligent parking lot
  • Remote irrigation and environmental monitoring

Specifications

Specifications Parameters
Communication chip ASR6501
Operating Frequency 868MHz
LoRaWAN Version v1.0.1
Minimum Receive Sensitivity -137dBm (SF=12/BW=125KHz)
Maximum transmit power +21dBm
Communication UART 115200bps
Net Weight 12.8g
Gross Weight 45g

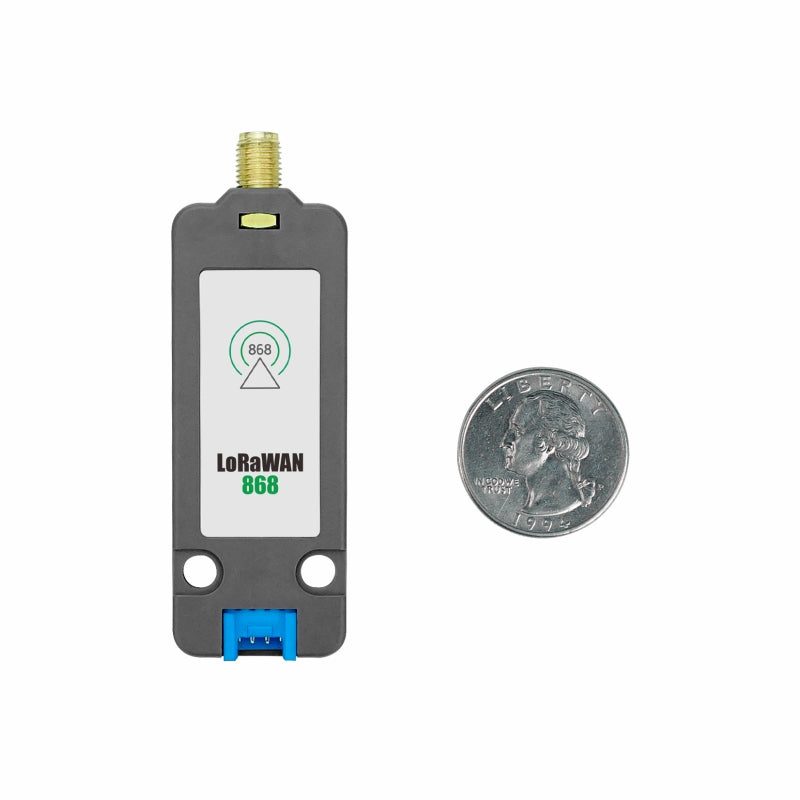

Product size 71.5 * 24 * 8mm
Packing Size 95 * 65 * 25mm

LEARN AND DOCUMENTS

  • DOCUMENTS
  • This tutorial will show you how to create applications and node devices in TTN and implement data sending and receiving from the device to the cloud
    Learn how to send messages to The Things Network with MicroPython. You will need a The Things Network Gateway near you.
