Description

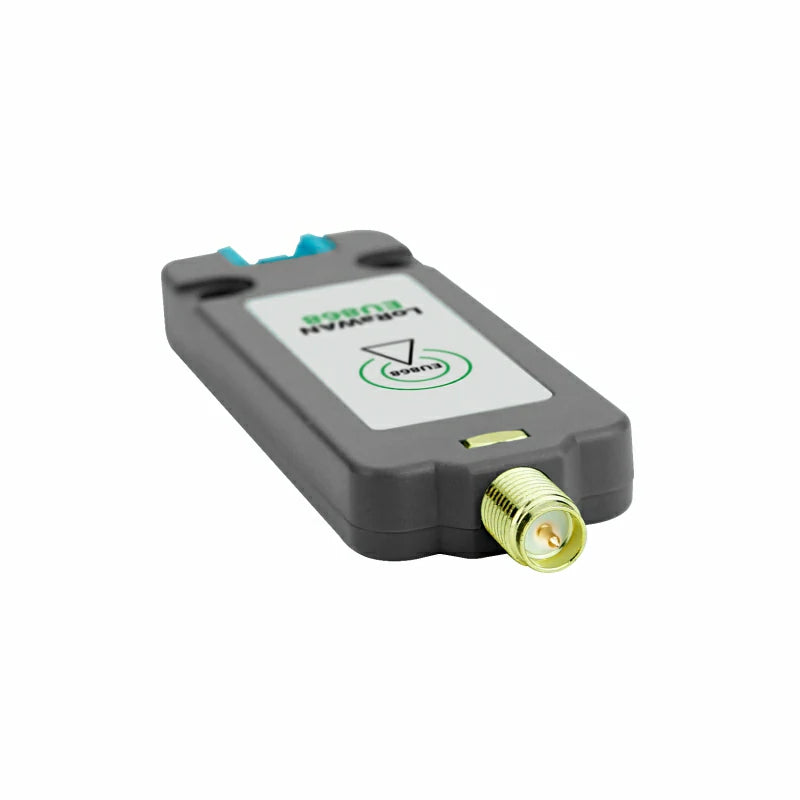

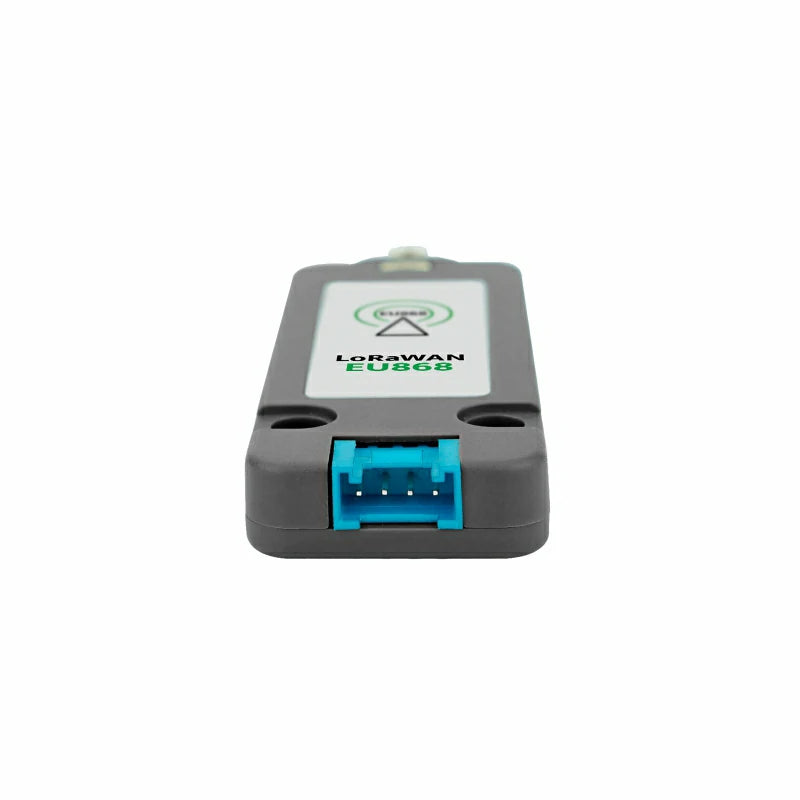

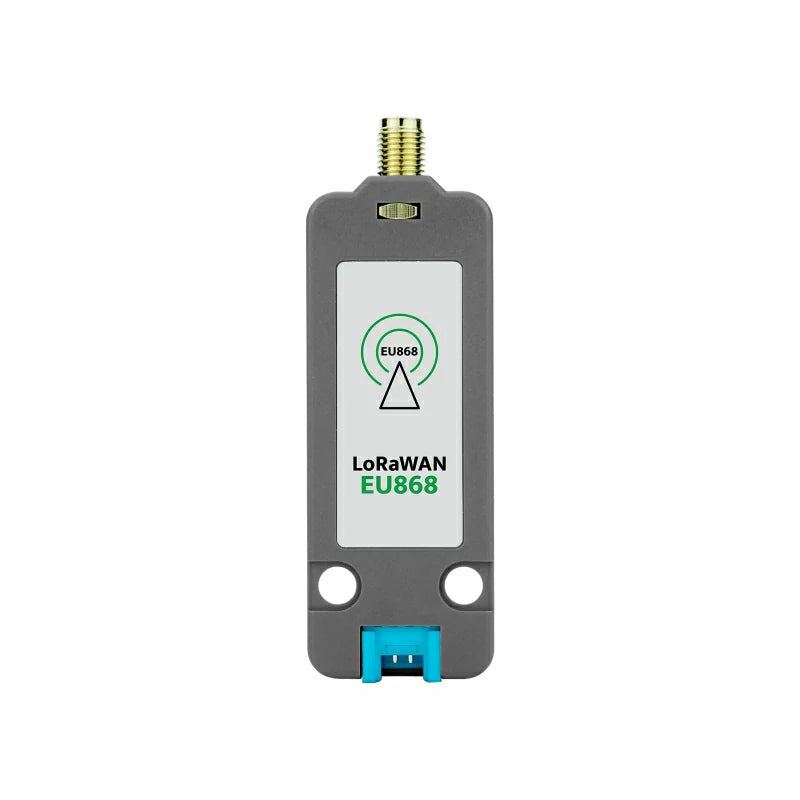

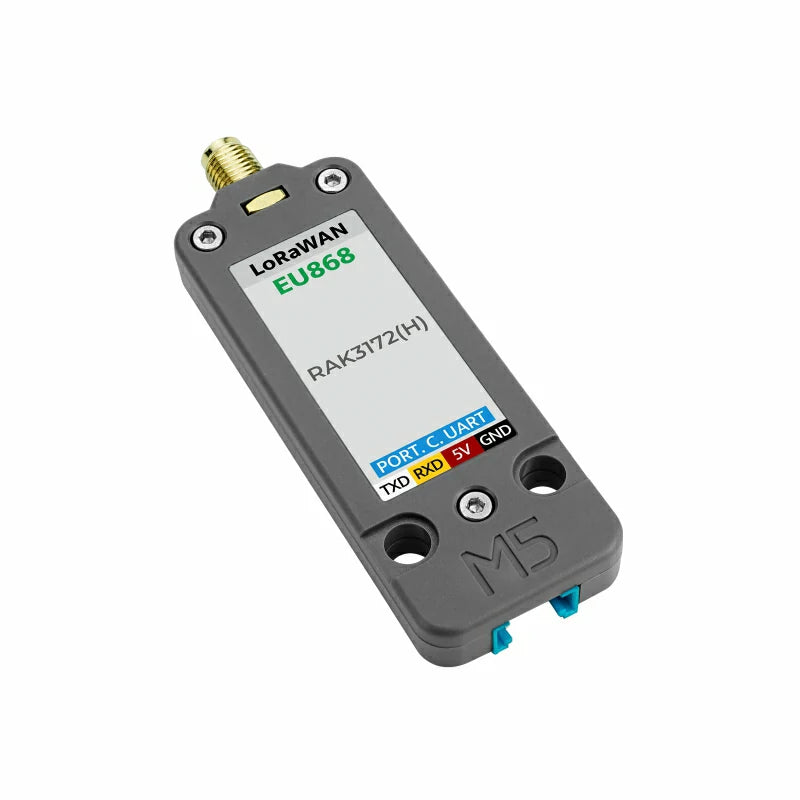

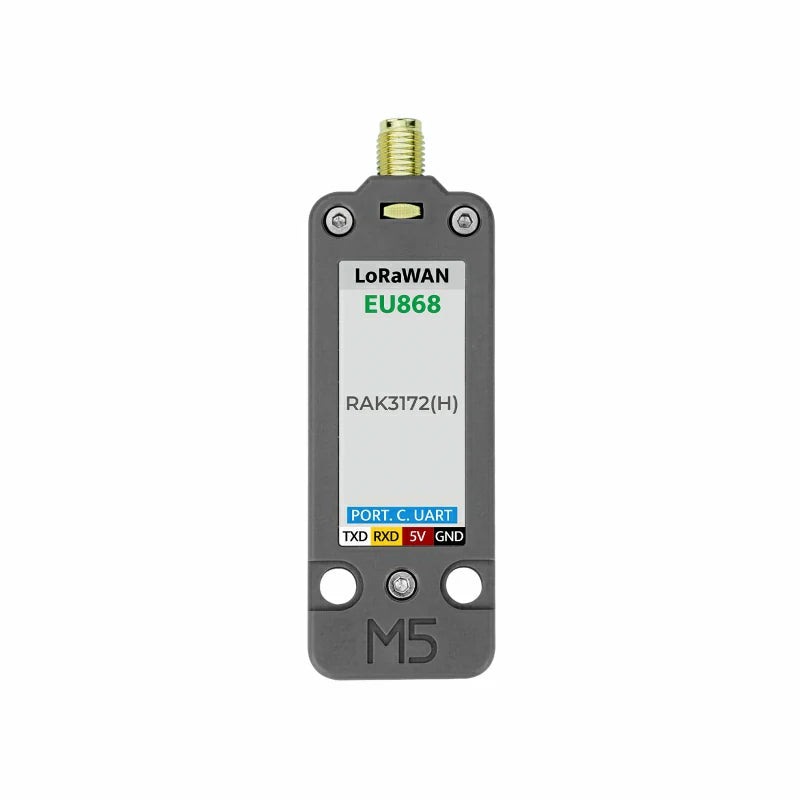

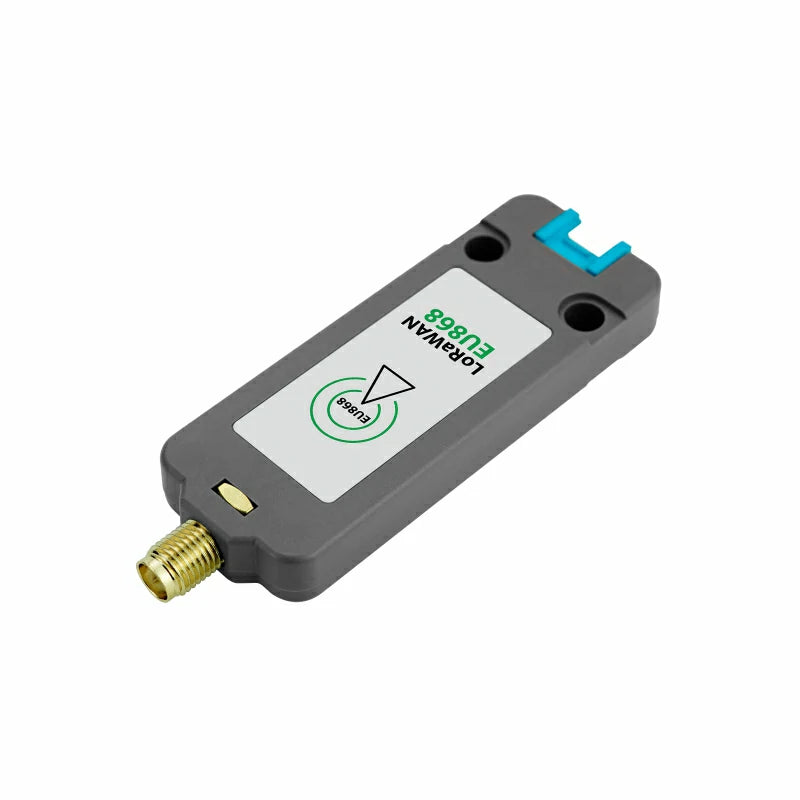

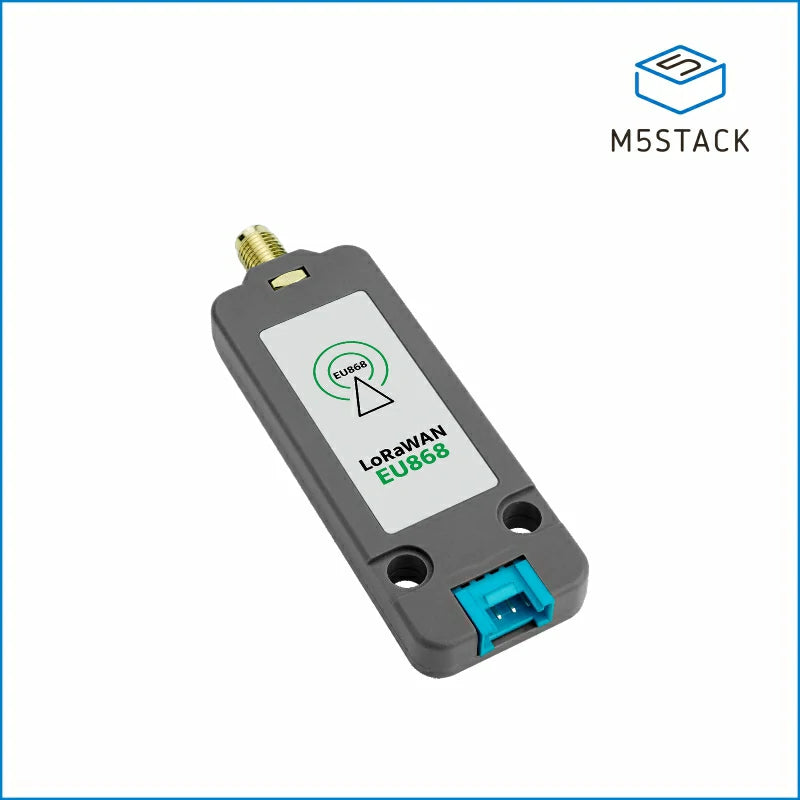

Unit LoRaWAN-EU868 is a LoRaWAN communication module based on LoRa technology, specifically designed for the EU868 frequency band, suitable for Europe and other regions using the EU868 frequency band. The module adopts the STM32WLE5 solution, supporting long-distance communication with low power consumption and high sensitivity. The module comes with a built-in LoRaWAN protocol stack, supporting Class A, Class B, and Class C operation modes. It also supports point-to-point (P2P) communication mode and uses a UART communication interface (controlled via AT commands) for flexible configuration. Additionally, the product features a high-performance rubber duck antenna, with an optimized antenna structure design, providing more stable signal coverage and longer communication distances, suitable for various complex environments. This module can be used as a collection node to connect to gateways for data collection and management, or for direct communication between devices in scenarios without gateways. It is used in long-distance, low-power IoT communication scenarios such as smart agriculture, industrial monitoring, and environmental monitoring node deployment.
Features
- Compliant with LoRaWAN® 1.0.3 protocol
- Supports EU868 frequency band
- Supports LoRa® P2P (Point-to-Point) communication
- LoRaWAN activation modes: OTAA, ABP
- Serial communication (AT commands)
- High-sensitivity rubber duck antenna
- Low power consumption
- Compatible with LEGO holes
- Development platforms:
- UiFlow1
- UiFlow2
- Arduino IDE

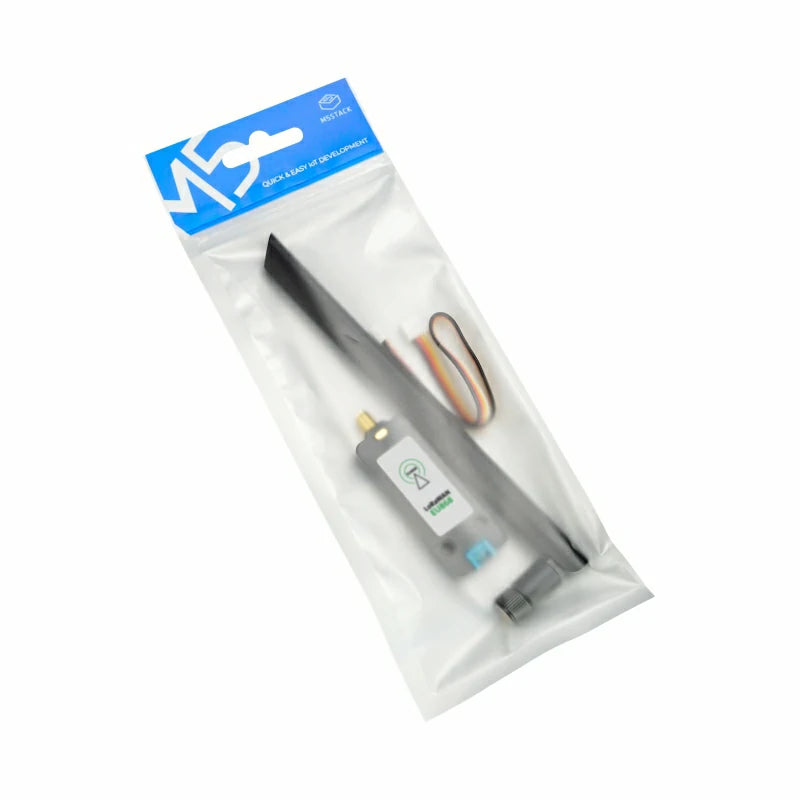

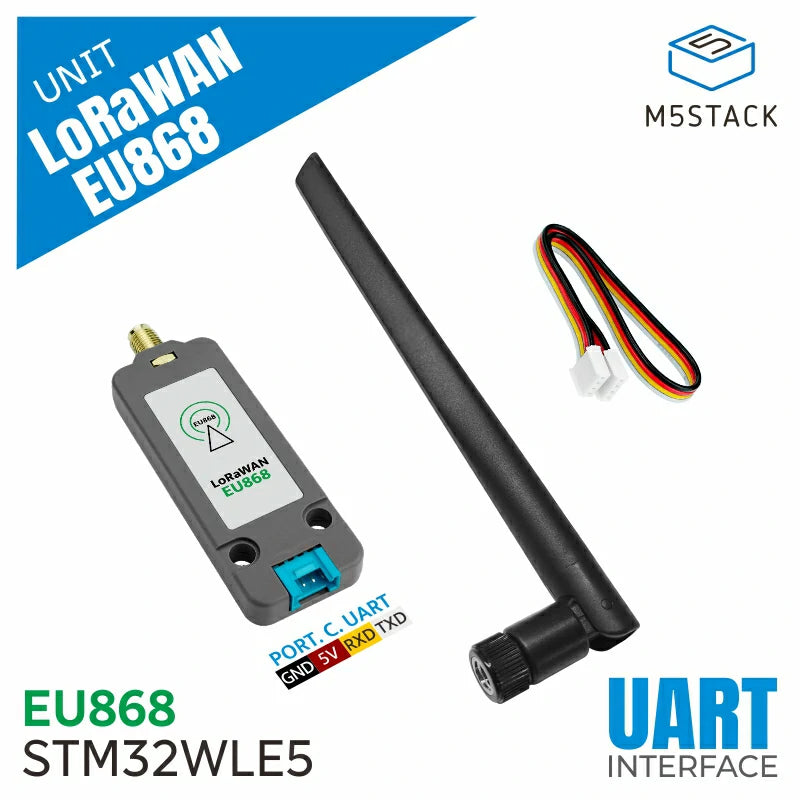

Includes
- 1 x Unit LoRaWAN-EU868
- 1 x HY2.0-4P Grove cable (20cm)
- 1 x Rubber duck antenna (@2.8dBi, total length 195mm, SMA male connector)
Applications
- Smart agriculture
- Industrial monitoring
- Environmental monitoring node deployment
Specifications
| Specification | Parameter |
|---|---|
| LoRa Solution | STM32WLE5 @256 KB Flash, 64 KB RAM |
| Supported Frequency Band | EU868 (868-870 MHz) |
| Protocol Support | LoRaWAN® 1.0.3 protocol (Class A, Class B, Class C) |
| Receiver Sensitivity | -137 dBm |
| LoRaWAN Activation Modes | OTAA, ABP |
| Communication Modes | LoRaWAN and Point-to-Point (P2P) |
| Communication Range (P2P) | 2300m (125Kbps), 1300m (500Kbps) |
| Interface Type | UART serial port @ default baud rate 115200, supports AT commands |
| Antenna Type | High-performance rubber duck antenna, 50 ohms impedance @2.8dBi, total length 195mm, SMA male connector |
| Standby Power Consumption | Idle state: DC 5V/7.23mA Sleep state: DC 5V/28.61uA |
| Operating Current | (500Kbps) Data reception: DC 5V/9.20mA Data transmission: DC 5V/11.36mA (125Kbps) Data reception: DC 5V/8.43mA Data transmission: DC 5V/117.16mA |
| Operating Temperature | 0 ~ 40°C |
| Product Size | 71.4 x 24.0 x 8.0mm |
| Product Weight | 11.9g |
| Package Size | 243.0 x 93.0 x 9.0mm |
| Gross Weight | 38.6g |
