[EOL] Lidar Bot AGV Mini Carkit Mecanum Wheels

SKU:K017

Regular price $450.00

EOL

Shipping calculated at checkout.

Description

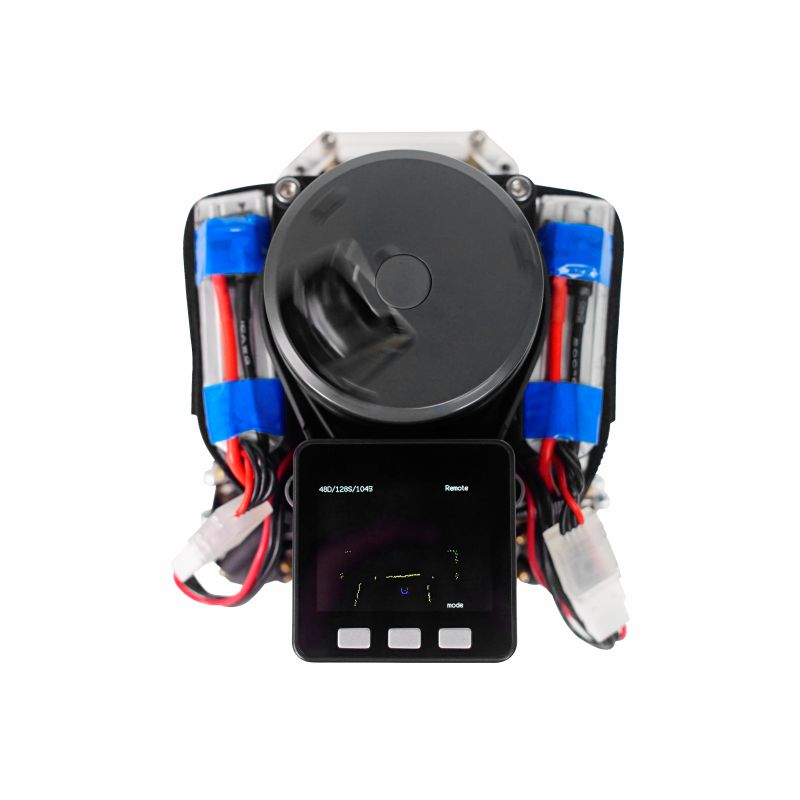

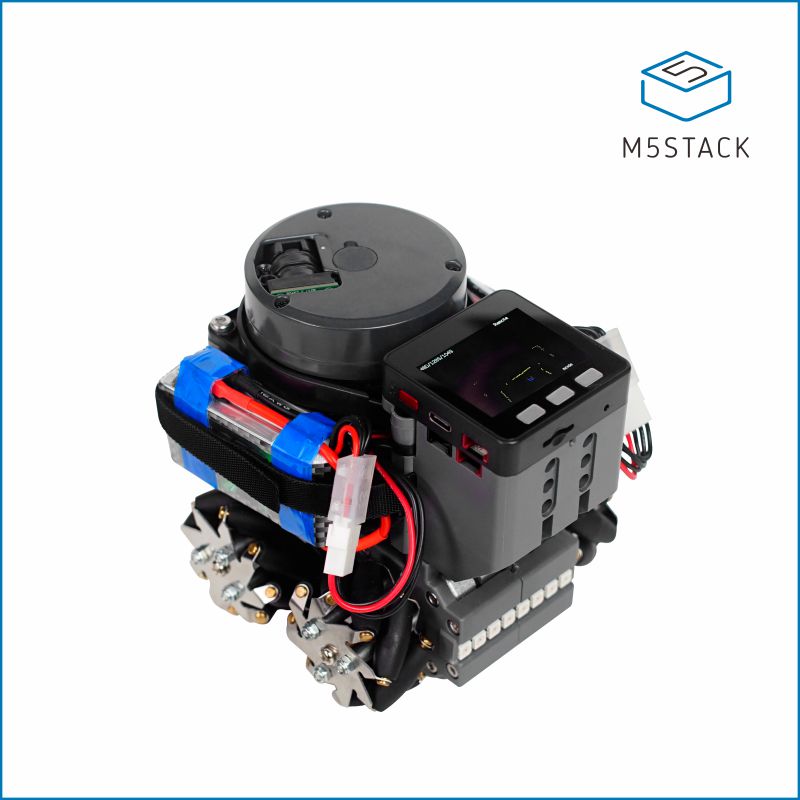

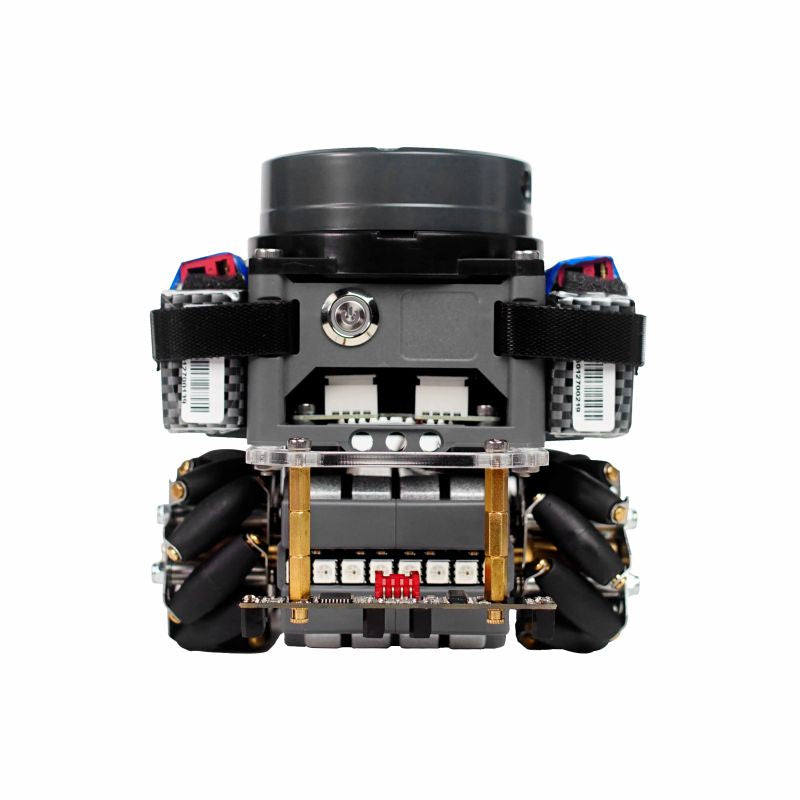

LidarBot is a powerful development kit for Automated Guided Vehicles(AGVs). Comes with a 360 Lidar sensor, 4 Mecanum wheels, M5 Core, RGB Bars and a remote conroller with Joystick panel and more。In addition, a trace kit is attached for the identification of black or white track line. With 4 Mecanum wheels, you can make it move to any direction, forward, backward, to left and to right. The Lipo Batteries enpower the Robot to run long-hours. You can display the map data, that obtained from the lidar sensor, on the screen or upload somewhere else thru Wi-Fi and program it into any format. We have implemented Real-time communication via ESP-NOW between robot and remote, Mazing-runing , self-tracing and more. If you are interest in AGV development, We especially encourage you to modify the open source code we have offered on github and enhance it yourself.

This product is EOL now, we've released the updated version NEW Lidar Bot AGV Mini Carkit Mecanum Wheels which is fully compatible with this product.

Product Features

  • Lidar: 8m @ 6Hz
  • Programming Support
  • ESP-NOW Remote
  • With tracking function
    • Arduino
    • UIFlow (Blockly)
    • Python
  • ESP-NOW communication
  • Mecanum wheels
  • Compatible LEGO

Include

  • 1x LidarBot

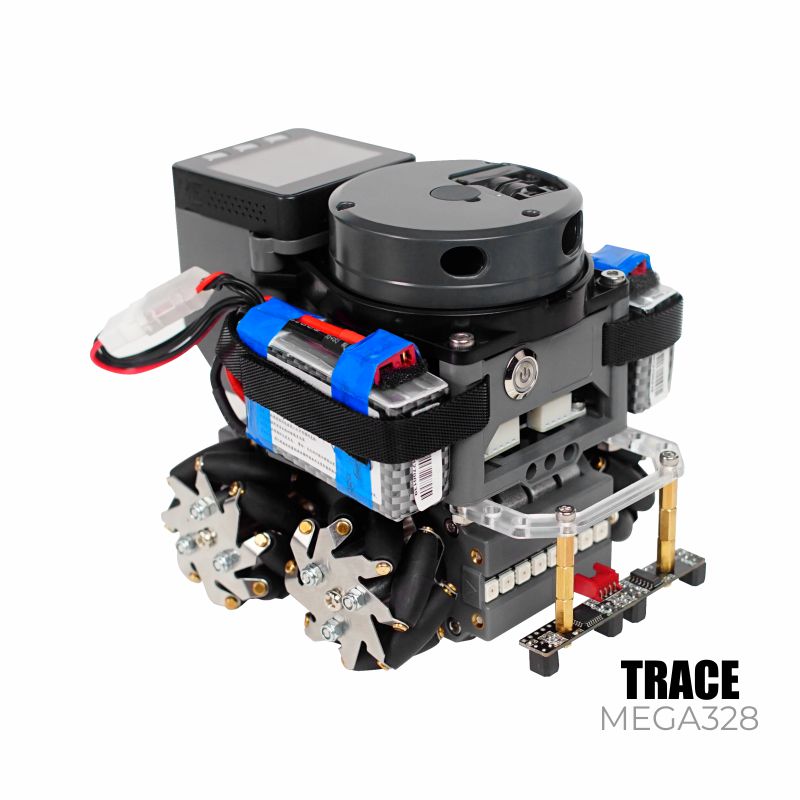

  • 1x TRACE Kit
  • 1x Remote Control Handle
  • 2x Battery(1300mAh @ 11.1V)
  • 1x Power Charger
  • 1x Type-C USB Cable

Applications

  • Indoor Navigation
  • Autonomous walking maze
  • Route plan
  • Autopilot

Specification

Resources Parameter
Net weight 1980g
Gross weight 2140g
Product Size 142*117*120mm
Package Size 208*208*167mm
