PRODUCT DETAILS
Description

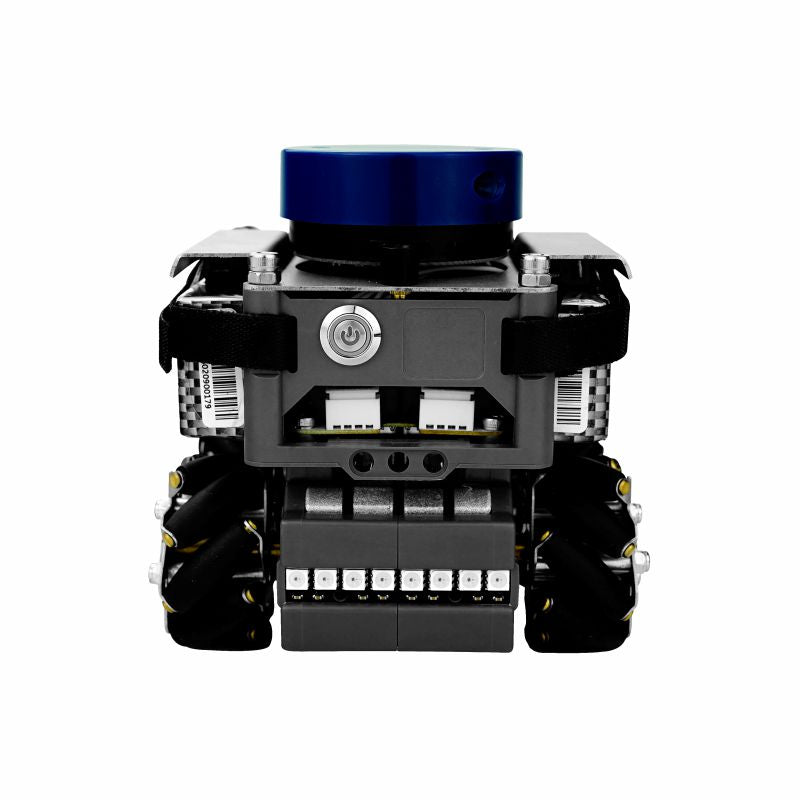

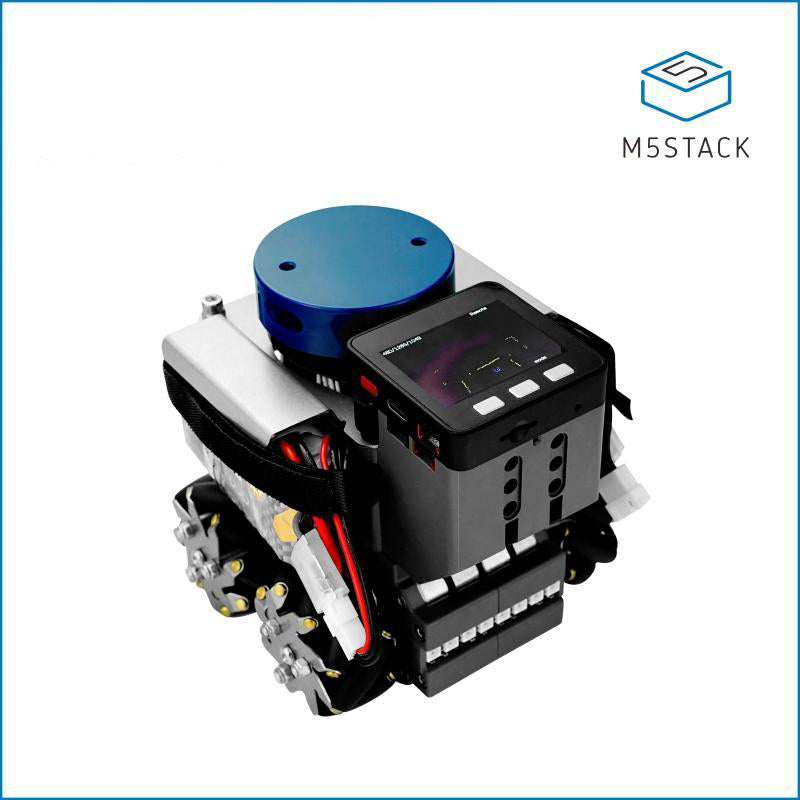

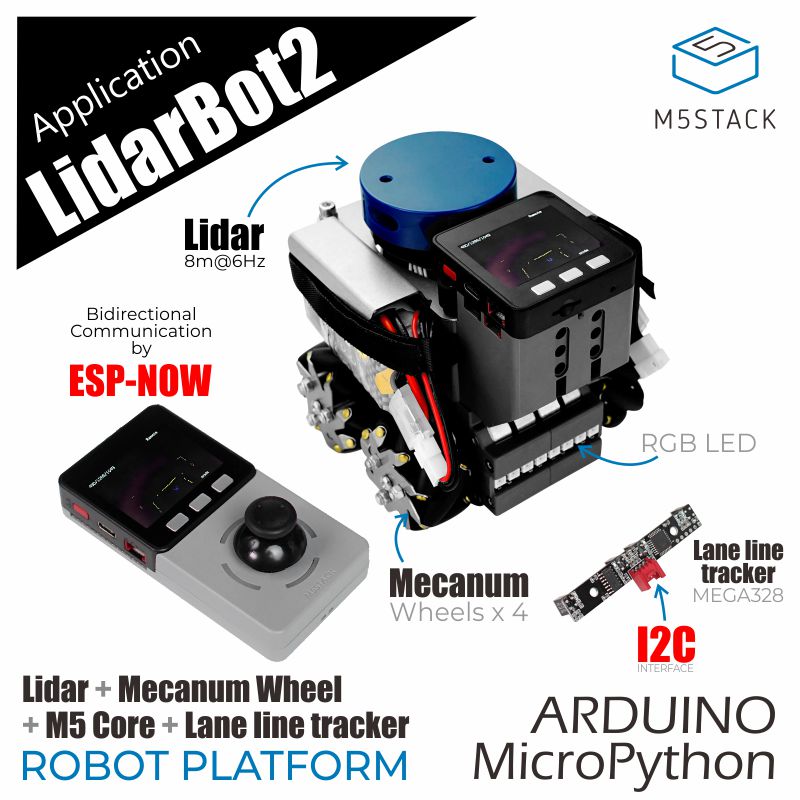

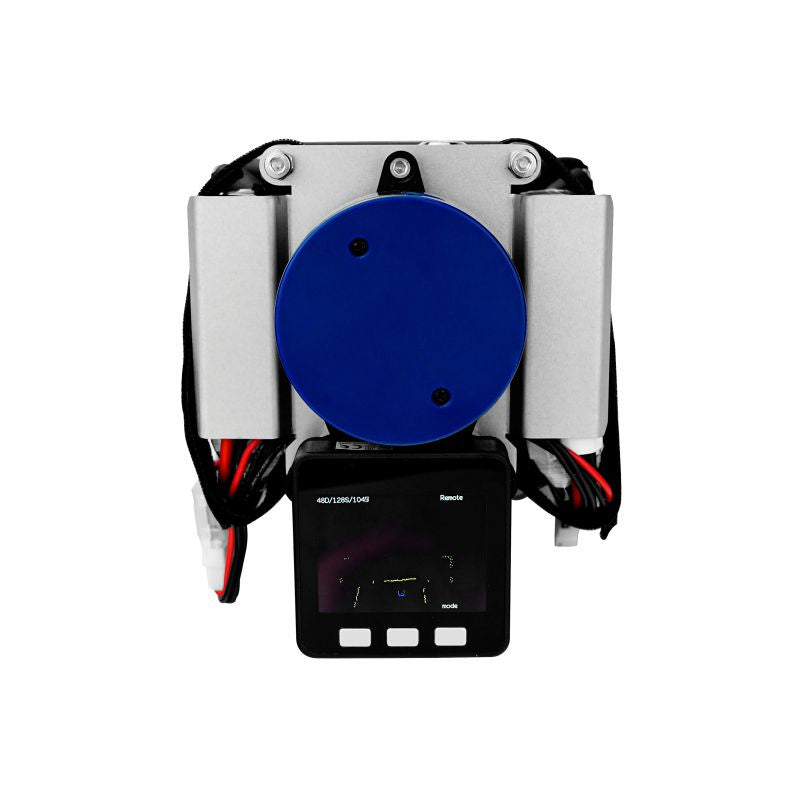

LidarBot is a powerful development kit for Automated Guided Vehicles(AGVs). Comes with a 360 Lidar sensor, 4 Mecanum wheels, M5 Core, RGB Bars and a remote controller with Joystick panel and more。In addition, a trace kit is attached for the identification of black or white track line. With 4 Mecanum wheels, you can make it move to any direction, forward, backward, to left and to right. The Lithium polymer Batteries empower the Robot to run long-hours. You can display the map data, that obtained from the lidar sensor, on the screen or upload somewhere else thru Wi-Fi and program it into any format. We have implemented Real-time communication via ESP-NOW between robot and remote, Mazing-running , self-tracing and more. If you are interest in AGV development, We especially encourage you to modify the open source code we have offered on github and enhance it yourself.
Product Features
- EAI YDLIDAR X2 radar ranging speed: 8m @ 7Hz
- Programming Support
- ESP-NOW Remote

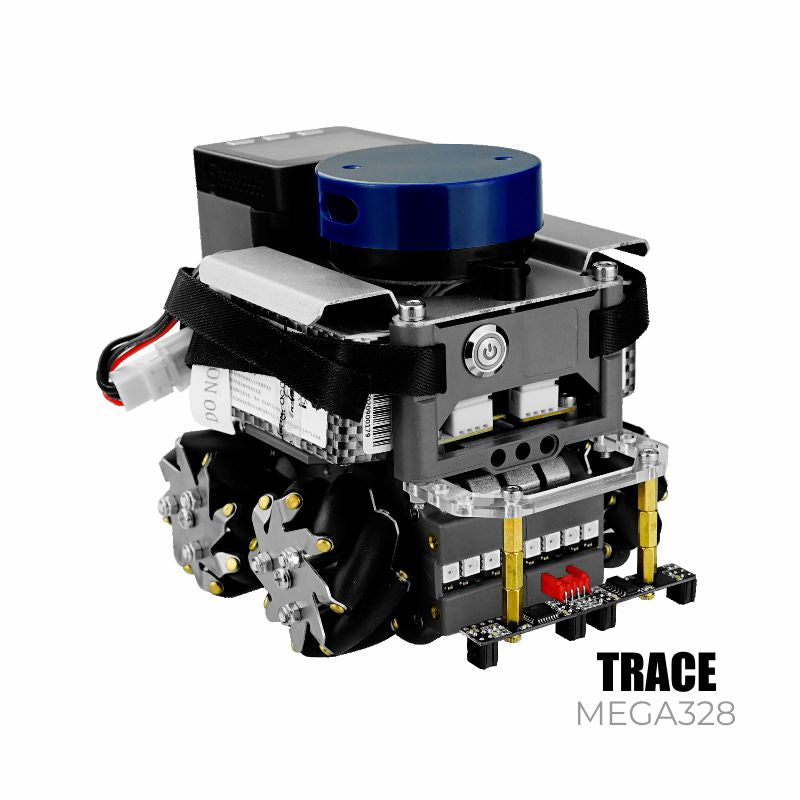

- With tracking function
- Arduino
- UIFlow (Blockly)
- Python
- ESP-NOW communication
- Mecanum wheels
- Compatible LEGO

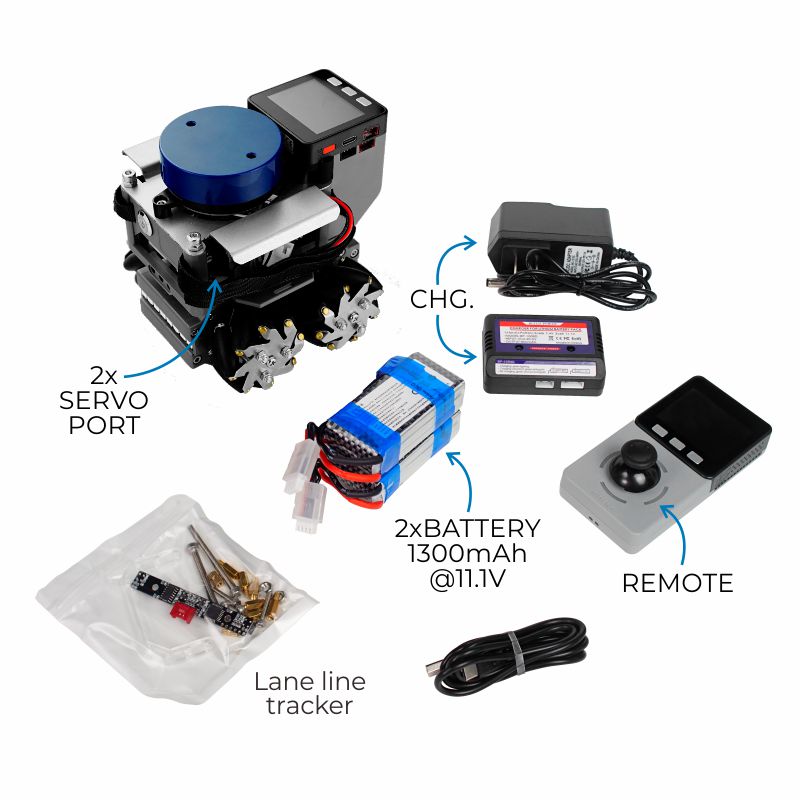

Include
- 1x LidarBot
- 1x TRACE Kit
- 1x Remote Control Handle
- 2x Battery(1300mAh @ 11.1V)
- 1x Power Charger
- 1x Type-C USB Cable
Applications
- Indoor Navigation
- Autonomous walking maze
- Route plan
- Autopilot
Specification
| Resources | Parameter |
|---|---|
| Net weight | 1980g |
| Gross weight | 2140g |
| Product Size | 142*117*120mm |
| Package Size | 208*208*167mm |
