This product is EOL. Please order the new version Unit KMeter-ISO
Description

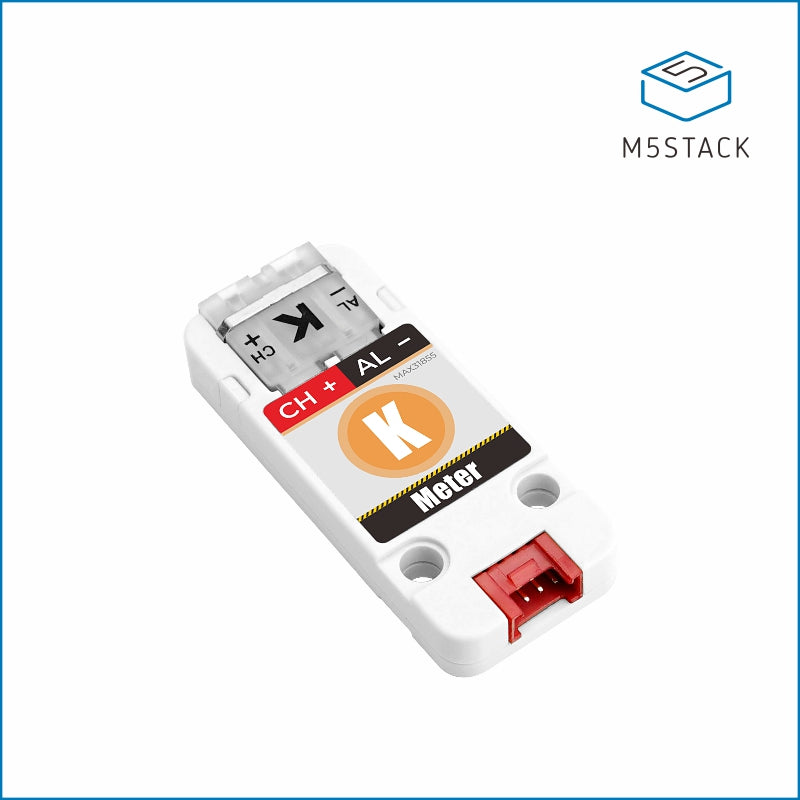

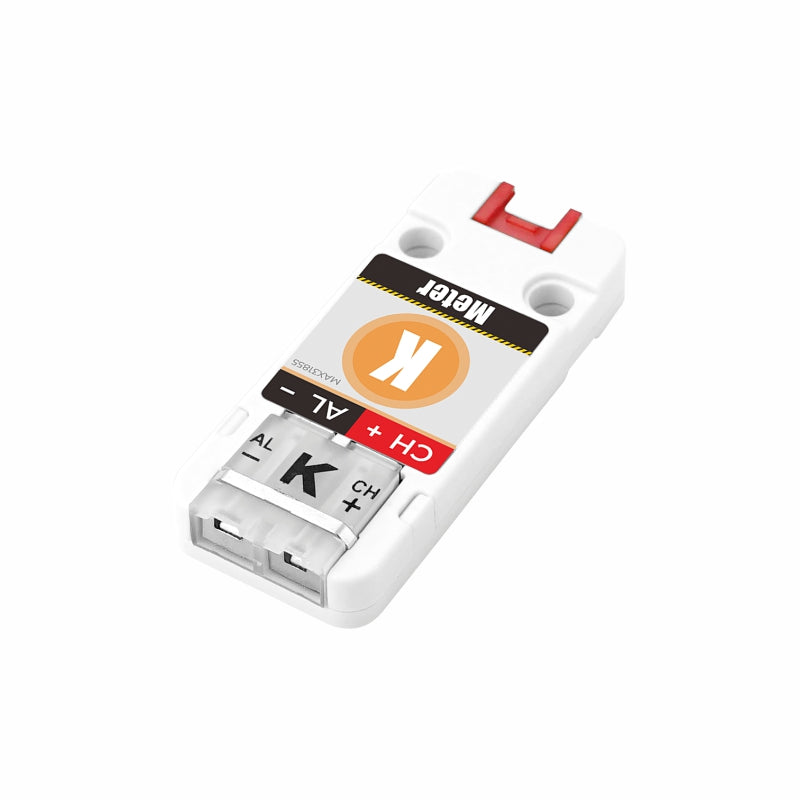

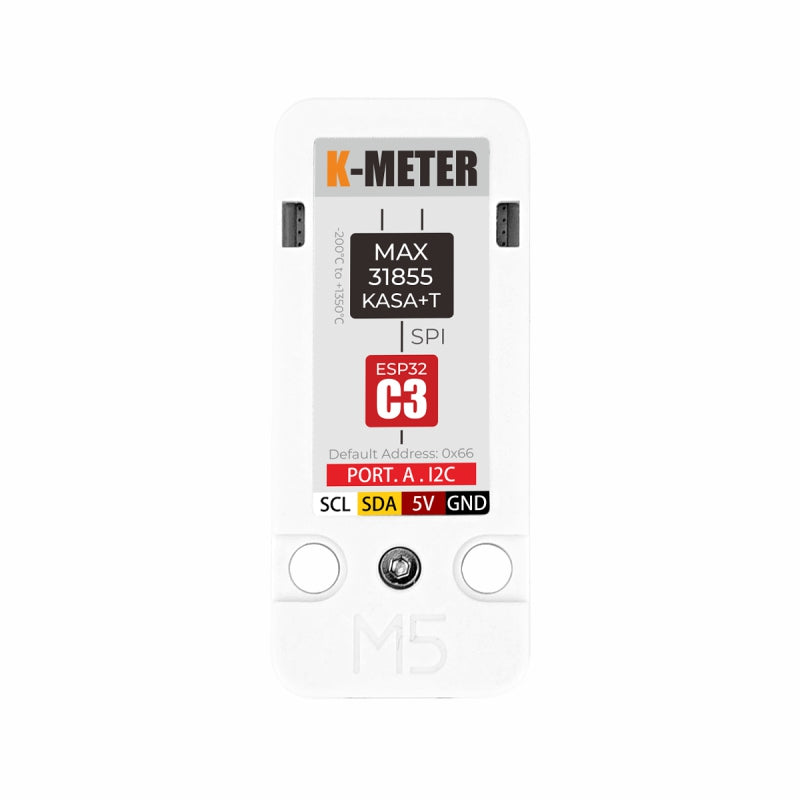

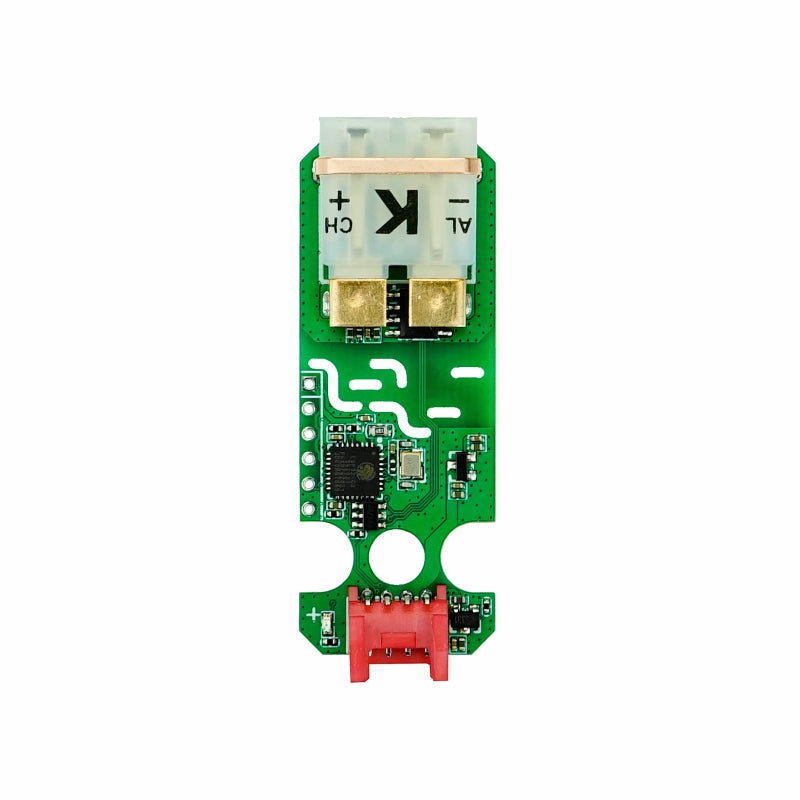

Unit KMeter is a K-type thermocouple sensor with an I2C communication interface. The hardware is based on the ESP32-C3 microcontroller and the MAX31855KASA + T 14-bit thermocouple digital conversion chip. The internal ESP32-C3 integrates firmware to communicate with the thermocouple digital IC, processes raw data, and exposes an I2C interface, allowing users to easily obtain processed temperature data. This product is specifically designed for K-type thermocouples, and the conversion chip supports thermocouple probes with a measurement range of -200°C to 1350°C. It uses a universal standard flat interface, making it easy to replace probes with different measurement ranges to suit various needs. It is suitable for industrial temperature acquisition, monitoring, and other scenarios that require a wide temperature measurement range.
Features
- ESP32-C3 (supports I2C firmware updates)
- MAX31855KASA+T:
- 14-bit ADC
- 0.25°C resolution, ±2% accuracy
- Supported probe type: K-type
- Supports probe measurement range: -200°C to 1350°C
- I2C communication interface address: 0x66

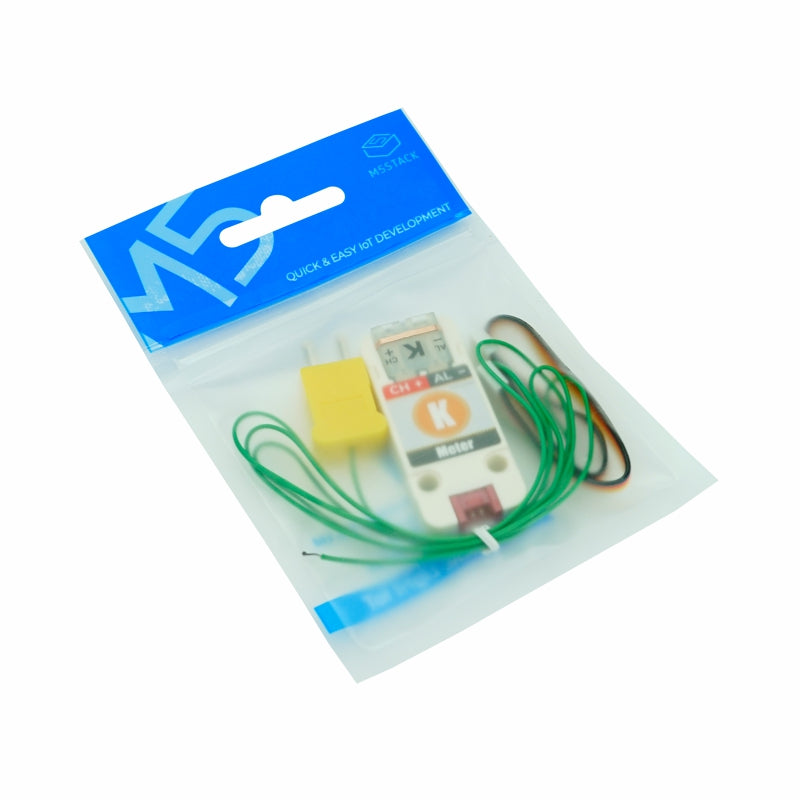

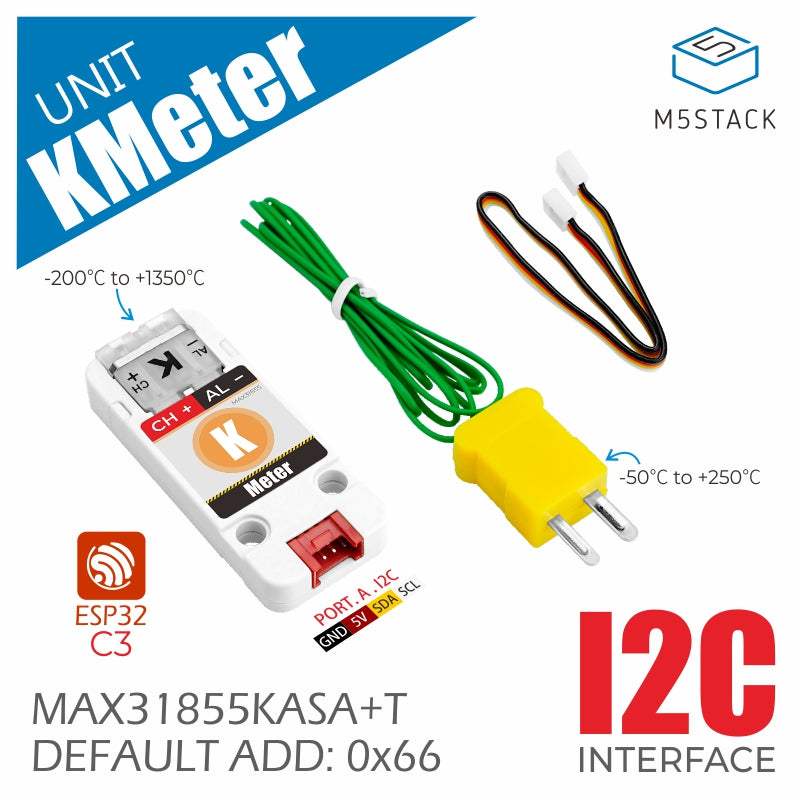

Includes
- 1 x Unit KMeter
- 1 x K-type thermocouple probe (measurement range: -50°C to 250°C, 1m cable length)
- 1 x HY2.0-4P Grove cable (20cm)
Applications
- Industrial temperature acquisition
- Temperature control/monitoring scenarios
Specifications
| Specification | Parameter |
|---|---|
| Thermocouple Digital IC | MAX31855KASA+T: 14-bit ADC, 0.25°C resolution, ±2% accuracy, supports K-type probes, measurement range: -200°C to 1350°C |
| Standard Probe Specs | K-type thermocouple, measurement range: -50°C to 250°C, 1m cable length, thermal response time <1s, interface: standard flat copper plug |
| Communication Interface | I2C @0x66 |
| Power Consumption | 5V@24mA |
| Net Weight | 9.3g |
| Gross Weight | 21g |

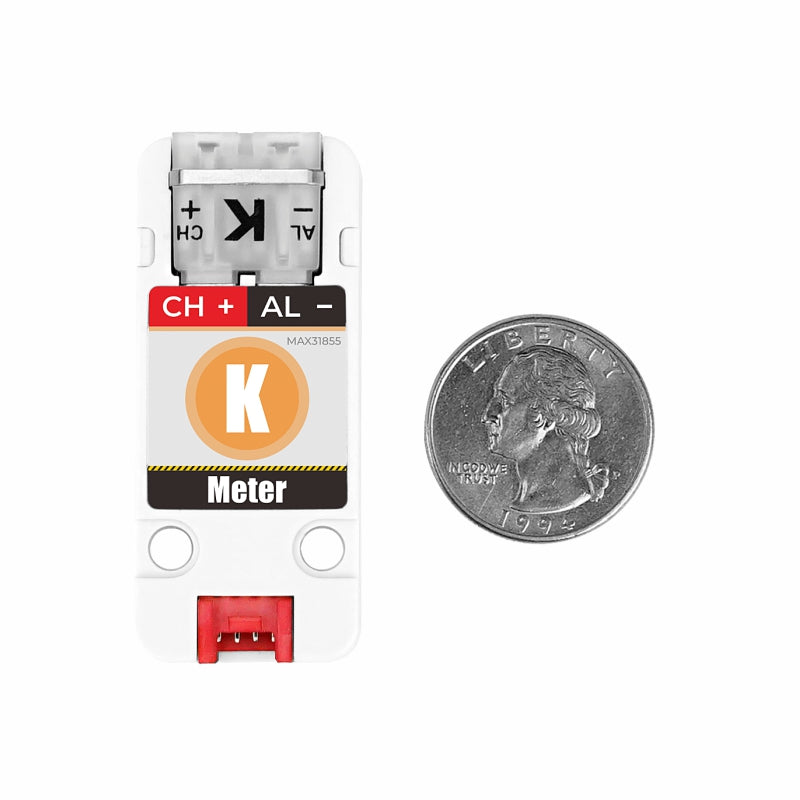

| Product Size | 56 x 24 x 9.6mm |
| Package Size | 93 x 138mm |
