[EOL] PSRAM Fisheye Camera Module (OV2640)

SKU:U037

Regular price $23.90

EOL

Shipping calculated at checkout.
PRODUCT DETAILS

Description

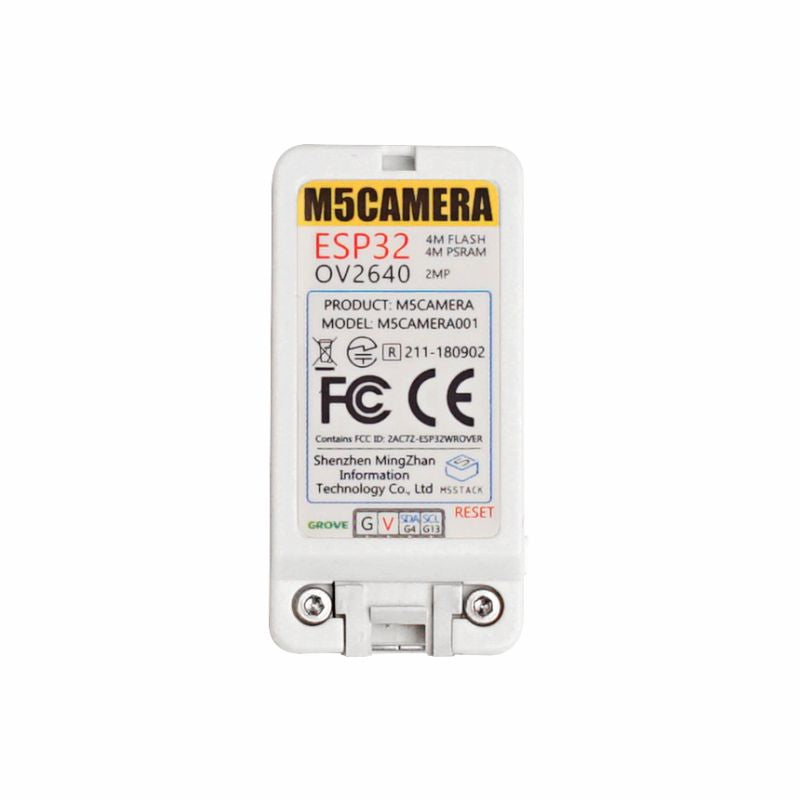

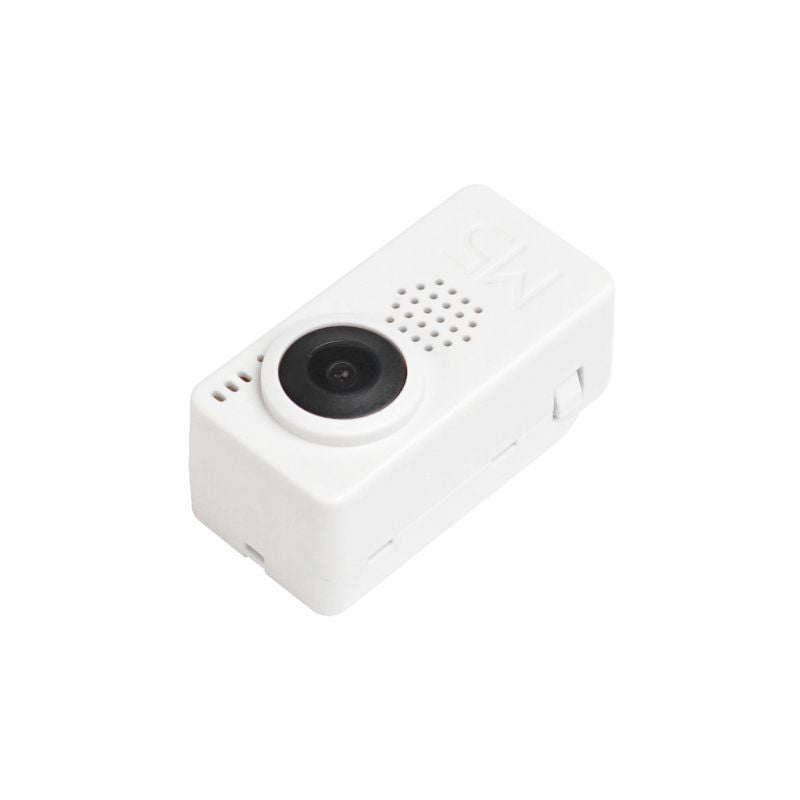

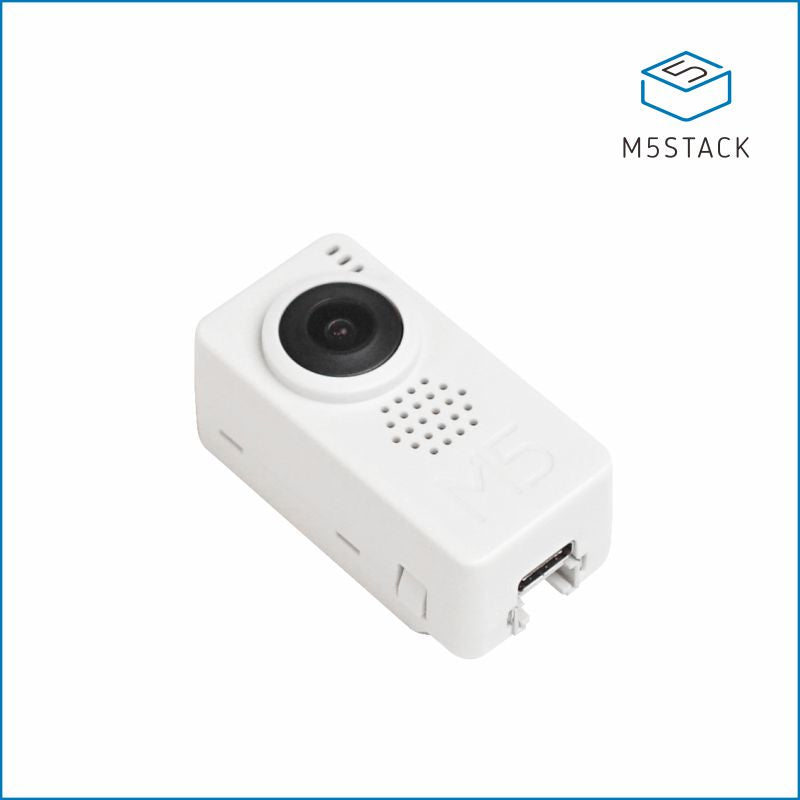

M5CameraF is a development board for image recognition. It features an ESP32(4M Flash + 520K RAM) chip and 2-Megapixel camera (OV2640).

The module offers plenty of storage with an extra 4 Mbyte PSRAM. It also supports image transmission via Wi-Fi and debugging through USB Type-C port.

The hardware comes with preloaded software, programmed by ESP-IDF. It is an application to run Wi-Fi camera. The output image resolution is 600*800, since it's 2MP camera, you sure can optimize the software to output a better resolution image.

what this software can do?

  • Power the board via USB type-C or GROVE
  • Use your phone to Wi-Fi scan an AP name start with 'm5stack-' and click to connect this AP.
  • Open up web browser on your phone and visit 192.168.4.1
  • Then here comes the picture. Video is about 5-6 frames per seconds. not super fast.

Product Features

  • CP2104 USB-to-TTL converter
  • ESP32-WROVER (PCB Antenna)
  • WIFI image transmission
  • OV2640 sensor
  • Camera Field of View : 150 degree

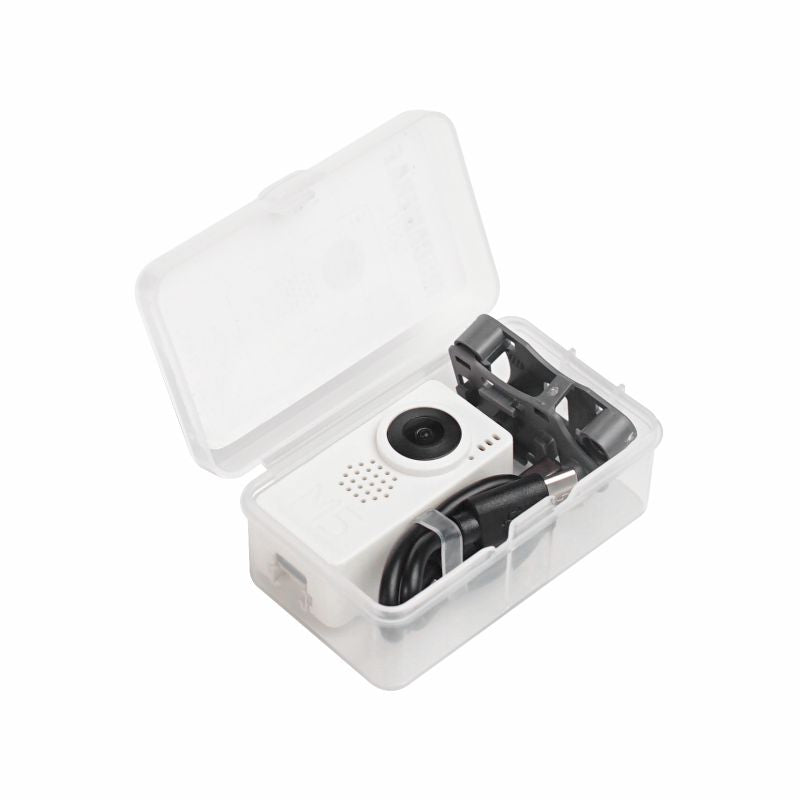

Include

  • 1x M5CameraF
  • 1x LEGO Adapter
  • 1x Wall/1515
  • 1x Type-C USB(20cm)

Specification

Resources Parameter
Flash 4M
RAM 4MB
Image Sensor OV2640
Maximum resolution 2M pixel
Output format YUV(422/420)/YCbCr422,RGB565/555,8-bit compressed data,8-/10-bit Raw RGB data
FOV 150°
CCD Size 1/4 inch
Net weight 17g
Gross weight 41g

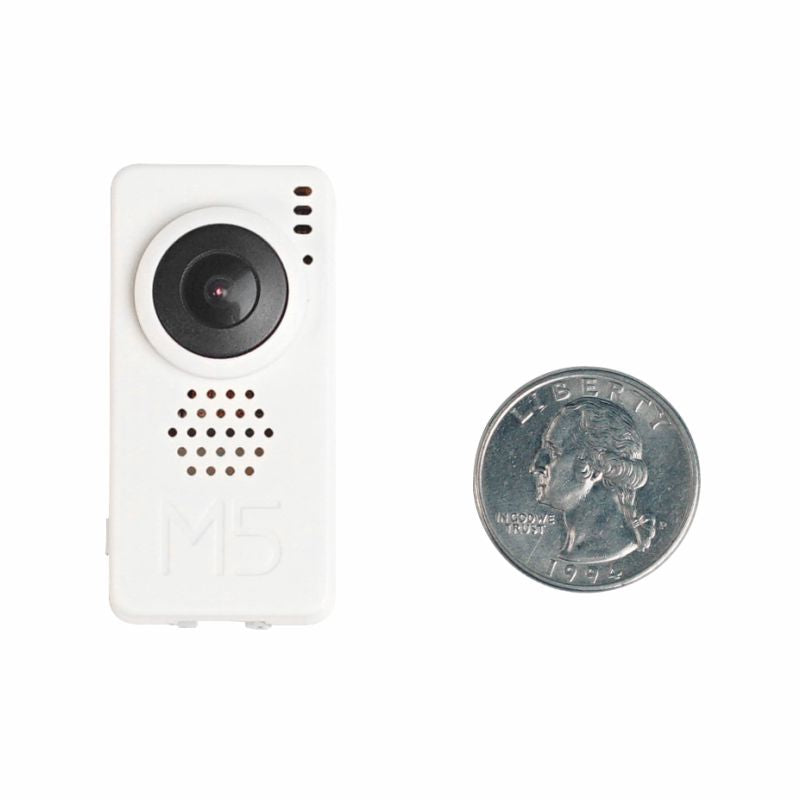

Product Size 24*48*19mm
Package Size 75*45*30mm

LEARN AND DOCUMENTS

  • DOCUMENTS
  • A DIY project conduct with a thermal printer and M5Camera.
