ESP32 PSRAM Timer Camera Fisheye (OV3660)
- PRODUCT DETAILS
Description

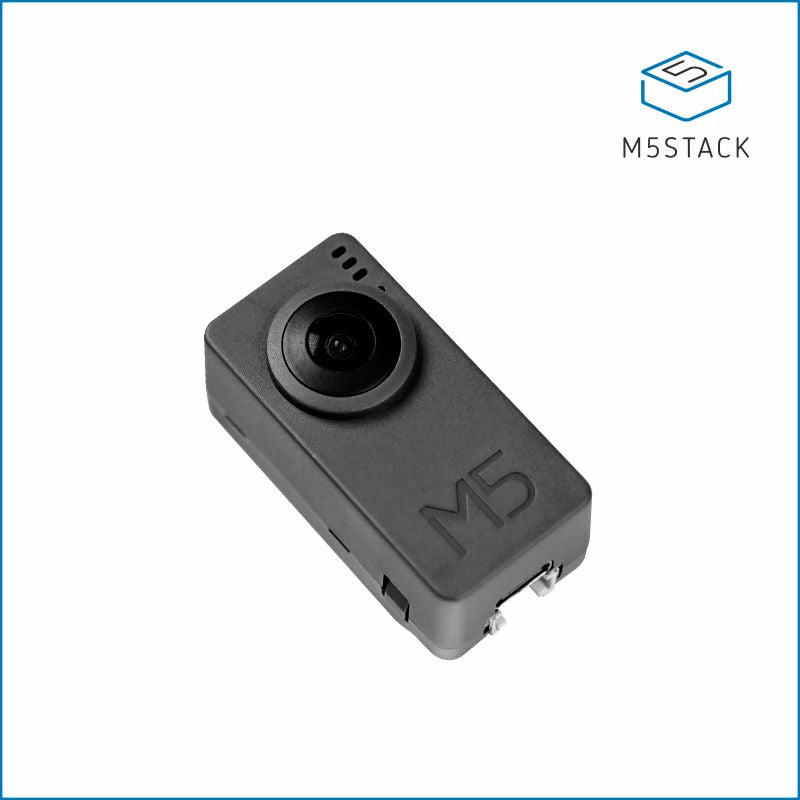

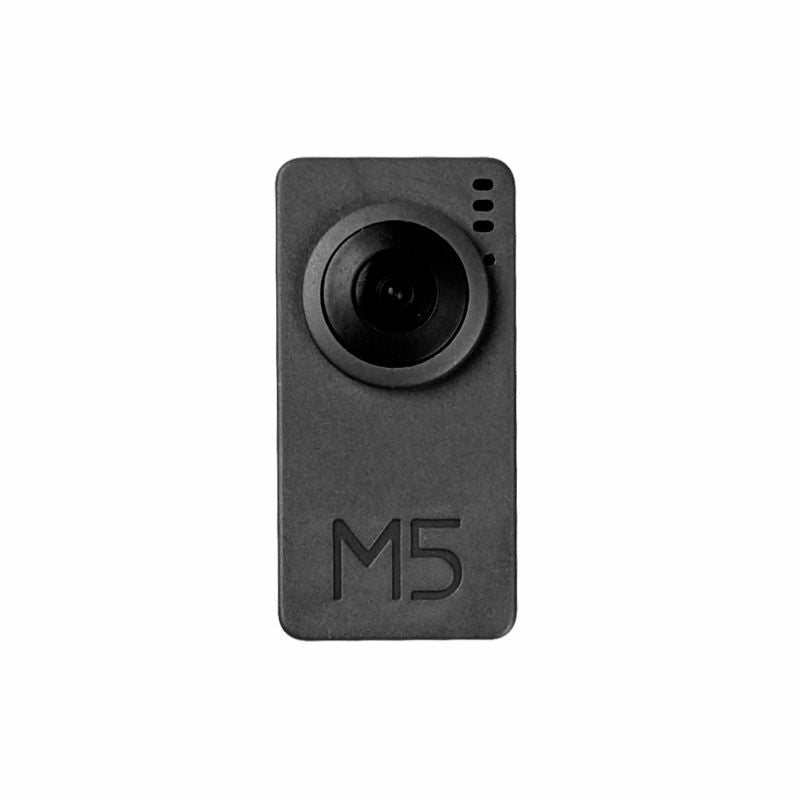

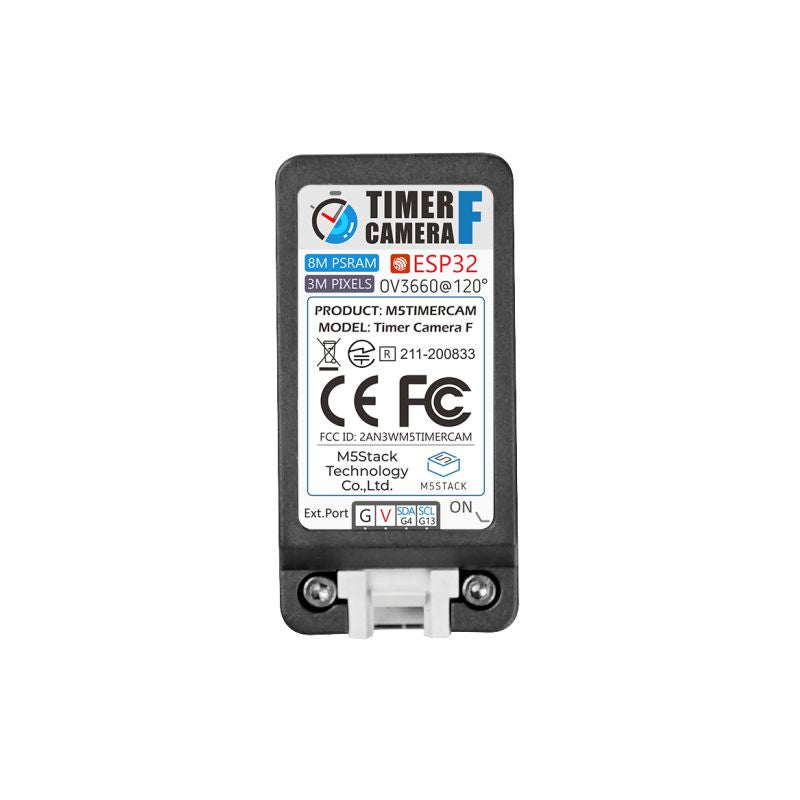

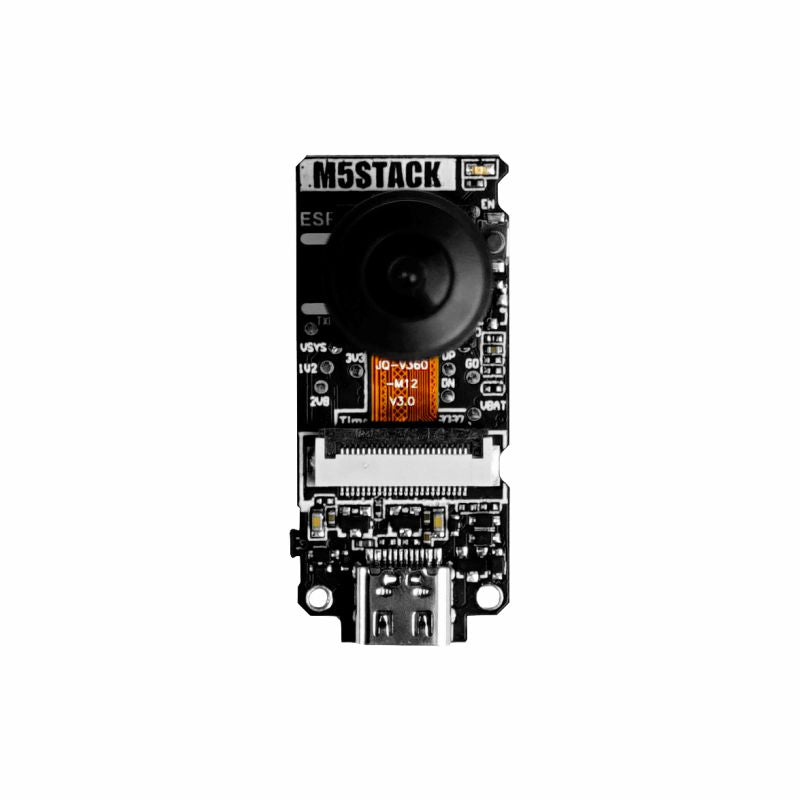

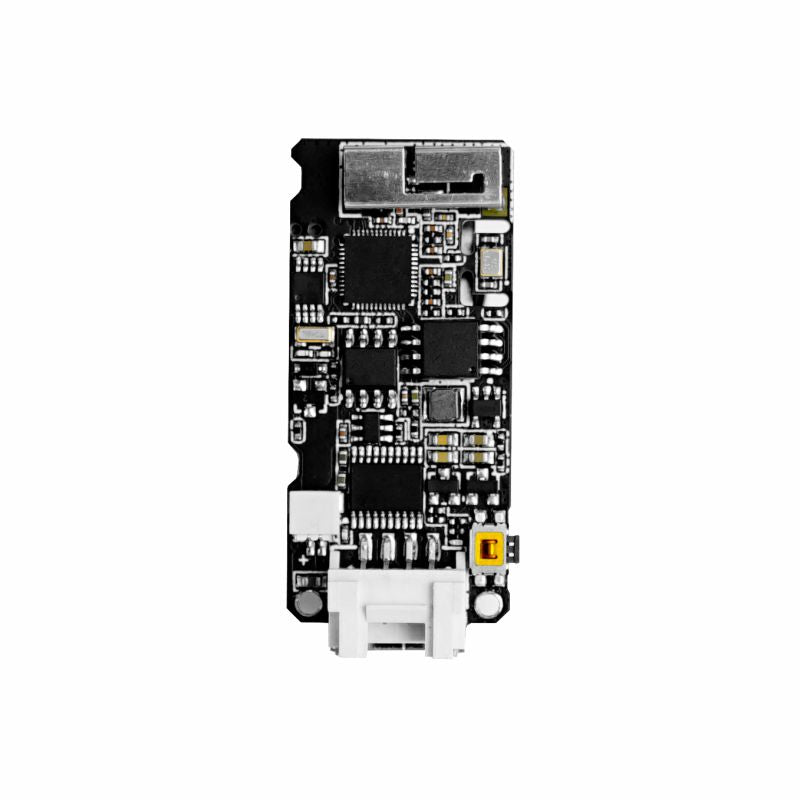

The Timer Camera F is a fisheye camera module based on ESP32-D0WDQ6-V3 with 8M PSRAM and 4M Flash on board. 3.0 megapixel camera (OV3660) with DFOV 120° and a maximum resolution of 2048x1536 photos can be captured. The camera features an ultra-low-power design, and the internal integrated RTC (BM8563) draws out the IRQ signal, which can be used for sleep and timer wake-up (sleep current down to 2μA). The built-in 270mAh battery provides more than one month of battery life with timed pictures (one per hour) enabled. The module supports WiFi image transfer and USB port debugging, and the HY2.0-4P output on the bottom can be used to expand other peripherals. The on-board LED status indicator and reset button facilitate program development and debugging. In terms of application, M5Stack provides a number of simple and efficient application development methods and interfaces for the TimerCAM series, making it easy for users to use and develop their applications. (including PC/Mobile photo shooting APP, cloud image HTTP interface for timer shooting, cloud AI recognition interface (not online yet), etc.)
The low-power power management solution adopted by the Timer Camera series is different from the CORE and StickC devices. When in use, the PWR button is used as a power-on button(long press 2s). If you need to shut down the device, you need to use the software API or press the Reset button on the PCB.When using external power supply, the device will remain powered on.
Product Features
- Design based on esp32
- WiFi image transmission
- Timed sleep wake up
- Status indicator
- Ultra low power design
- Built-in 270mAh battery
- Programming platform：ESP-IDF/Arduino/UIFlow

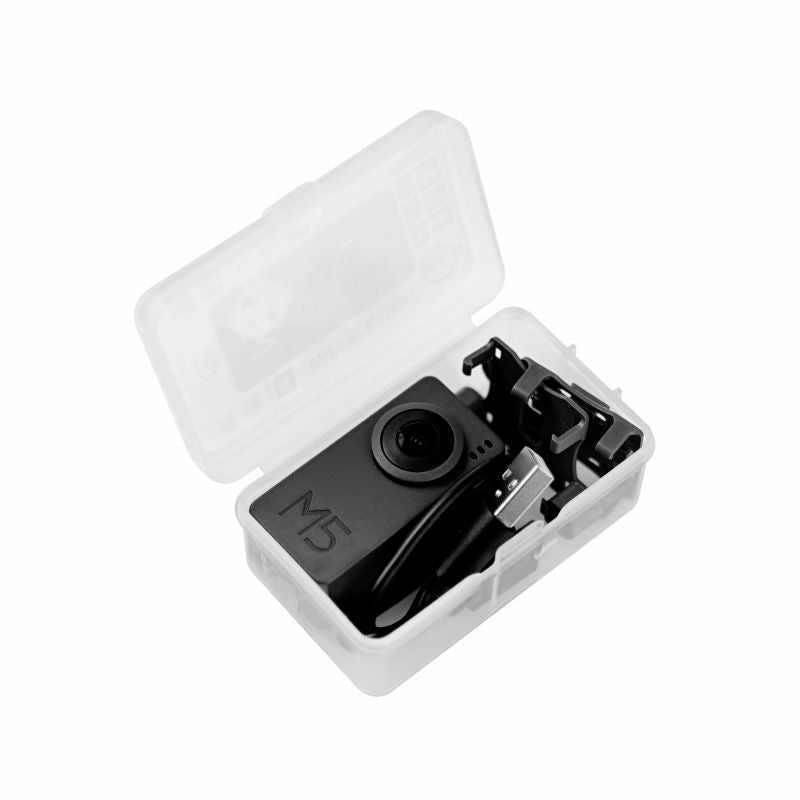

Includes
- 1x Timer Camera F

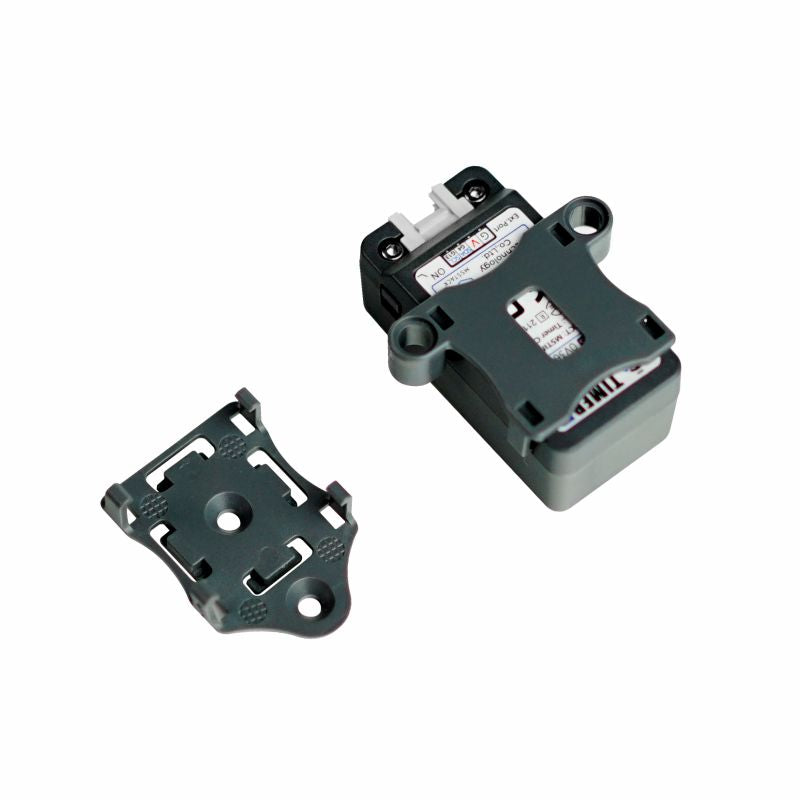

- 1x LEGO Adapter
- 1x Wall-1515
- 1x Type-C USB(20cm)
Driver Installation
TimerCAM may not work without drive in some systems. Users can manually install
FTDI Driver
to fix this problem. Take the win10 environment as an example, download the driver file that matches the operating system, unzip it, and install it through the device manager. (Note: In some system environments, the driver needs to be installed twice for the driver to take effect. The unrecognized device name is usually M5Stack or USB Serial. Windows recommends using the driver file to install directly in the device manager (custom Update), the executable file installation method may not work properly).
Applications
- Take pictures regularly
- Remote video monitoring
FISH EYE LENS Comparison Normal LENS
Specification
| Resources | Parameter |
|---|---|
| PSRAM | 8MB |
| Flash | 4M |
| Battery | 270mAh |
| Image Sensor | OV3660 |
| Maximum resolution | 300w pixels |
| Output format | 8-/10-Bit RAW, RGB and YCbCr output, compression. |
| Maximum image transmission rate (OV3660) | 2048x1536: 15fps / 1080p: 20fps / 720p: 45fps / XGA(1024x768) : 45fps / VGA(640x480) : 60fps / QVGA(320x240) : 120fps |
| DFOV | 120° |
| Net weight | 21g |
| Gross weight | 44g |
| Product Size | 48*24*22.6mm |
| Package Size | 75*45*30mm |
