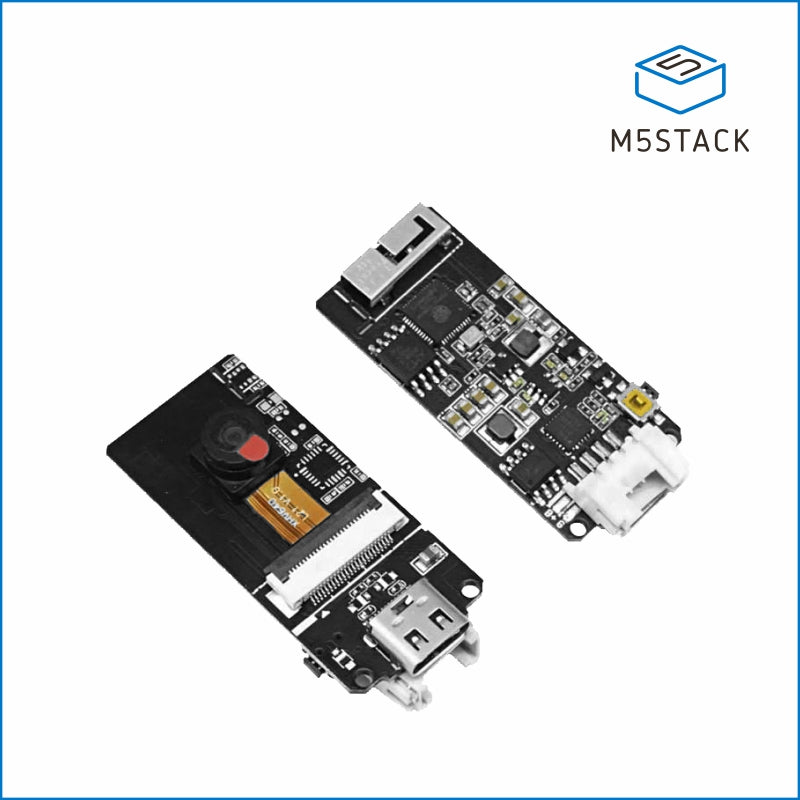

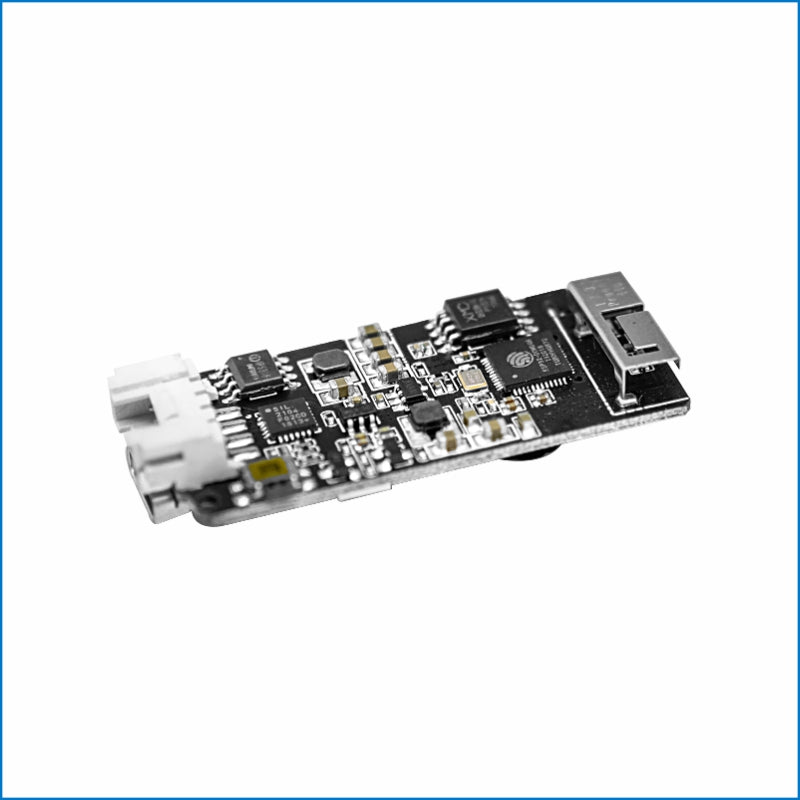

ESP32 Camera Module Development Board (OV2640)

SKU:U007

$11.95

10+ In Stock

Shipping calculated at checkout.

Description

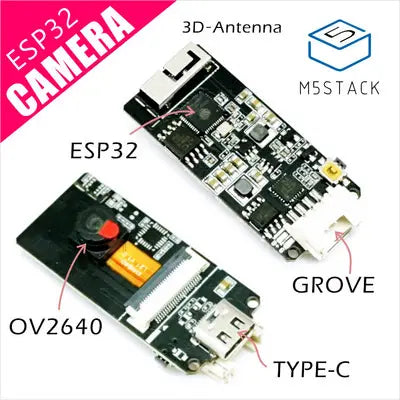

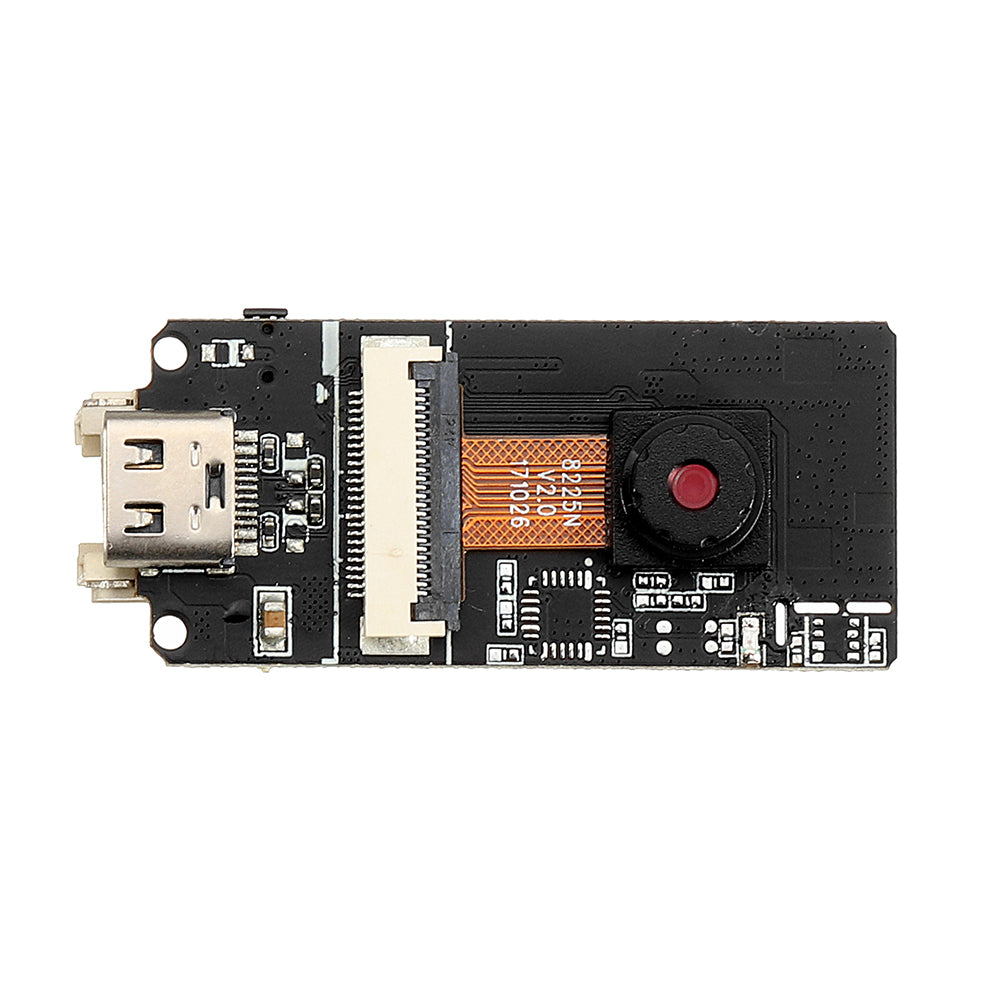

ESP32CAM is an image recognition development board. It features an ESP32 (4M Flash + 520K RAM) chip and 2-Megapixel camera (OV2640). It also supports image transmission via Wi-Fi and debugging through USB Type-C port.

The hardware comes with a preloaded software, programmed by ESP-IDF. The purpose of the pre-loaded software is to operate the Wi-Fi camera. The camera output image has a resolution of 600*800, since it's 2MP camera it's possible to optimize the software to output a bigger resolution of photos.

What can the software do?

  • Power the board via USB type-C or GROVE
  • Use your phone to Wi-Fi scan an AP name start with 'm5stack-' and click to connect this AP.
  • Open up web browser on your phone and visit 192.168.4.1
  • Then here comes the picture. Video is about 5-6 frames per seconds. not super fast.

Product Features

  • ESP32 specifications
  • CP2104 USB TTL
  • 2M image processor
  • 65° Field of View

Includes

  • 1x ESP32CAM

Specification

Resources Parameter
Flash 4MB
RAM 520KB
Image Sensor OV2640
Maximum resolution 200w pixel
Transmission rate UXGA/SXGA: 15fps, SVGA: 30fps, CIF: 60fps
Output format YUV(422/420)/YCbCr422, RGB565/555, 8-bit compressed data
Net weight 6g
Gross weight 18g

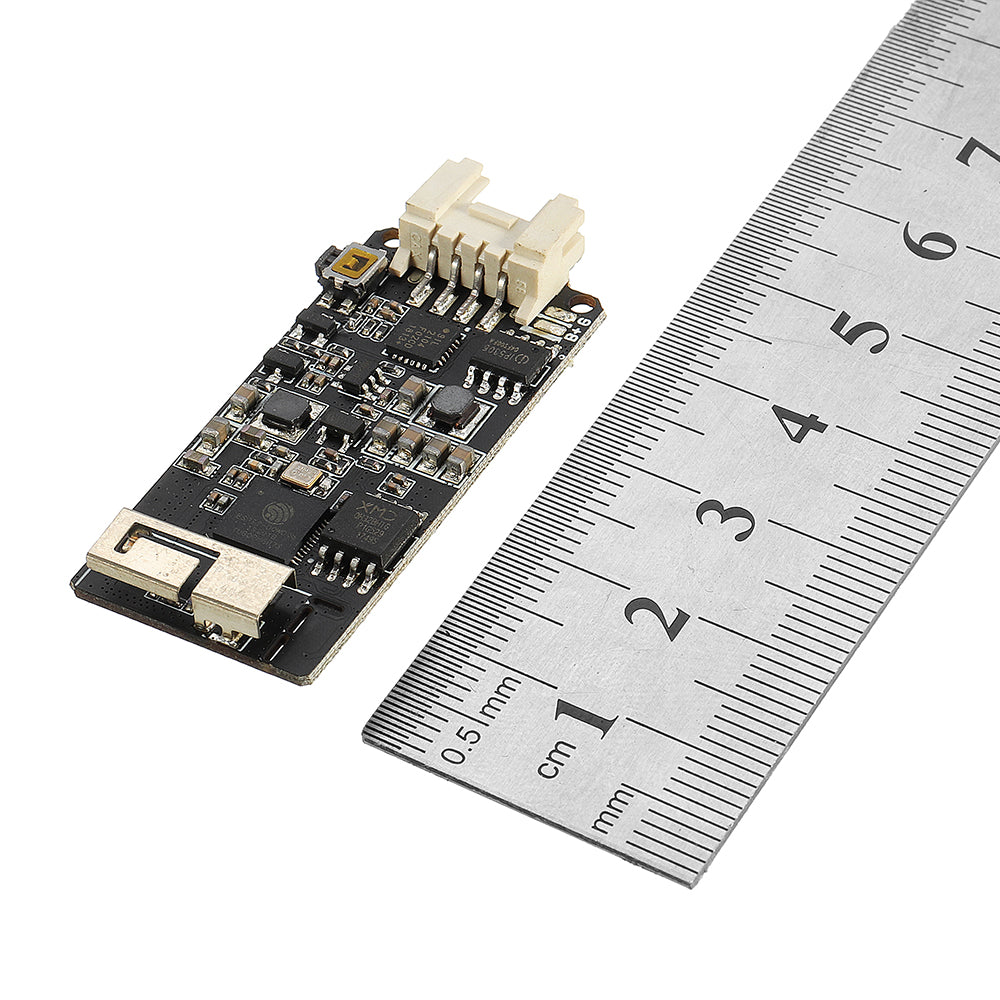

Product Size 20.5*46.5*11.5mm
Package Size 60*57*17mm

LEARN AND DOCUMENTS

  • DOCUMENTS

    • Customer Reviews

    Based on 19 reviews
    95%
    (18)
    5%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    A
    A Lee
    Very Nice, BUT

    The module comes with a self-contained program. It is a nice program to demonstrate the camera. However, 1) I think the "can" program was developed with ESP-IDF not Arduino. 2) there is no instruction to change the SSID of the module.

    A simple sketch for the Arduino environment at the product page would be nice.

    in the product document page, we have provided Arduino example for the camera

    https://docs.m5stack.com/#/en/unit/esp32cam

    S
    Solon Thiel

    Excellent condition

    J
    Jonathon Brace
    Works well.

    It worked well. Picture quality good.

    E
    Eric Larson
    Works!

    Device works as advertised.

    M
    Mavis Hessel

    Good products. Took 11 days to Japan via registered China Post mail with tracking. Packet in hard shelled box. Demo works (http://192.168.4.1). The plastic housing (case) interfares with the antenna and the side switch. There needs to modify the plastic case little bit.
