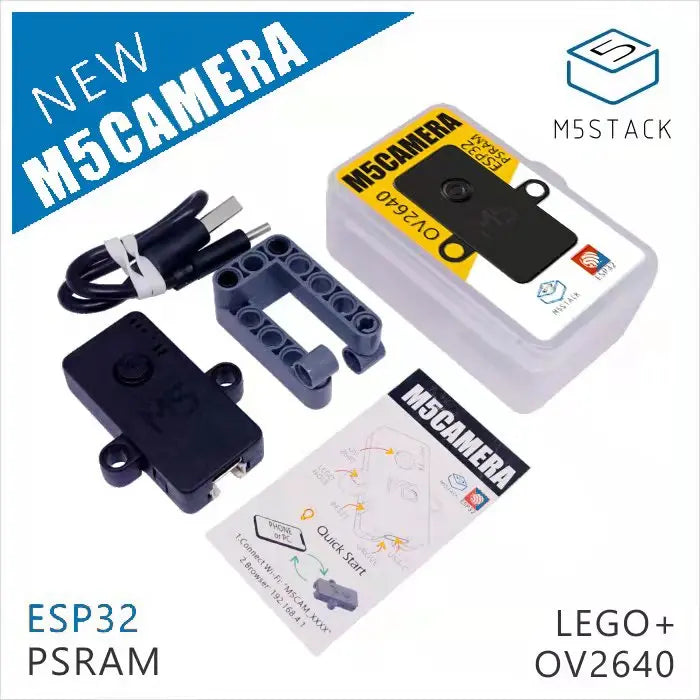

PSRAM Camera Module with ESP32 WROVER (OV2640)

SKU:U017

Regular price $14.95

10+ In Stock

Shipping calculated at checkout.

Description

M5Camera is a development board for image recognition. It features an ESP32(4M Flash + 520K RAM) chip and 2-Megapixel camera (OV2640).M5Camera offers plenty of storage, with an extra 4 Mbyte PSRAM. It also supports image transmission via Wi-Fi and debugging through USB Type-C port.

The hardware comes preloaded software, programmed by ESP-IDF. It is an application to run Wi-Fi camera. The output image is size 600*800, since it's 2MP, you sure can optimize the software to output the maximum size of photos.

what this software can do?

  • Power the board via USB type-C or GROVE
  • Use your phone to Wi-Fi scan an AP name start with 'm5stack-' and click to connect this AP.
  • Open up web browser on your phone and visit 192.168.4.1
  • Then here comes the picture. Video is about 5-6 frames per seconds. not super fast.

Product Features

  • CP2104 USB-to-TTL converter
  • ESP32-WROVER (PCB Antenna)
  • WIFI image transmission
  • OV2640 sensor

Include

  • 1x M5Camera
  • 4x LEGO block
  • 1x Type-C USB(20cm)

Specification

Resources Parameter
Flash 4M
RAM 4MB
Image Sensor OV2640
Maximum resolution 200w pixel
Output format YUV(422/420)/YCbCr422,RGB565/555,8-bit compressed data,8-/10-bit Raw RGB data
Maximum image transmission rate UXGA/SXGA: 15fps, SVGA: 30fps, CIF: 60fps
FOV 65°
CCD Size 1/4 inch
Net weight 17g
Gross weight 41g
Product Size 40*48*11mm
Package Size 75*45*30mm
