Description

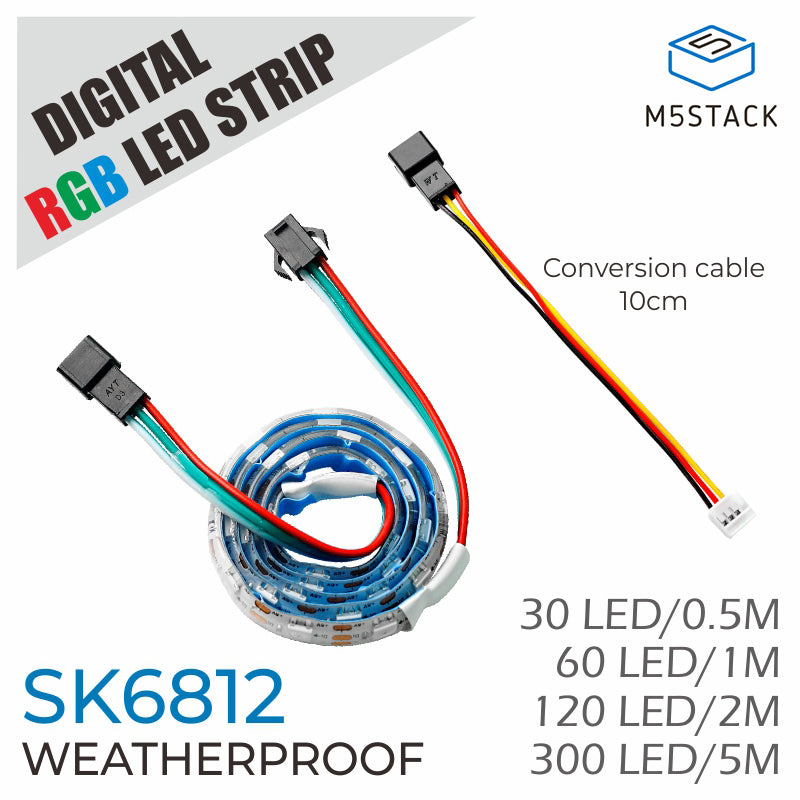

Unit RGB LED Strip is a programmable light strip using SK6812 LEDs. The strip supports digital addressing, meaning each individual LED on the strip can be controlled independently for its color and brightness. Single bus programming allows strip expansion.
The outer layer of the strip adopts epoxy waterproof processing, and the transparent protective silicone cover supports IP65-level waterproof protection, adapting to various usage environments. The product uses flexible FPC (soft strip board) / PCB (hard strip board) as a substrate for welding LEDs, with 5050 spec RGB LEDs, and the back is equipped with strong 3M double-sided adhesive for easy attachment. Operating voltage is 5V DC, and various lighting effects can be achieved through controller programming.
Features
- Product category: RGB LED Strip
- LED model: xdx-5050RGB-60-60
- IC model: SK6812
- Operating voltage: 5V
- Power: ±18W / meter
- Board width: 10mm
- Display grayscale level: 256
- Number of LEDs: 60 LEDs / meter
- Number of ICs: 60 ICs / meter (ICs located on FPC board), 60 pixel points / meter
- Operating temperature: -40°C ~ 80°C
- Service life: 30Kh
- Board base color: White / Black
- Light color: Full-color / any color and effect achievable via controller
- Data transfer rate: 800K/S
- Waterproof rating: Epoxy waterproof - IP65
- Available lengths: 0.5m / 30, 1m / 60, 2m / 120, 5m / 300
- Development platform: Arduino, UiFlow (Blockly, Python)
- Extendable length
Includes
- 1 x Unit RGB LED Strip
- SKU: A093 (1pcs, 30 LED / 0.5m)
- SKU: A093-B (1pcs, 60 LED / 1m)
- SKU: A093-C (1pcs, 120 LED / 2m)
- SKU: A093-D (1pcs, 300 LED / 5m)
- 1 x HY2.0-4P Grove Conversion Cable (10cm)
Applications
- Lighting decoration
Specifications
| Specification | Parameter |
|---|---|
| Length / Net Weight | 0.5m / 37g, 1m / 55g, 2m / 86g, 5m / 211g |
| Length / Gross Weight | 0.5m / 45g, 1m / 65g, 2m / 86g, 5m / 220g |
| Length / Number of LEDs | 0.5m / 30, 1m / 60, 2m / 120, 5m / 300 |
| Strip width | 10mm |

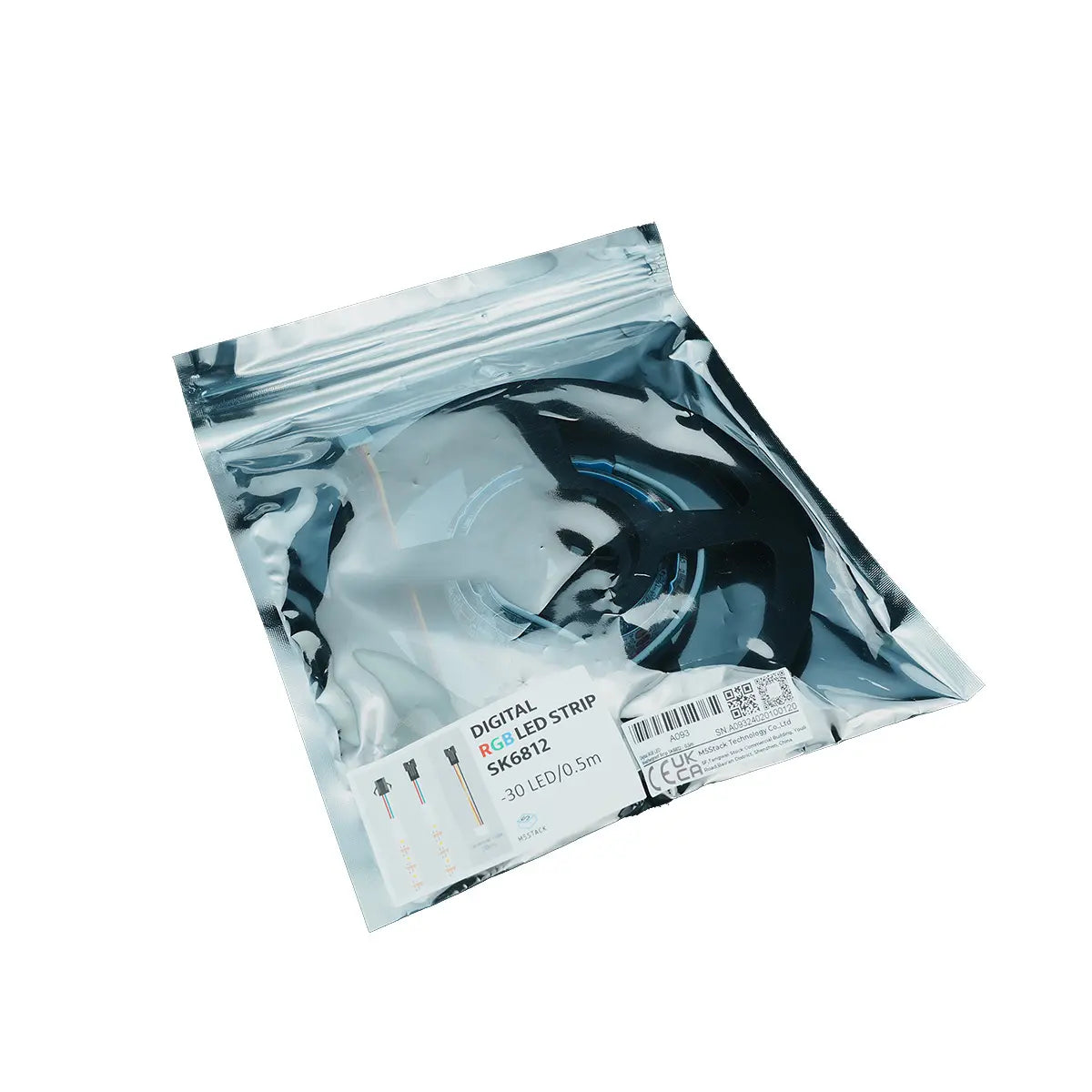

| Package type | Anti-static bag packaging, fixed on reel |
