Description
Unit RGB LED is a programmable light strip that uses SK6812 LEDs. This light strip supports digital addressing, meaning you can individually control the color and brightness of each LED on the strip. It uses a single-bus programming interface, allowing for the expansion of the light strip. Note that as the number of connected LEDs increases, so does the power consumption. Therefore, when using a Unit RGB LED strip with a large number of LEDs, an additional power supply is required.
Features
- Available lengths: 10cm (15 LEDs) / 20cm (29 LEDs) / 0.5m (72 LEDs) / 1m (144 LEDs) / 2m (288 LEDs)
- Development platforms: Arduino, UIFlow (Blockly, Python)
- Expandable length
Includes
- 1 x Unit RGB LED
Specifications
| Specification | Parameter |
|---|---|
| LED Model | SK6812 (3535) |
| Power | 18W/m |
| Data Transfer Rate | 800K/s |
| Operating Temperature | -40~80°C |
| Waterproof Level | Bare Board - Non-Waterproof |
| Product Size | 10.0 x 100.0/10.0 x 200.0/10.0 x 500.0/10.0 x 1000.0/10.0 x 2000.0mm |
| Product Weight | 4.0g/6.0g/10.0g/12.0g/34.0g |
| Package Size | 138.0 x 93.0 x 8.0mm |
| Gross Weight | 5.0g/7.0g/11.0g/13.0g/35.0g |

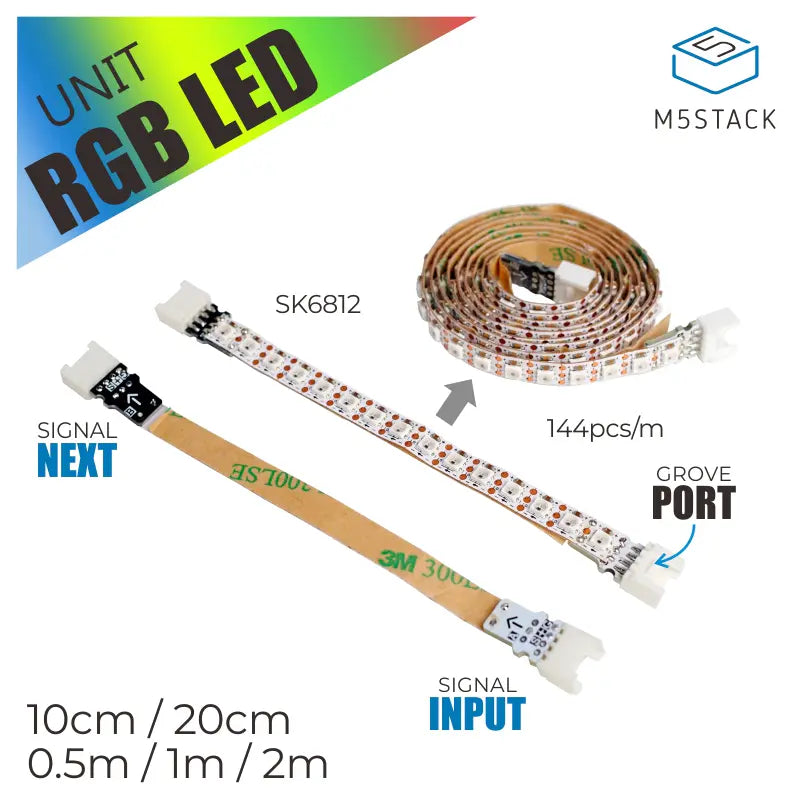

Signal Input/Output The white PCB at the end of the strip is the signal input (connected to the main controller), and the black PCB is used for extending the strip.
