Product Status Notice
This product is EOL (End of Life).
Please order the new version:
Base Bottom v1.1
Description

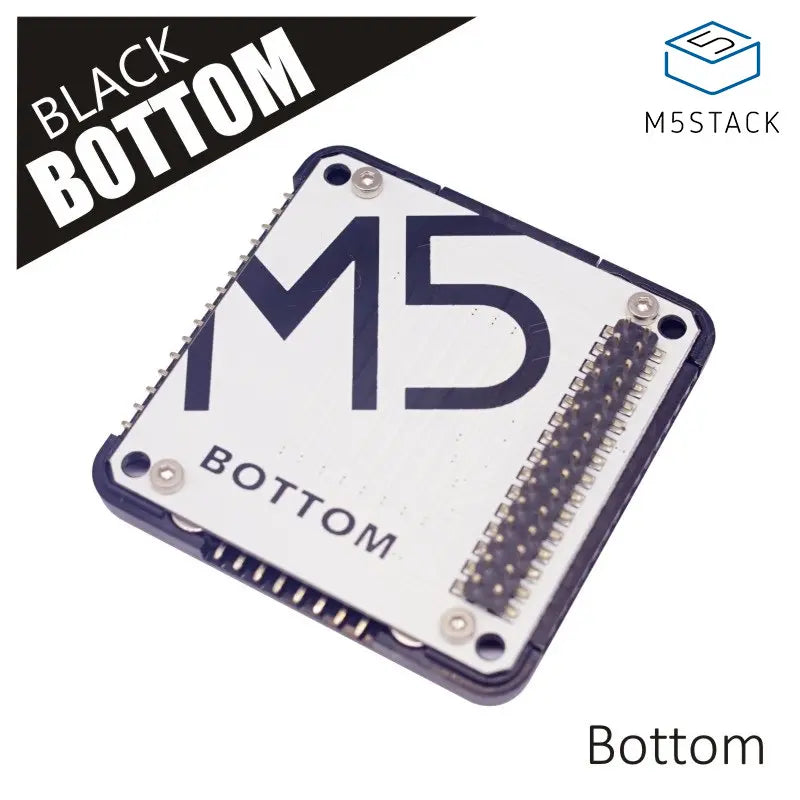

Base Bottom is a basic universal base for Core series. It is the standalone retail version of the Basic and GRAY bases, with identical hardware content. It has a built-in lithium battery, provides an M5-Bus socket, and side expansion male and female headers for easy external expansion.
Features
- Lithium Battery: 110mAh @ 3.7V
Includes
- 1 x Base Bottom
Specifications
| Specification | Parameter |
|---|---|
| Product Weight | 20.0g |
| Product Size | 54.0 x 54.0 x 5.0mm |
| Package Size | 60.0 x 57.0 x 17.0mm |
| Gross Weight | 32.0g |
Learn and Documents
→ DOCUMENTS R

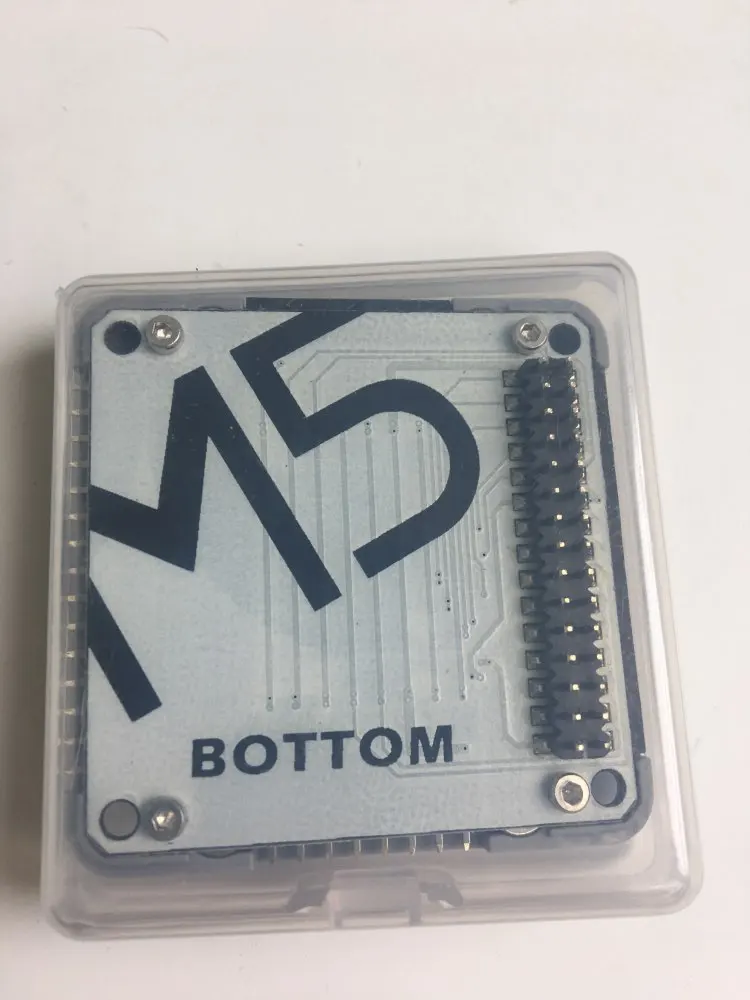

Bought this to add expansion options to M5Go and M5Fire.
H
Battery Bottom 110mAh for M5Stack
C
There is no such pallet in the fire version. Therefore, additionally bought for experiments.
A
Bought from m5fire for the convenience of connecting third-party modules.
H

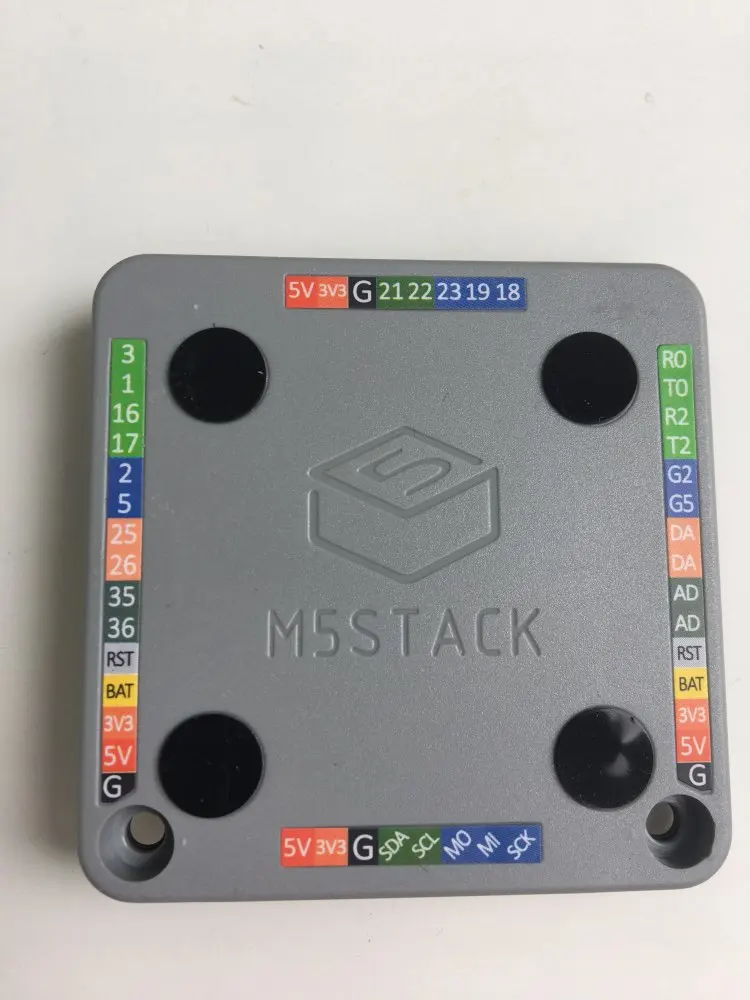

The base is similar the GREY Core base unit
