Description

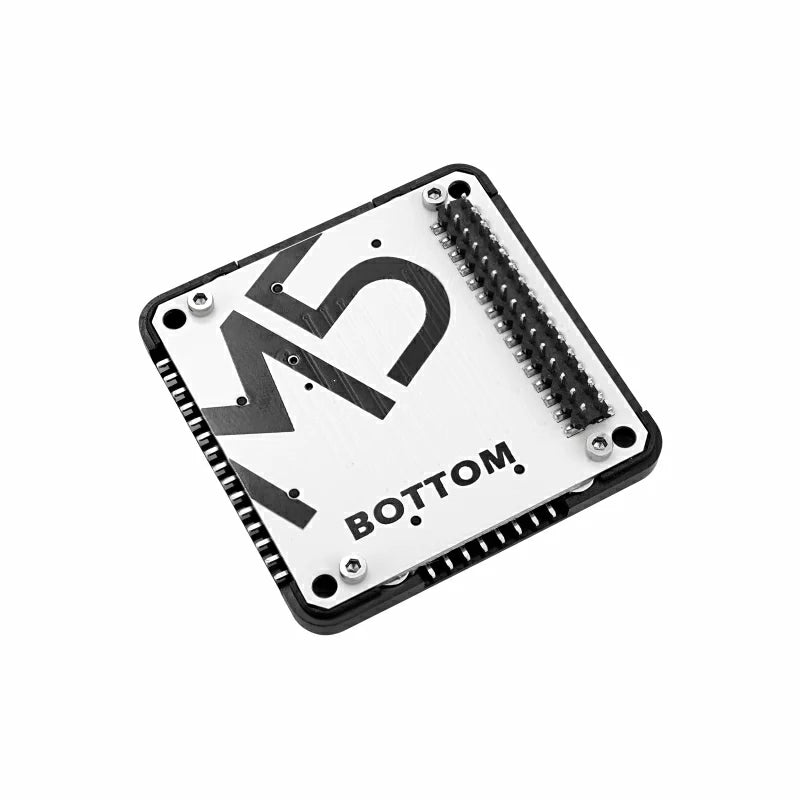

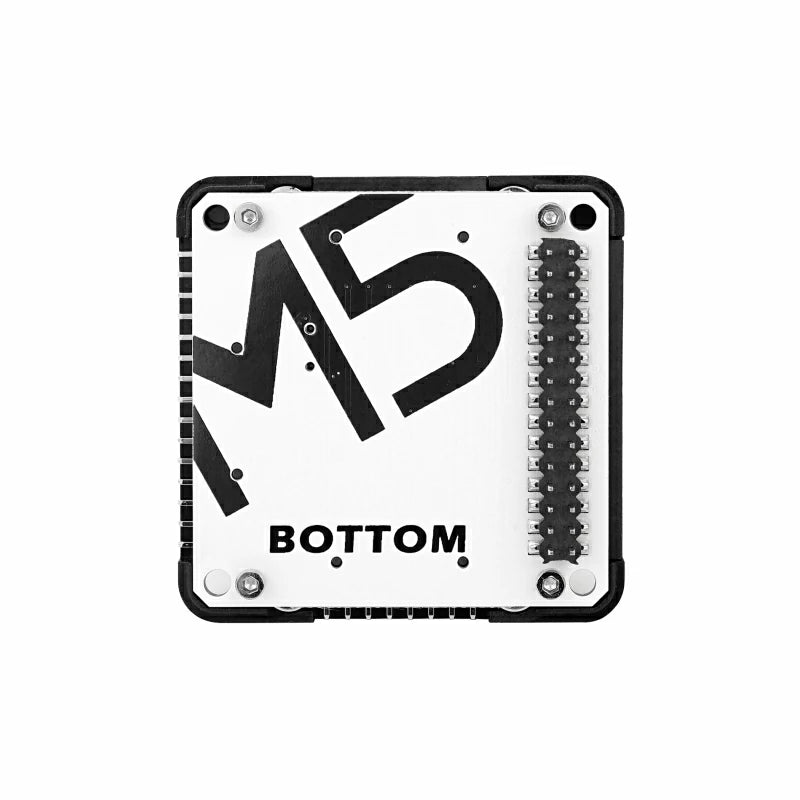

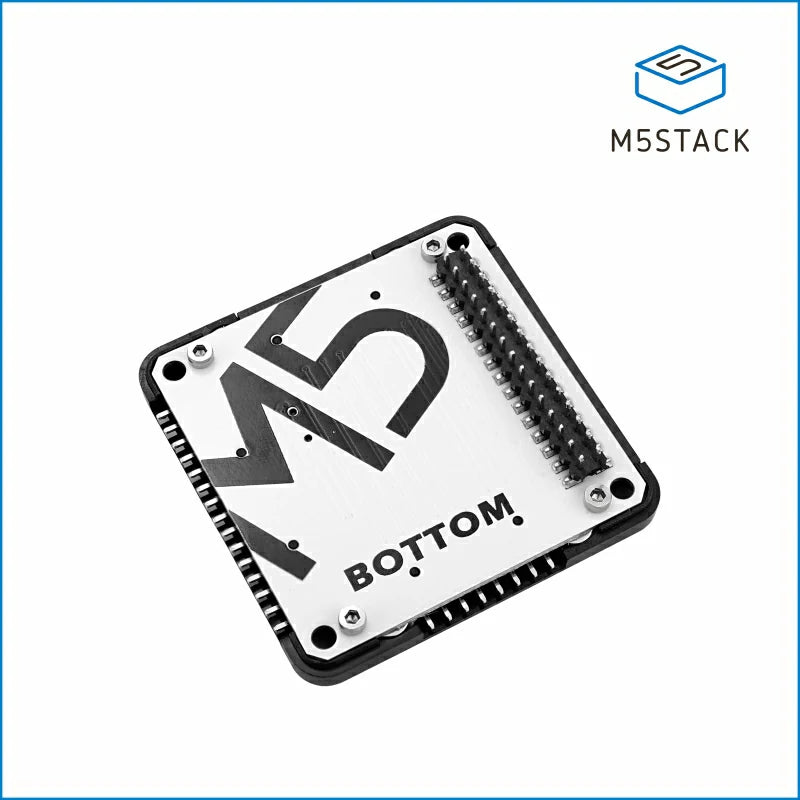

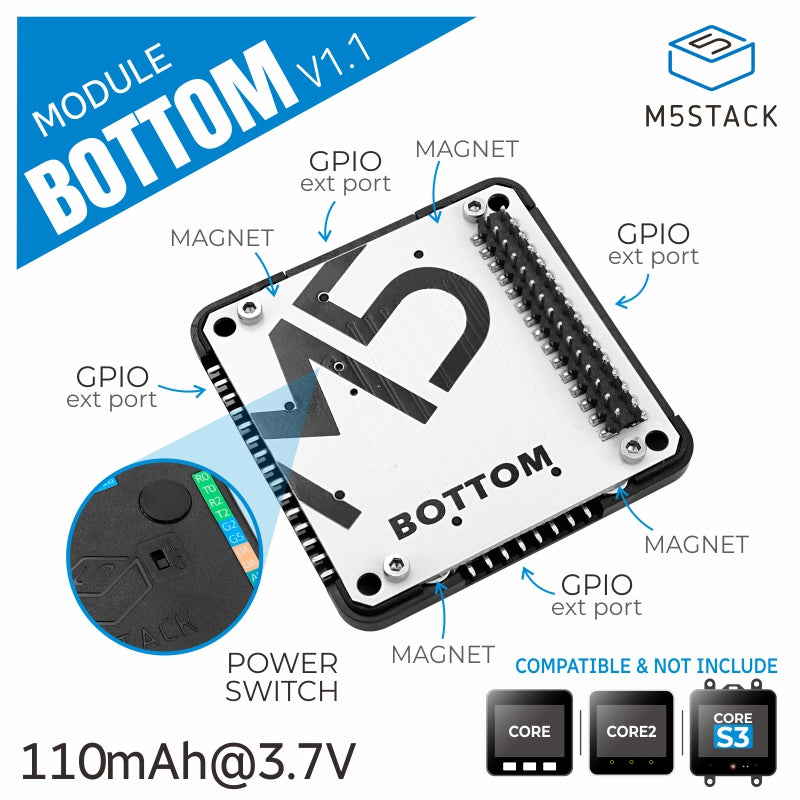

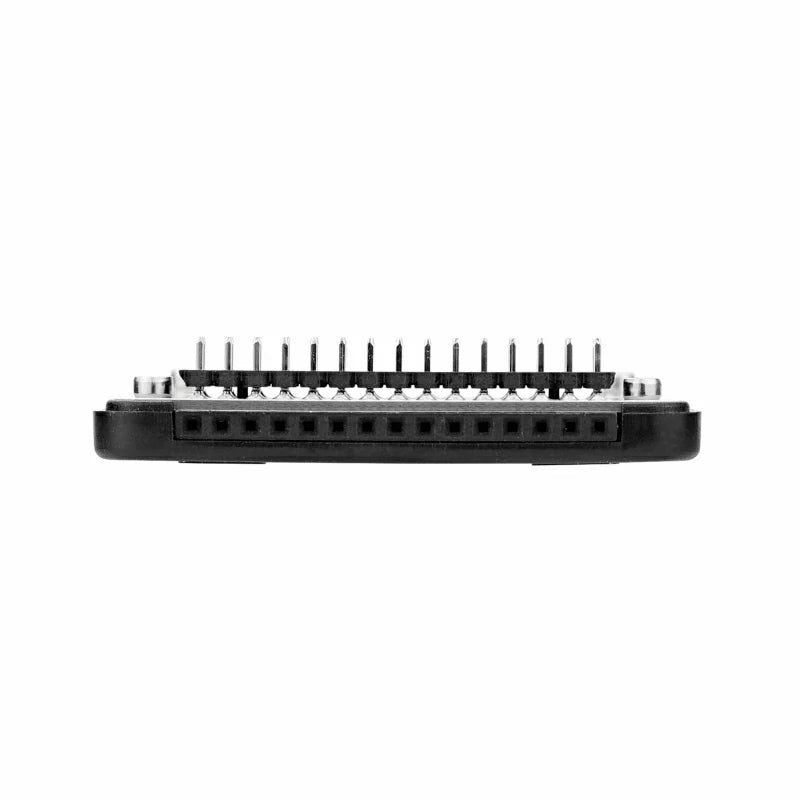

Base Bottom v1.1 is a universal base developed for the Basic (Core) host. Compared to the previous generation Core Bottom, the base is equipped with a battery switch at the bottom to extend battery life. It contains an internal 110mAh lithium battery and extends 2.54mm pitch male and female headers for convenient user expansion. The bottom is embedded with magnets for magnetic attachment, suitable for various application scenarios.
Pin Mapping

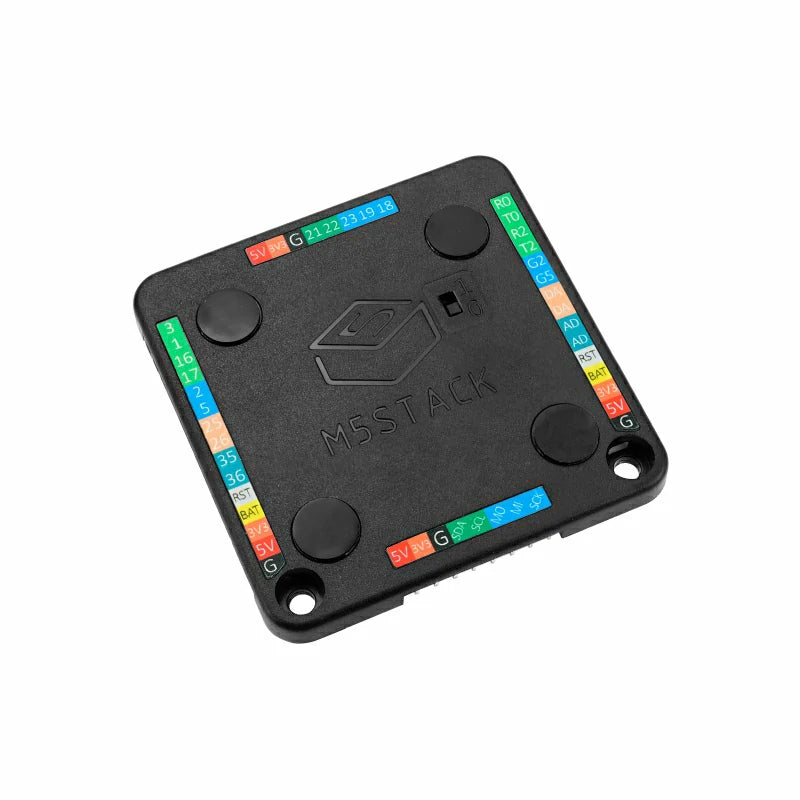

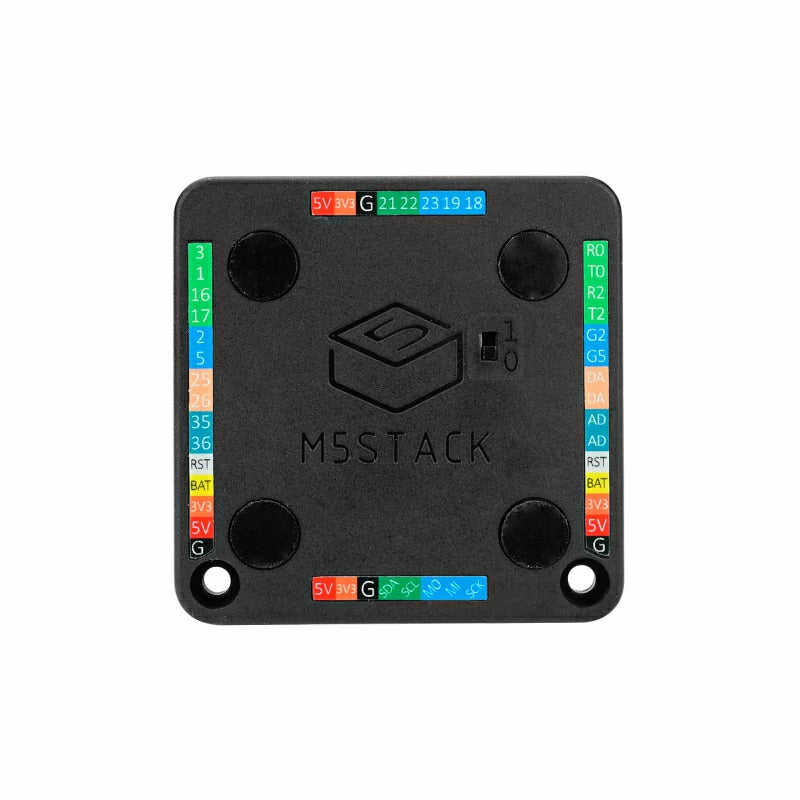

The pin mapping on the bottom sticker corresponds to the Core1 host (Basic/Fire/Gray). When used with Core2 and CoreS3, please refer to the corresponding host pin mapping.
Features
- Compatible with Core/Core2/CoreS3
- Magnetic base
- 110mAh battery
- Battery power switch
Includes

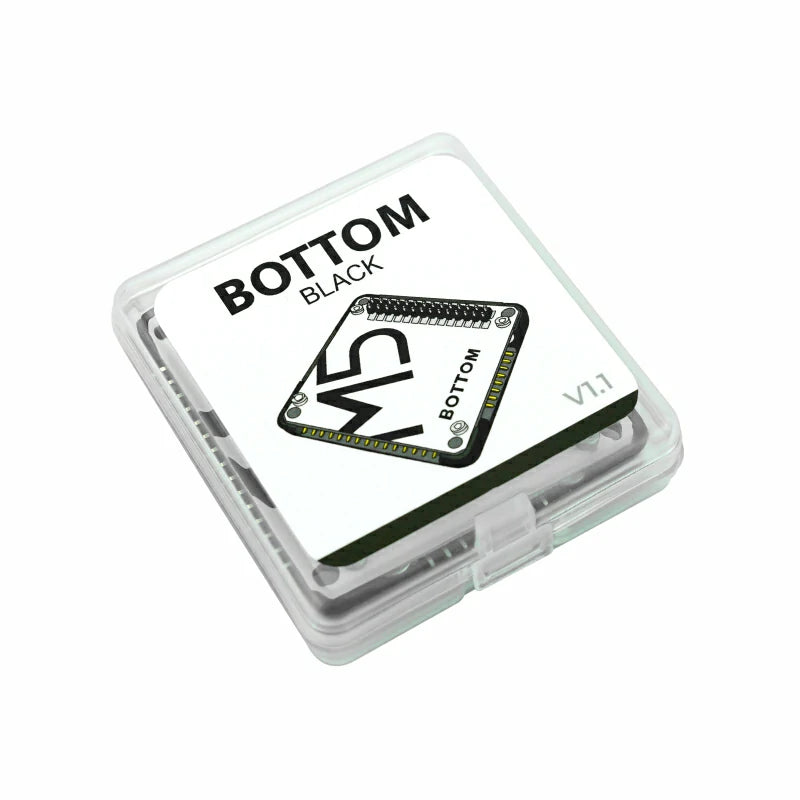

- 1 x Base Bottom v1.1
Specifications
| Specification | Parameter |
|---|---|
| Product Size | 54.0 x 54.0 x 11.0mm |
| Package Size | 62.0 x 57.0 x 17.0mm |
| Product Weight | 22.8g |
| Gross Weight | 34.3g |
