PRODUCT DETAILS

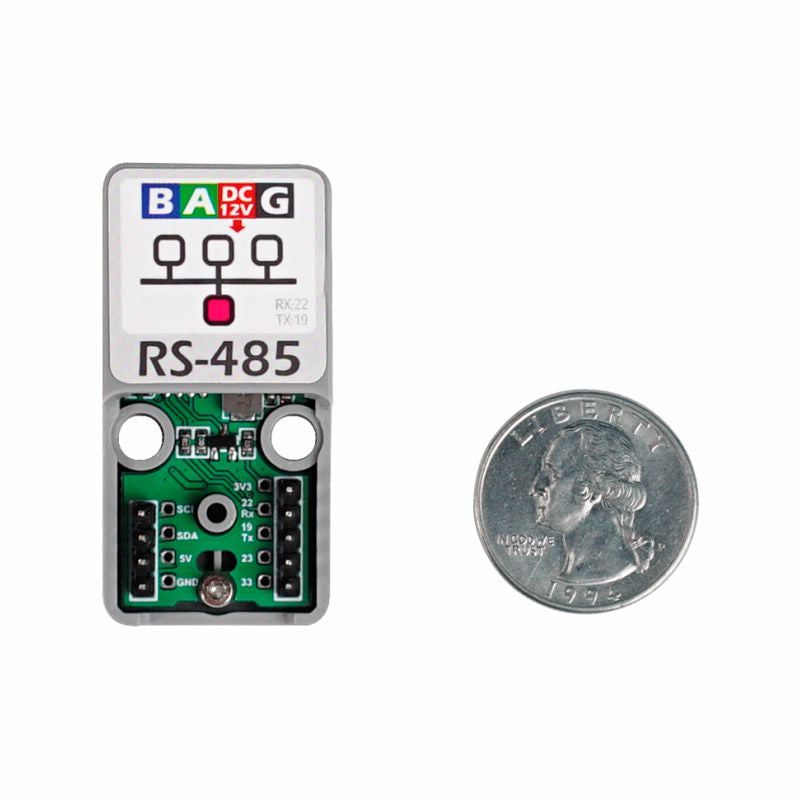

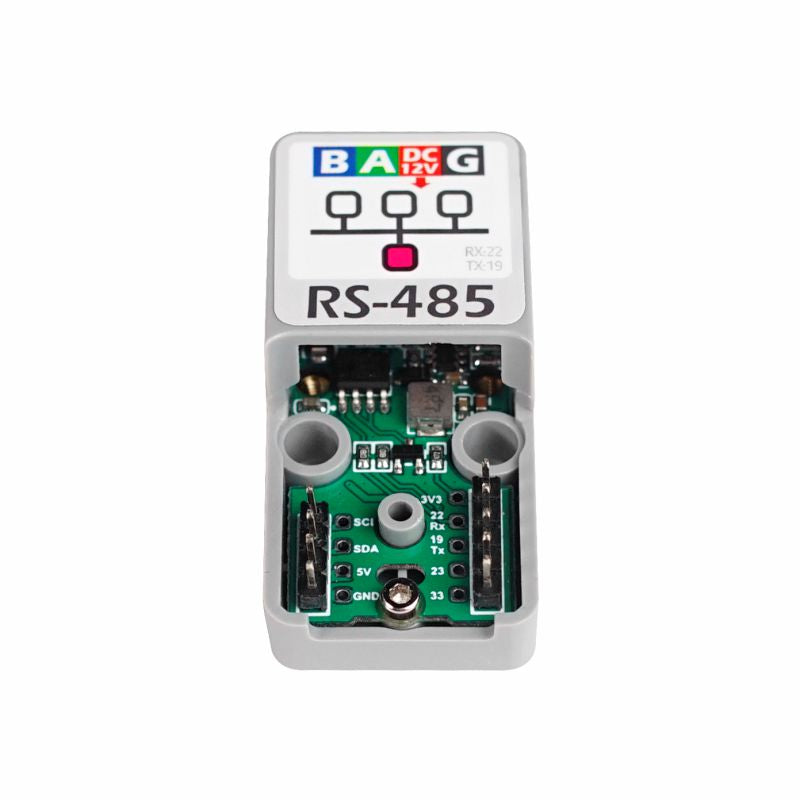

Description
ATOM RS-485 is a TTL-RS485 converter designed for use with M5Atomic. It's function is for TTL level and RS485 level-conversion. RS485 is a communication protocol standard, which is used to define the electrical characteristics of drivers and receivers of a serial communication system. It supports a multi-point system and is widely used in industry. When the applications equipment needs to communicate and be controlled through RS485, ATOM RS-485 is an excellent choice. A DC/DC voltage regulator chip is integrated in the ATOM RS-485, which can directly convert the 12V voltage of RS485 to 5V to supply power for M5ATOM, avoiding the trouble of using a separate power supply.
Product Features
- Compatible ATOM Matrix/ATOM Lite
- SP3485EE
- Built-in DC/DC
- Multi point communication

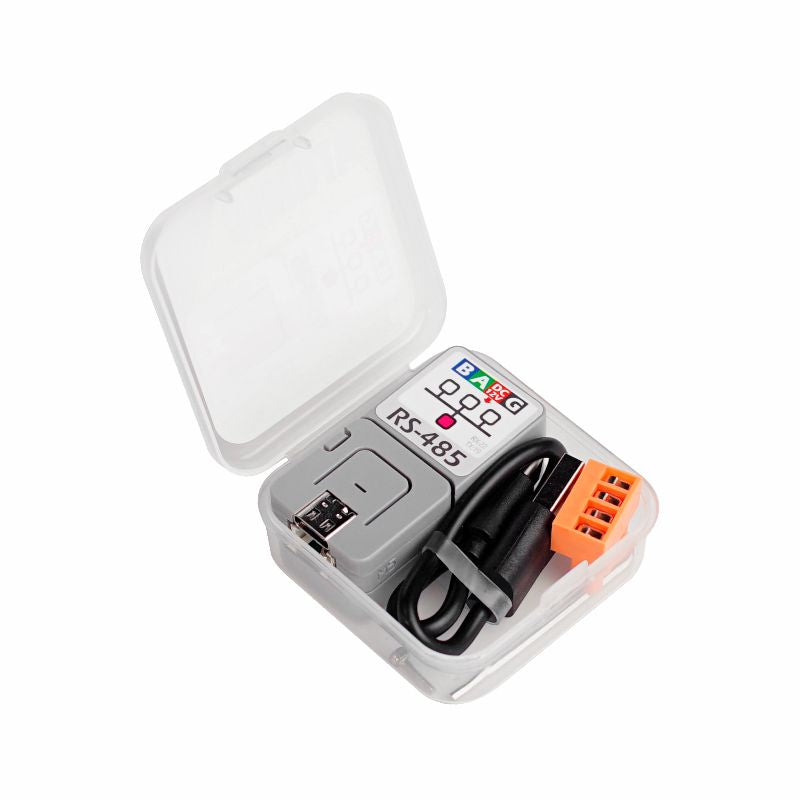

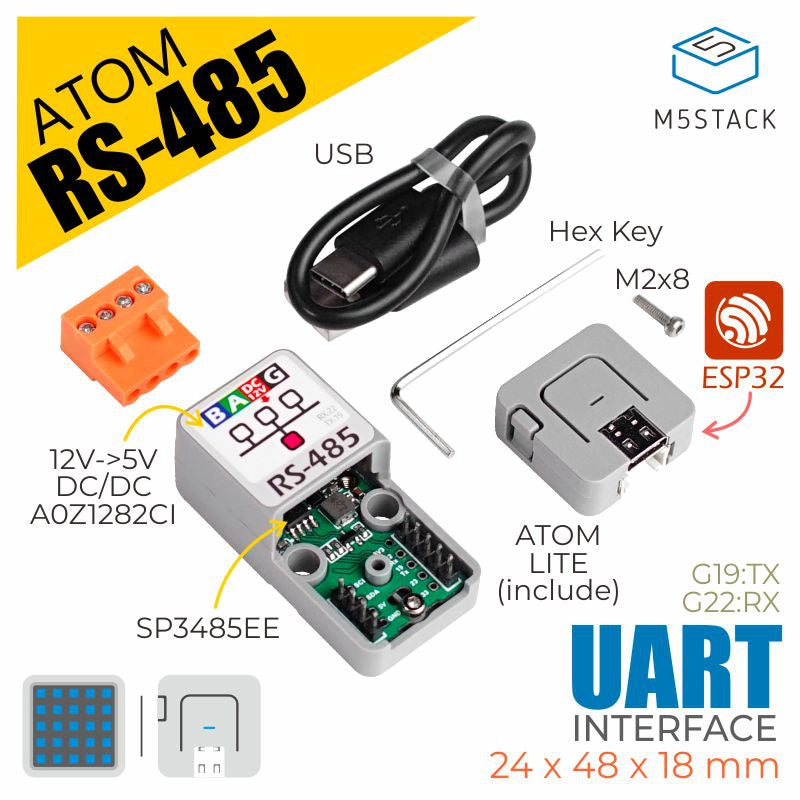

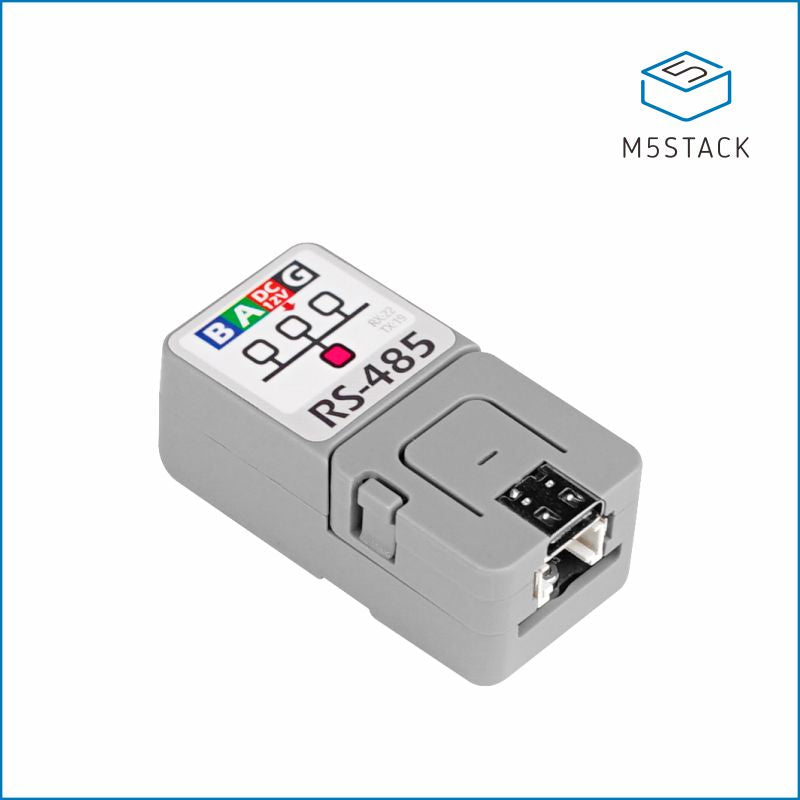

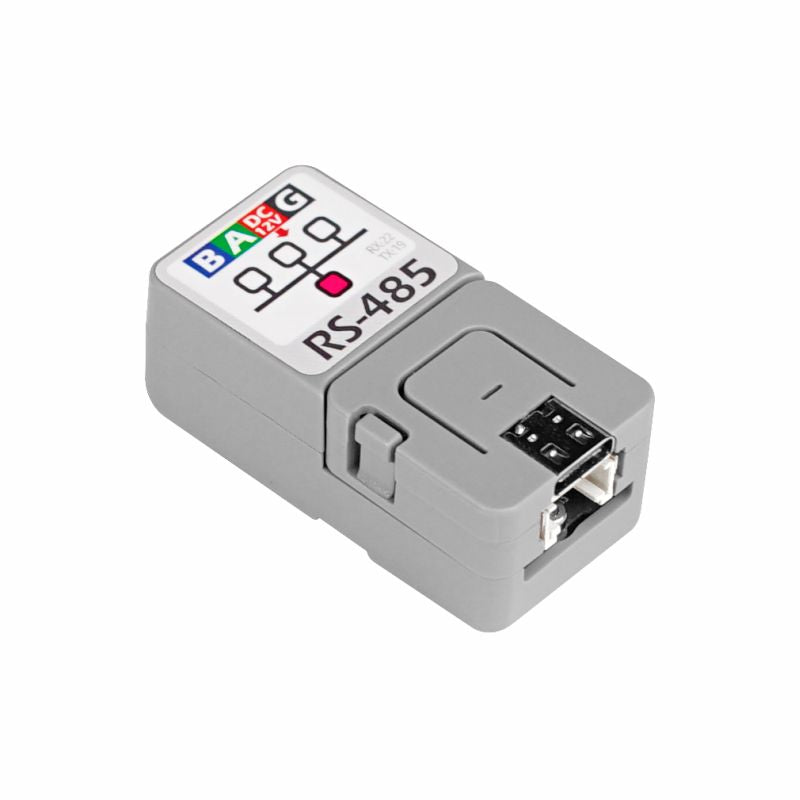

Include
- 1x ATOM RS-485
- 1x ATOM Lite
- 1x Hex Key

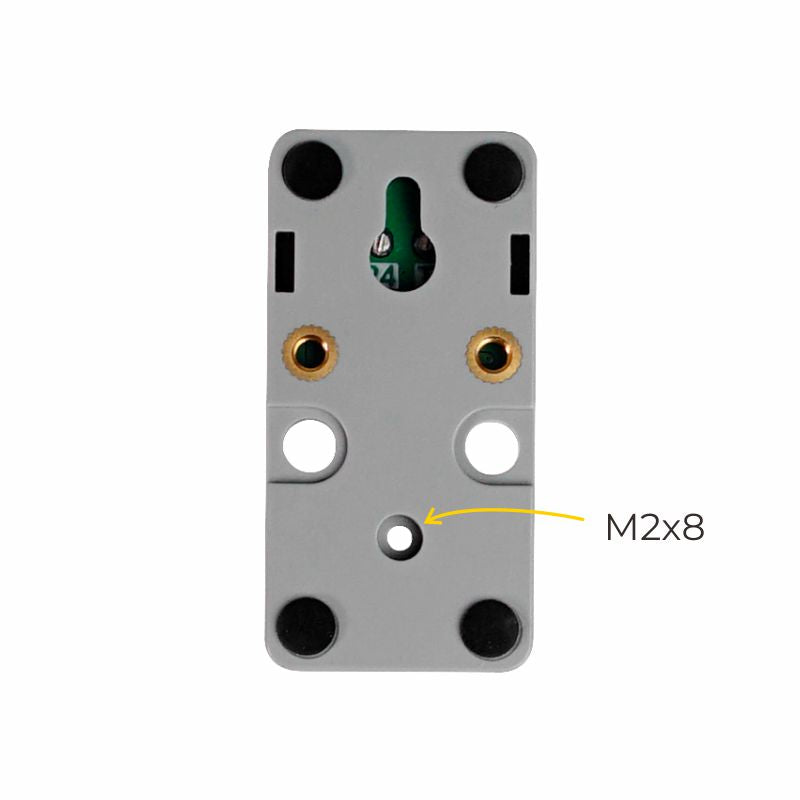

- 1x M2*8mm Hexagon socket cup head machine screw
- 1x 18cm TYPE-C Cable
Applications
- RS485 Multi point communication
- Industrial control node
- RS485 to Wi-Fi
Specification

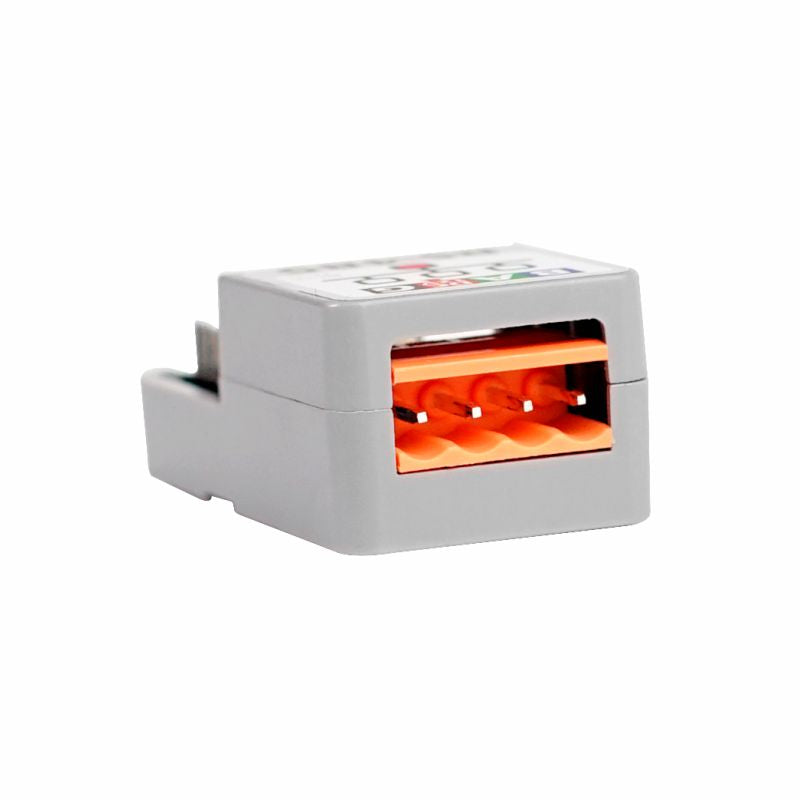

Specification | Parameter |
---|---|
External port | VH-3.96 4P |
Conversion level | 5V12V |
level-conversion IC | SP3485EE |
DC-DC | A0Z1282CI |
Net weight | 28g |
Gross weight | 38g |
Product Size | 24*48*18mm |
Package Size | 54*54*20mm |
Case material | Plastic ( PC ) |
