Description
Unit ZigBee is a Zigbee self-organizing network communication module launched by M5Stack. The module adopts the CC2630F128 solution, with an integrated Zigbee protocol stack and an open serial communication interface. It comes with an external antenna, providing a stable communication distance of up to 1 km for a single node, with a router depth of 200 levels. Through MESH networking, it can extend your IoT applications over a wide range, featuring ultra-low power consumption and high sensitivity. The Zigbee network can support hundreds of nodes and has enhanced security features, offering a complete and interoperable IoT solution for home and building automation.
Features
- CC2630F128 (Dual ARM Core - 32-bit)
- Serial communication
- Low power consumption (Module operating current: 25mA, Sleep mode: 5uA)
- Dynamic routing maintenance, supports 200-level routing depth
- Transmission speed of 250Kbps
- Node communication distance of 1 km
- UART transparent transmission/broadcast/P2P

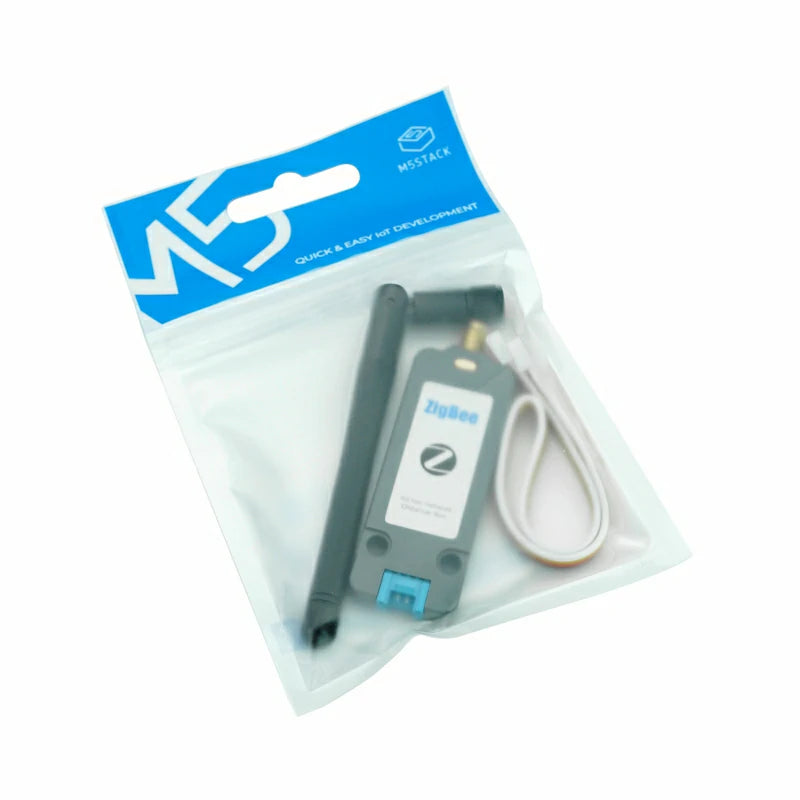

Includes
- 1 x Unit ZigBee
- 1 x SMA Antenna
- 1 x HY2.0-4P Grove Cable (20cm)
Applications
- Smart home
- IoT data collection nodes
- Building automation
Specifications
| Specification | Parameter |
|---|---|
| CC2630F128 | ARM Cortex-M3 32-bit |
| Communication Method | UART 38400bps 8N1 (default) |
| Communication Range | 1 km (open area) |
| Operating Frequency | 2.4 GHz (2405MHz-2480MHz, 5MHz steps) |
| Net Weight | 24g |
| Gross Weight | 50g |
| Product Size | 71.5 x 24 x 8mm |
| Package Size | 136 x 92 x 10mm |
