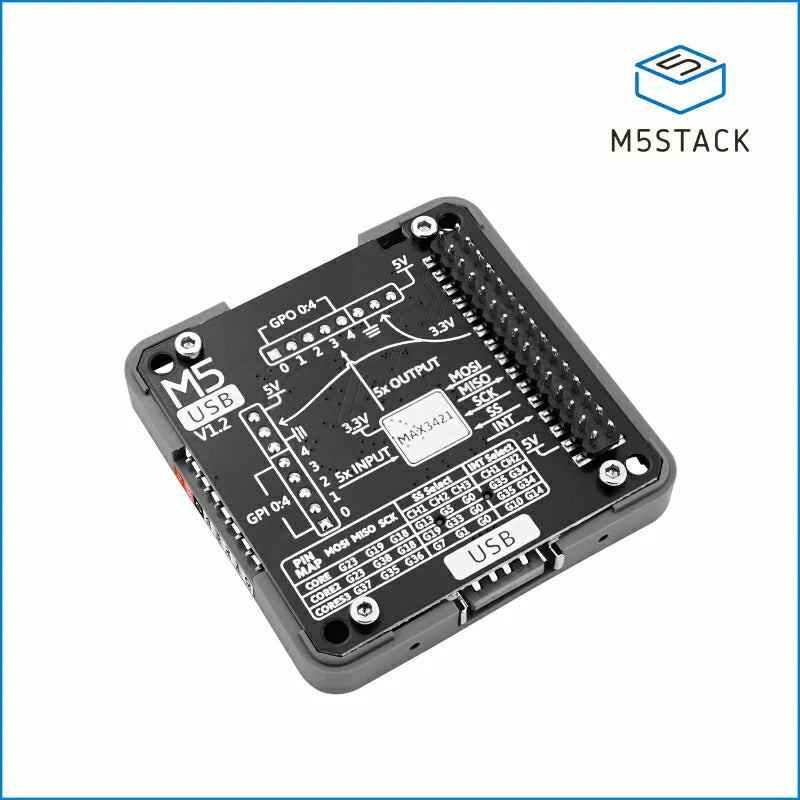

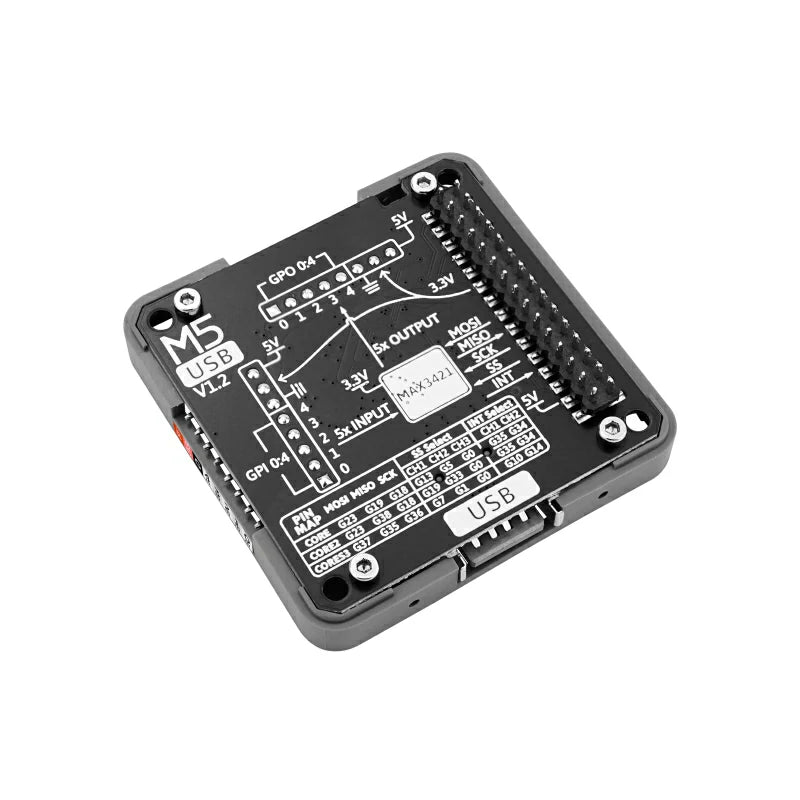

Description
Module USB v1.2 is a USB driver module in the M5Stack stackable module series, using the MAX3421E chip solution, providing a standard USB interface, supporting USB host and peripheral functions. It is compatible with various USB devices and operating systems, connecting to the system via SPI communication. The board features two DIP switches to adapt to different M5 series hosts, and reserved pins for controlling external devices or reading their status. It also includes a battery holder, enhancing its flexibility and practicality. This device is suitable for smart homes, industrial control, consumer electronics, medical devices, as well as education and research fields.
Features

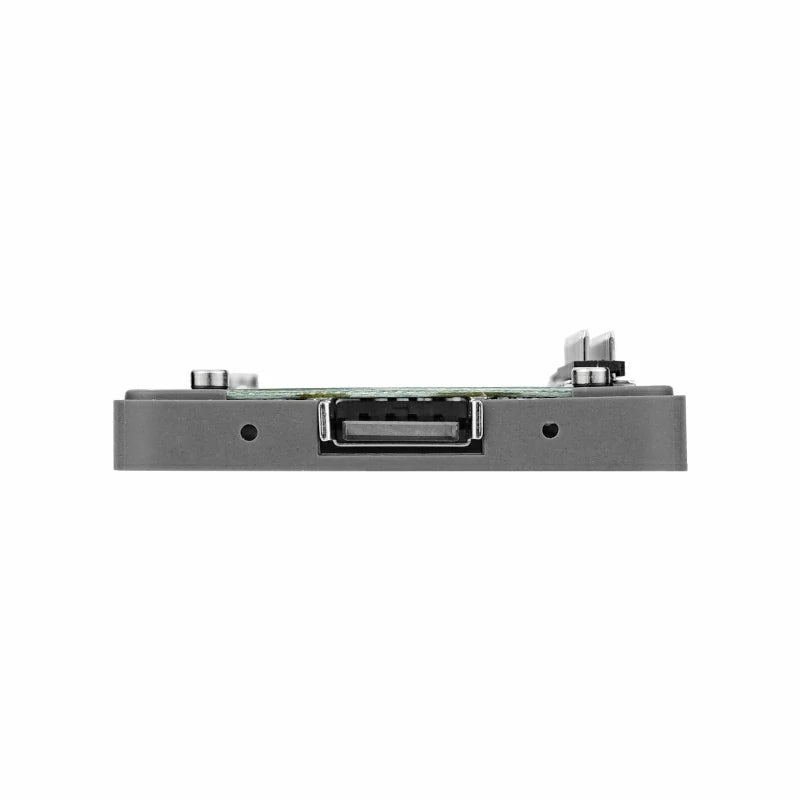

- Standard USB 2.0 interface
- SPI communication protocol

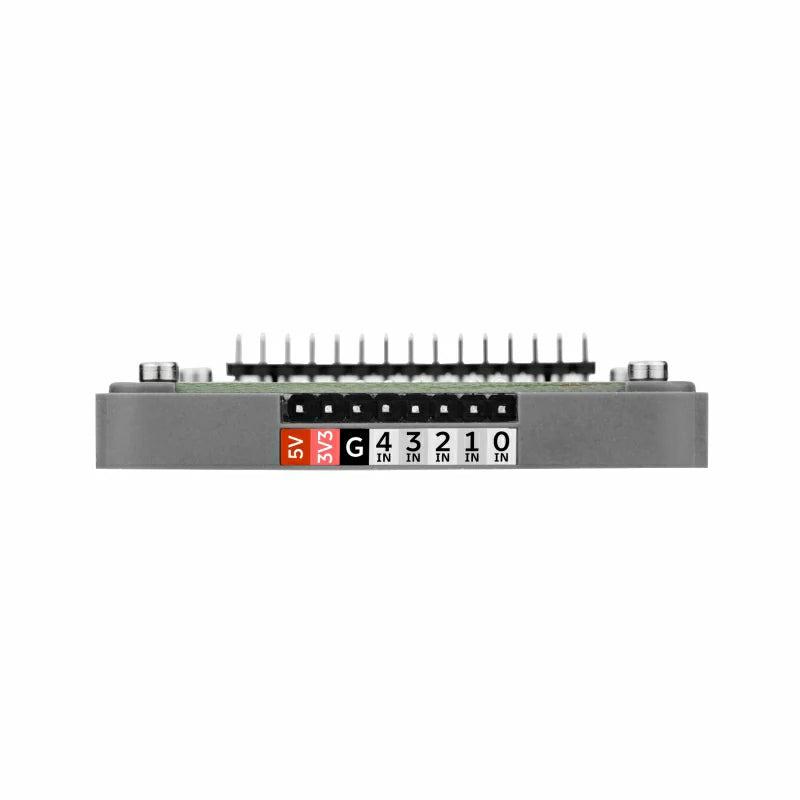

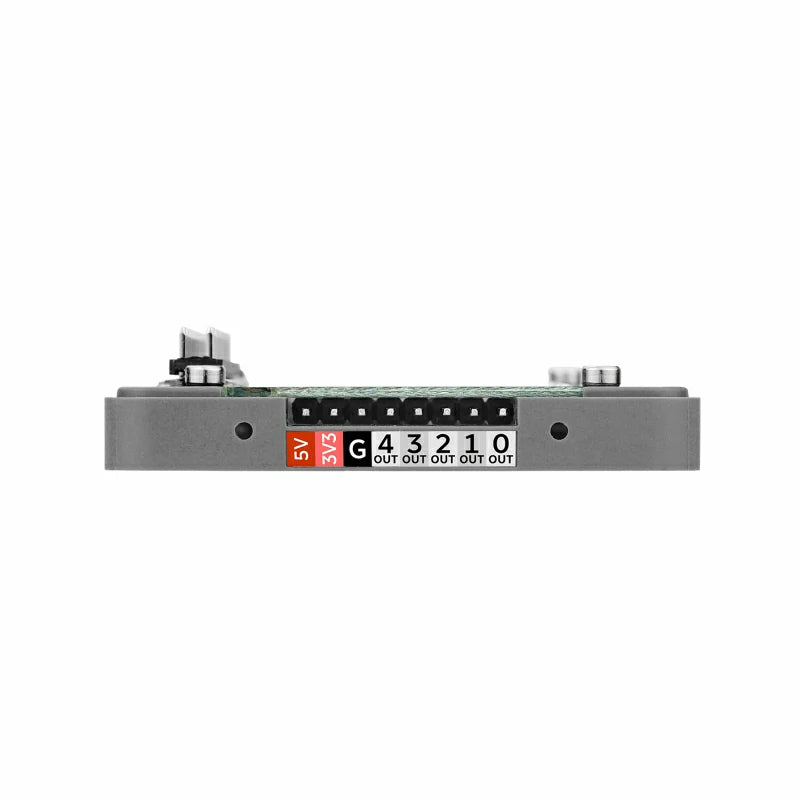

- GPIO pin expansion (5x input, 5x output)
- Lithium battery holder

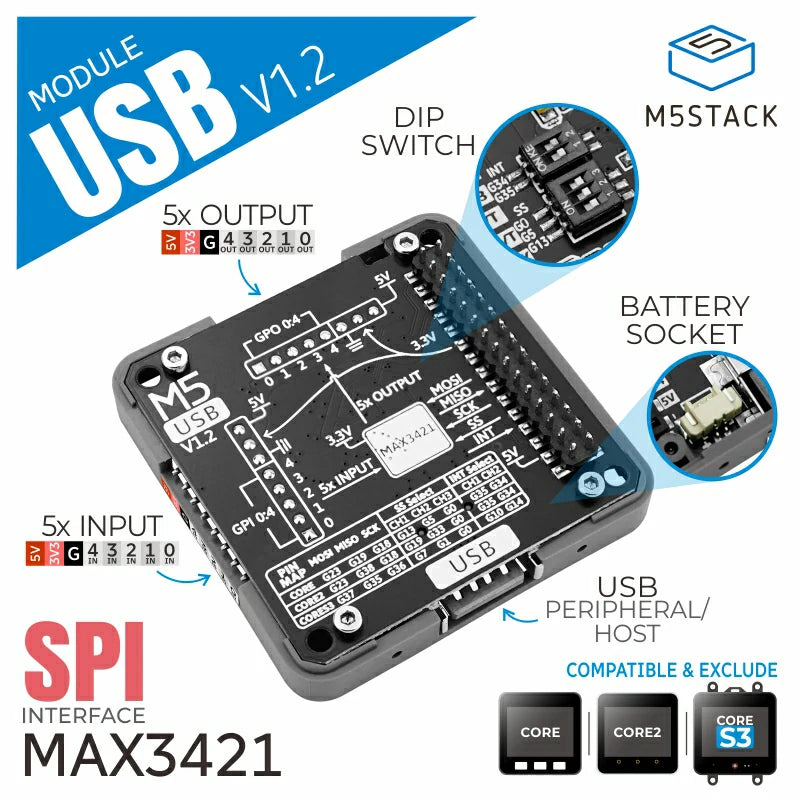

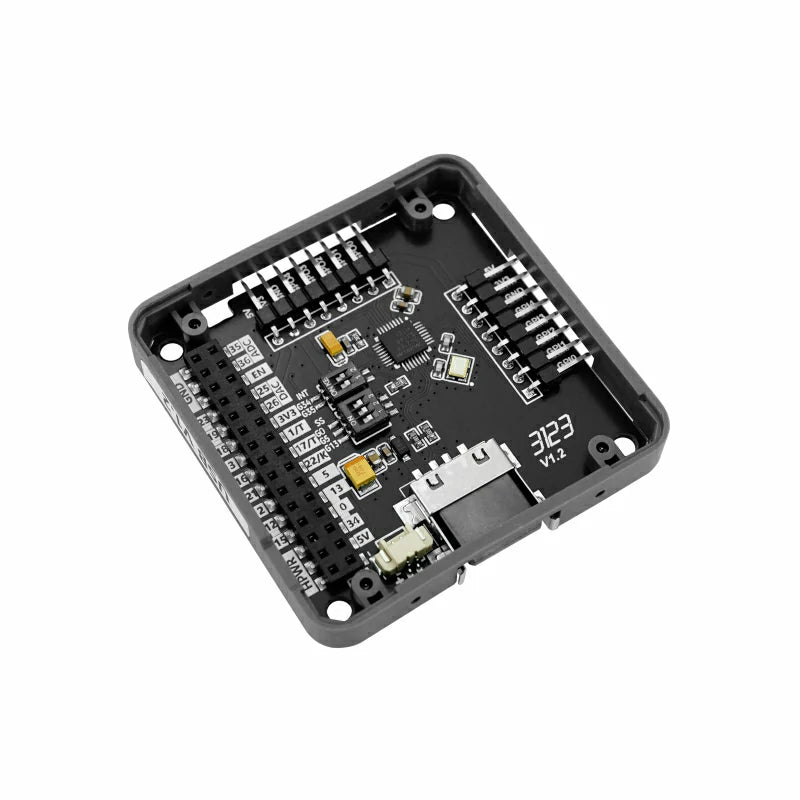

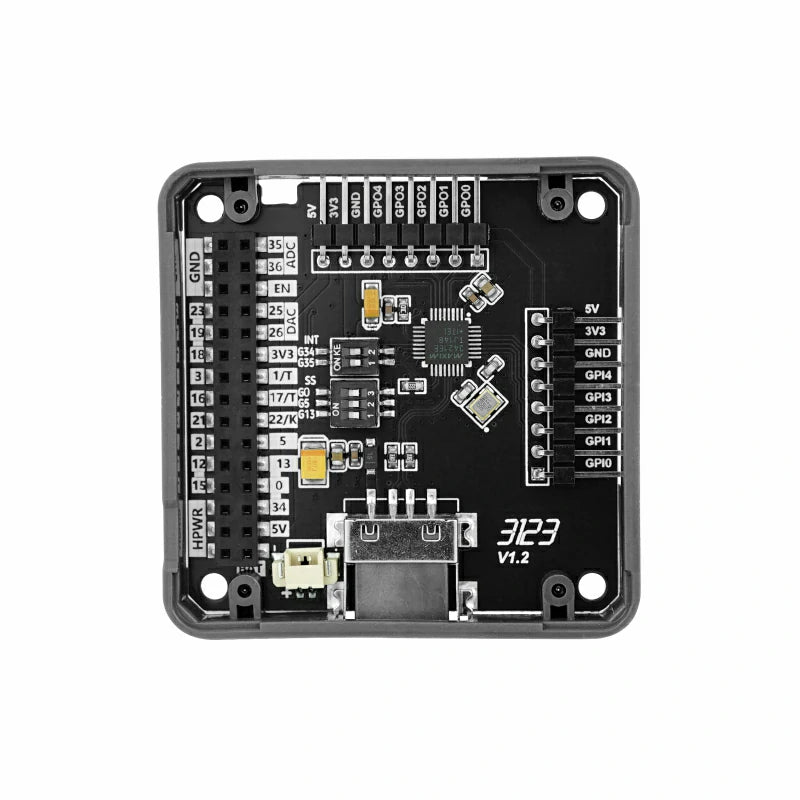

- DIP switch for adapting to different hosts
Includes
- 1 x Module USB v1.2
Applications
- USB host/peripheral
Specifications
| Specification | Parameter |
|---|---|
| Chip Model | MAX3421E |
| Supported USB Standard | USB 2.0 |
| Interface Type | SPI |
| Operating Temperature | 0 ~ 40°C |
| Product Weight | 13.3g |
| Product Size | 54.0 x 54.0 x 12.8mm |
| Package Size | 132.0 x 95.0 x 16.0mm |
| Gross Weight | 28.0g |
