Universal IOT Experiment Kit for ESP32(SHT30)

Description

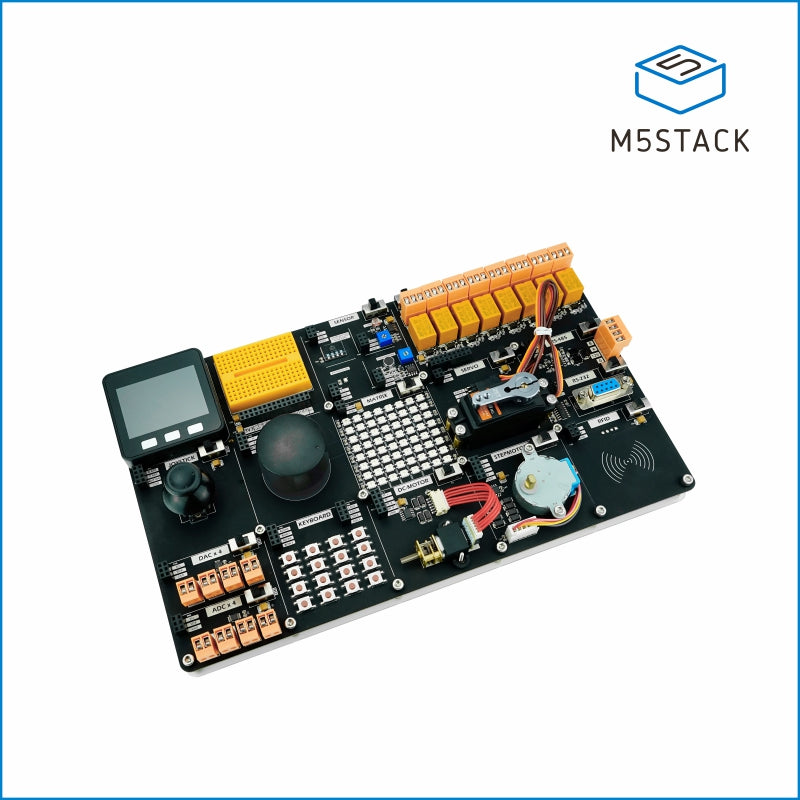

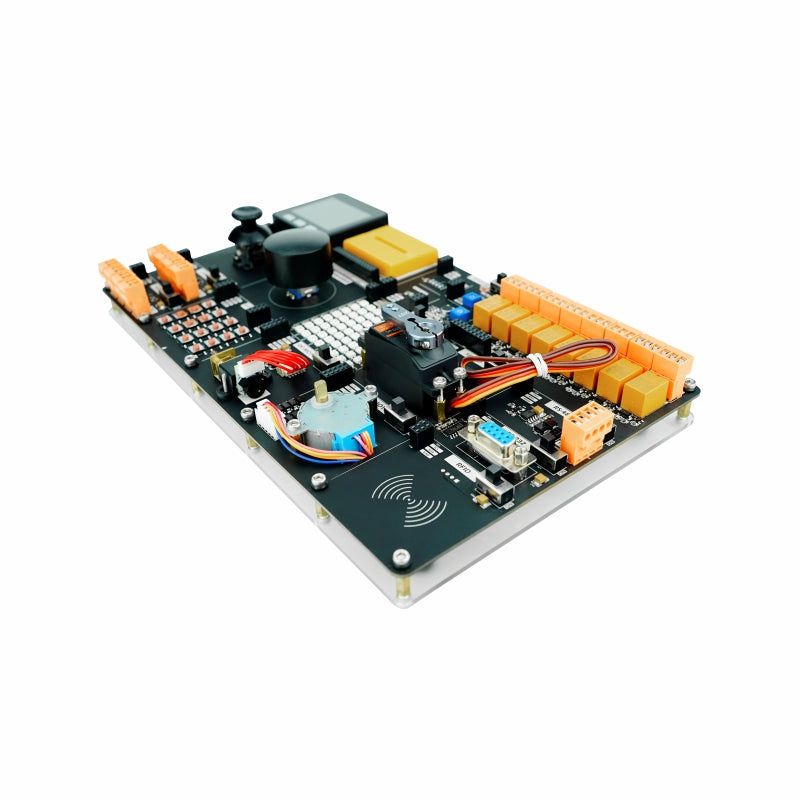

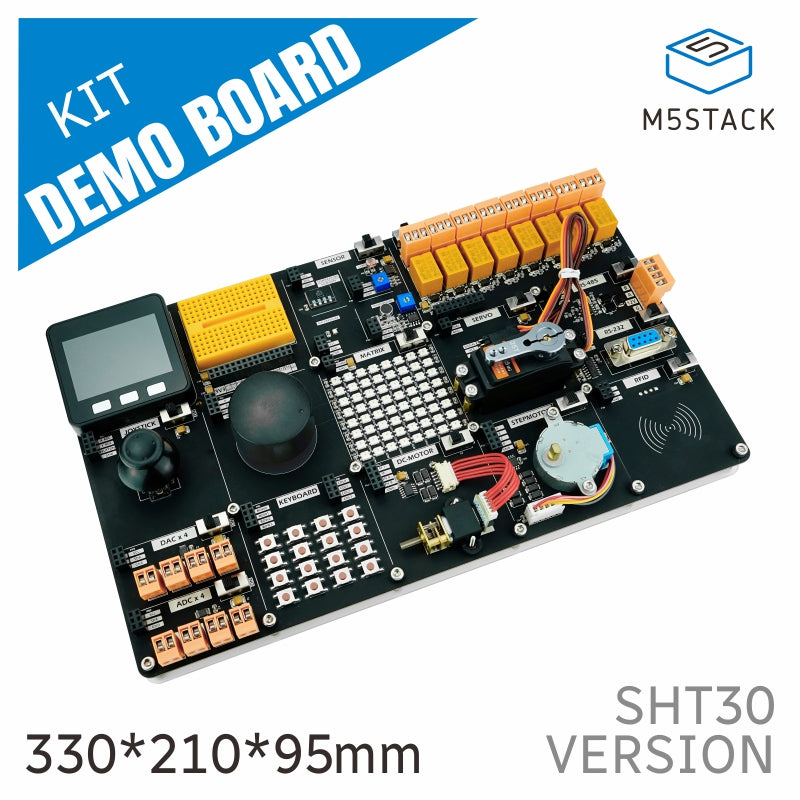

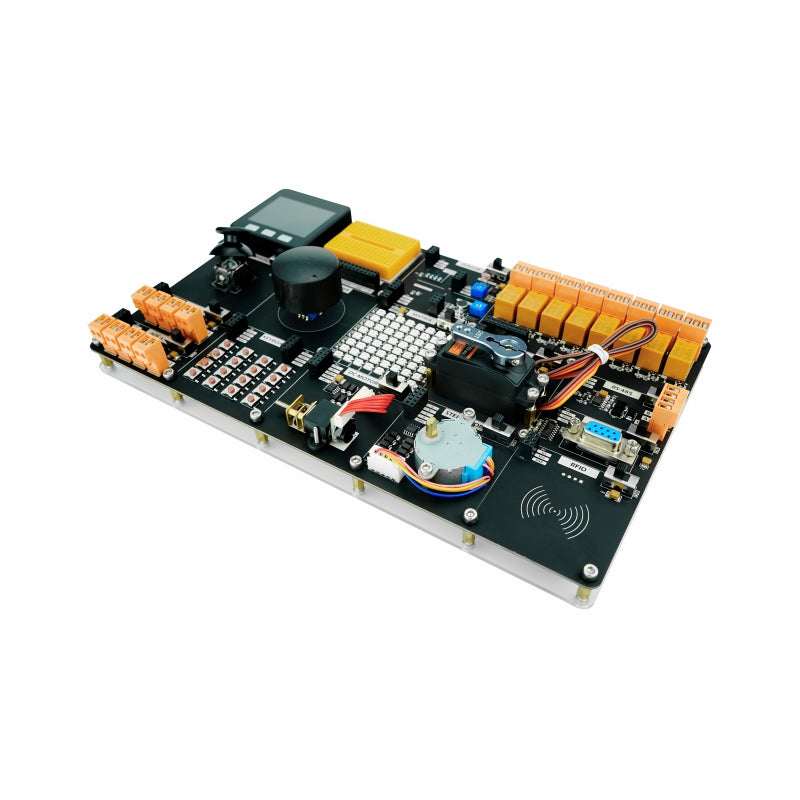

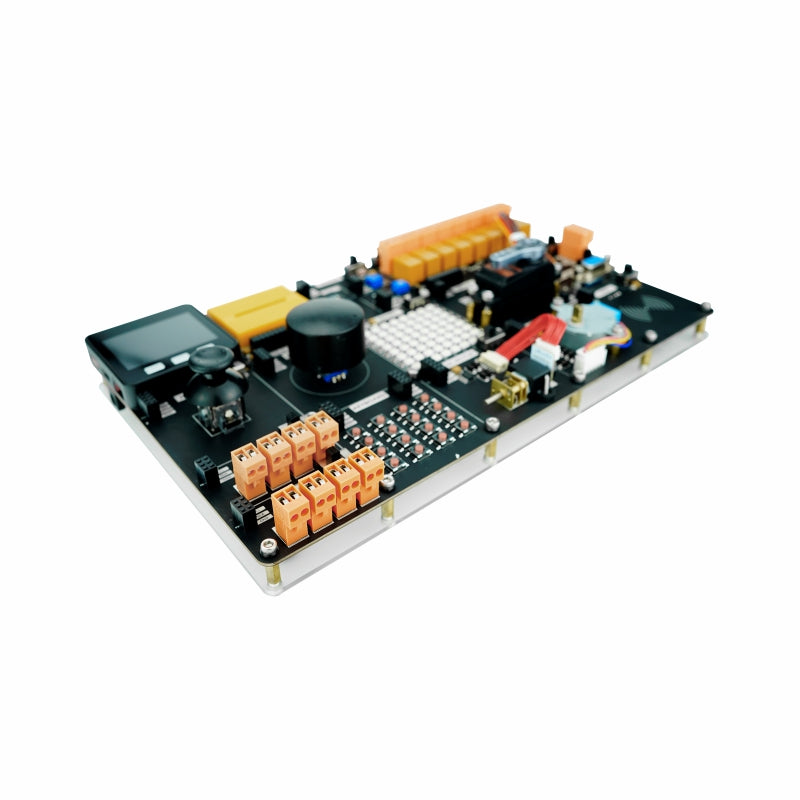

Demo Board is a learning and development board. It uses M5Core as the control core and is fully compatible with the module stacking and hardware expansion system. It is equipped with multiple sets of environment detection-related sensors and provides various input methods such as joystick, rotary encoder, matrix buttons, and wireless radio frequency identification. It includes three motor driving methods (DC, stepper, servo), RGB LED light board, integrated multiple sets of relay control and ADC, DAC conversion circuits, supports RS485, RS232 bus communication, and provides an independent power switch for each module. Combined with the IoT-enabled M5Core as the control core, the onboard modules cover multiple aspects of "sound, light, electricity, and force". The Demo Board will be a great tool for learning hardware and programming.

Features

• Compatible with Module stacking and Unit expansion system
• Proto board, M5-BUS bus expansion
• Independent power switch for each module
• Environmental sensor series (temperature, humidity, pressure, light, microphone)
• Joystick input
• 8-channel relay output
• 4-channel DAC, 4-channel ADC
• 4x4 button matrix
• 8x8 matrix RGB LED
• Rotary encoder
• Single-channel servo
• DC motor (with feedback)
• Four-phase five-wire stepper motor
• Wireless radio frequency identification card reader
• RS-485, RS232 communication function

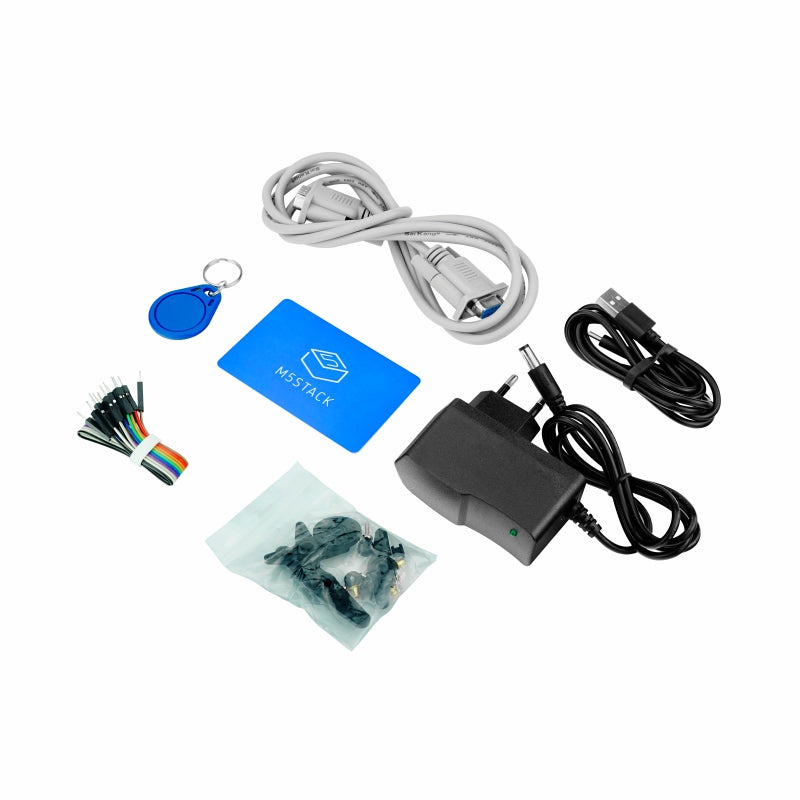

Includes

• 1 x Demo Board-SHT30
• 1 x DC 12V power adapter (5.5 x 2.1mm)
• 1 x RS232 cable
• 1 x RFID Card
• 1 x ID Card
• 16 x Breadboard wires

Applications

• IoT Educational Experiment Board
• Multi-Functional Test Board

Specifications
