Description

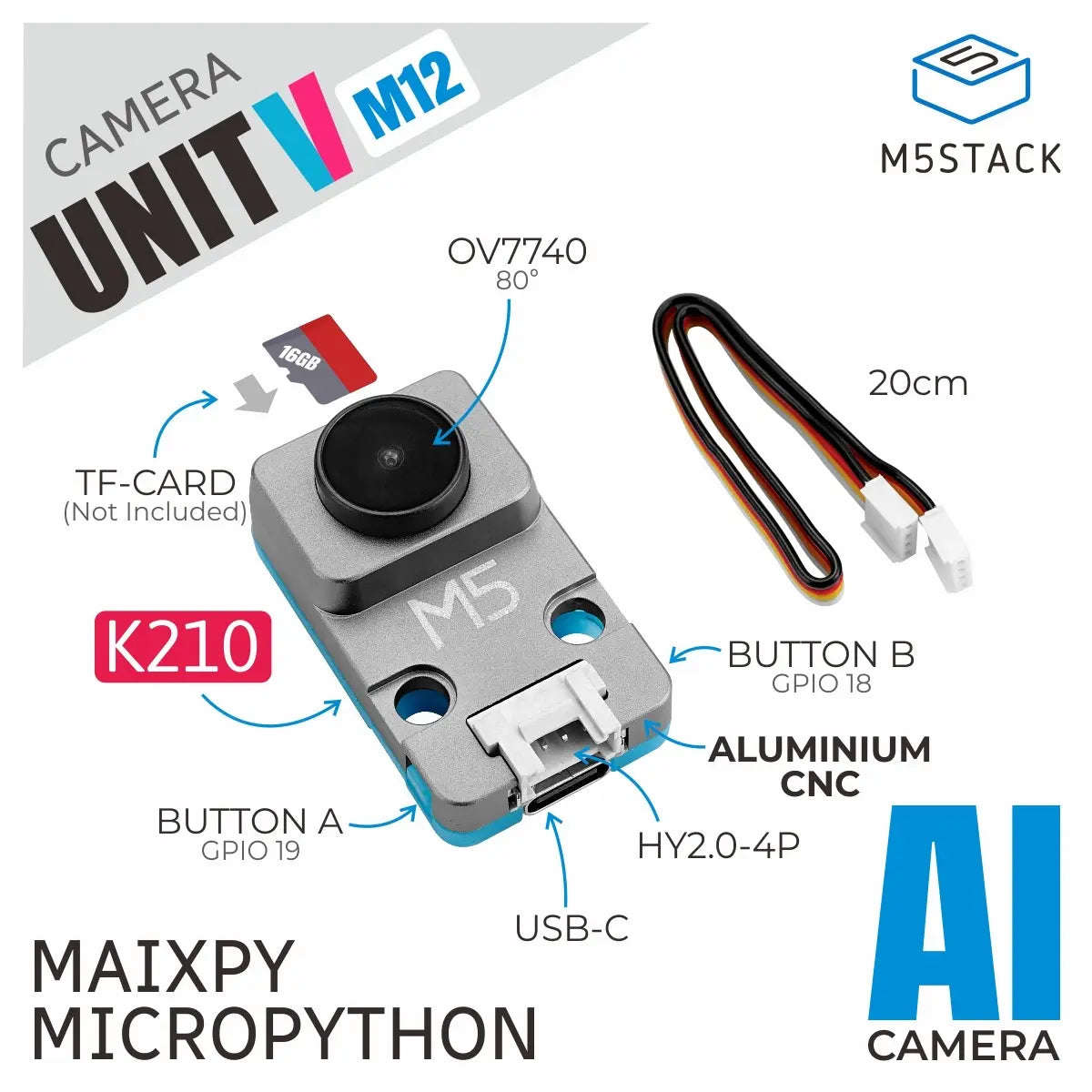

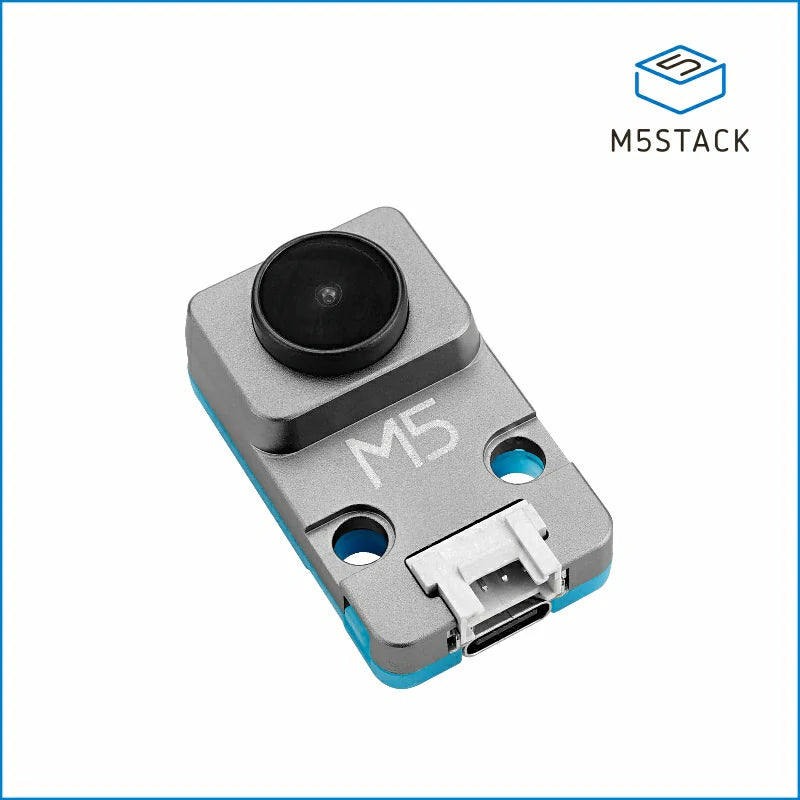

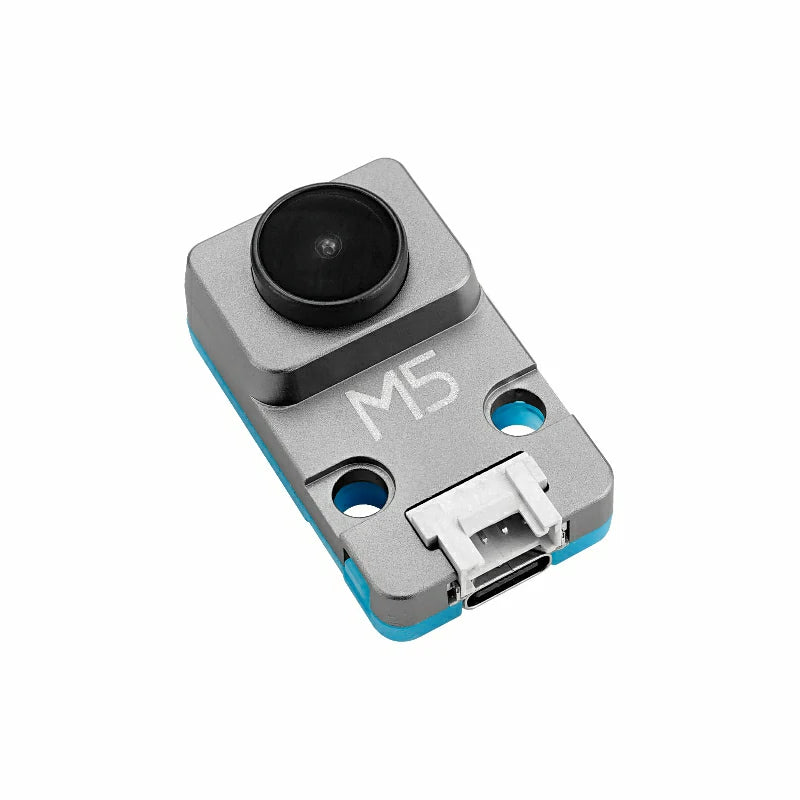

Unit V-M12 is a unique AI camera unit featuring an M12 lens specification and equipped with a K210 processor. It integrates a dual-core 64-bit RISC-V CPU and a neural network processor edge computing system-on-chip, offering powerful hardware configuration. The included OV7740 wide-angle camera module adheres to the M12 optical lens specification and supports the replacement of other M12 lenses, providing flexibility for various shooting scenarios.

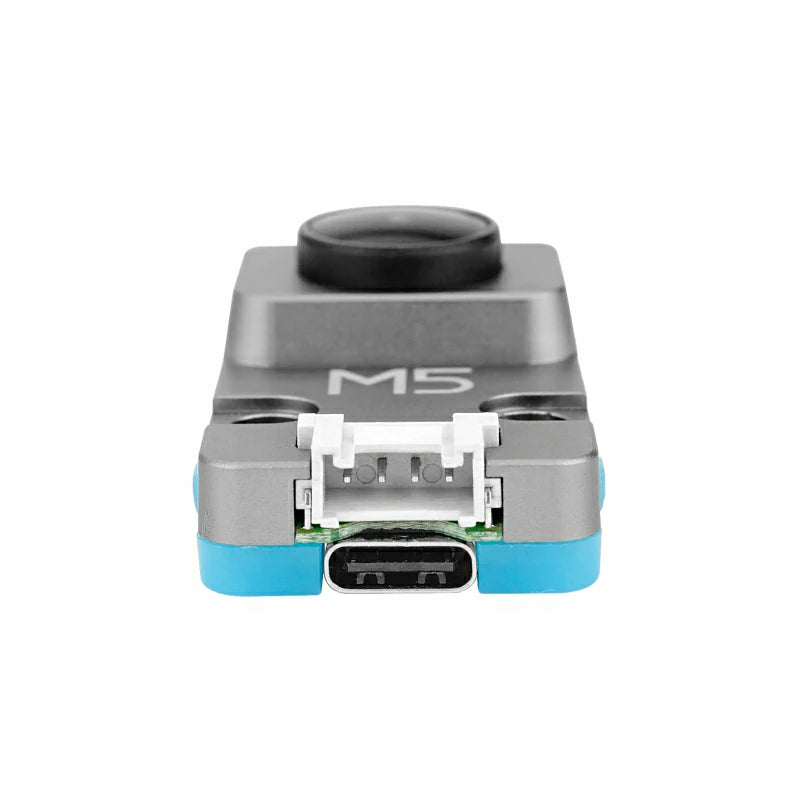

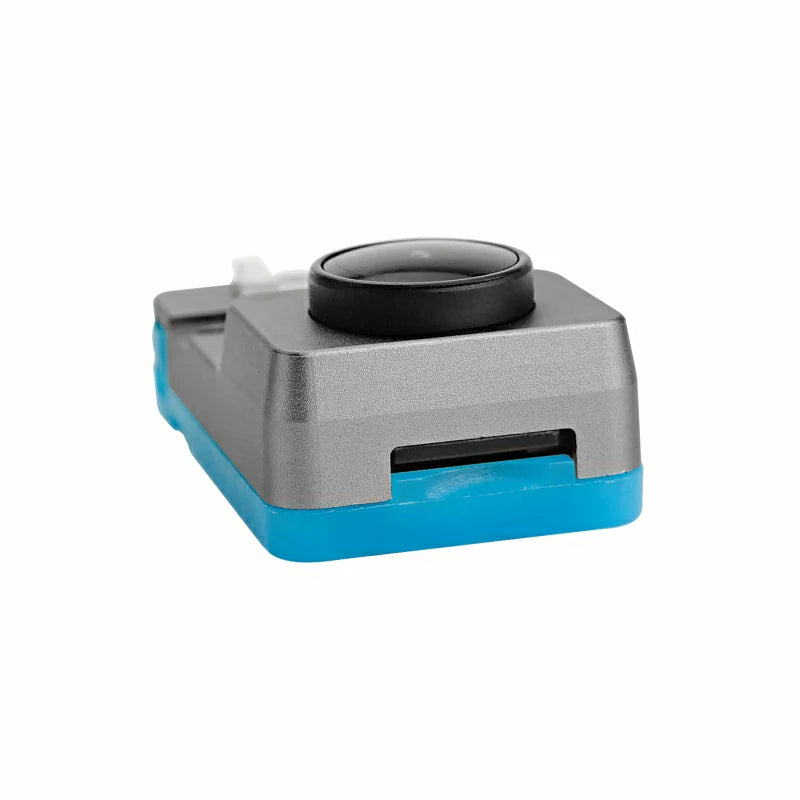

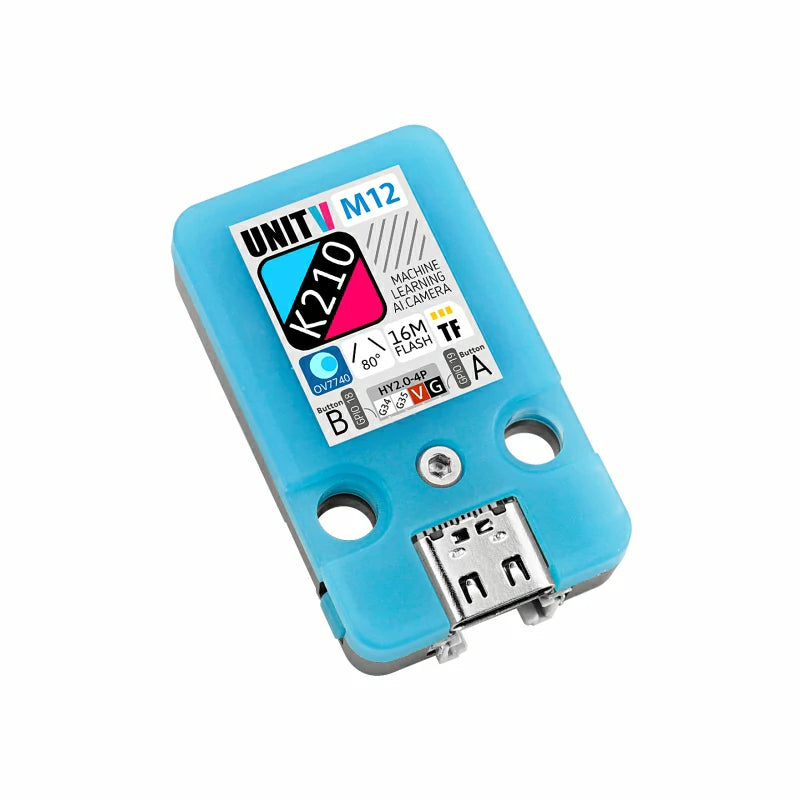

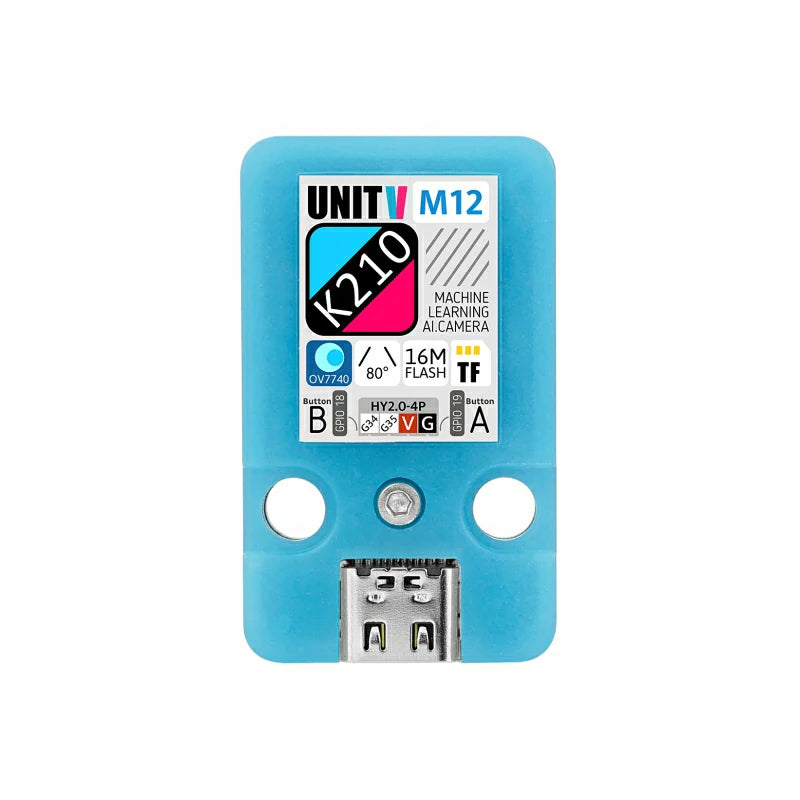

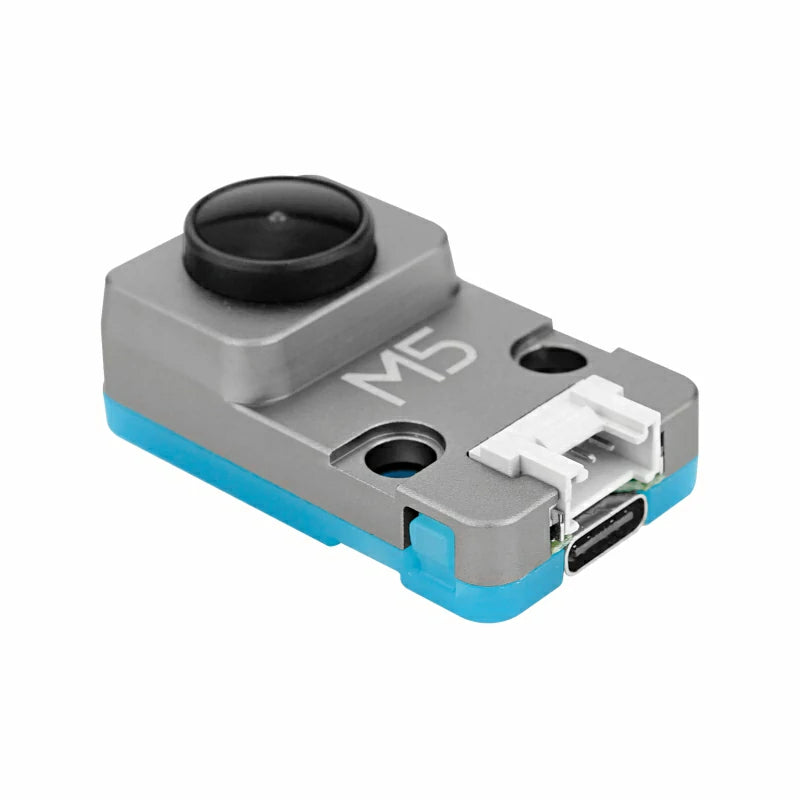

The camera body features two programmable buttons for quick access to specific functions, along with a microSD card expansion slot to meet data storage needs. The bottom provides a HY2.0-4P interface and a Type-C interface, enabling easy data connection with the main control device.
Unit V-M12 is compact, making it easy to embed into various devices. It boasts excellent machine vision processing capabilities, supporting multiple image recognition functions such as real-time acquisition of target size, coordinates, and type information. It also performs convolutional neural network calculations, offering a low-threshold machine vision embedded solution suitable for a wide range of applications requiring machine vision.
Features
- Dual-core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz (Normal)
- Double-precision FPU
- 8MiB 64-bit on-chip SRAM
- Neural Network Processor (KPU) / 0.8Tops
- Programmable I/O Array (FPIOA)
- AES, SHA256 Accelerator
- Direct Memory Access Controller (DMAC)
- MicroPython Support
- Firmware Encryption Support
- Onboard Hardware Resources:
- Flash: 16M
- Camera: OV7740
- Buttons: 2
- Expansion Card Interface: microSD card
- Interface: HY2.0-4P / compatible GROVE

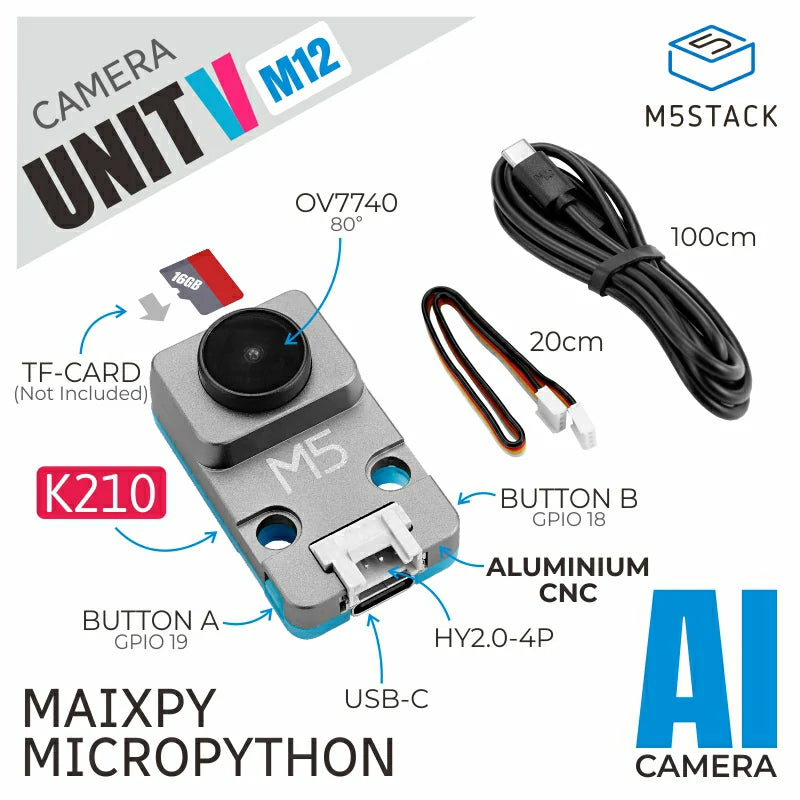

Includes
- 1 x UnitV-M12
- 1 x HY2.0-4P Grove Cable (20cm)
Applications
- Object Detection/Classification
- Real-time Acquisition of Target Size and Coordinates
- Real-time Acquisition of Detected Target Types
- Shape Recognition
- Video Recording
Specifications
| Specification | Parameters |
|---|---|
| Kendryte K210 | Dual-core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz (Normal) |
| SRAM | 8M |
| Flash | 16M |
| Input Voltage | 5V @ 500mA |
| KPU Neural Network Size | 5.5M-5.9M |
| Interface | Type-C x 1, HY2.0-4P (I2C+I/O+UART) x 1 |
| Buttons | Custom Buttons x 2 |
| Camera | M12 Specification Wide-angle OV7740 |
| FOV | 80° |
| External Storage | TF Card/microSD |
| Housing Material | Plastic (PC) + CNC Metal |

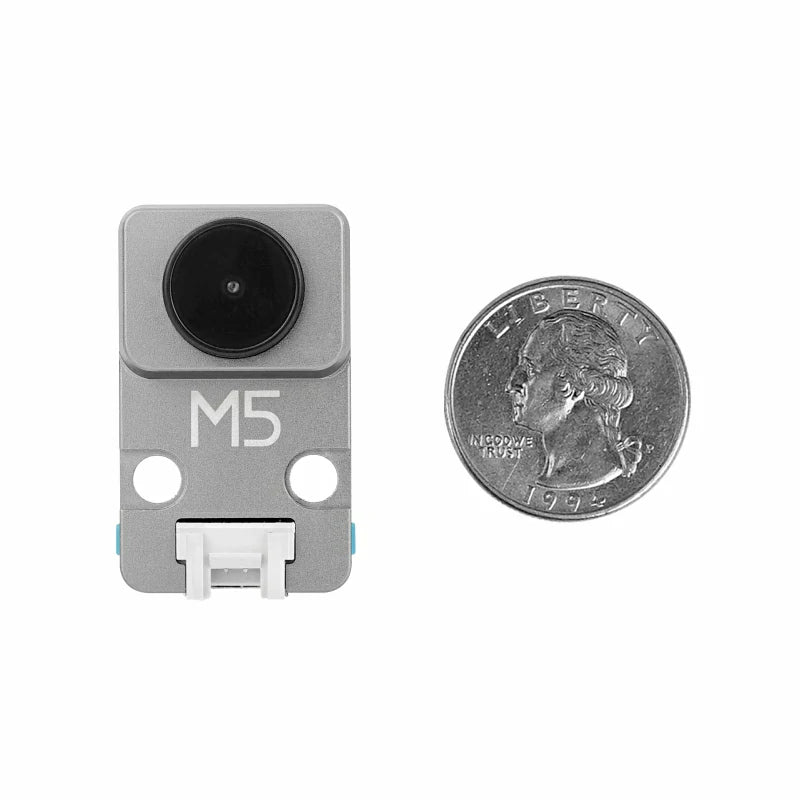

| Product Size | 40.0 x 24.0 x 16.4mm |
| Product Weight | 13.4g |
| Package Size | 70.0 x 50.0 x 30.0mm |
| Gross Weight | 20.0g |
