[EOL] Ultrasonic Distance Unit (RCWL-9600)

SKU:U098

Regular price $4.95

EOL

Shipping calculated at checkout.
PRODUCT DETAILS

Description

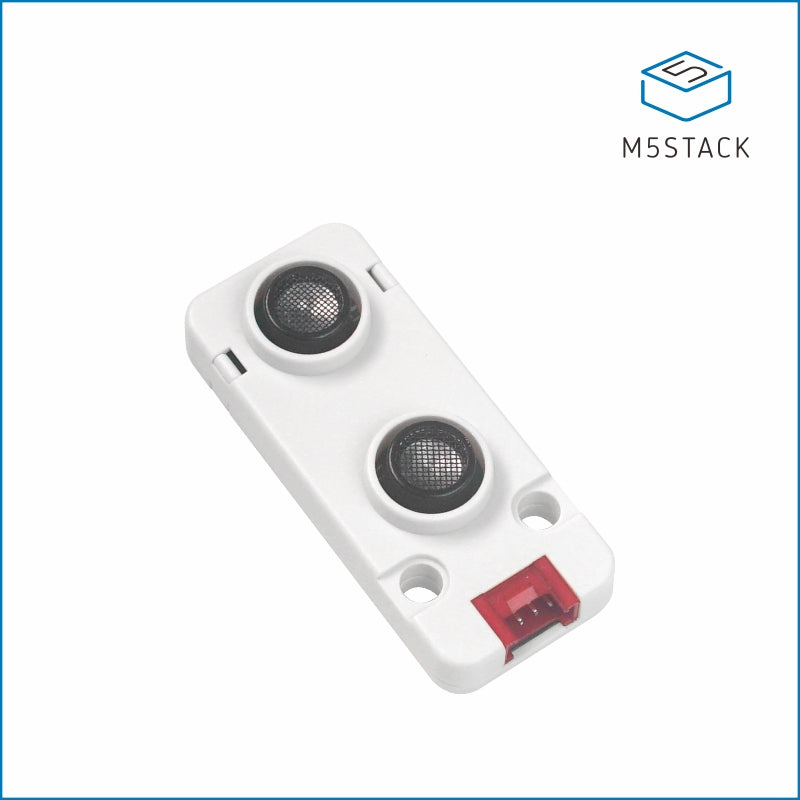

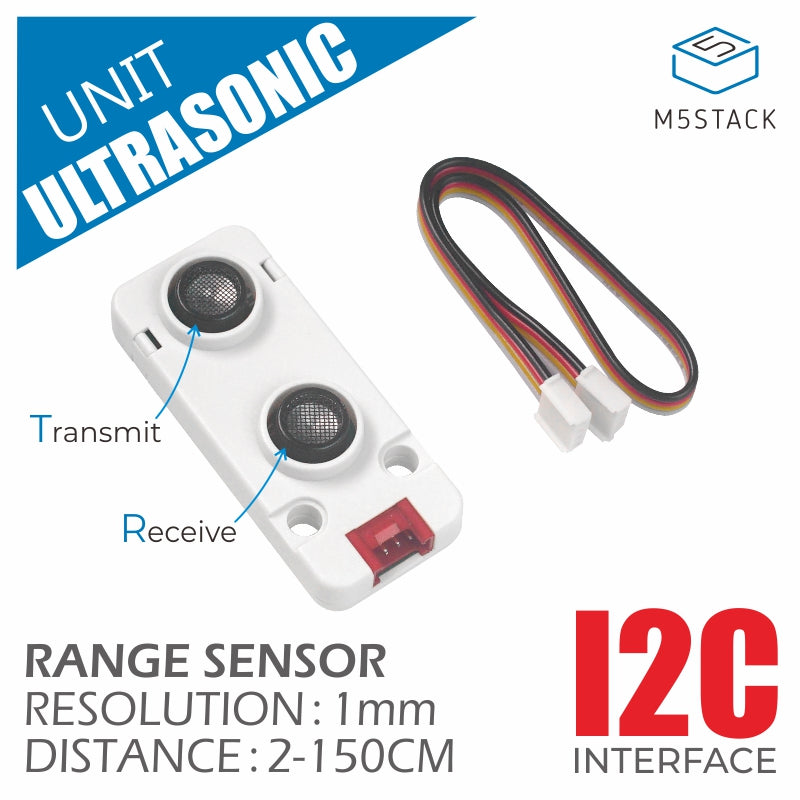

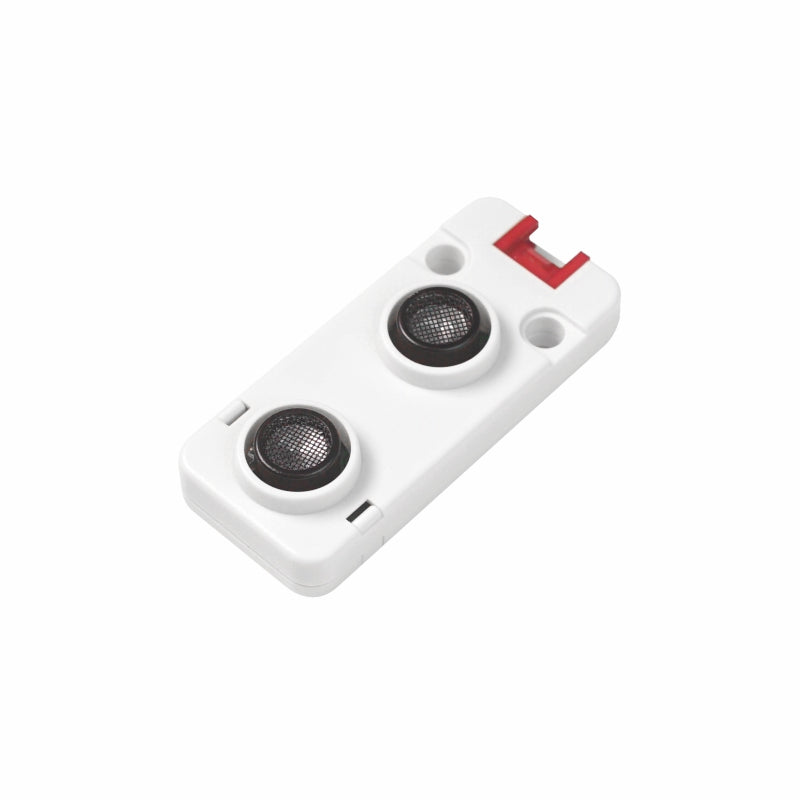

Ultrasonic is an ultrasonic distance measuring sensor unit, with the capability of simultaneous reception and transmission. The ultrasonic probe has a sound frequency of 40KHz, a direction angle of ±20 ° and an accuracy of 1mm. The internal part is calculated by an RCWL-9600 ultrasonic distance measuring chip, and the measurement results can be directly obtained through I2C interface (0x57). The effective distance is 30 - 150cm.

This product is EOL now, we've released the updated version SONIC I2C , SONIC IO .

Product Features

  • Split transceiver
  • 30 - 150cm distance effectiveness
  • Wide angle range
  • I2C communication, result output directly

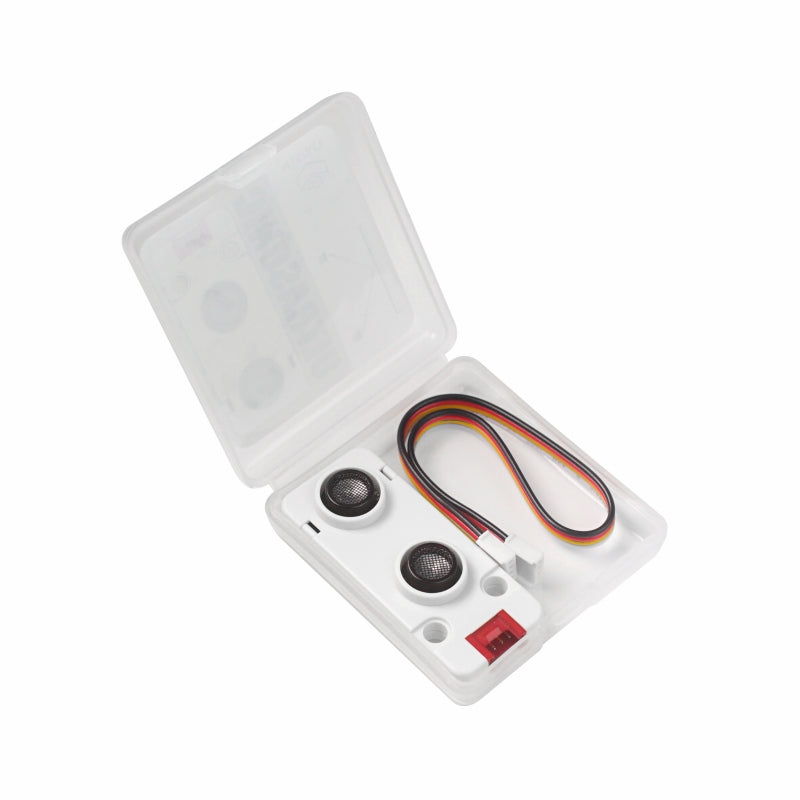

Includes

  • 1x Ultrasonic Unit
  • 1x Grove Cable(20cm)

Application

  • Measuring distance
  • Avoid obstacles

Specification

Resources Parameter
Ranging chip RCWL-9600

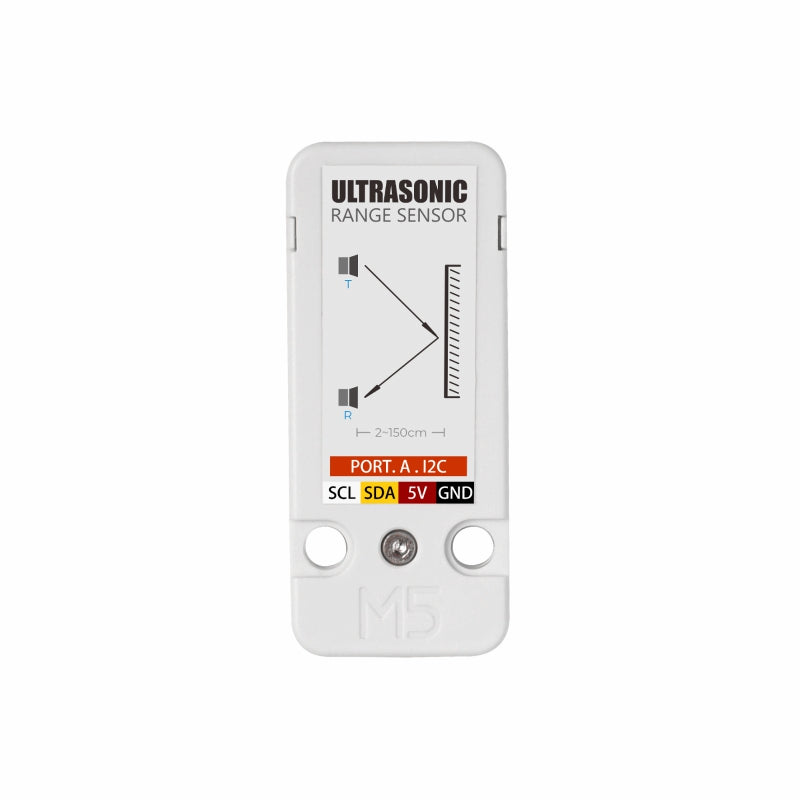

Communication protocol I2C:0x57
Measuring distance 30 - 150cm
Sound pressure level of transmitter 108dB
Accuracy 1mm
Blind area 20mm
Receiver sensitivity -68dB
Net Weight 9g
Gross Weight 23g

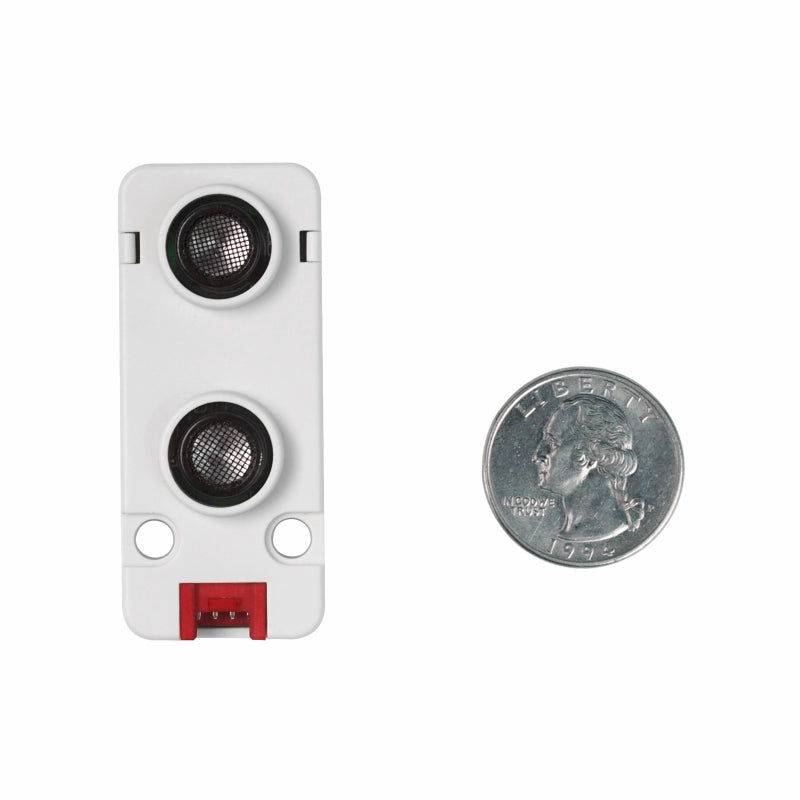

Product Size 56*24*12mm

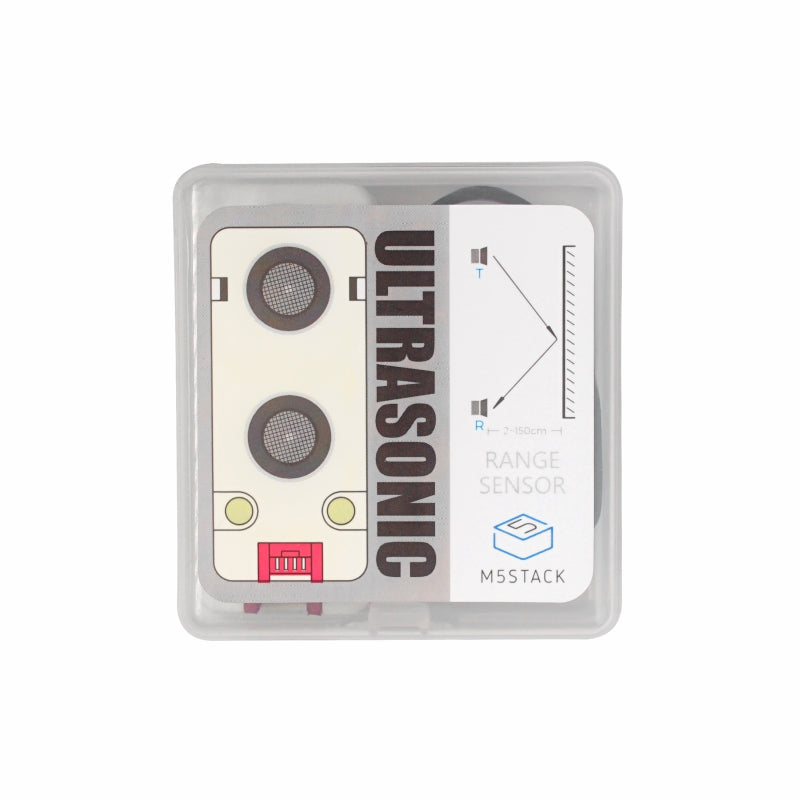

Package Size 60*55*16mm
