Description

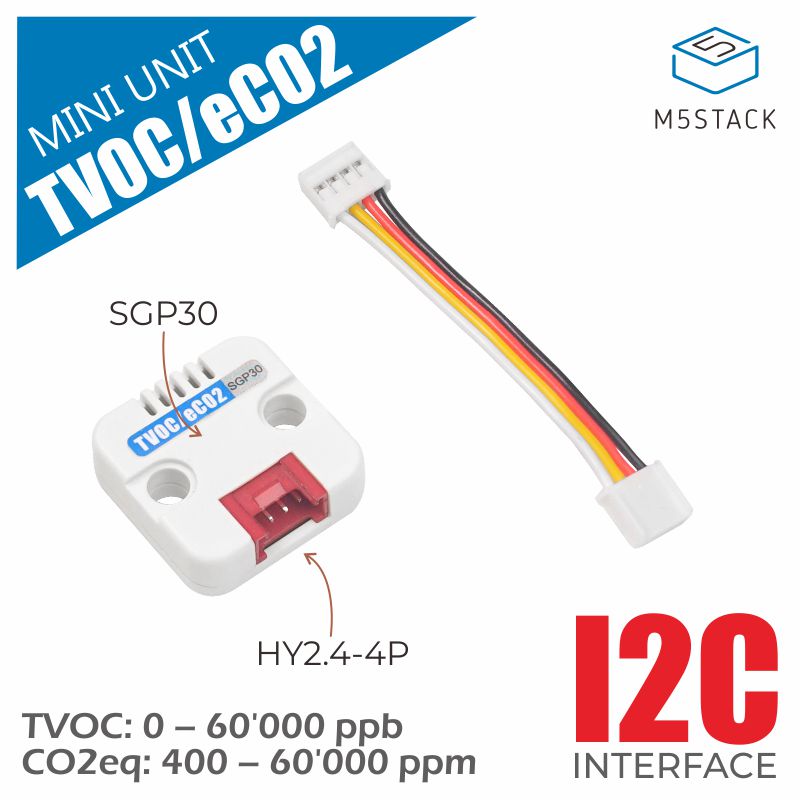

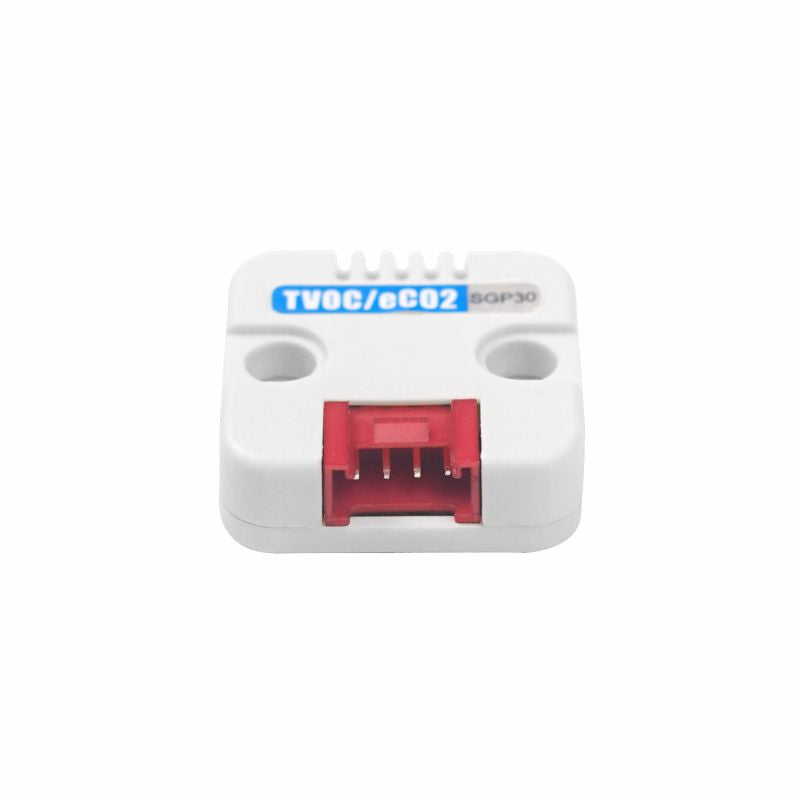

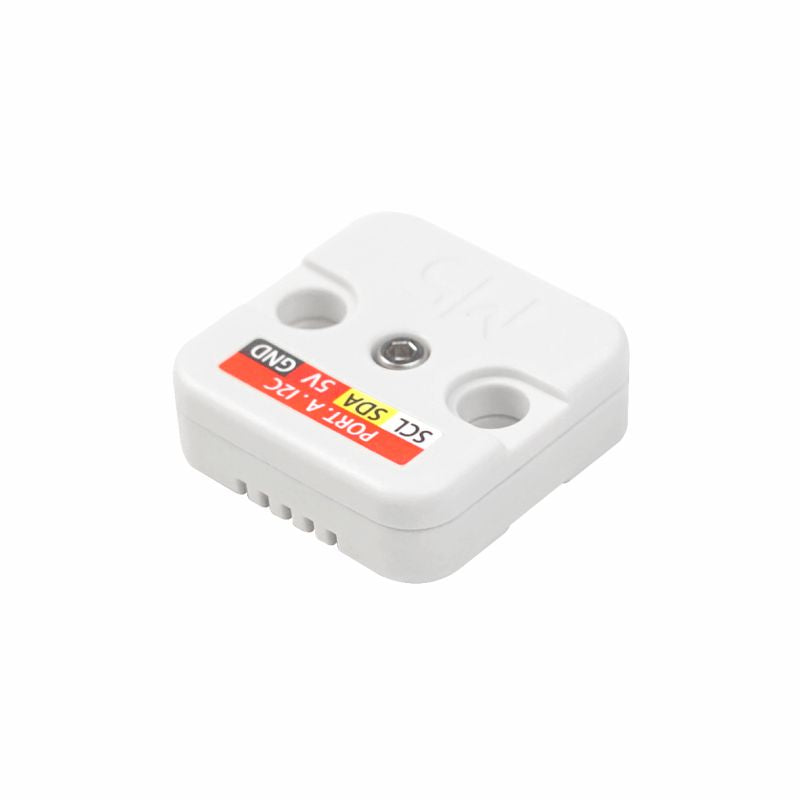

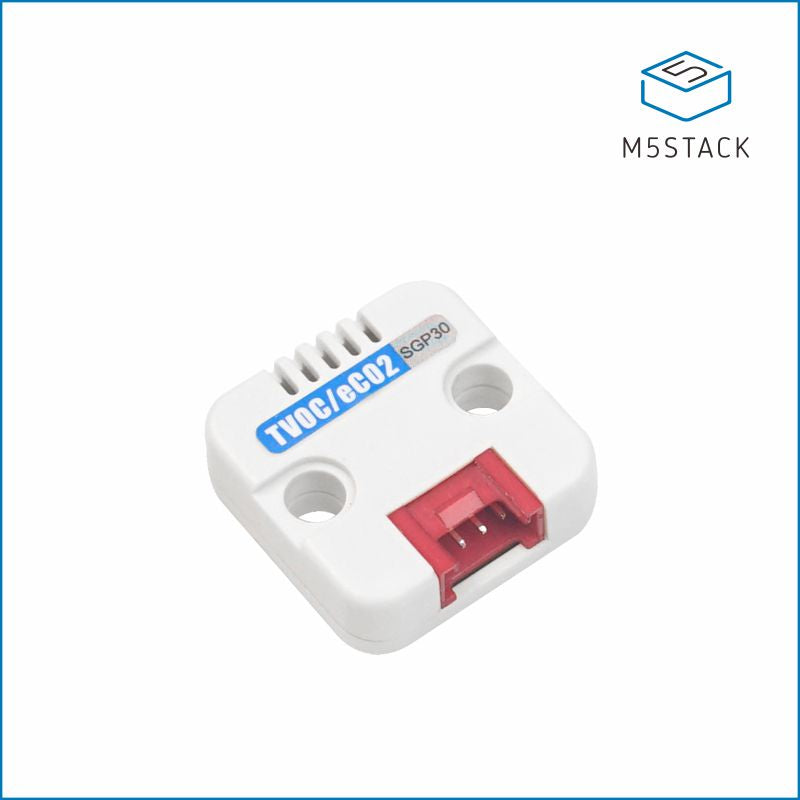

The Unit Mini TVOC/eCO2 is a digital multi-pixel gas sensor unit with an integrated SGP30, primarily designed to measure various VOCs (Volatile Organic Compounds) and H2 in the air. Through programming, it can measure the concentration of TVOC (Total Volatile Organic Compounds) and eCO2 (equivalent CO2), with a typical measurement accuracy of 15% within the measurement range. The SGP30 readings are internally calibrated for long-term stability. The SGP30 communicates via the I2C protocol and features on-chip humidity compensation, which can be enabled by connecting an external humidity sensor. For precise results, calibration based on a known measurement source is required, and the SGP30 has built-in calibration functionality. Additionally, eCO2 is calculated based on H2 concentration and cannot fully replace a CO2 sensor.
Features
- TVOC and eCO2 concentration detection
- I2C communication (0x58)
- Stable readings
- On-chip humidity compensation
- 2 x LEGO-compatible holes
- HY2.0 4P interface

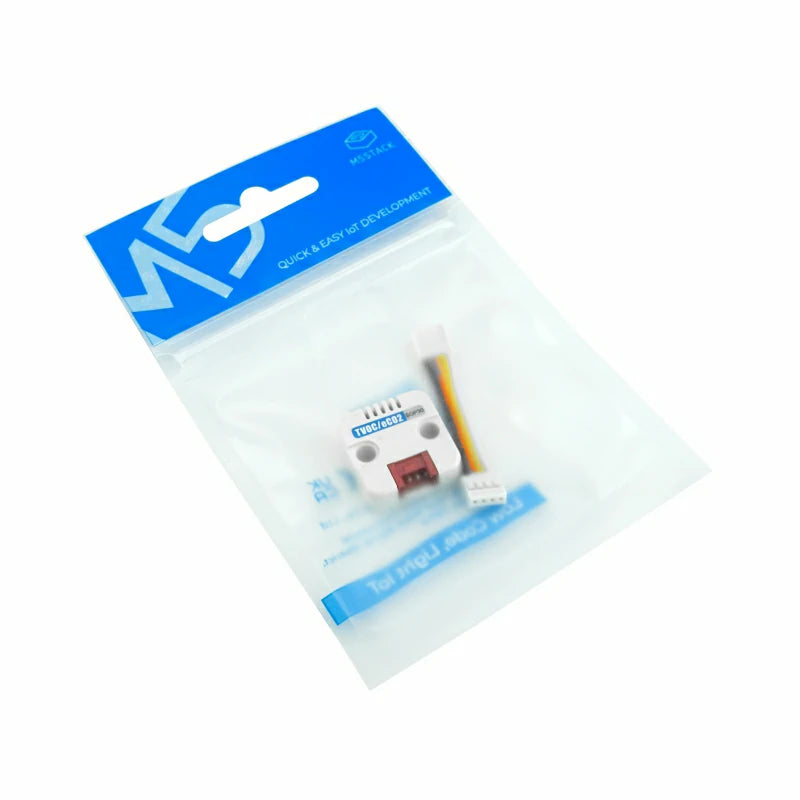

Includes
- 1 x Unit Mini TVOC/eCO2
- 1 x HY2.0-4P Grove cable (5cm)
Applications
- Air quality monitoring
- eCO2 concentration detection
Specifications
| Specification | Parameter |
|---|---|
| Measurement Range | Ethanol: 0-1000ppm, H2: 0-1000ppm, TVOC: 0-60000 ppb, eCO2: 400-60000 ppm |
| TVOC and eCO2 Sampling Rate | 1Hz |
| TVOC and eCO2 Sampling Accuracy | TVOC: 1/6/32bbp, eCO2: 1/3/9/31ppm |

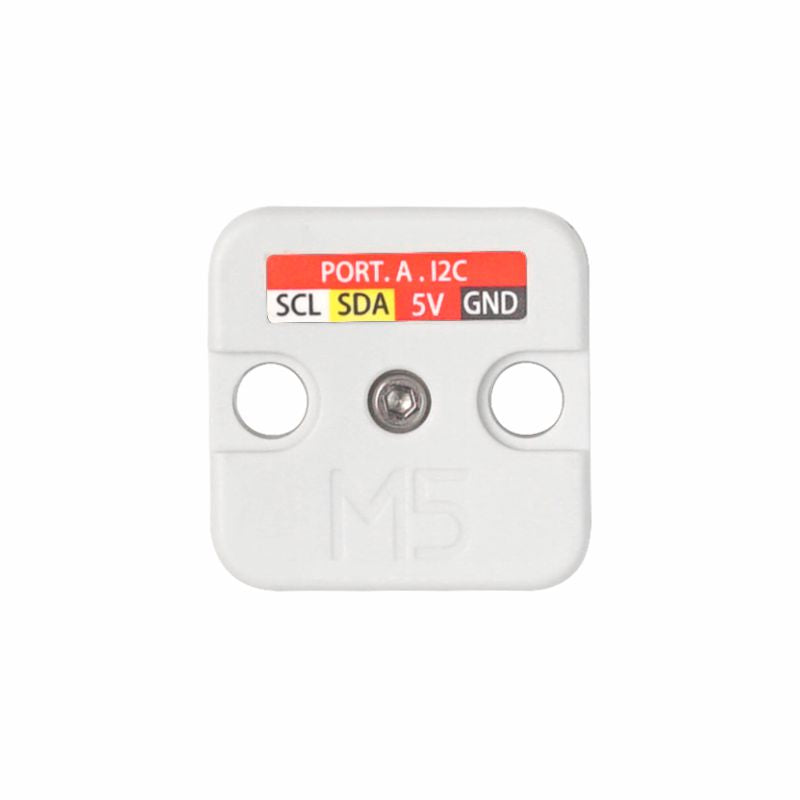

| Communication Interface | I2C @0x58 |
| Housing Material | Plastic (PC) |

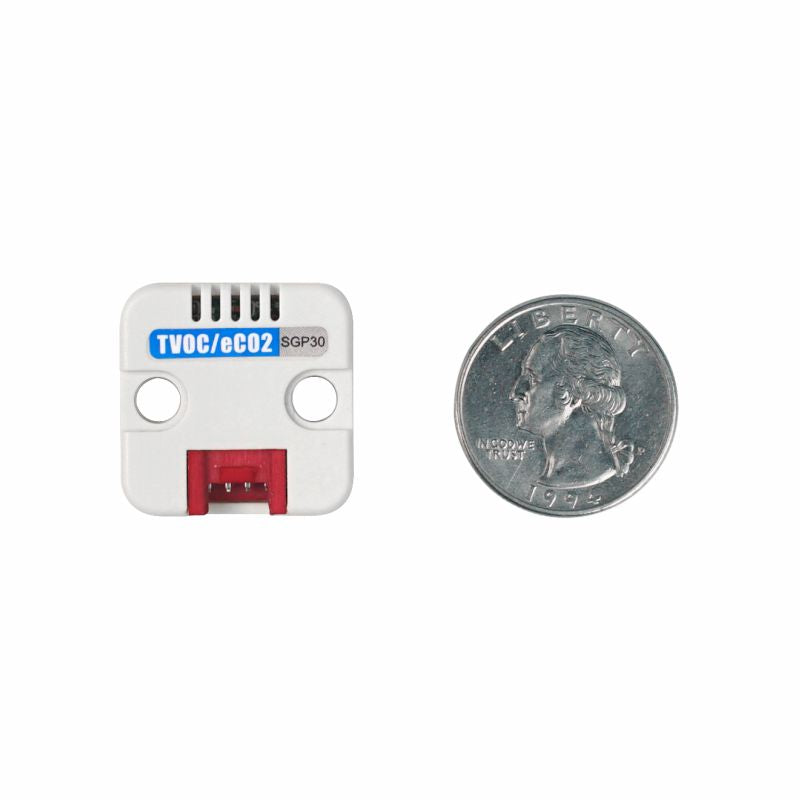

| Product Size | 24.0 x 24.0 x 8.0mm |
| Product Weight | 3.2g |
| Package Size | 138.0 x 93.0 x 9.0mm |
| Gross Weight | 6.7g |
