Time-of-Flight Distance Unit (VL53L1X)


Regular price $8.95

10+ In Stock

Shipping calculated at checkout.

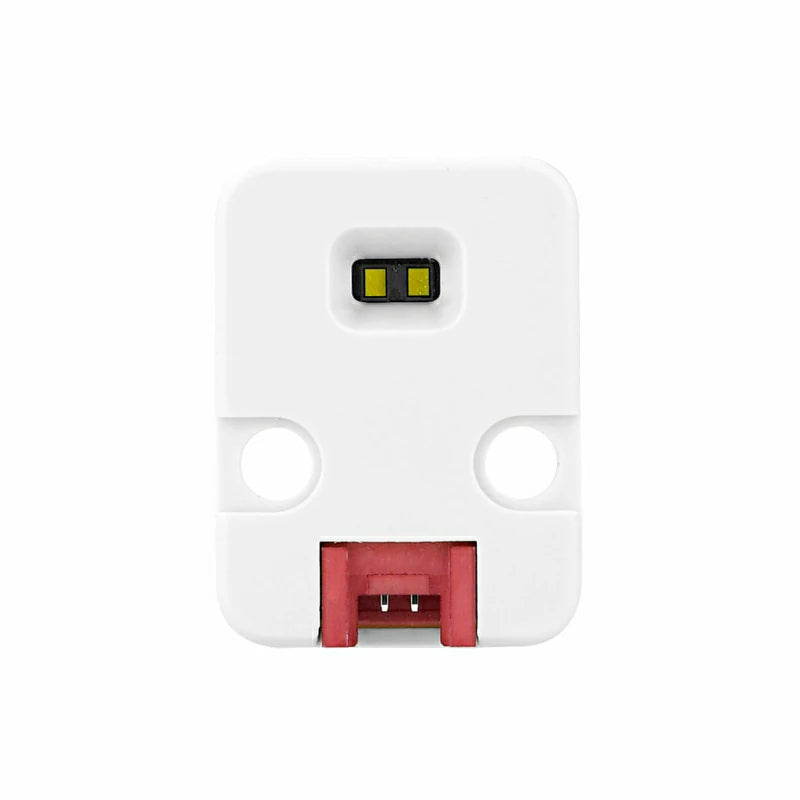

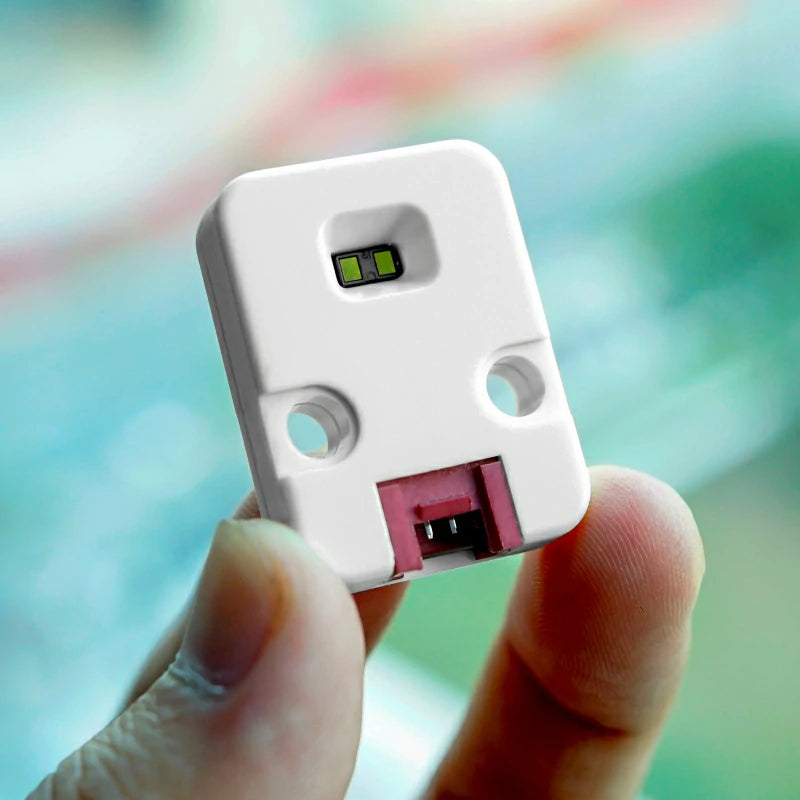

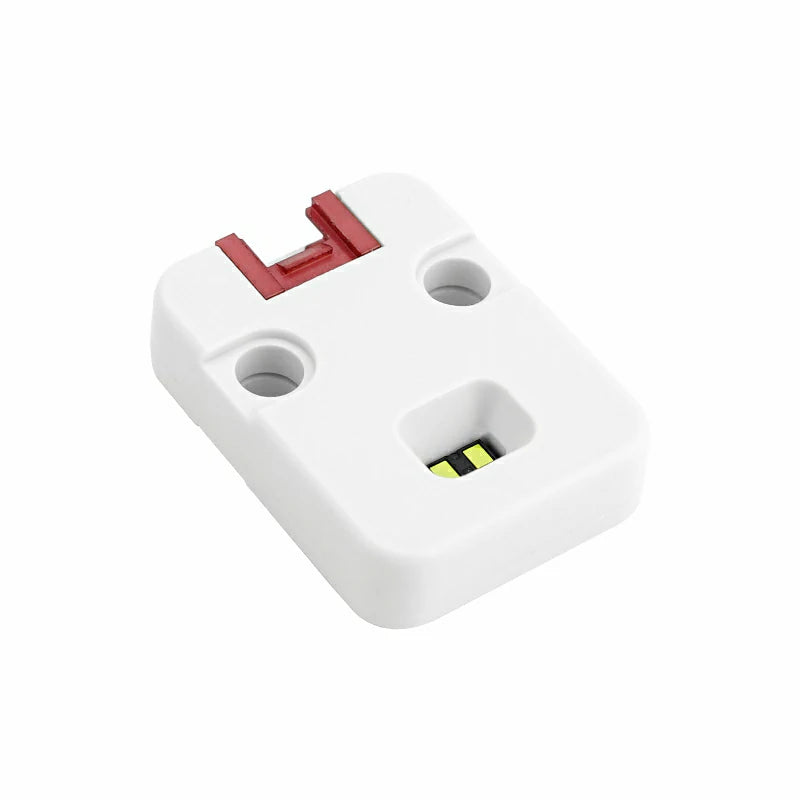

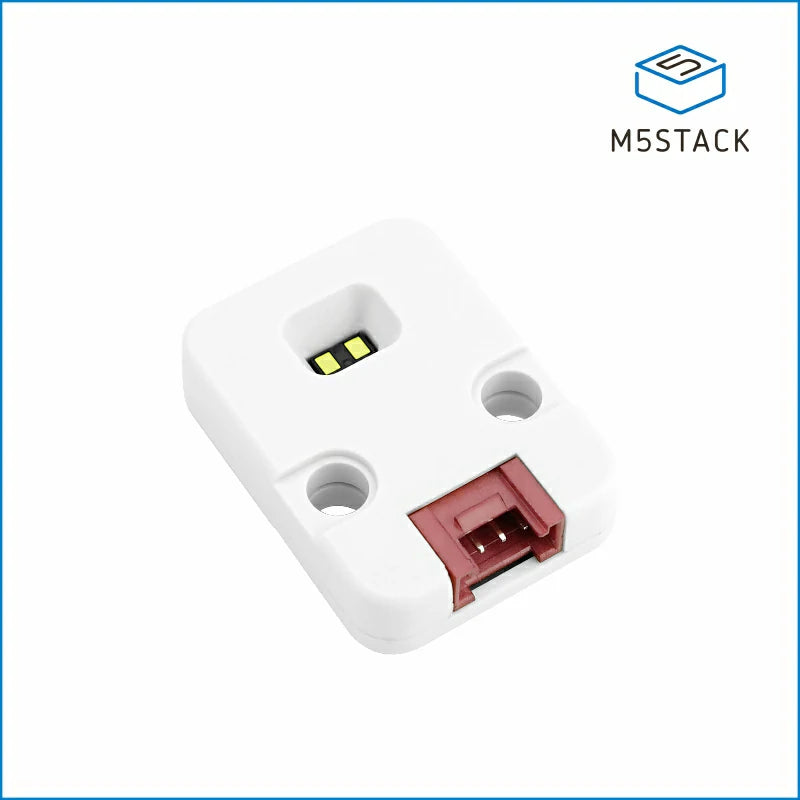

ToF4M Unit is a high-precision distance sensor module that utilizes the VL53L1CXV0FY/1 sensor and employs Time-of-Flight (ToF) technology. It is capable of measuring object height, detecting object presence, and tracking object movement within a range of 4cm to 400cm. It finds applications in robotics, autonomous vehicles, drones, security systems, and more.

ToF4M Unit offers exceptional accuracy, with measurements as precise as 0.1mm. This level of accuracy enables it to detect even the smallest distance variations and capture surface details of objects. With its fast response time, ToF4M Unit can perform measurements within milliseconds. This real-time feedback of distance information makes it suitable for scenarios that require quick responsiveness.

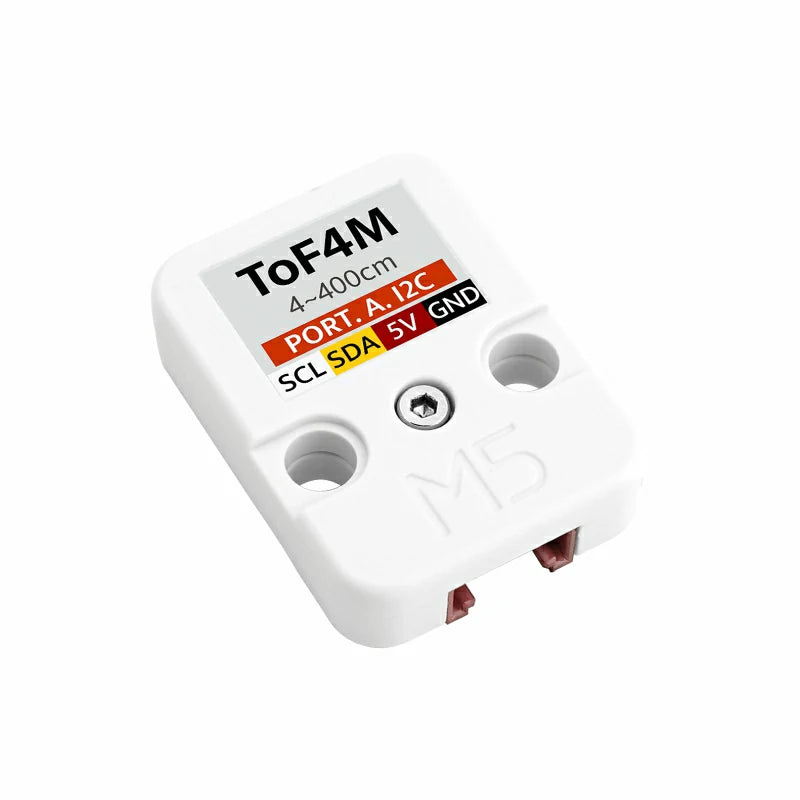

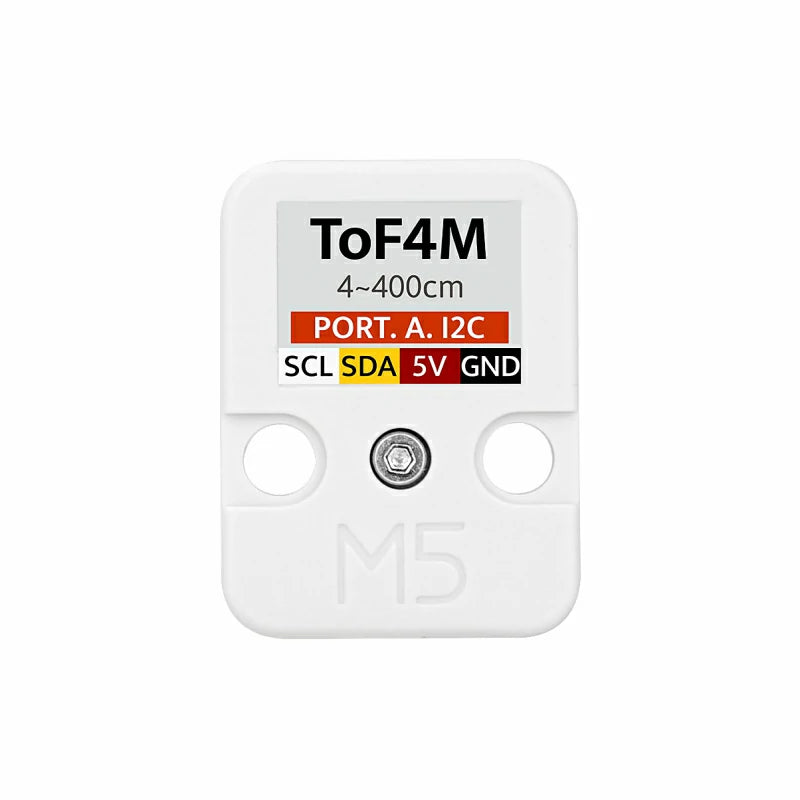

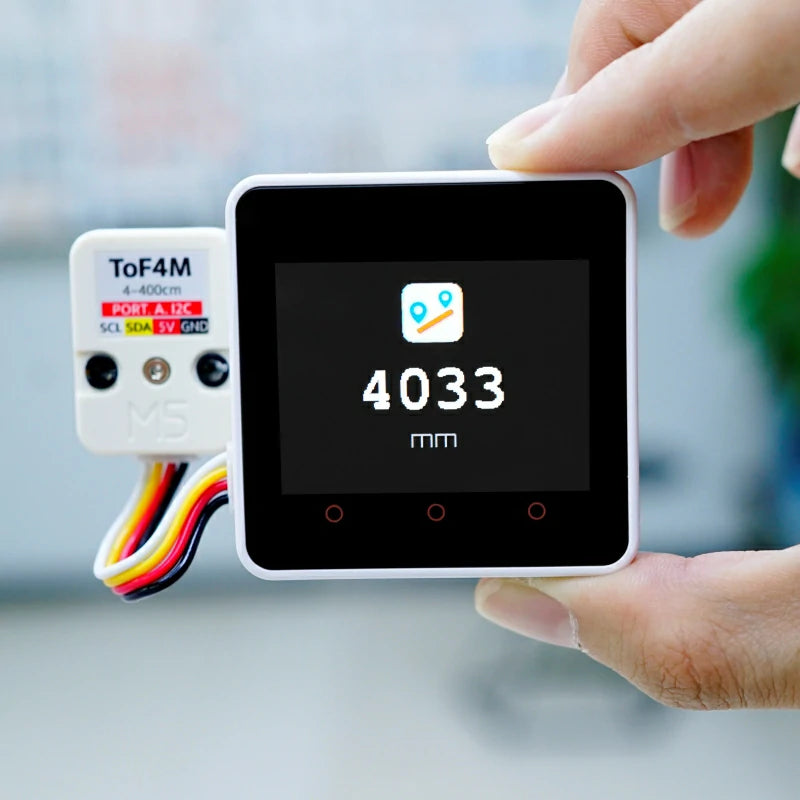

ToF4M Unit communicates using the I2C protocol, providing advantages such as simplified connectivity, support for multi-master and multi-slave topologies, and high reliability. It can be easily integrated with existing sensor buses, effectively saving IO resources. The module features a standard Grove interface, ensuring reliable and stable signal transmission. When used with the M5Stack hardware ecosystem, it supports plug-and-play functionality, enabling rapid project development.


  • High accuracy: ToF4M Unit has a very high accuracy, up to 0.1 mm. The measuring distance is about 4 meters.
  • Fast response time: ToF4M Unit has a fast response time and is able to complete a measurement in milliseconds.
  • Multi-field applications: robots, autonomous vehicles, drones, security and other fields. Tasks such as measuring the height, presence, and movement of objects demonstrate its versatility.
  • Long life: The service life of ToF4M Unit is long and can reach 1 million hours.
  • Programming platform: Arduino, UIFlow, etc.

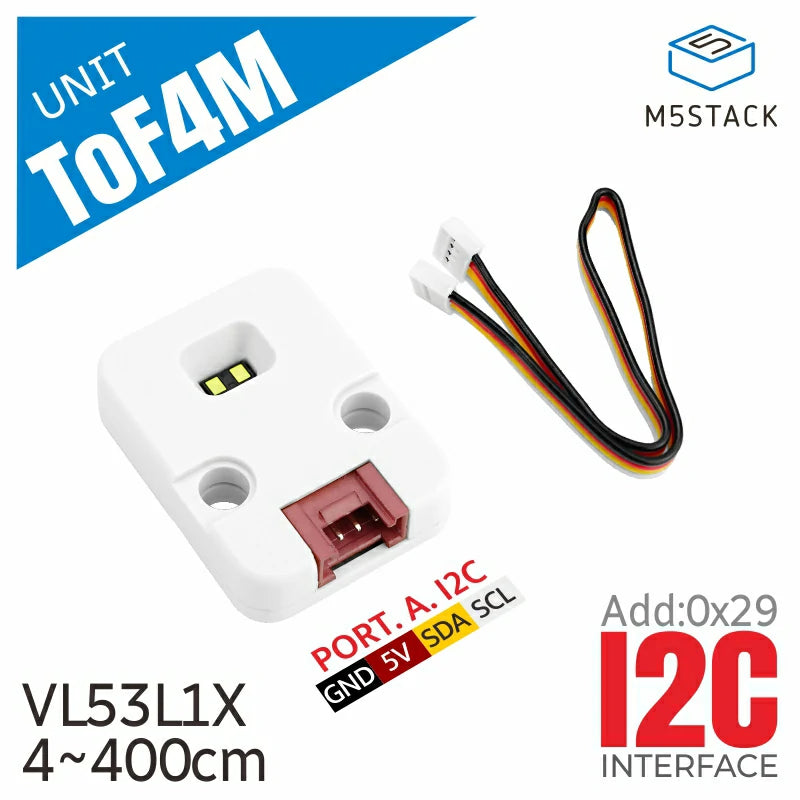

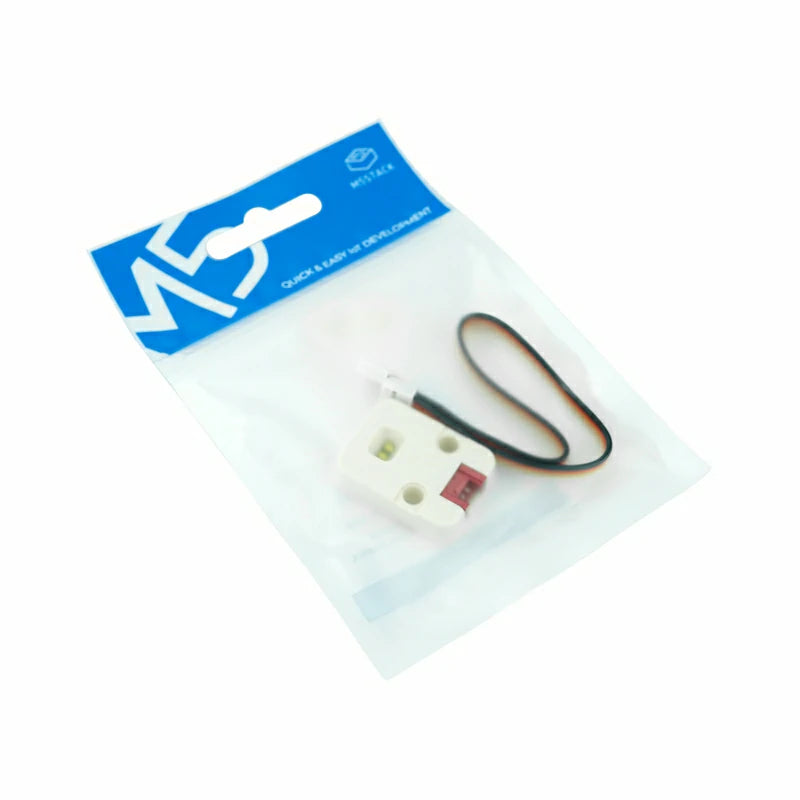

  • 1x ToF4M Unit
  • 1x HY2.0-4P Cable(20cm)


  • robots
  • automatic pilot
  • drone
  • construction of security


Resources Parameters
Sensor VL53L1CXV0FY/1
Measurement range 4mm-4000mm
Resolution ratio Millimeter scale
Measuring speed Millisecond level
FoV 15-27°
Light source Laser (ToF)
I²C address The default is 0x29
Operating temperature range 0°C 至 +40°C
Product Size 32*24*8mm
Package Size 136* 92*20mm
Product Weight 4.4g
Package Weight 8.8g
