Description

THERMAL is a thermal imager Unit contains a thermopile sensor named MLX90640. It can be used to measure the surface temperature of an object and form a thermographic image by a temperature gradient composed of different surface temperatures. The image resolution is 32 x 24.

The MLX90640 Infrared (IR) sensor array combines high resolution and reliable operation in harsh environments, providing a cost-effective alternative to more expensive high-end thermal imaging cameras. Unlike the case of a microbolometer, the sensor does not require frequent recalibration, ensuring continuous monitoring and reducing system cost.

The field of view (FoV) option includes a standard 55° x 35° version and a wide angle version of 110° x 75° for distances up to 7m. This Unit is 110°×75° FoV, also known as the BAA package.

The Unit communicates with the M5Core through the Grove A interface, I2C address is 0x33

Product Features

• Operating Voltage: 3V ~ 3.6V
• Current Consumption: 23mA
• Field of View: 110°×75°
• Measurement Range: -40°C ~ 300°C
• Resolution: ±1.5°C
• Refresh Rate: 0.5Hz-64Hz
• Operating temperature: -40°C ~ 85°C
• Two Lego-compatible holes

Include

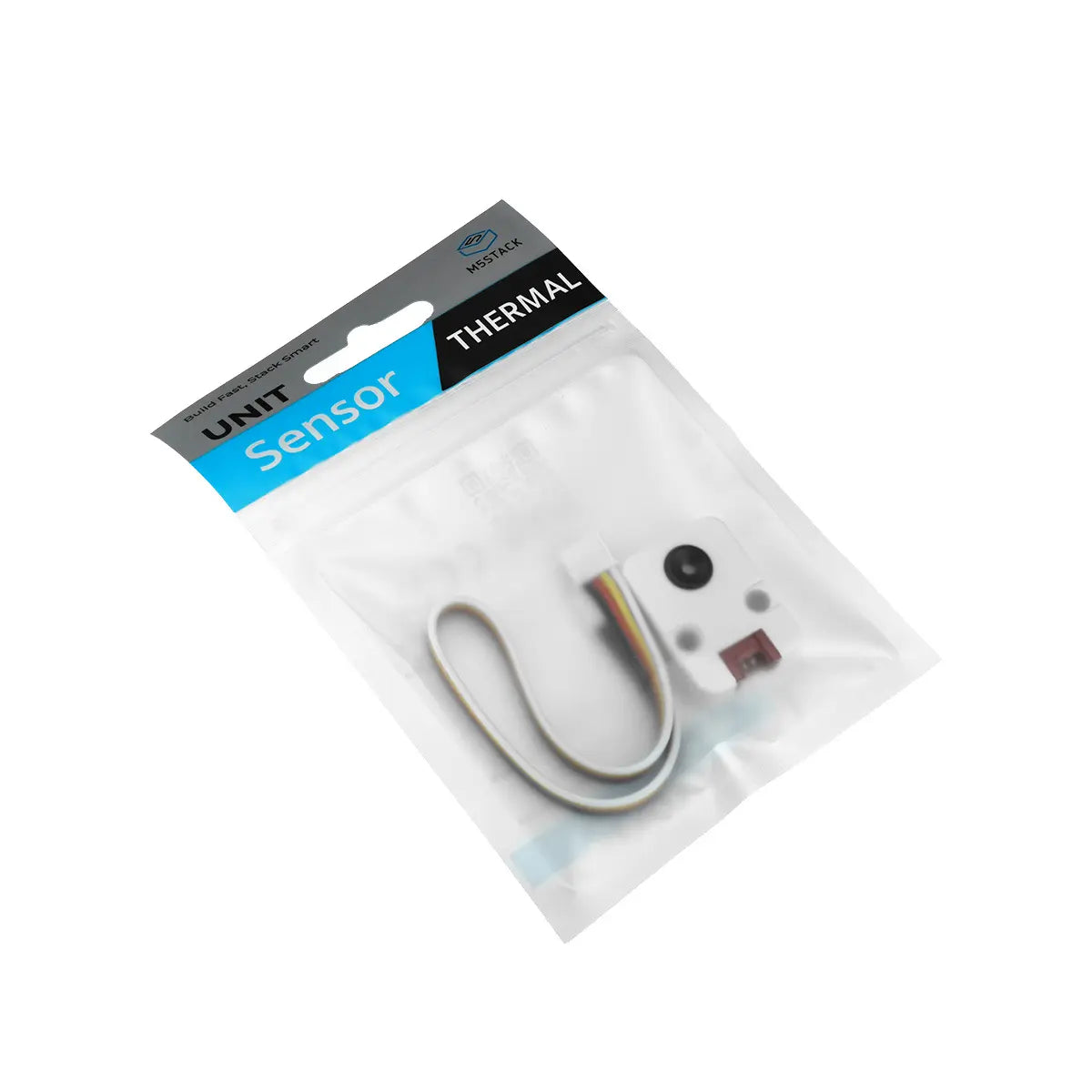

• 1x THERMAL Unit
• 1x Grove Cable

Applications

• High precision non-contact temperature measurements
• Intrusion / Movement detection
• Visual IR thermometers

Specification
