M5StickV K210 AI Camera (Without Wifi)

SKU:K027

Sale price $39.92 Regular price

$49.90

10+ In Stock

Shipping calculated at checkout.

Description

M5Stack recently launched the new AIoT(AI+IoT) Camera powered by Kendryte K210 -an edge computing system-on-chip(SoC) with dual-core 64bit RISC-V CPU and advanced neural network processor..

M5StickV AI Camera possesses machine vision capabilities, equips OmniVision OV7740 image sensor, adopts OmniPixel®3-HS technology, provides optimum low light sensitivity, supports various vision identification capabilities. (e.g. Real-time acquisition of the size, type and coordinates of the detected target ) In addition to an OV7740 sensor, M5StickV features more hardware resources such as a speaker with built-in I2S Class-D DAC, IPS screen, 6-axis IMU, 200mAh Li-po battery, and more.

It is able to perform convolutional neural network calculations at low power consumption, so M5StickV will be a good zero-threshold machine vision embedded solution. It is in support with MicroPython, which makes your code to be more concise when you use M5stick-V for programming.

Switching operations
Power on:Long press power button for 2 seconds
Power off: Short press power button for 6 seconds

Product Features

  • Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
  • Dual Independent Double Precision FPU
  • Neural Network Processor(KPU) / 0.8Tops
  • Field-Programmable IO Array (FPIOA)
  • Dual hardware 512-point 16bit Complex FFT
  • SPI, I2C, UART, I2S, RTC, PWM, Timer Support
  • AES, SHA256 Accelerator
  • Direct Memory Access Controller (DMAC)
  • Micropython Support
  • Firmware encryption support
  • Case Material: PC + ABS

Include

  • 1x M5StickV
  • 1x USB Type-C(100cm)
  • 1x Bracket
  • 1x HEX KEY

Applications

  • Face recognition/detection
  • Object detection/classification
  • Obtaining size and coordinates of the target in real-time
  • Obtaining the type of detected target in real-time
  • Shape recognition
  • Video/Display
  • Game simulator

USB Drive problems

UnitV/M5StickV/M5StickC/ATOM may not work without driver in some systems. Users can manually install FTDI driver to fix this problem. Take the win10 environment as an example, download the driver file that matches the operating system, decompress it, and install it through the device manager. (Note: In some system environments, the driver needs to be installed twice for the driver to take effect. The unrecognized device name is usually M5Stack or USB Serial. Windows recommends using the driver file to install directly in the device manager (custom Update), the executable file installation method may not work properly).

Specification

Resources Parameter
Kendryte K210 Dual core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal)
SRAM 8MiB
Flash 16M
Power input 5V @ 500mA
KPU Parameter size of neural network 5.5MiB - 5.9MiB
Port TypeC x 1, GROVE(I2C+I/0+UART) x 1
RGB LED RGBW x 1
Button Custom button x 2
IPS screen 1.14 TFT, 135*240, ST7789
Camera OV7740(30W pixels)
FOV 55deg
PMU AXP192
Battery 200mAh
External storage TF-card(microSD)
MEMS MPU6886
Net weight 23g
Gross weight 82g
Product Size 48*24*22mm
Package Size 144*44*43mm
Case Material Plastic ( PC )

LEARN AND DOCUMENTS

  • DOCUMENTS

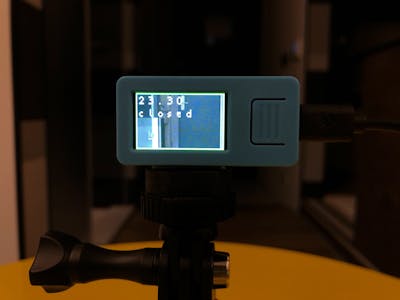

  • Detecting Object for Vehicle Blind Spot by M5StickV Detecting Object for Vehicle Blind Spot by M5StickV Detect cars and people which is blinding by drivers. You need only putting M5Stack and you aren't doing dedicated construction. Getting Started with the M5StickV AI + IOT Camera Getting Started with the M5StickV AI + IOT Camera The M5Stick-V is an AIOT (AI + IOT) camera with machine vision capabilities. MiMaMori Alert for Your Home Security MiMaMori Alert for Your Home Security "MiMaMori Alert" is automatic security camera for your home. Automatic learning without teacher images, and notify if something is visitor. Mobile Social Distancing using Face detection (M5stickV) Mobile Social Distancing using Face detection (M5stickV) Mountable device for your Personal AI Social Distancing Alarm by detecting how far the person's face from you..... (M5StickV) Wireless Barcode Scanner Wireless Barcode Scanner M5StickV and M5StickC with HID Bluetooth Wireless or Atomic QR-Code reader Cheering Watch of M5StickC&V Cheering Watch of M5StickC&V This is a Cheering Watch using M5StickC and M5StickV. Estimate what action you are taking from this device acceleration and cheer up!! Brownie - Automate Your Home with AI Brownie - Automate Your Home with AI Brownie is an AI camera app that allows you to automate your daily life with simple operation. Desk-Robot Assistant Based on M5Stick-V and M5Stack Desk-Robot Assistant Based on M5Stick-V and M5Stack This project is based on the use of the development system M5StickV, for the classification of emotions. Line Fridge Thief with M5StickV & M5StickC & YUN hat Line Fridge Thief with M5StickV & M5StickC & YUN hat The idea is simple, I would like to create Home Automation unit with something intelligent. So I combine M5StickV and M5StickC. AI Powered Garbage Sorting Demo AI Powered Garbage Sorting Demo AI camera that automatically sorting out the garbage. Bad Pose Detector using M5StickV Bad Pose Detector using M5StickV My posture gradually gets worse when I work on a PC. I developed ”Bad Pose Detector" using by M5StickV, it notices sound and LED. PuddingAlert-V PuddingAlert-V My family has eaten the pudding I have saved! Do you have such experience? I want to keep the peace of my home. I made pudding alert-V. Social Distancing using Face detection + Web Stream Social Distancing using Face detection + Web Stream Using M5stickV (UnitV)and its standard Face Detection Model.....Upgrade to enable for Web Stream using M5stickC(ESP32) Instant Camera Printer StickV Instant Camera Printer StickV M5Stick V + Adafruit Thermal Printer + M5Stack Gray = Instant Camera Printer M5 Supermarket M5 Supermarket This application will focus on simulating the addition and payment of goods in unmanned supermarkets. M5StickV-M5Train M5StickV-M5Train Stickv is used to realize the AI identification of traffic signs, and stickc is used as the executive component. Thanks @CangHai Multi function AI punch the clock base on M5Stack Multi function AI punch the clock base on M5Stack Realize the "offline cloud platform" interaction function of operation information based on mqtt information transmission technology ASCII 0_1 Stream ASCII 0_1 Stream Converting the camera sensor feed to 0 and 1 ASCII art. Goldfish status test in M5Stack UnitV Goldfish status test in M5Stack UnitV @HomeMadeGarbage The goldfish tank monitoring system has become a form, and it is an application of the edge AI of this subject. Autism Communications Assistant Autism Communications Assistant The model will help learn / associate the items/phrases commonly used by a user (autistic/semi-verbal); so that they can communicate. M5StickV deep learning for WeChat Jump game M5StickV deep learning for WeChat Jump game Thank @沧海 for his contribution We choose wechat jump, a classic little game, as a carrier of target detection test.
