Description

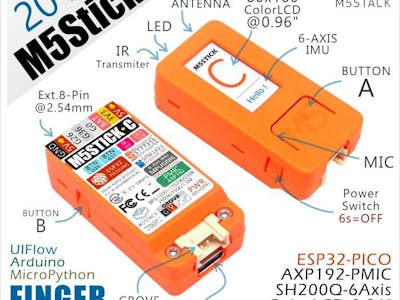

M5StickC is a mini M5Stack, powered by ESP32. It is a portable, easy-to-use, open-source IoT development board. This tiny device is packed with features that enable you to bring your ideas to life, spark your creativity, and streamline your IoT prototyping process. With M5StickC, you can alleviate many of the challenges typically associated with development.
M5StickC incorporates various hardware resources within its compact body, including a 3-axis accelerometer, 3-axis gyroscope, red LED, infrared transmitter, real-time clock (RTC), microphone, user buttons, 0.96-inch LCD display, and power/reset button. Additionally, it is equipped with a 95mAh lithium battery for portable operation. The device also offers expansion interfaces, making it compatible with a wide range of modules and units, allowing for further customization and versatility.
M5StickC is not only a powerful hardware platform but also benefits from a continually growing hardware and software ecosystem. It supports multiple platforms for development, including UIFlow, MicroPython, Arduino, and .NET nanoFramework. This compatibility provides you with flexibility and choice in selecting the programming environment that best suits your needs. Moreover, the open-source code and engineering communities associated with M5StickC offer valuable resources and support to maximize your benefits throughout the development process.
Power switch operation:
- Power on :Press power button for 2 seconds
- Power off :Press power button for 6 seconds
- The input range of VBUS_VIN and VBUS_USB is limited to 4.8-5.5V, and the internal battery will be charged through AXP192 power management when VBUS is powered.
- Baud rate supported by M5StickC: 1200 ~115200, 250K, 500K, 750K, 1500K
Product Features
- ESP32-based
- Built-in 6-Axis IMU
- Red LED
- IR transmitter
- Microphone
- Buttons, LCD(0.96 inch)
- Built-in Lithium Polymer Battery
- Extendable Socket
- Wearable & Wall mounted
- Compatible with multi-platform development:
Include
- 1x M5StickC
- 1x USB Type-C(20cm)
Applications
- Internet of things terminal controller
- Wearable devices
- Stem education product
- DIY creation
- IoT development kit
Specification
| Resources | Parameter |
|---|---|
| ESP32 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi |
| Flash Memory | 4MB |
| Power Input | 5V @ 500mA |
| Port | TypeC x 1, GROVE(I2C+I/0+UART) x 1 |
| LCD screen | 0.96 inch, 80*160 Colorful TFT LCD, ST7735S |
| Button | Custom button x 2 |
| LED | RED LED |
| MEMS | MPU6886 |
| IR | Infrared transmission |
| MIC | SPM1423 |
| RTC | BM8563 |
| PMU | AXP192 |
| Battery | 95 mAh @ 3.7V |
| Antenna | 2.4G 3D Antenna |
| PIN port | G0, G26, G36 |
| Operating Temperature | 0°C to 60°C |
| Net weight | 15.1g |
| Gross weight | 33g |
| Product Size | 48.2*25.5*13.7mm |
| Package Size | 55*55*20mm |
| Case Material | Plastic ( PC ) |
USB Driver
class="warn">Connect the device to the PC, open the device manager to install FTDI driver for the device. Take the win10 environment as an example, download the driver file that matches the operating system, unzip it, and install it through the device manager. (Note: In some system environments, the driver needs to be installed twice for the driver to take effect. The unrecognized device name is usuallyM5Stack or USB Serial. Windows recommends using the driver file to install directly in the device manager (custom Update), the executable file installation method may not work properly). Click here to download FTDI driver
EasyLoader
EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.
Download Windows Version Easyloader Download MacOS Version Easyloader class="warn">Description:Accelerometer, microphone, LED, IR, RTC and other hardware tests. Press A or B to switch test items.
PinMap
RED LED & IR Transmitter & BUTTON A & BUTTON B| ESP32 | GPIO10 | GPIO9 | GPIO37 | GPIO39 |
|---|---|---|---|---|
| RED LED | LED Pin | |||
| IR Transmitter | Transmitter Pin | |||
| BUTTON A | Button Pin | |||
| BUTTON B | Button Pin |
TFT LCD
Driver IC:ST7735S
Resolution:80 * 160
| ESP32 | GPIO15 | GPIO13 | GPIO23 | GPIO18 | GPIO5 |
|---|---|---|---|---|---|
| TFT LCD | TFT_MOSI | TFT_CLK | TFT_DC | TFT_RST | TFT_CS |
GROVE PORT
| ESP32 | GPIO33 | GPIO32 | 5V | GND |
|---|---|---|---|---|
| GROVE port | SCL | SDA | 5V | GND |
MIC (SPM1423)
| ESP32 | GPIO0 | GPIO34 |
|---|---|---|
| MICPHONE | CLK | DATA |
| ESP32 | G21 | G22 | G35 |
|---|---|---|---|
| AXP192 | SDA | SCL | IRQ |
| MPU6886 | SDA | SCL | IRQ |
| BM8563 | SDA | SCL | IRQ |
| Microphone | RTC | TFT backlight | TFT IC | ESP32/3.3V MPU6886/SH200Q | 5V GROVE |
|---|---|---|---|---|---|
| LDOio0 | LDO1 | LDO2 | LDO3 | DC-DC1 | IPSOUT |
| charging current | Fully charged current(Power OFF) | Fully charged current(Power ON） |
|---|---|---|
| 0.488A | 0.066A | 0.181A |
Schematic
Related Link
- datasheet
- API
structural-design-file
Learn

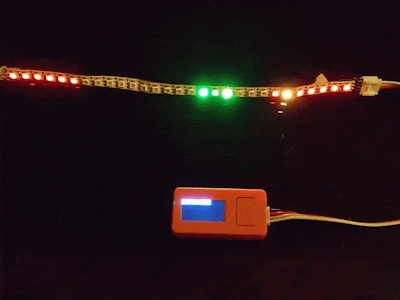

M5StickC (ESP32 Pico) with built-in i2s microphone is used for audio spectrum analysis (ArduinoFFT) and visualization on an RGB led strip.
m5WebRadio is a sketch to play web streaming radio station on a M5Stick-C esp32 module: A $13 esp32 net radio player.
Take a $9 M5StickC, few lines of YAML configuration to build ESPHome, Home Assistant and start controlling your TVs and climates in minutes.
This simple project visualizes the current data of the coronavirus outbreak of different countries in real-time on an M5StickC.
A hand-washing timer with water sound detection, which uses the M5StickC's built-in microphone and does not require any external components.
A library to display texts on the M5StickC in any orientation. The display scrolls and wraps text lines automatically.

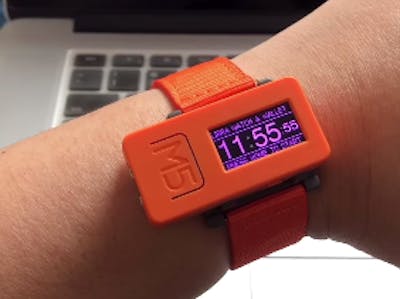

(First?) Libra Watch & Hardware wallet. Built on M5SickC devices using KULAP libra services.
A wearable, sensor-packed ESP32 IoT device with TFT display.

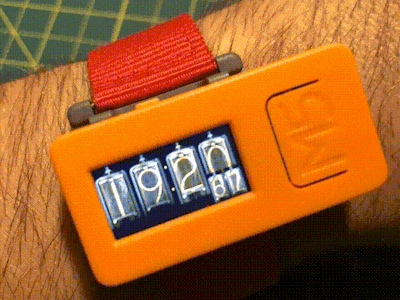

To build a Nixie tube clock is a perpetual project on my mind. I wanted to see was made by software.

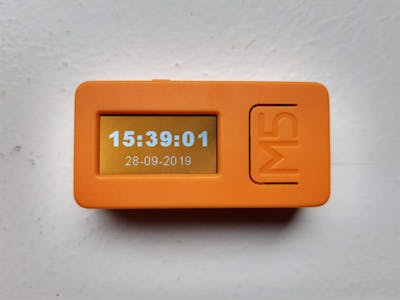

Got a few mins to do a little clock, so here it is
Play any animated GIF file from SPIFFS directly onto TFT screen as-is, WITHOUT converting to RGB565 or PROGMEM as script.
A tool that helps makers and professionals level their FDM-based 3D Print Bed
I made a CO2 concentration meter for the purpose of room ventilation guide. The CO2 sensor is MH-Z19B, NDIR type.
This is a simple project using M5Stick and MicroPython in order to obtain data from the Hall sensors and temperature embedded in the chip.
In this tutorial we’ll show you the most efficient and easy to use application of M5Stick-C as smart watch.
A watch on wrist is worth two in the drawer. Why not your own DIY watch with #M5StickC? A watch with good battery life and smart features.
How to program M5Stack products using UIFlow and have Thonny running to diagnose errors over USB.
We can receive iPhone notifications via BLE, ANCS. M5StickC is including BLE module, LCD, RTC, Battery. Let's make the 🍎WATCH🍎.
A simple watch (long stamina, 3 alarms, settings over BT and mobile application) with big potential. :) #M5StickC
I made a Blynk-controlled mini car using M5Stick-C. Pretty good!
I tried sound signal communication with Chirp using M5StickC.

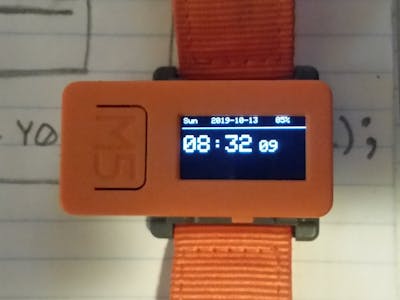

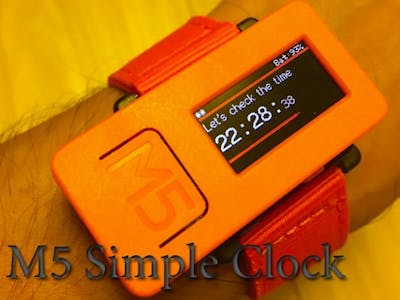

A simple watch for M5StickC with clock and date. You can also see battery level and display images.

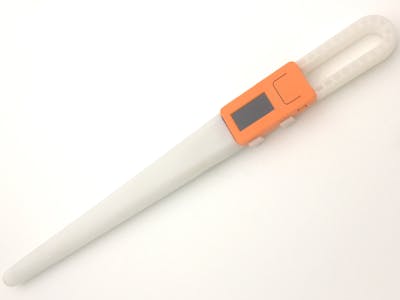

Utilize a 6-axis IMU sensor SH200Q, to capture a magic wand motion.
Alexa and Google Assistant-compatible Wi-Fi sensor and alarm. Works on any flat surfaces: fridge, door, window, garage door, etc.
Using M5StickC on RoverC and JoyC with M5Atom attached to display direction of the RoverC.
Simple MicroPython code for the ATOM 5 x 5 LED matrix and its built-in MPU6886 accelerometer. It works with the M5StickC + NeoFlash Hat.
"MiMaMori Alert" is automatic security camera for your home. Automatic learning without teacher images, and notify if something is visitor.
Train a neural network model in 10 minutes, and use it on ESP32 with MicroPython to control a light switch. Everything done in browser.
Use BT serial to program omnidirectional movement sequences. Make a game out of it and try to guide the robot around obstacles.
M5StickV and M5StickC with HID BT Wireless or Atomic QR-Code reader
Gamepad (prototype) based on M5StickC (ESP32 Pico) with I2C joystick module, dual button unit, and BT connectivity.
A robot that standing with steel linear of motors.
This is the war for getting the time...
This is a Cheering Watch using M5StickC and M5StickV. Estimate what action you are taking from this device acceleration and cheer up!!
I wanted to make a watch but also a wearable tool.
M5StickC + Angle unit = Protractor (detecting range: 0-180 degrees）
In this tutorial we will learn how to get the date and time fron NIST TIME server using M5Stack StickC and Visuino, Watch the video.
A inner maker competition of M5Stack.
Analog clock for M5StickC whose background can be changed with PNG file data.
Used StickC with ESPHap library to connect to HomeKit
This uses the stepper driven 6060 push and rs485. The movement is based on the tilt of the M5stick which is measured with the built-in IMU.
Classical snake mini-game, geolocation & maps app, twitch client, and a few more software projects and libraries.
Pilot Phillips Hue with M5Stick.
A low cost, simple to customize and program lone worker monitor or fall alarm.
Make a simple watch device using UIFlow.
The idea is simple, I would like to create Home Automation unit with something intelligent. So I combine M5StickV and M5StickC.
A "simple" binary clock for the M5StickC. Using NTP to set the time, and the RTC to display the time. No need to set a timezone either.
How to connect a passive buzzer to an M5StickC.
Temperature Detection
Quickly adding a spooky eye to your project with an esp32 TFT module and an acrylic half sphere lens.

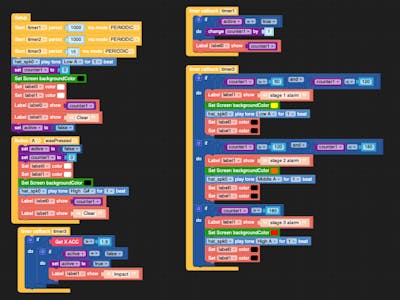

Loose meetings are a bad business culture in Japan. The device “NeckTimer” that can appeal to the surroundings casually solves on time!
In this project we will learn how to make a Wi-Fi Scanner using a M5StickC ESP32 module to Display the Wi-Fi networks around.
Detailed tutorial on how to enable your ESP32 to send SMS
I tried indoor positioning by BLE with iBeacon and M5StickC
Using M5stickV (UnitV)and its standard Face Detection Model.....Upgrade to enable for Web Stream using M5stickC(ESP32)
Make a doorbell for the front door with M5StickC and notify Slack when the button is pressed.
Counting COCOA(COVID-19 Contact-Confirming Application) around you with M5StickC
Stickv is used to realize the AI identification of traffic signs, and stickc is used as the executive component. Thanks @CangHai
Thanks @memex_pibo Provided materials，this is a detailed workflow about VR live performance
A very basic neopixel light show that employs fundamental coding, math, and loop iteration and throws in some basic MQTT fun
In this tutorial we will learn how to program ESP32 M5Stack StickC with Arduino IDE and Visuino to Display a time on the LCD and also set th
In this tutorial we will learn how to program ESP32 M5Stack StickC with Arduino IDE and Visuino to Display any text on LCD.
@HomeMadeGarbage The goldfish tank monitoring system has become a form, and it is an application of the edge AI of this subject.
A digital wearable D&D dice roller using the m5stickC and UI Flow
Transit NTP acquisition time short-distance transmission within weak distance.
S.M.A.R.S Quad using M5Stack electronic components.
This is an example of using a triaxial accelerometer to determine whether a fish is hooked.
Using the M5StickC, we developed a product that allows you to wash your hands without touching the device.
Working from home you're constantly doubting your internet speed. I made an M5StickC app to check upon thrashing or yelling
In this project we will learn how to display a random color on the NeoPixels LED Ring using a M5StickC ESP32 board. Watch the Video.
When a specific user tweets a new tweet, it will appear on the M5StickC display and notify you.
In this project we will learn how to make a mini Alarm Warning using a mini PIR sensor and a M5StickC ESP32 board. Watch the video!
Turns your M5StickC with the ToF HAT into a laser rangefinder.
This is a case about controlling GOPRO with M5StickC
In this tutorial we will learn how to program ESP32 M5Stack StickC to Display a time on the LCD and also set the time using StickC buttons.
In this tutorial we will learn how to program ESP32 M5Stack StickC with Arduino IDE and Visuino to Display the time on the LCD.
We have developed a fishing device using M5Stack. It was easy to create and I was able to actually catch the fish.
In this project we will learn how to use a FAN L9110 module using a M5StickC ESP32 board.
I tried to communicate with Unity-M5Stack via WebSocket. M5Stack is a gadget with a built-in ESP32 module that enables Wi-Fi communication
In this project we will learn how to connect and make an LED Blink using a M5StickC ESP32 module.
This year's Christmas, I decorated the tree with M5Stack devices.
I built a device to display the name of the next person to receive a present on the TV to make the bestowment more fun and organized.
In this project we will learn how to Change the LED Brightness with a Button using a M5StickC ESP32 module. Watch the Video.
In this video we will learn how to send values from StickC board to Delphi VCL Application using Visuino.
A simple game using M5StickC. Display the block in HTML in a web browser and control the ball with JoyStick.
In this tutorial we will learn how to program ESP32 M5Stack StickC with Arduino IDE and Visuino to Display the Temperature,Humidity Pressure
Sometimes when you connect a StickC board to the computer a mouse cursor can start to jump all over the screen.
In this tutorial we will learn how to program ESP32 M5Stack StickC with Arduino IDE and Visuino. Watch a demonstration video.
Old school fire demo
A watch that works with a small M5StickC Equipped with a minimum operating clock and automatic sleep mode, contributing to energy saving

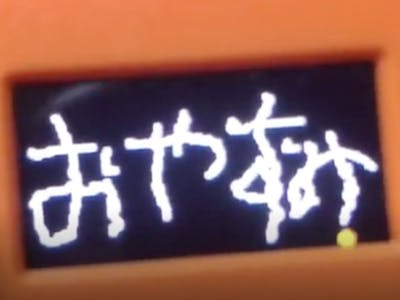

おやすみ #M5StickC
Example
Arduino UIFlow For a tutorial on uiflow, see hereVideo
Version Change
| Release Date | Product Change | Note: |
|---|---|---|
| 2019.3 | Initial public release | / |
| 2019.8 | SH200Q changed to MPU6886 | / |
| 2019.10 | Upgrade the bottom and add copper nuts | / |
| 2020.3 | Battery capacity changed from 80mAh to 95mAh | / |
