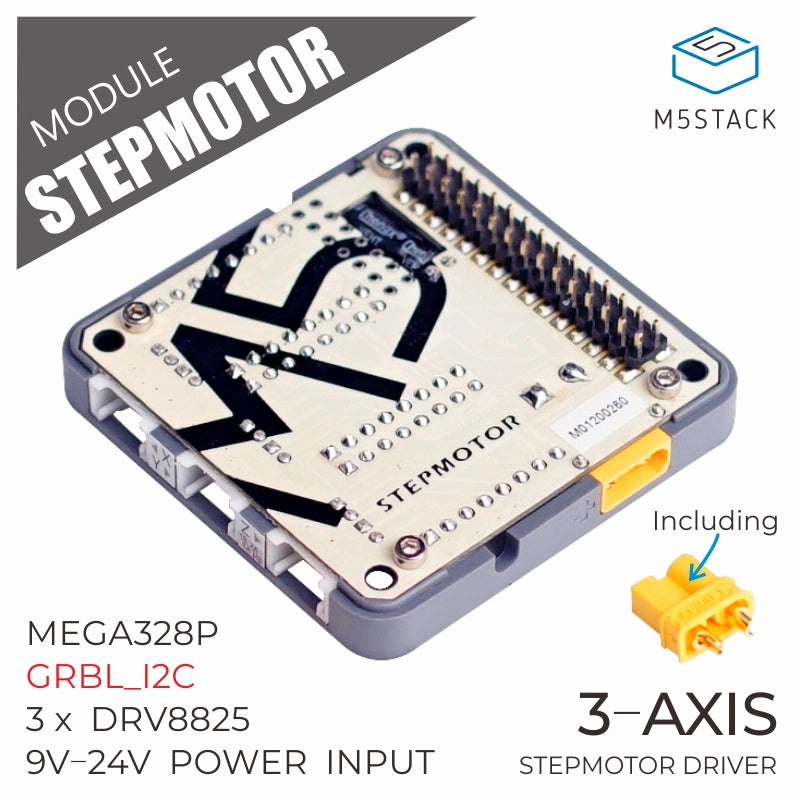

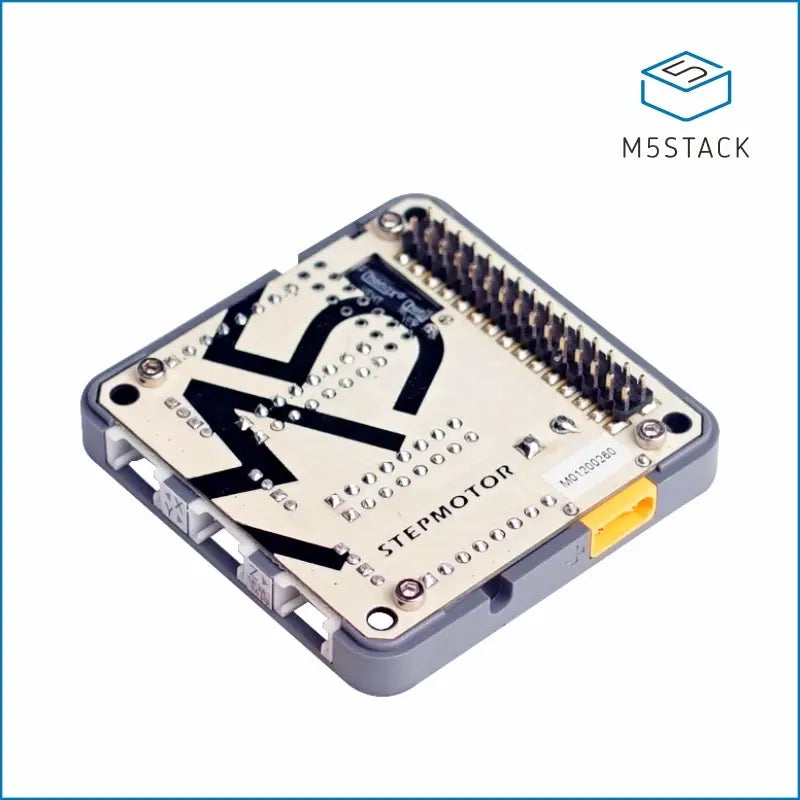

Stepmotor Module with MEGA328P (DRV8825) (Optional: 12V Power Adapter)

SKU:M012

Regular price $18.50

10+ In Stock

Shipping calculated at checkout.

Description

STEPMOTOR is used for stepper motor control. It is perfect for any motion project as it can drive up to 3 Stepper motors with GRBL control.

It is built with MEGA328P has been flashed GRBL firmware. The module comunicates with M5Core via I2C(0x70)

Integrated 3 DRV8825, a simple but very powerful board that can control one bipolar stepper motor at the time and allows micro stepping up to 1/32 of a step.

Product Features

  • 9-24V Power Input
  • 3-way stepper motors (X, Y, Z)

Include

  • 1x Step Motor Module

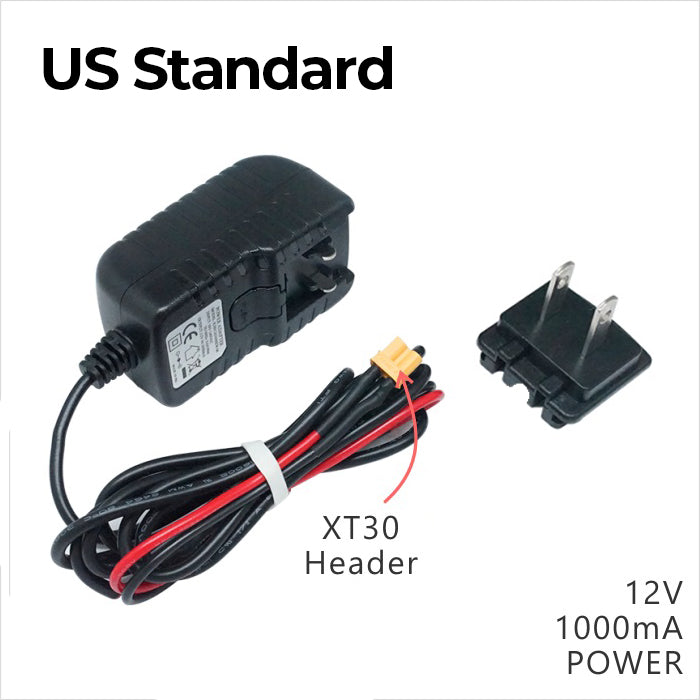

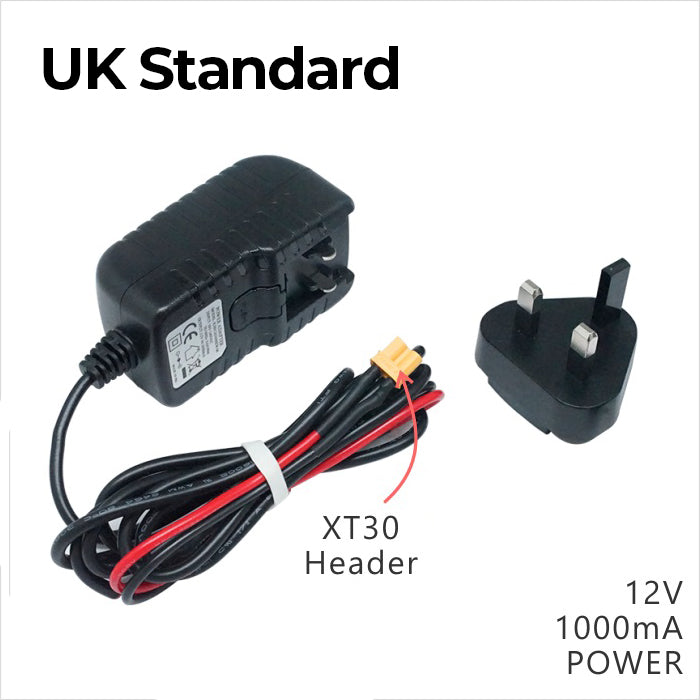

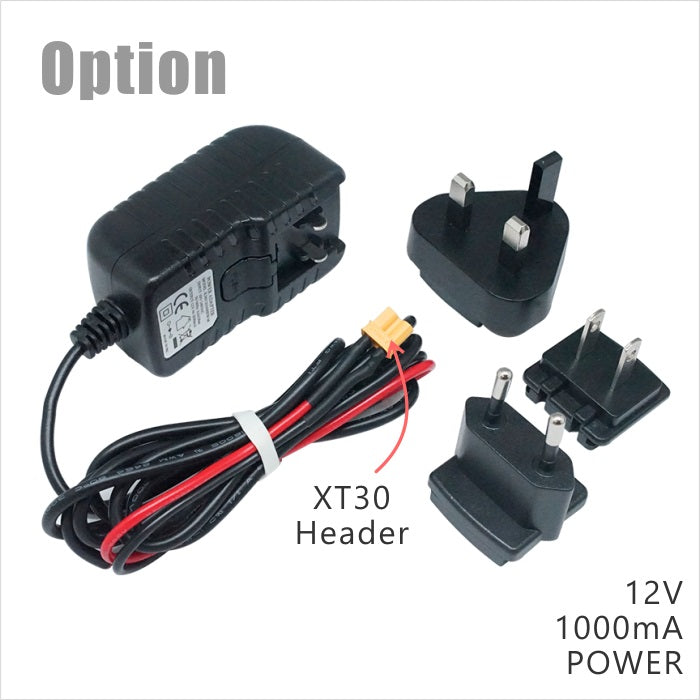

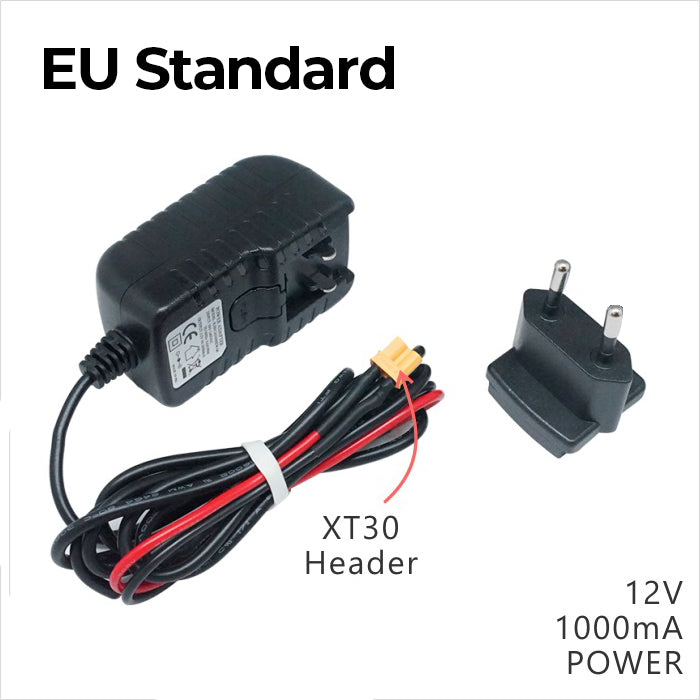

  • 12V Power (Optional)
  • 1x 5V FAN Module for heat dissipation (Optional)

Applications

  • DIY 3D Printer
  • Simple Robot Arm

Specification

Resources Parameter
DC Interface XT30
Motor Interface HY2.0-4P
Net weight 24g
Gross weight 34g
Product Size 54.2*54.2*12.8mm
Package Size 60*57*17mm
