Description

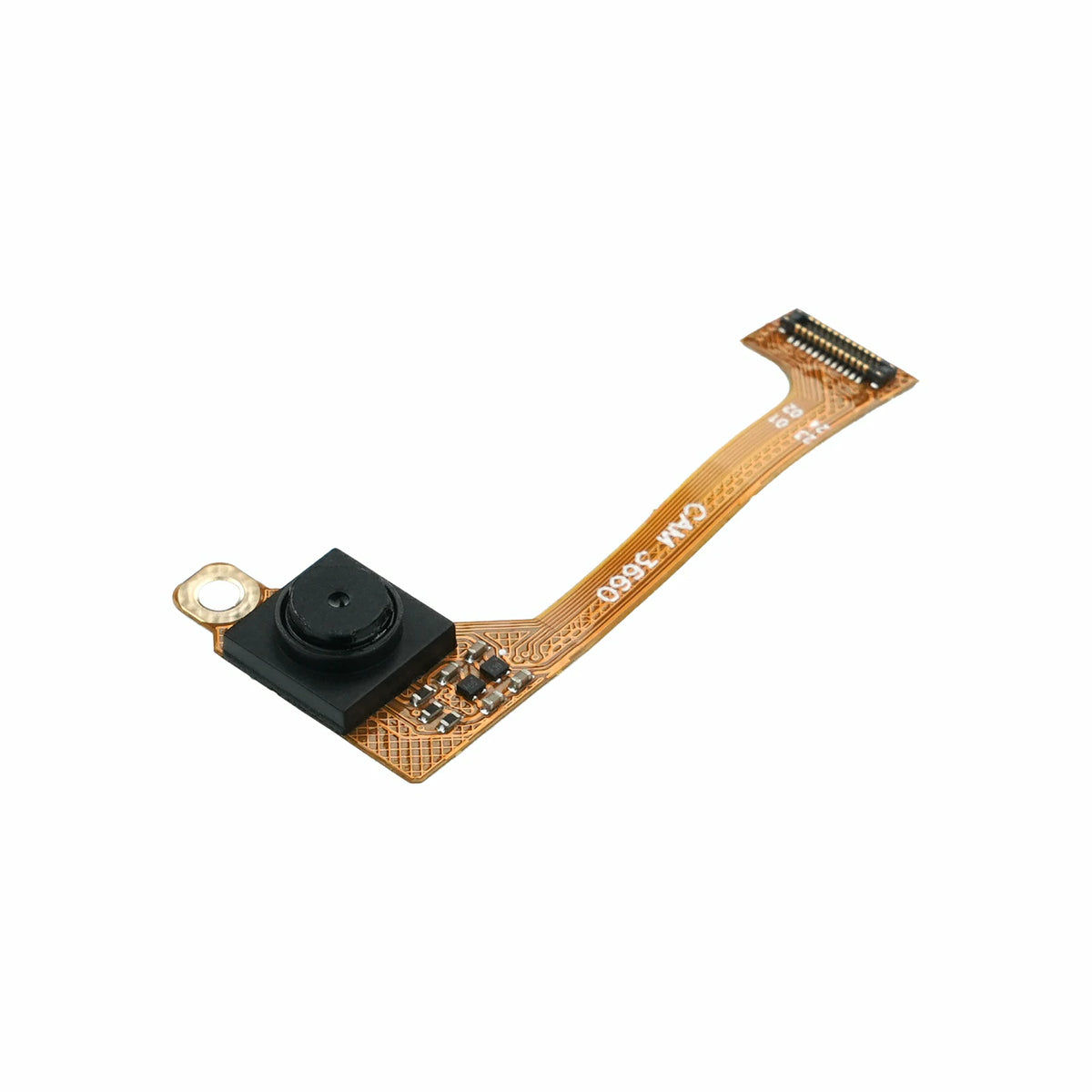

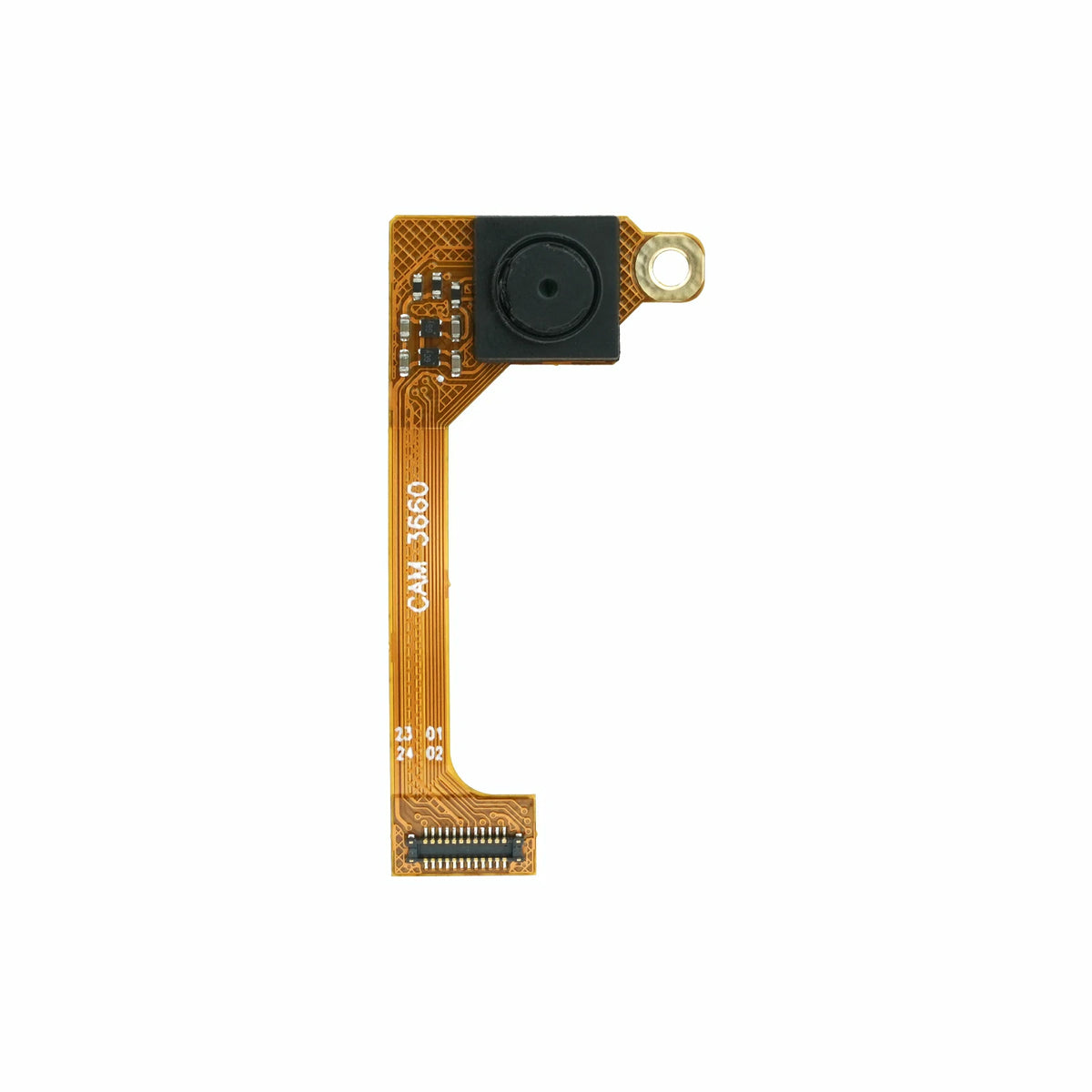

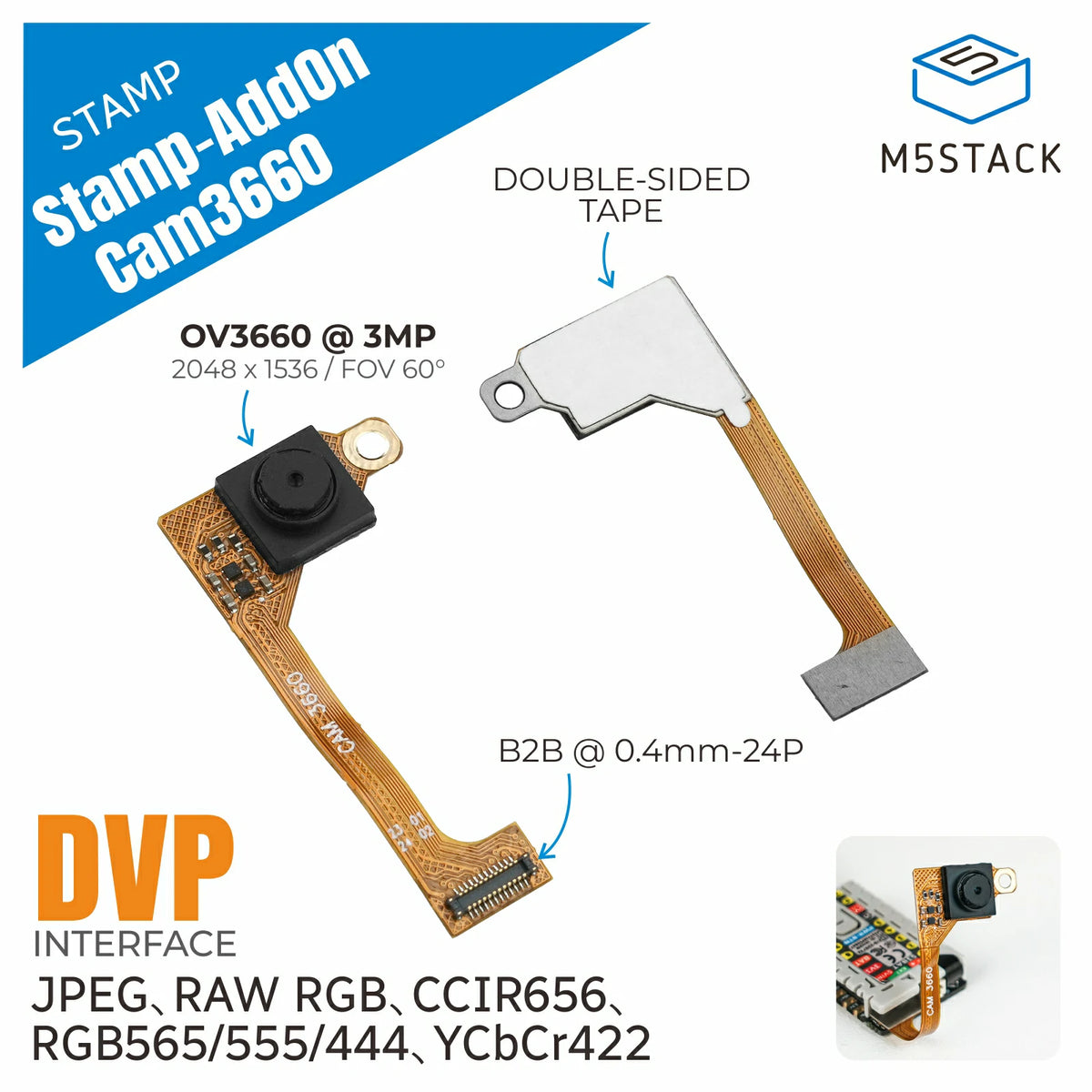

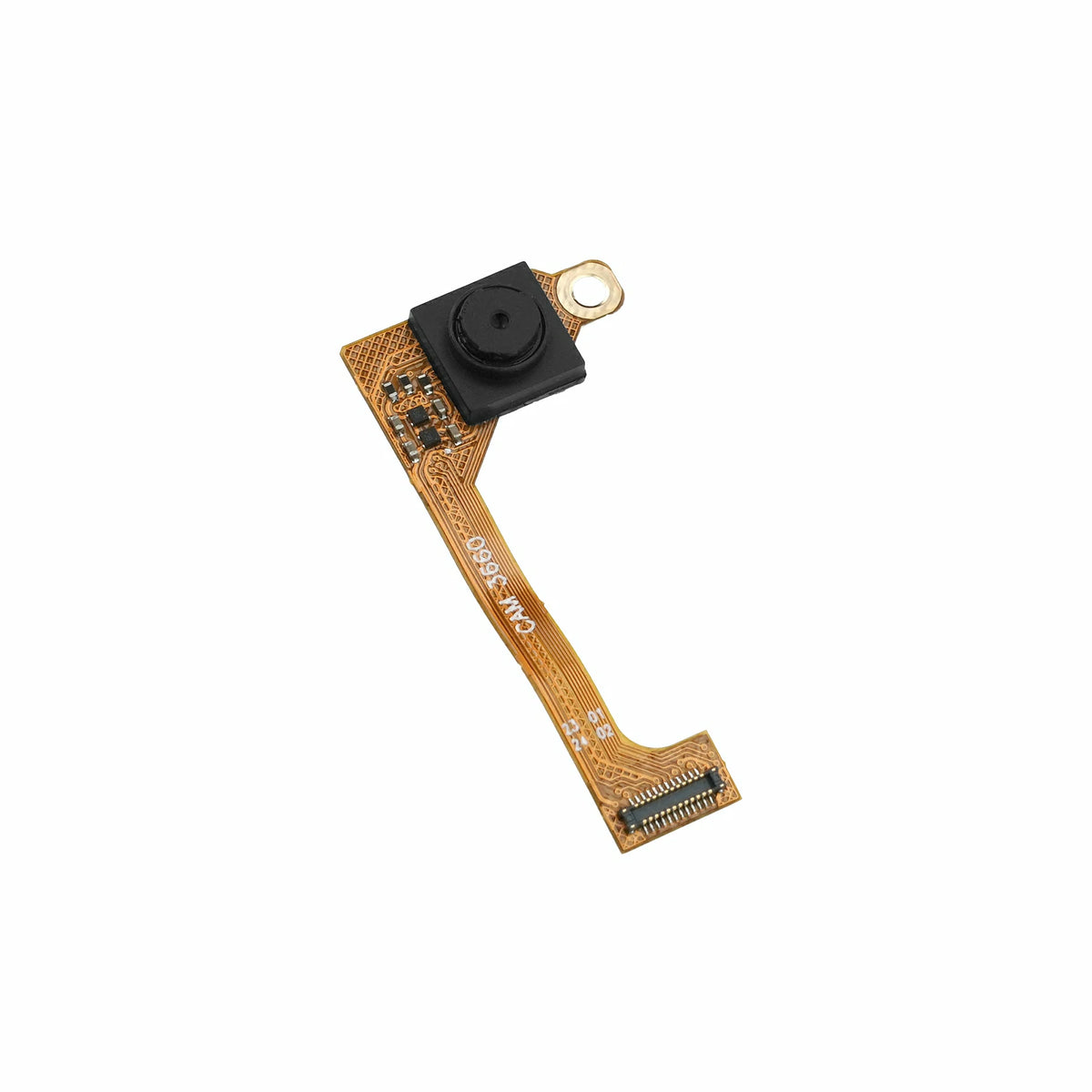

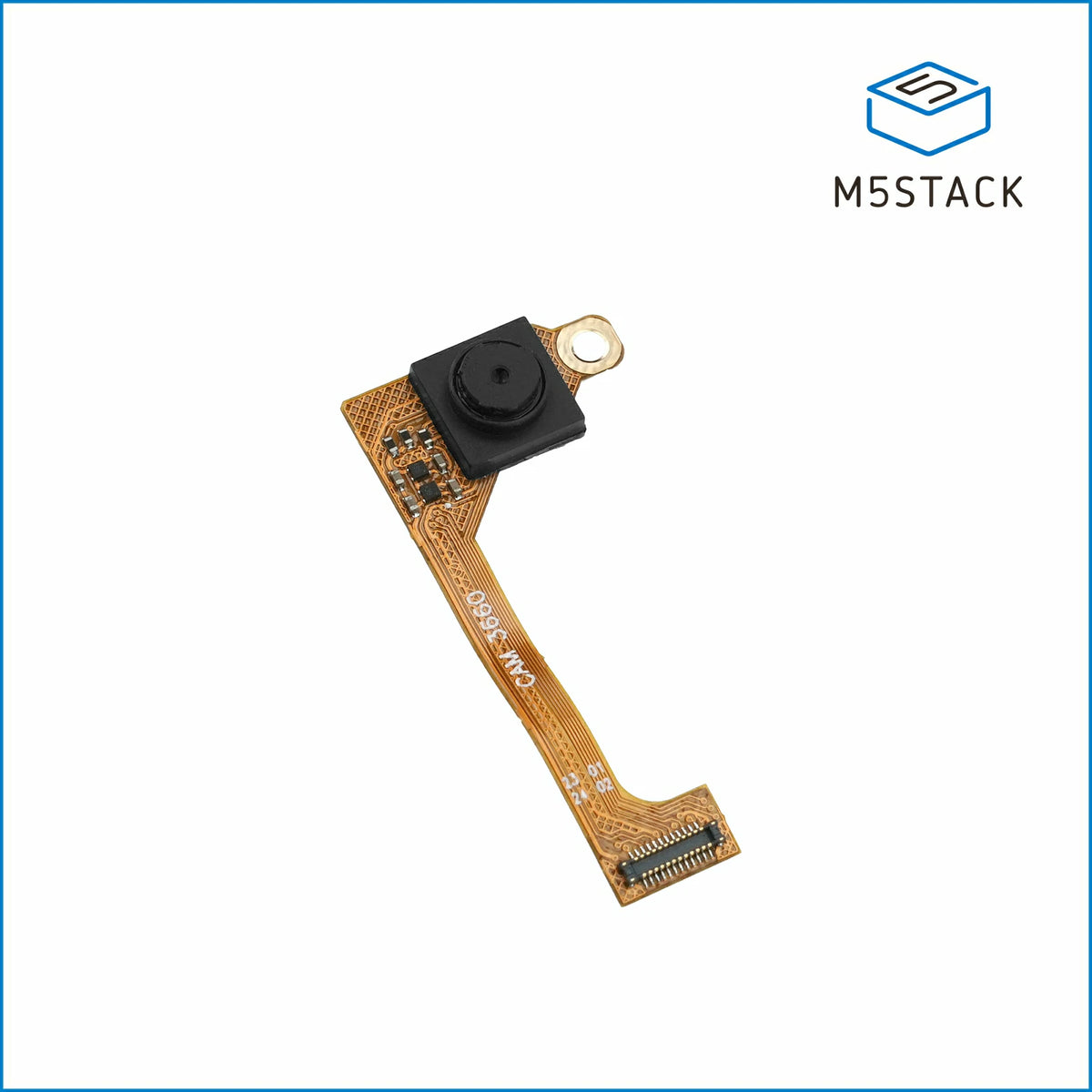

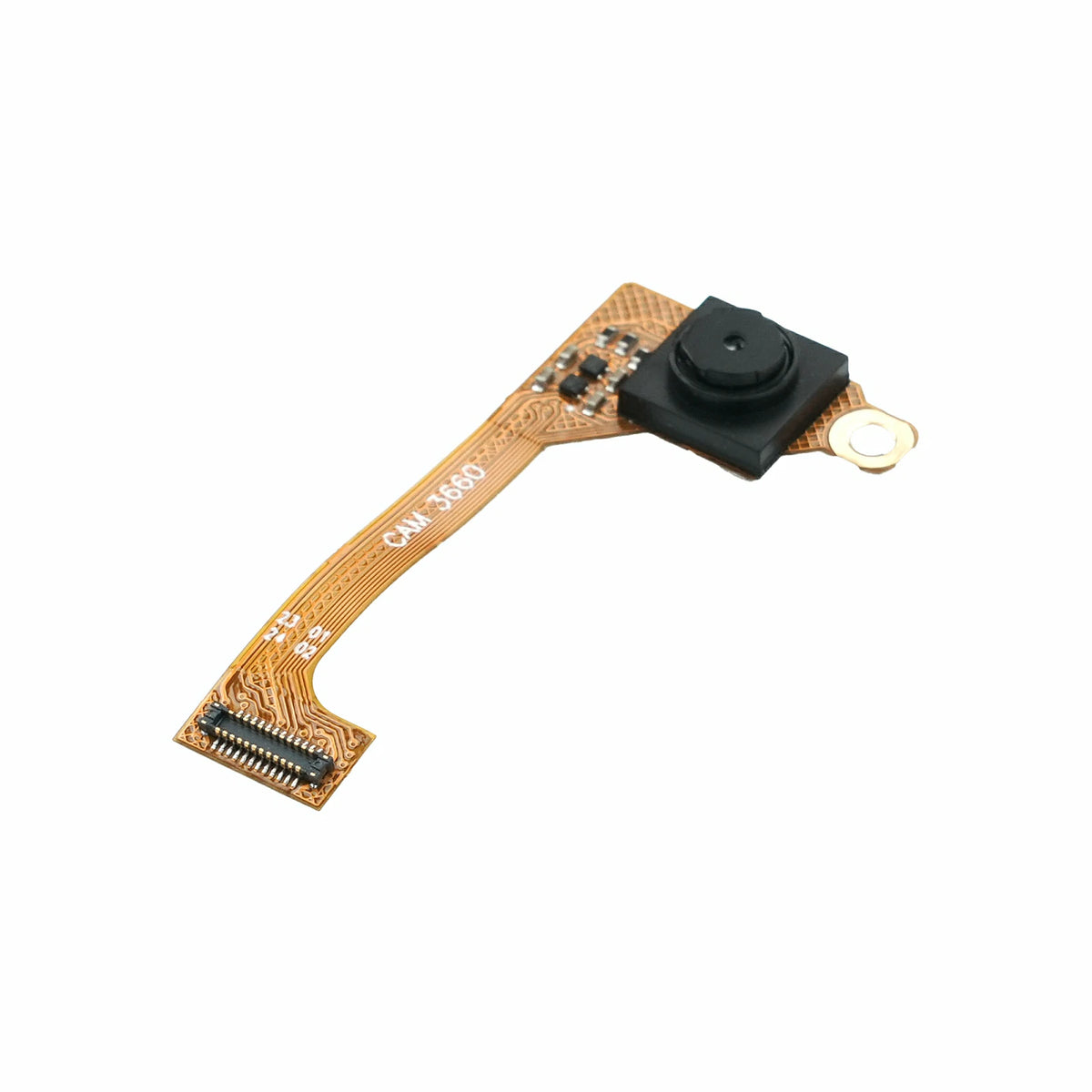

Stamp-AddOn Cam3660 is a CMOS camera expansion module designed for the Stamp-S3Bat. It is equipped with a 3MP OV3660 image sensor and features an L-shaped flexible FPC cable, connecting to the mainboard via a 0.4mm-24P B2B board-to-board connector. A metal mounting hole is provided on the side of the lens. The module outputs images through an 8-bit DVP parallel interface and configures the sensor registers via the SCCB bus, supporting image capture at up to 3MP (2048 × 1536) resolution. With its compact size, the module is suitable for installation in devices with limited space and can be used in embedded vision scenarios such as image capture, visual recognition, and video transmission.
Features
- Designed for the Stamp-S3Bat
- 3MP OV3660 CMOS image sensor
- Supports up to 2048 × 1536 resolution
- Supports JPEG, RAW RGB, RGB565/555/444, CCIR656, and YCbCr422 image output formats
- 8-bit DVP parallel image output interface
- SCCB configuration bus (electrically compatible with I2C)
- Supports PWDN low-power control and hardware reset
- L-shaped flexible FPC, integrated with a 0.4mm-24P B2B board-to-board connector

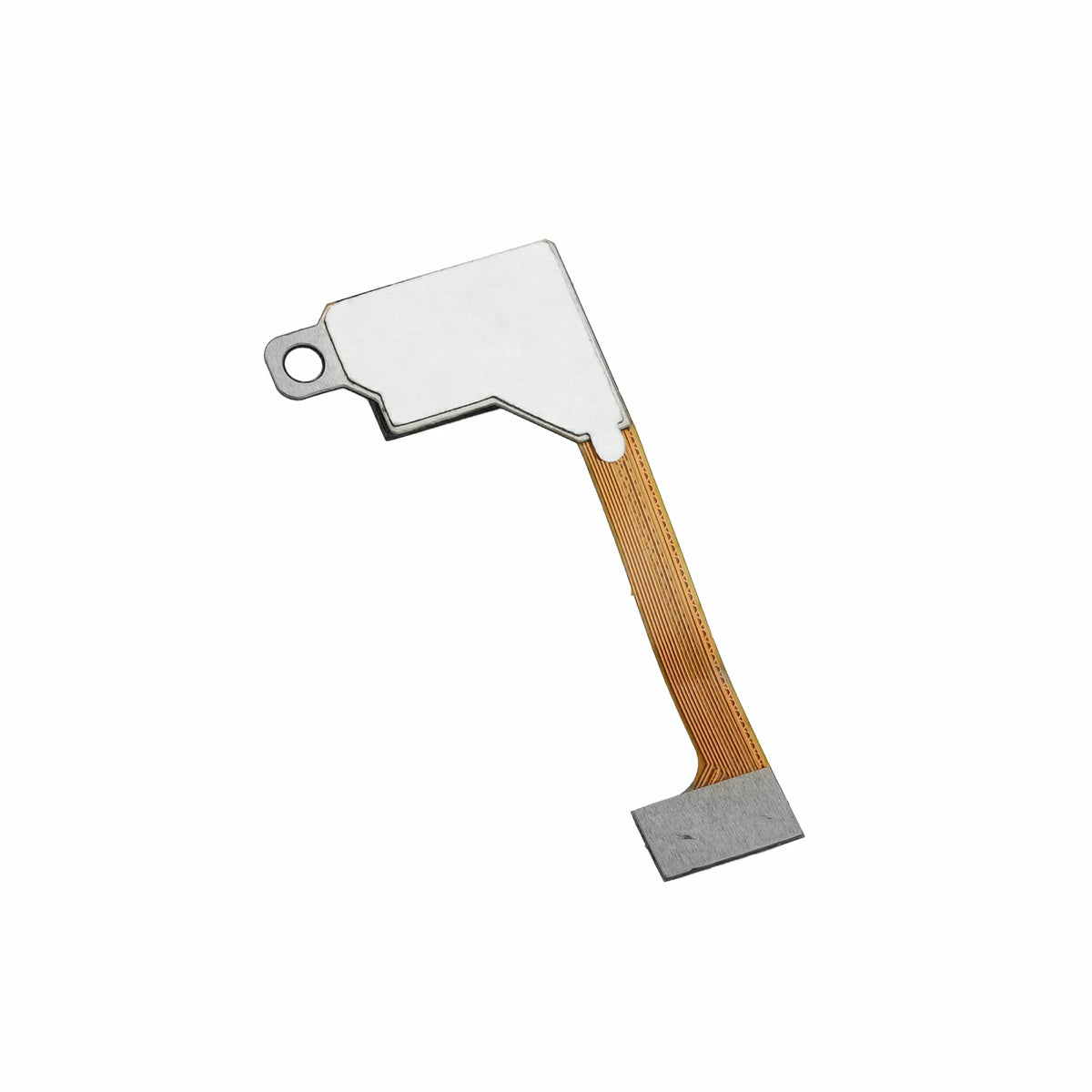

- Side metal mounting hole for easy installation and fixation
Includes
Applications
- Embedded image capture
- Object recognition and visual inspection
- QR code recognition
- Video surveillance and wireless image transmission
- IoT vision sensor nodes
Specifications
| Specification |
Parameter |
| Image Sensor |
OV3660 CMOS |
| Active Pixels |
3MP |
| Max Resolution |
2048 x 1536 |
| Lens Size |
1/5 inch |
| Focal Length |
2.97 ±5% mm |
| Aperture |
F2.0 ±5% |
| Field of View |
60° |
| Distortion |
<1.5% |
| Focus Mode |
Fixed Focus (FF) |
| Shooting Range |
20cm ~ ∞ |
| Focusing Distance |
80cm |
| Supported Resolutions |
QVGA (320 x 240) / VGA (640 x 480) / HD (1280 x 720) / QXGA (2048 x 1536) |
| Max Frame Rate |
30fps |
| Output Format |
JPEG, RAW RGB, RGB565/555/444, CCIR656, YCbCr 4:2:2 |
| Image Output Interface |
8-bit DVP parallel interface |
| Communication Address |
I2C @ 0x3C |
| Connection |
0.4mm-24P B2B connector |
| Product Weight |
0.7g |
| Package Size |
138.0 x 93.0 x 10.0mm |
| Gross Weight |
3.8g |
Product Comparison
| Product Comparison |
Stamp-AddOn Cam3660 |
Stamp-AddOn Cam0308 |
| Image Sensor |
OV3660 CMOS |
GC0308 CMOS |
| Active Pixels |
3MP |
0.3MP |
| Max Resolution |
2048 x 1536 |
640 x 480 |
| Field of View |
60° |
57.6° |
| Aperture |
F2.0 ±5% |
F2.8 ±5% |
| Distortion |
<1.5% |
<1.0% |
| Output Format |
JPEG, RAW RGB, RGB565/555/444, CCIR656, YCbCr 4:2:2 |
YCbCr 4:2:2, RGB565, Raw Bayer |
| Image Output Interface |
8-bit DVP parallel interface |
8-bit DVP parallel interface |
| Communication Address |
I2C @ 0x3C |
I2C @ 0x21 |
