Description

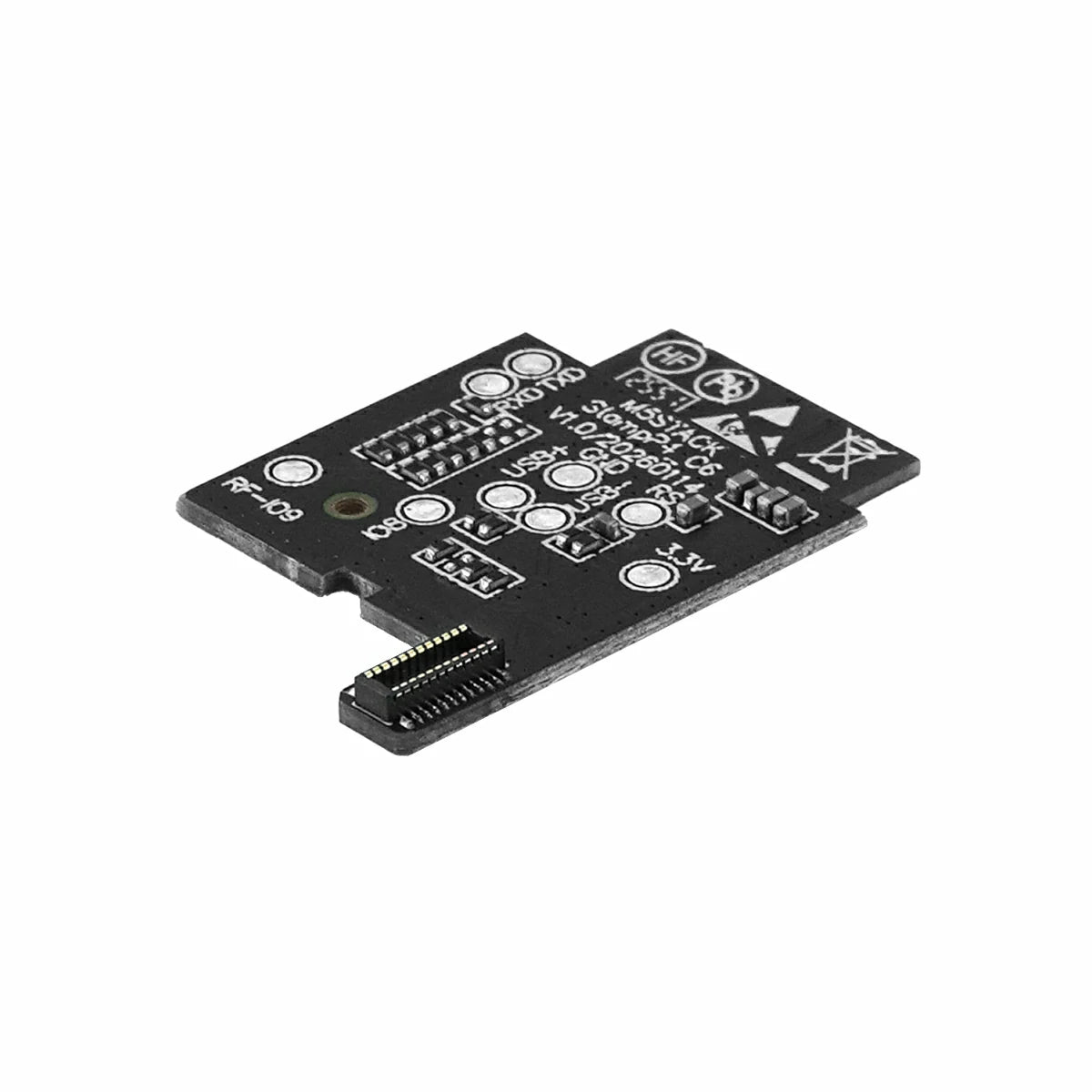

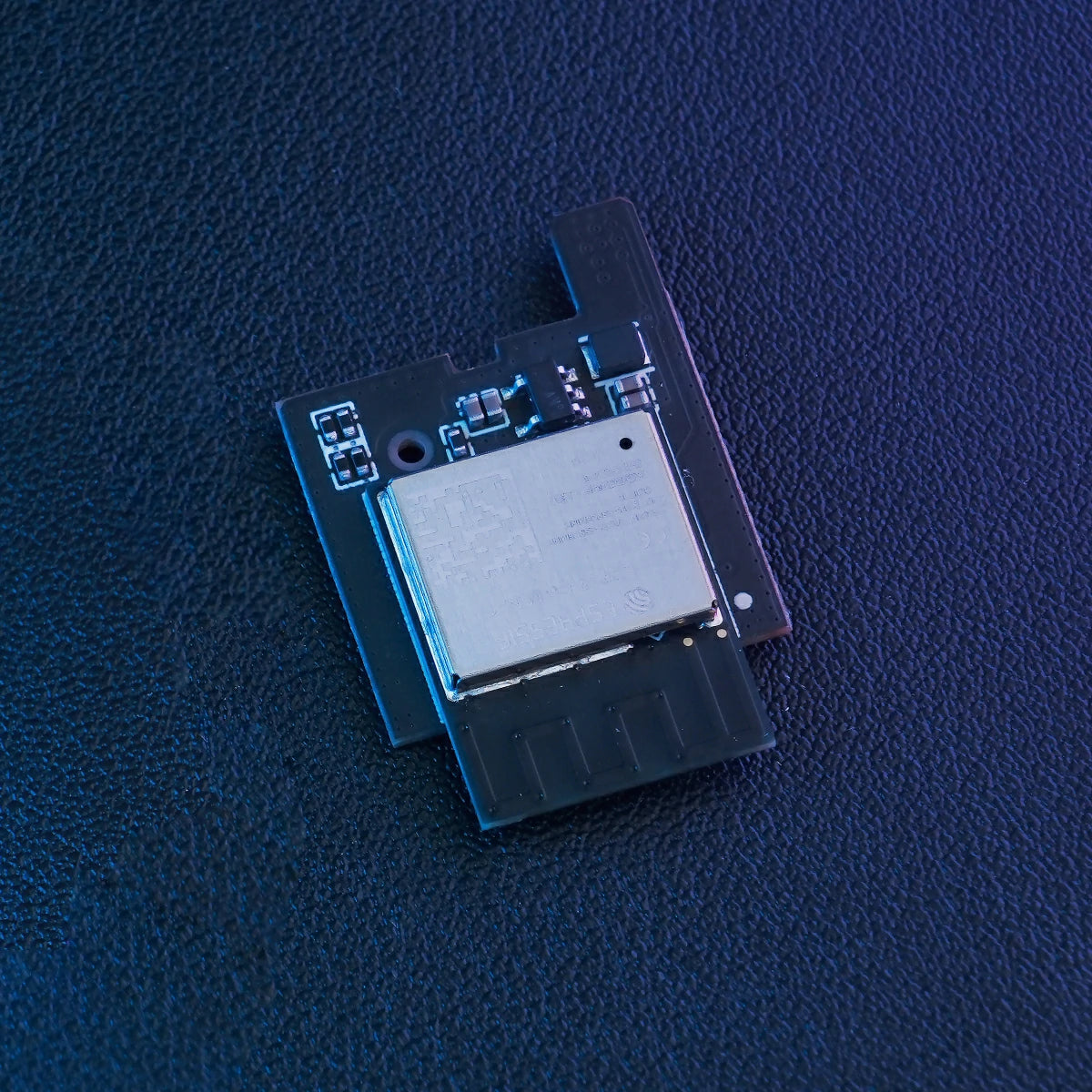

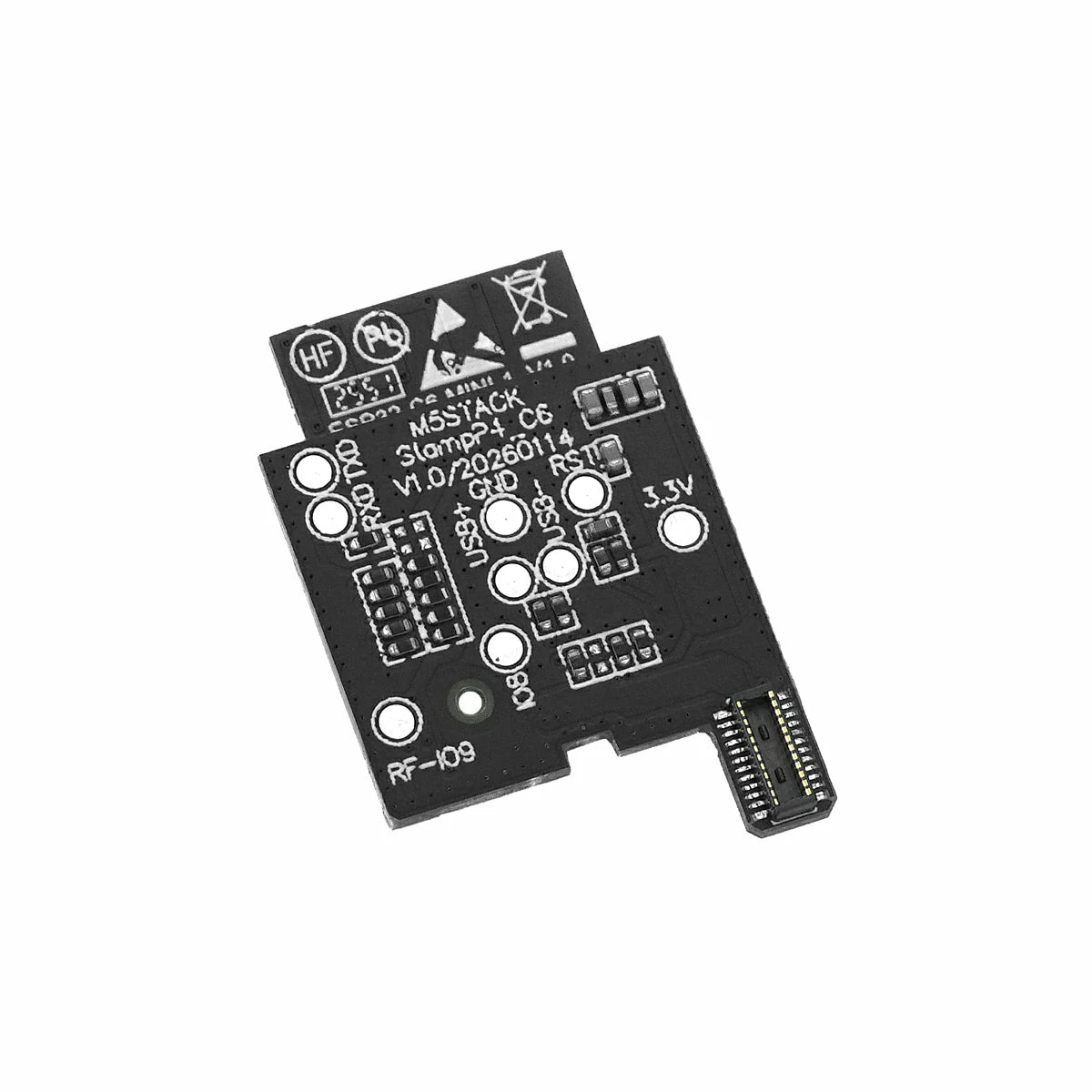

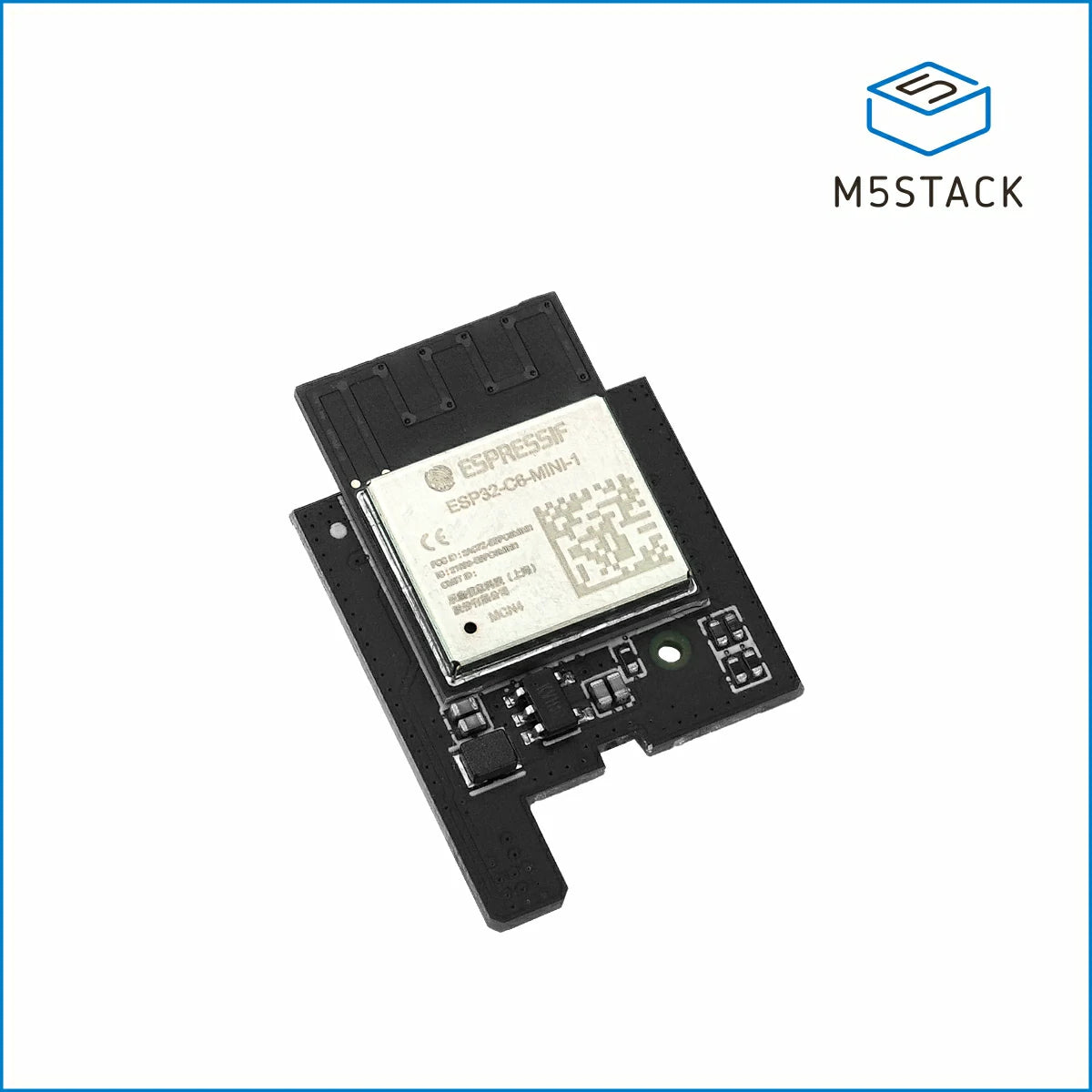

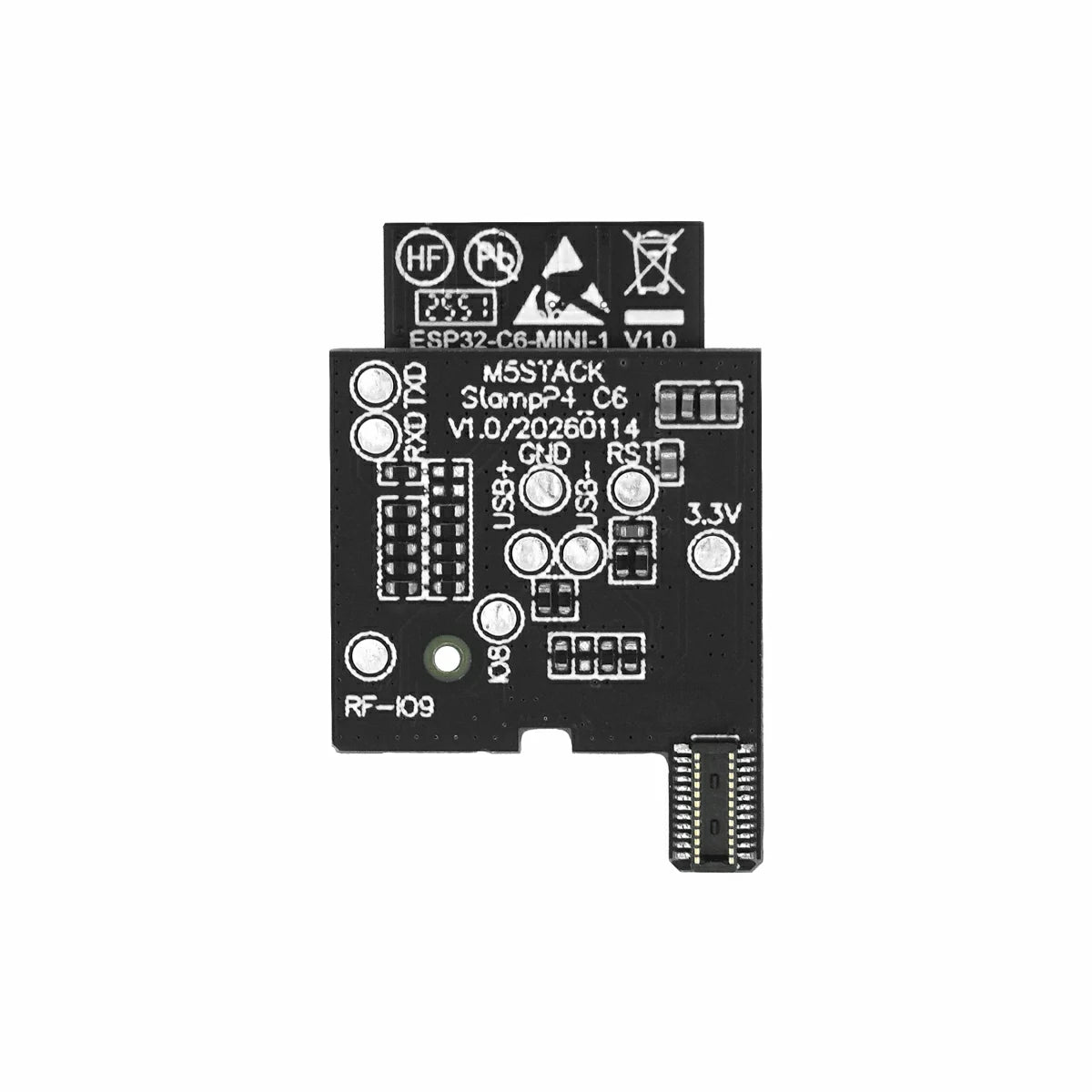

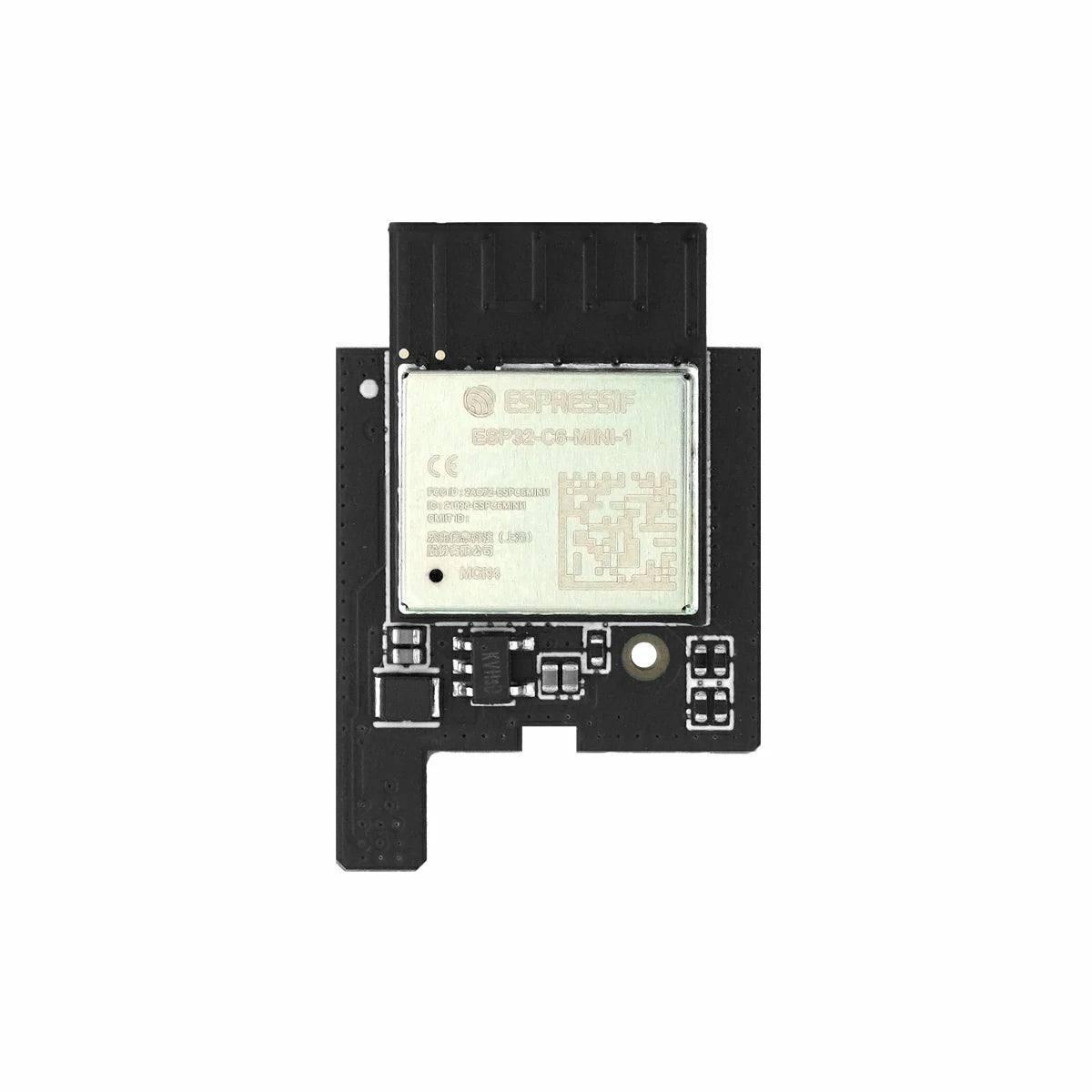

Stamp-AddOn C6 For P4 is a Wi-Fi expansion module based on the ESP32-C6-MINI-1-N4, specifically designed to extend the wireless communication capabilities of the ESP32-P4 series modules, supporting 2.4GHz Wi-Fi 6. The module communicates at high speed with Stamp-P4 via the onboard SDIO interface, quickly expanding high-performance wireless connectivity. It is suitable for scenarios such as smart security gateways, industrial HMI interactive terminals, and complex edge AI nodes, helping developers efficiently build embedded products with full connectivity capabilities.
Features
- ESP32-C6-MINI-1-N4 core controller
- 4MB Flash
- 2.4GHz Wi-Fi 6

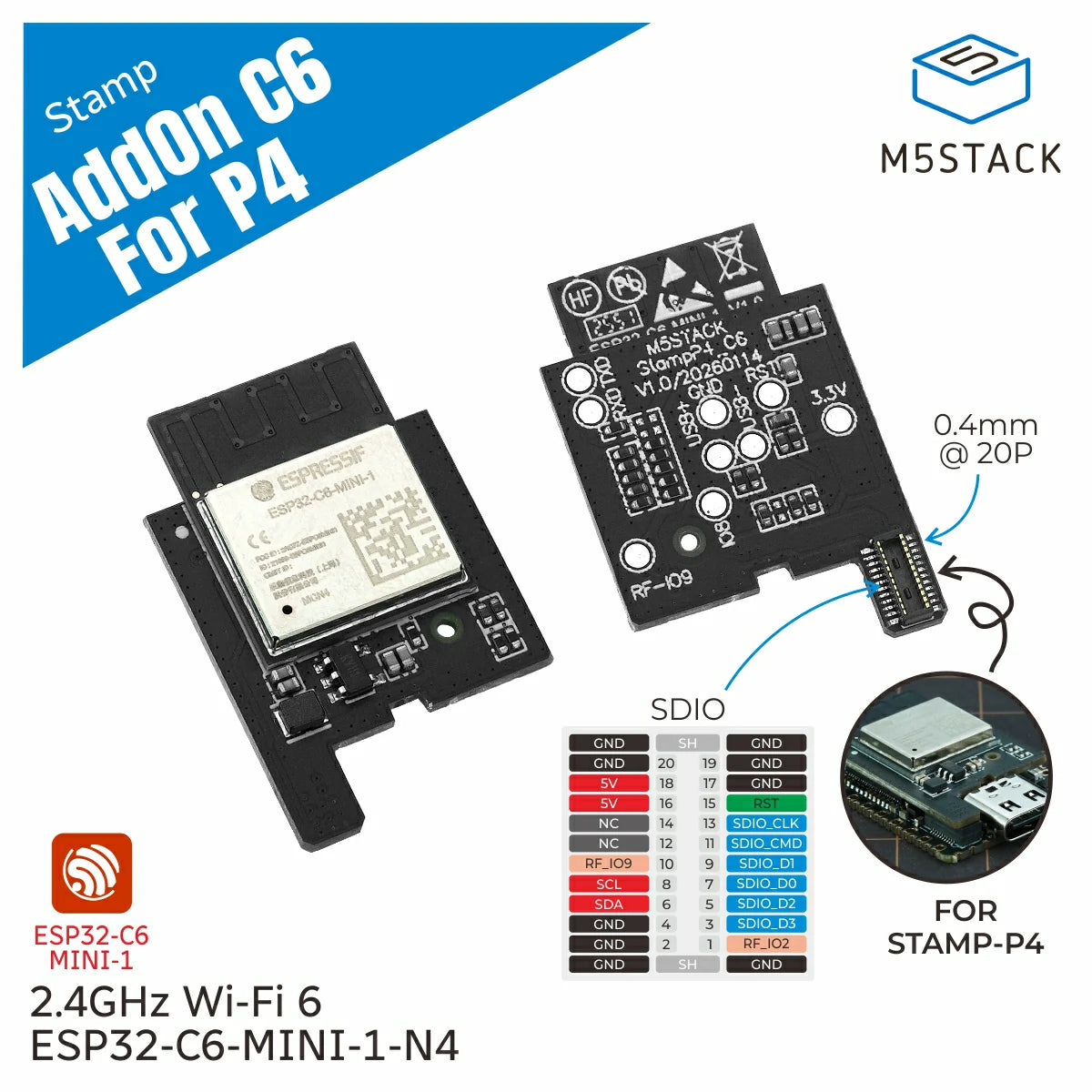

- 0.4mm@20P SDIO onboard interface, adapted for Stamp-P4
- Development Platform
- UiFlow2
- Arduino IDE
Includes
- 1 x Stamp-AddOn C6 For P4
Applications
- Smart security gateway
- Industrial HMI interactive terminal
- Complex edge AI node
Specifications
| Specification | Parameter |
|---|---|
| SoC | ESP32-C6FH4 (RISC-V 32-bit single-core processor 160 MHz + RISC-V 32-bit single-core low-power co-processor 20 MHz) |
| Flash | 4MB |
| DC-DC | SY8089AAAC |
| Input Voltage | DC 5V |
| Module Resource Interface | SDIO |
| SDIO Interface Specification | HC-PBB40C-20DP-0.4V-02 |
| Adapted Device | Stamp-P4 |
| Wireless Protocol | 2.4GHz Wi-Fi 6 |
| Operating Temperature | 0 ~ 40°C |

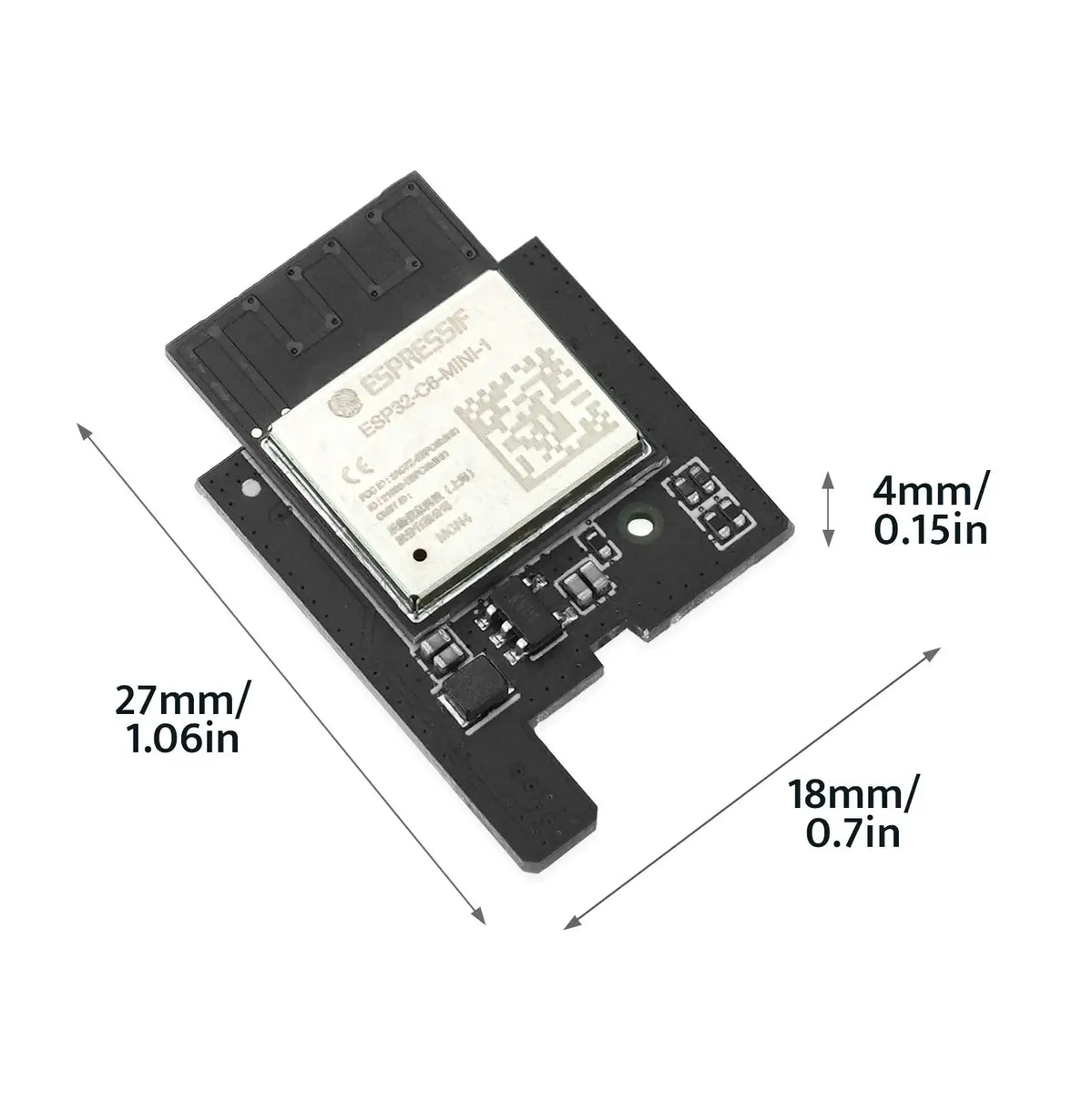

| Product Size | 27.0 x 18.0 x 4.0mm |
| Product Weight | 1.6g |
| Package Size | 138.0 x 93.0 x 6.0mm |
| Gross Weight | 5.7g |
Installation Diagram
