M5StackChan AI Desktop Robot (ESP32-S3)

Description

StackChan is a super kawaii AI desktop robot co-created by M5Stack and the user community. It uses the M5Stack flagship IoT development kit CoreS3 as its main controller, powered by an ESP32-S3 SoC featuring a 240 MHz dual-core processor, with 16MB Flash and 8MB PSRAM onboard, and supporting Wi-Fi and BLE. The main unit also integrates a 2.0-inch capacitive touch display with a high-strength glass cover, a 0.3 MP camera, a proximity & ambient light sensor, a 9-axis IMU (accelerometer + gyroscope + magnetometer), a microSD card slot, a 1W speaker, dual microphones, and power/reset buttons.

The robot body, connected to the main unit, includes a USB-C interface for power and data, a 550 mAh battery, two feedback servos (360-degree continuous rotation on the horizontal axis and 90-degree movement on the vertical axis), two rows totaling 12 RGB LEDs, infrared transmitter and receiver, a three-zone touch panel, and a full-featured NFC module.

The factory firmware is feature-rich, including an AI Agent, lively and expressive animations, ESP-NOW wireless remote control, and online app downloads. It can connect to a mobile app for video viewing, remote avatar control, and more, and also supports online updates (OTA). The product also supports programming via Arduino, UiFlow2, and other methods, and can connect to various expansion units in the M5Stack ecosystem, making it easy to implement a wide range of custom functions.

Thank you to the contributors of the StackChan community, especially:

@stack_chan	@mongonta555
Shinya Ishikawa	Takao Akaki

Note

Features

• Based on the CoreS3 main unit
  • For detailed information, please refer to the CoreS3 page
• Robot body
  • USB-C interface for power and data
  • 550 mAh battery

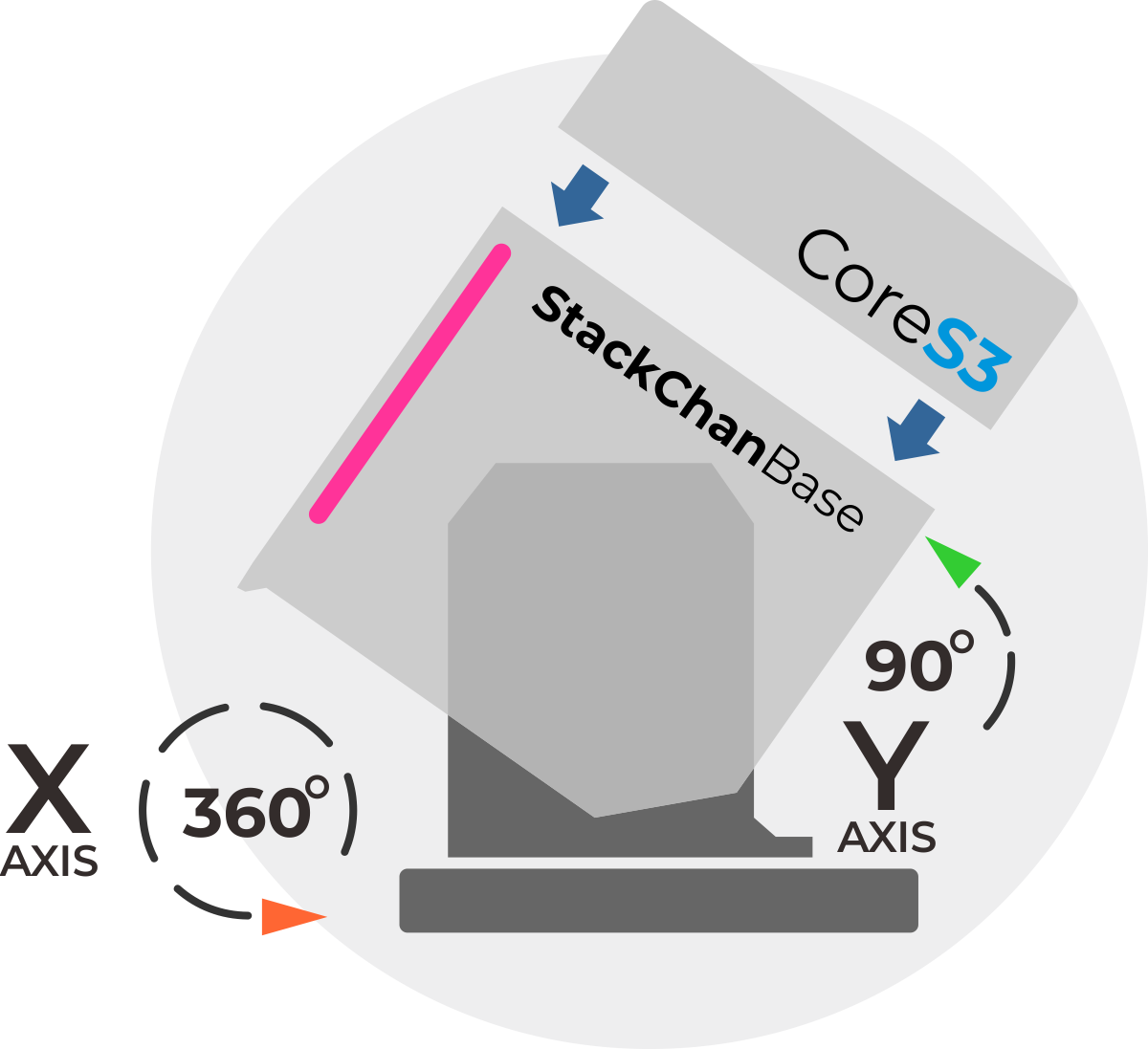

  • Two feedback servos (360-degree continuous rotation on the horizontal axis and 90-degree movement on the vertical axis)
  • Two rows totaling 12 RGB LEDs
  • Infrared transmitter and receiver
  • Top-mounted three-zone touch panel
  • Full-featured NFC
• Development platforms
  • UiFlow2
  • Arduino IDE
  • PlatformIO
  • ESP-IDF

Includes

StackChan (SKU:K151)

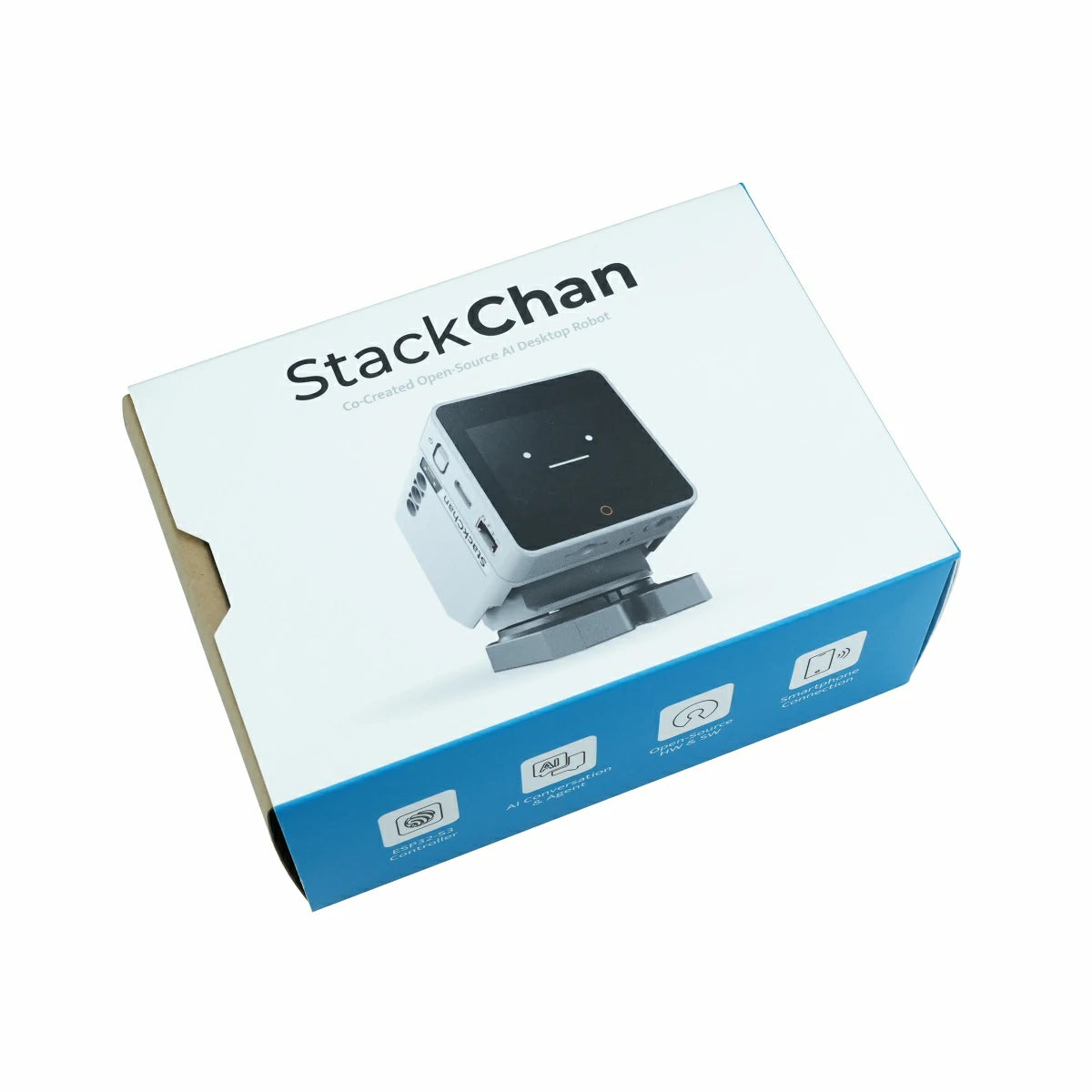

• 1 x Carrying bag or box (depending on the purchased product bundle)
• 1 x StackChan unit (with CoreS3 pre-installed)
• 1 x 50cm USB-A to USB-C Cable
• 1 x Character expression sticker
• 1 x Printed user manual

Applications

• Desktop companion
• AI agent
• Voice-based question and answer
• Smart home
• IoT control

Specifications
