Description

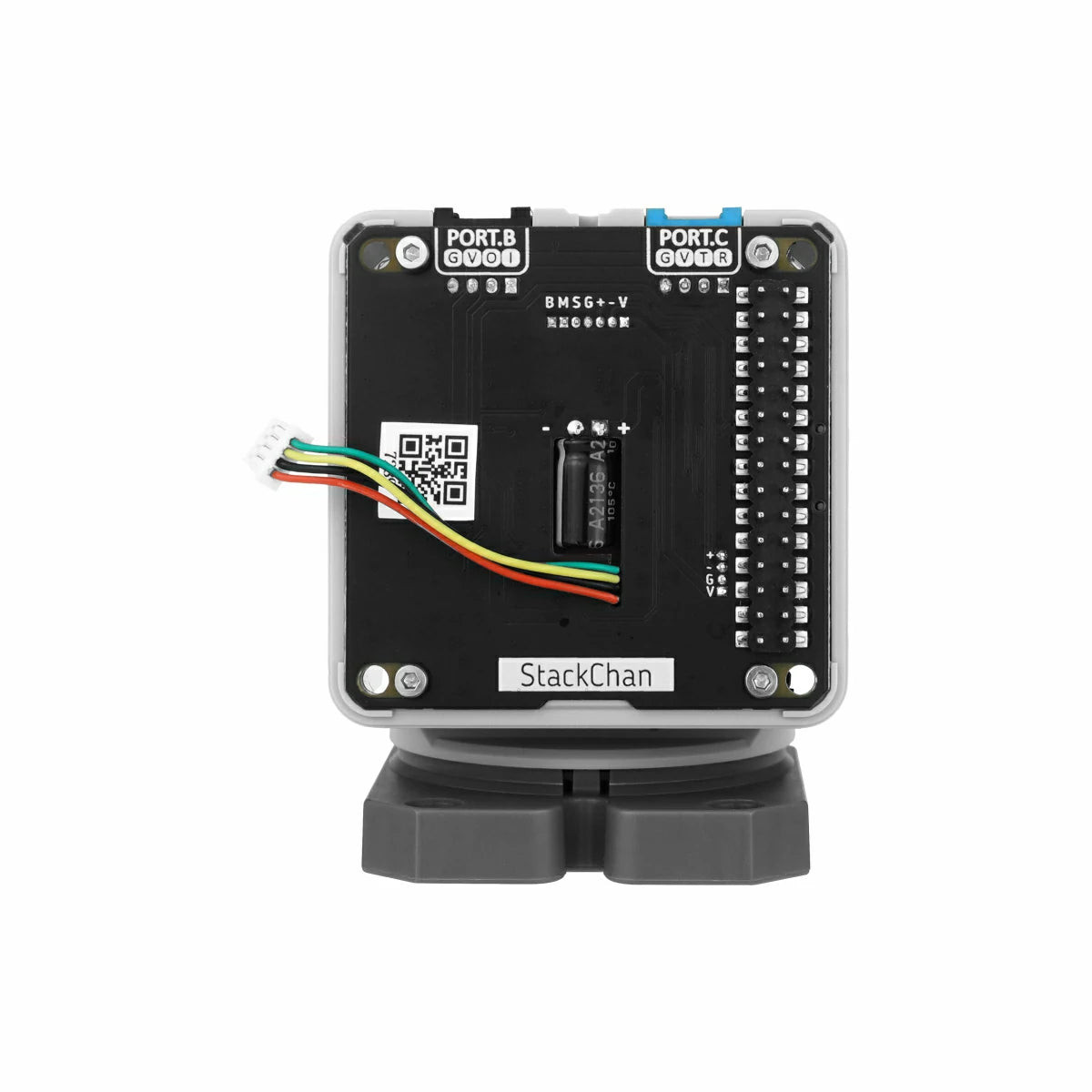

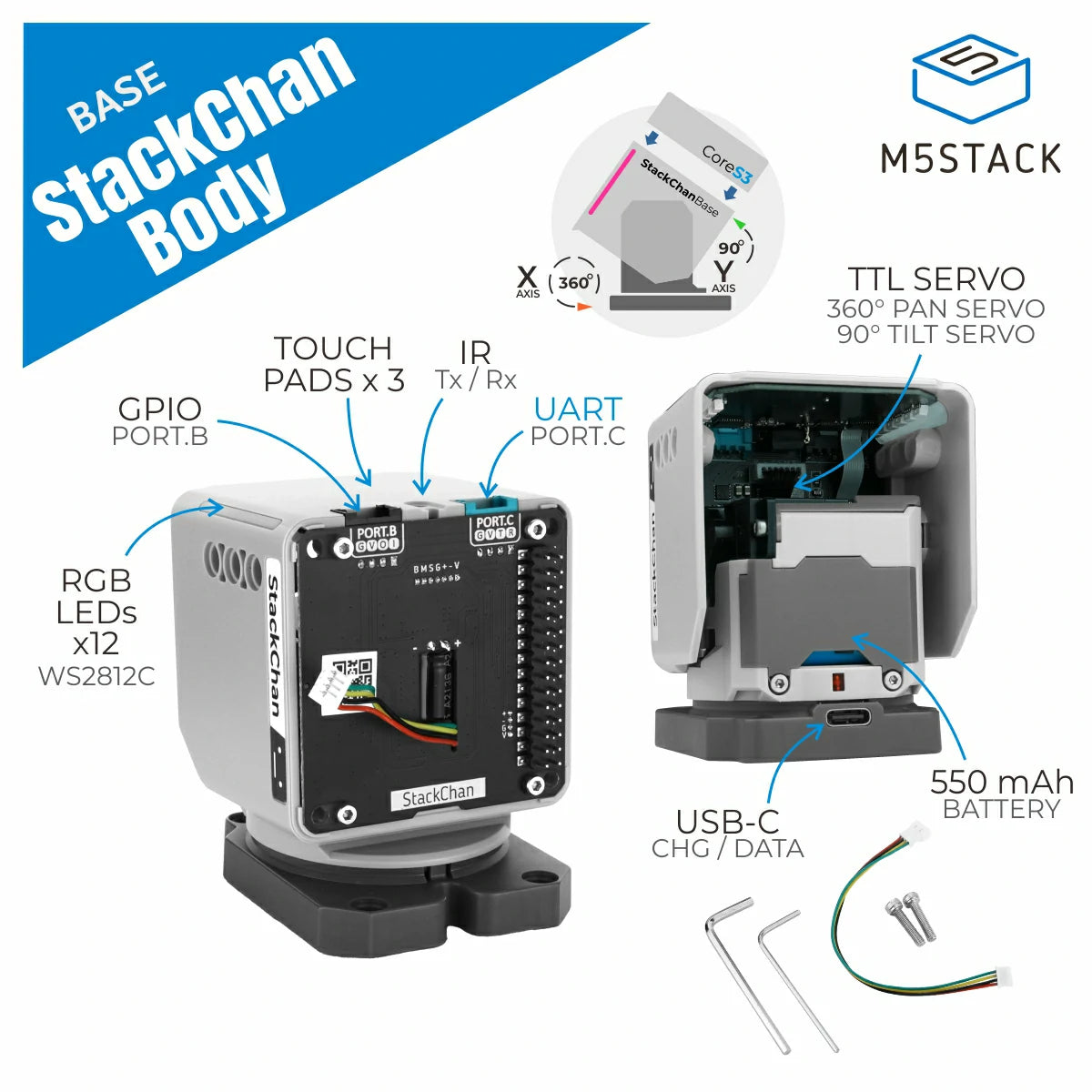

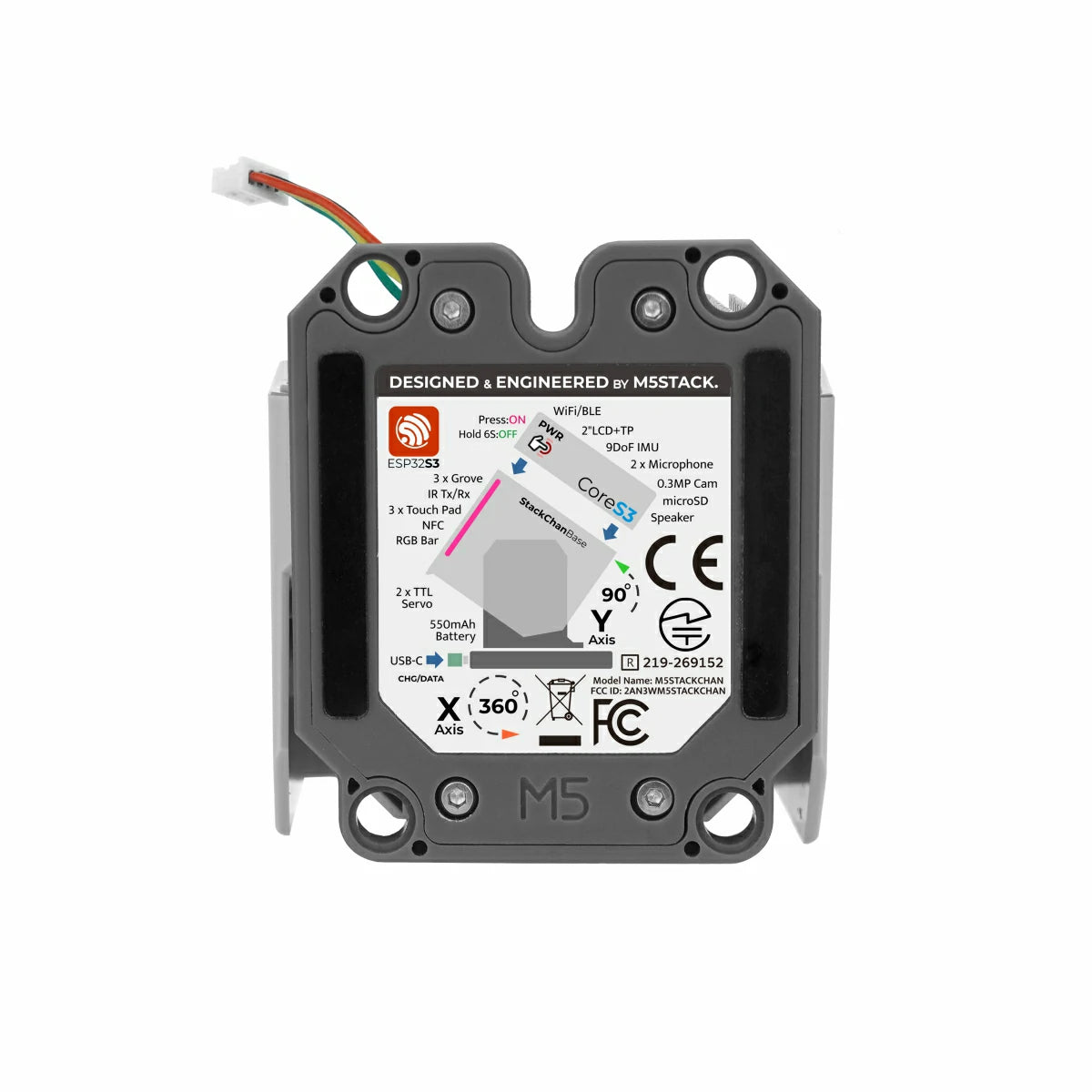

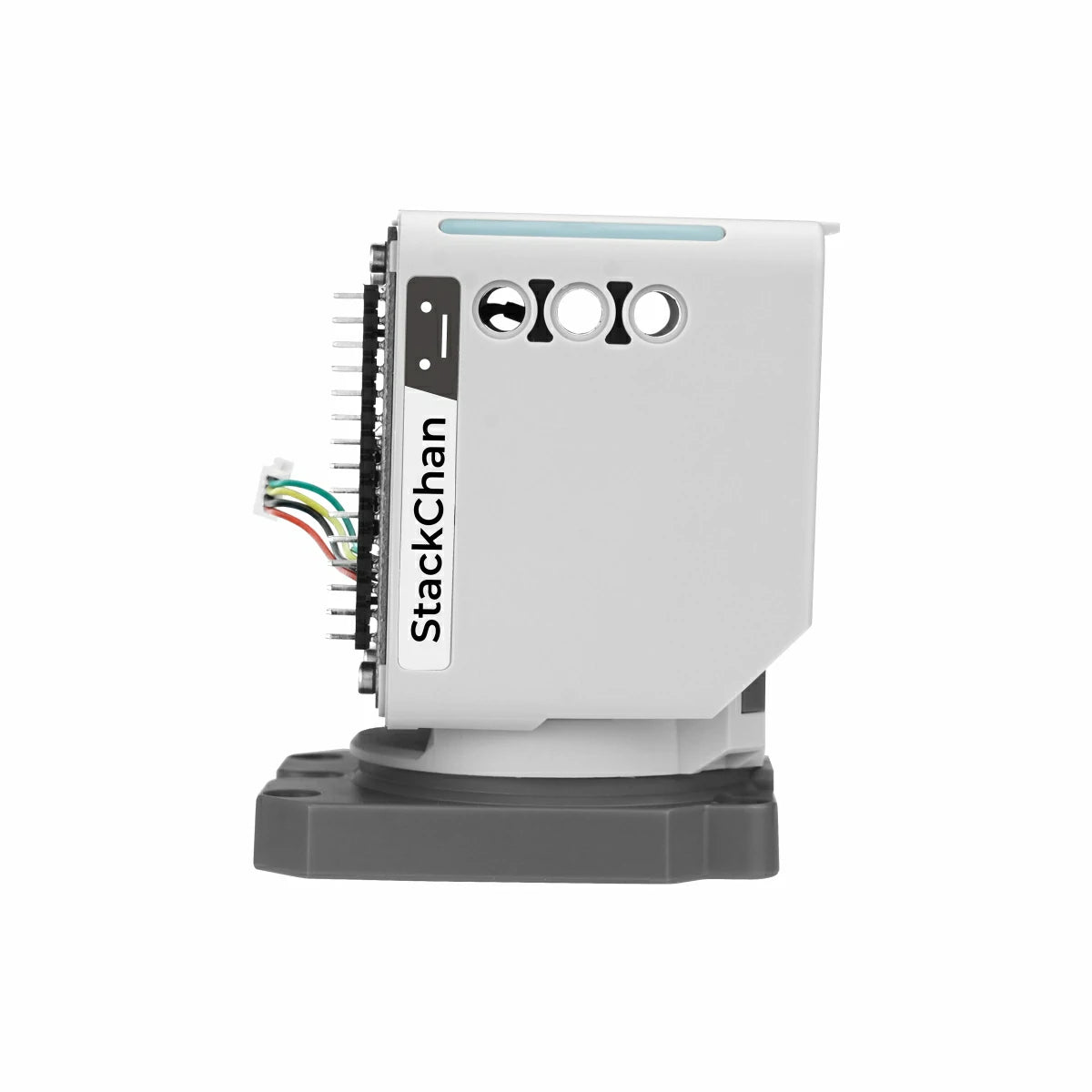

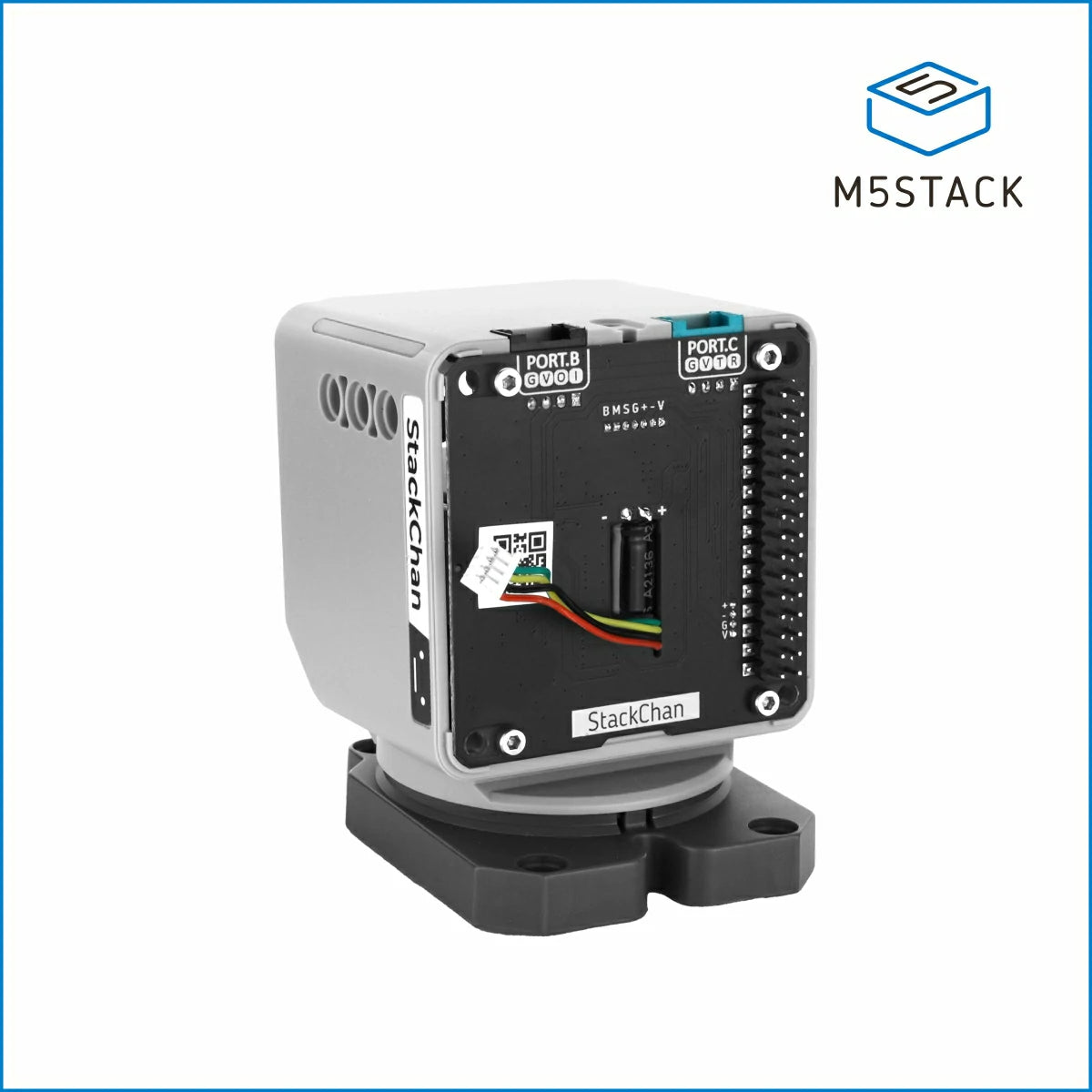

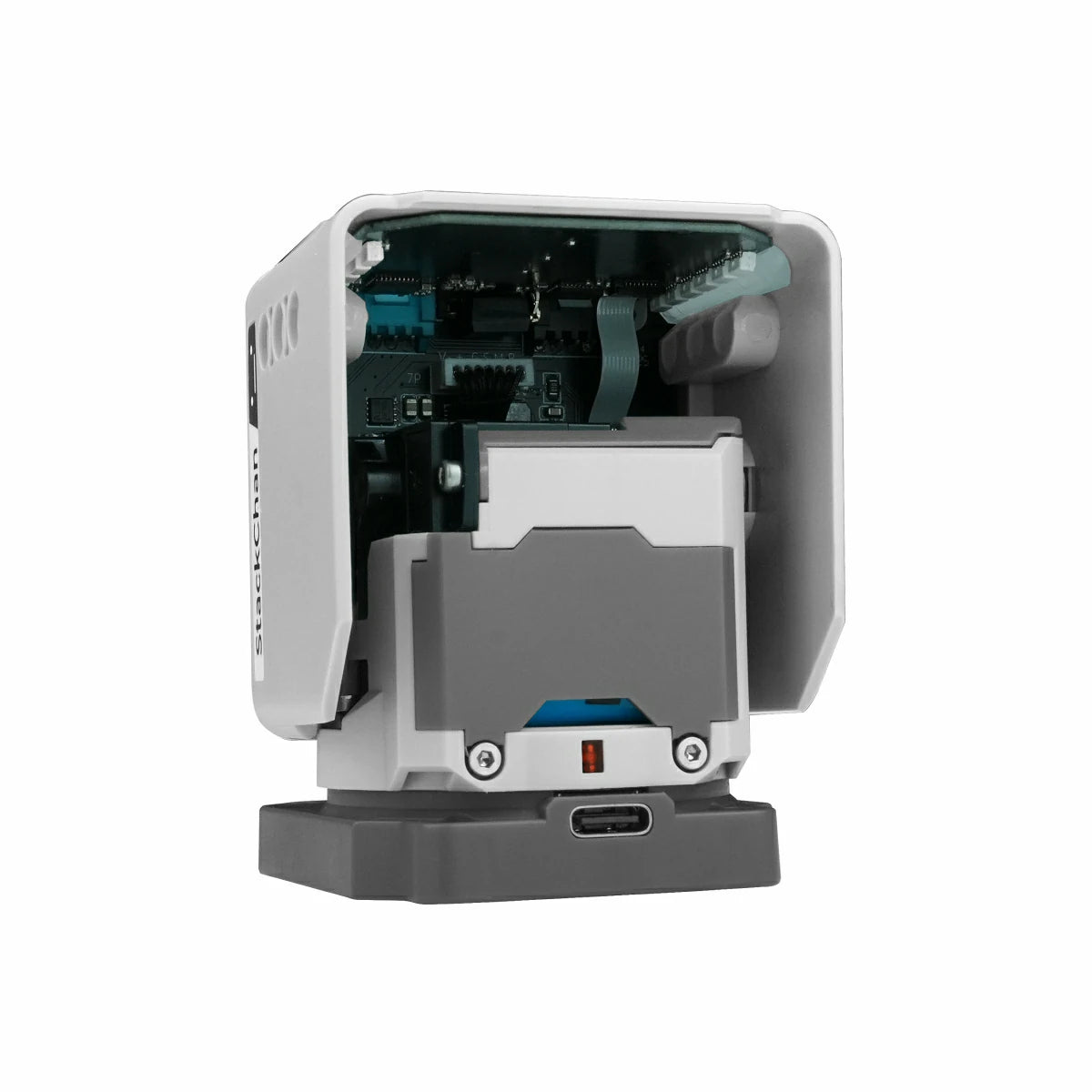

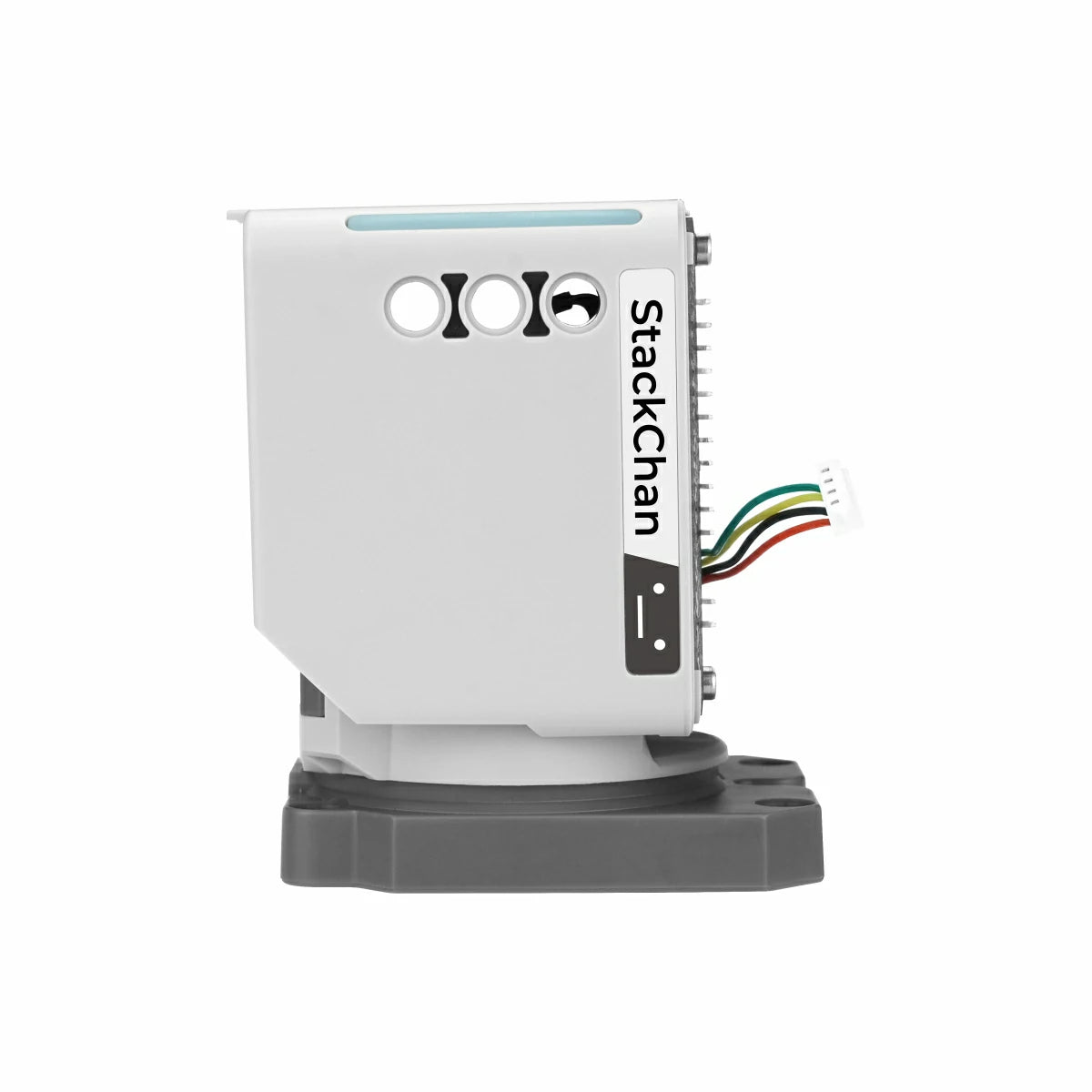

StackChan Body is the body part of the StackChan robot and can be used as a replacement for StackChan mainframe maintenance. The body includes a USB-C power/data interface, 550 mAh battery, two feedback-compatible servos (360° unlimited rotation horizontally and 90° vertically), 12 RGB LEDs (2 rows), infrared transmitter/receiver, a three-zone capacitive touch panel on top, full NFC, and other peripherals. It can replace the original body and is compatible with the StackChan AI desktop robot.
Features
- Replacement and maintenance module for StackChan body
- USB-C power/data connection

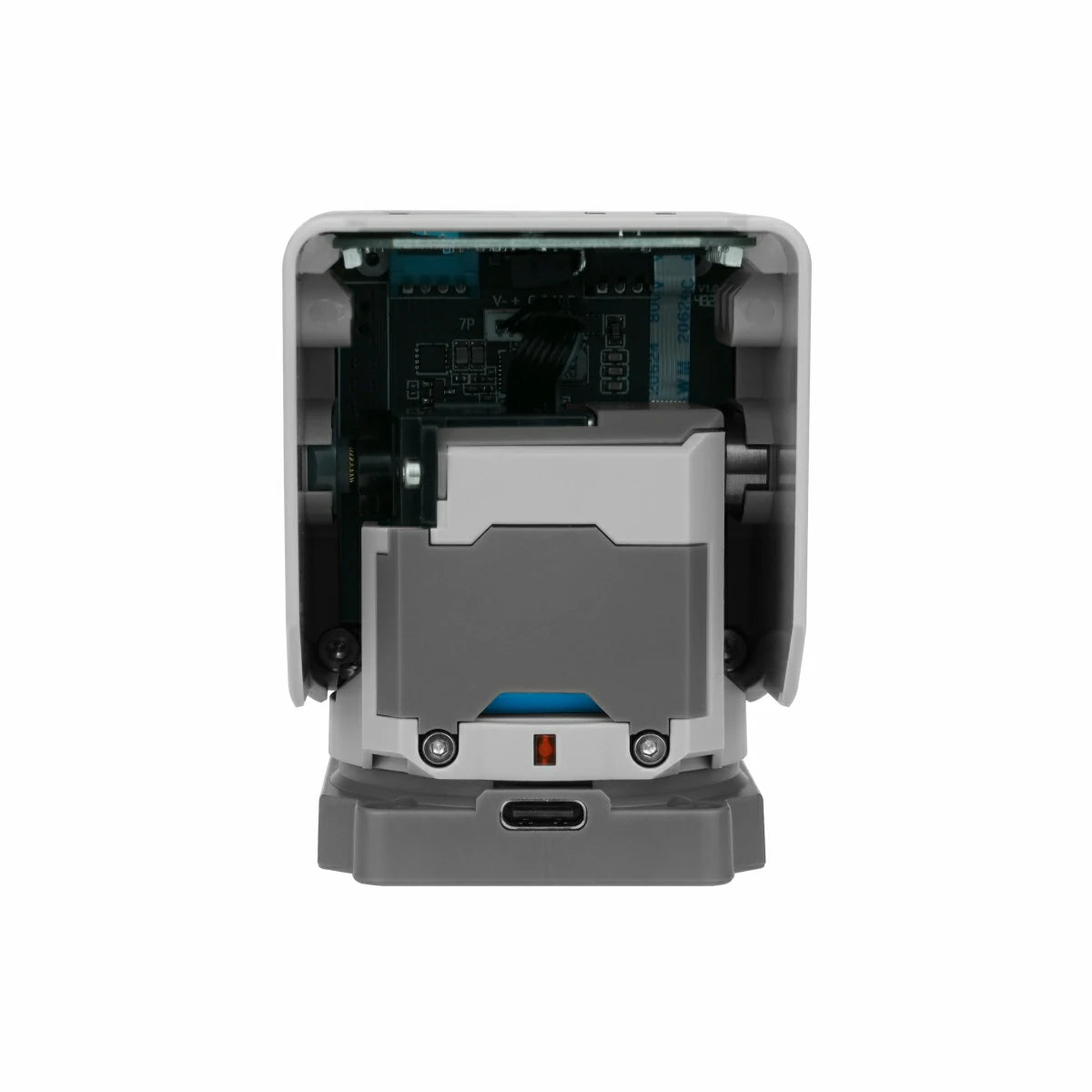

- 550 mAh battery
- Two servos with feedback (360° horizontal endless rotation, 90° vertical rotation)
- 12 RGB LEDs (2 rows)
- Infrared transmitter and receiver
- Top 3-zone touch panel
Includes
- 1 x StackChan Body
- 2 x M3 * 14mm screws (button head, mechanical thread)
- 1 x Hex Key L-Shape 1.5mm (For M2 Screw)
- 1 x Hex Key L-Shape 2.5mm (For M3 Screw)
- 1 x 1.25-4P male-to-female same-direction extension cable (100mm)
Applications
- StackChan body replacement
Specifications
| Specification | Parameter |
|---|---|
| Product Size | 48.0 x 60.1 x 70.4mm |

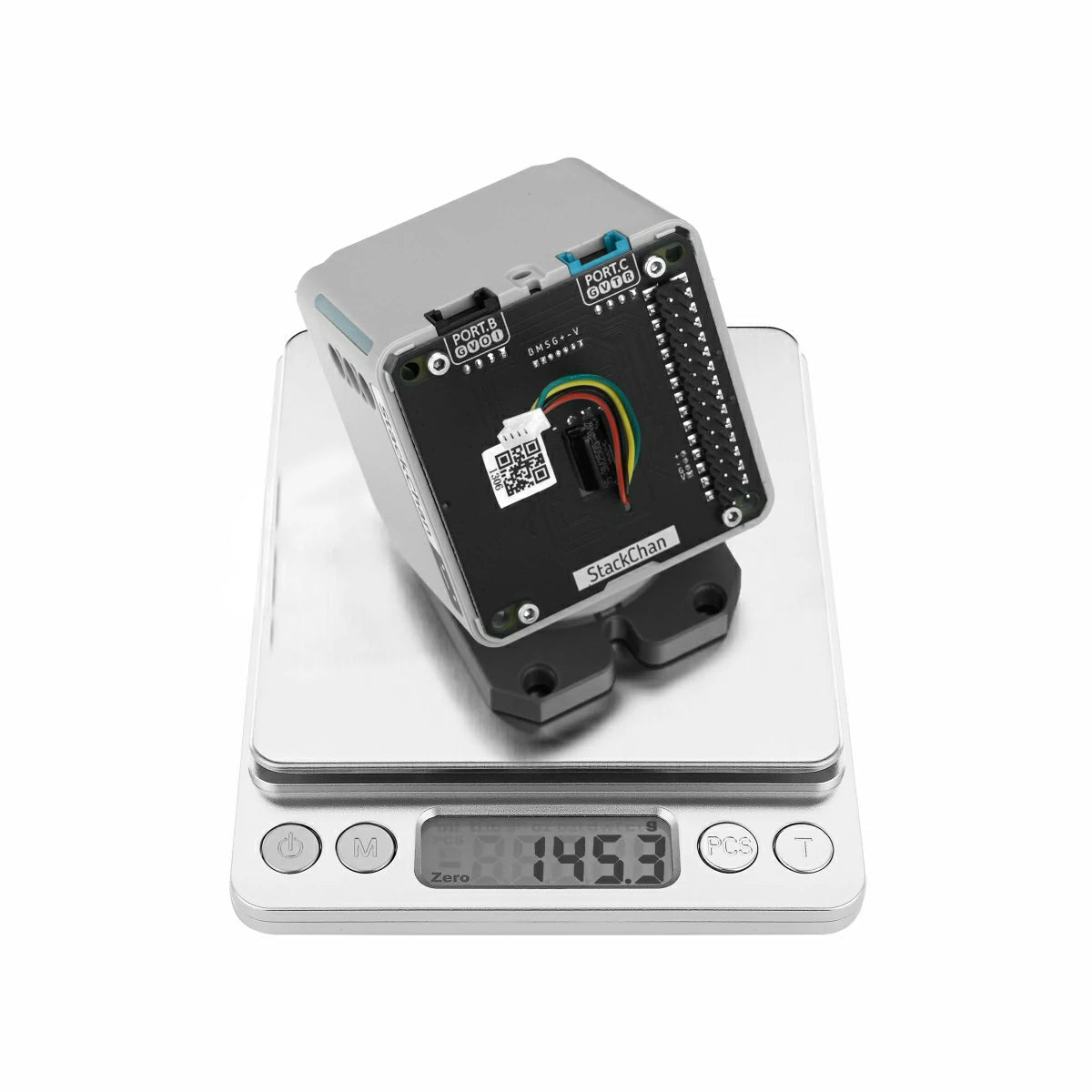

| Product Weight | 145.3g |
| Package Size | 100.0 x 100.0 x 57.0mm |
| Gross Weight | 201.5g |
