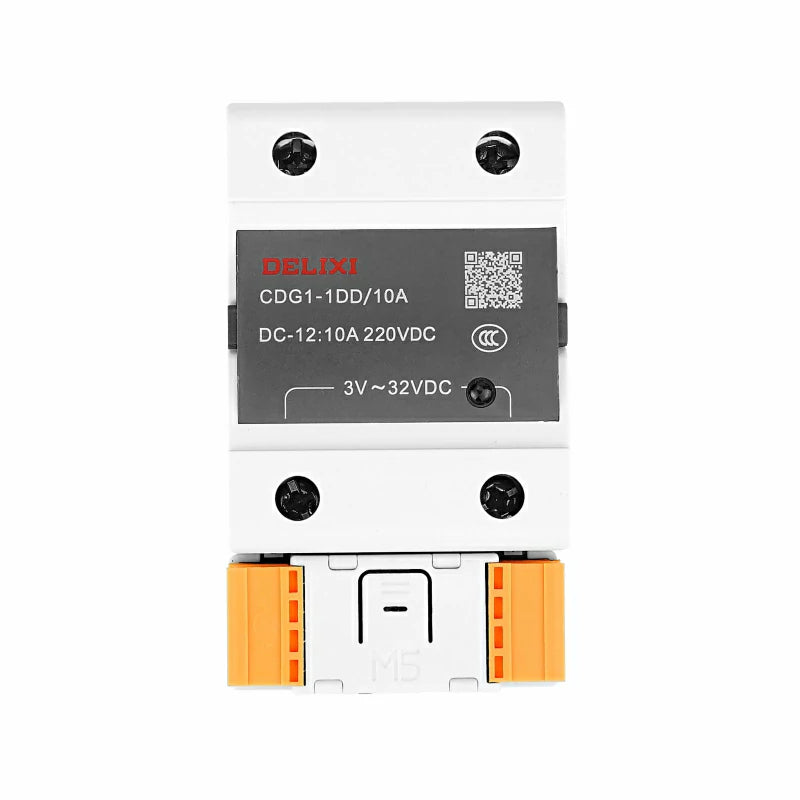

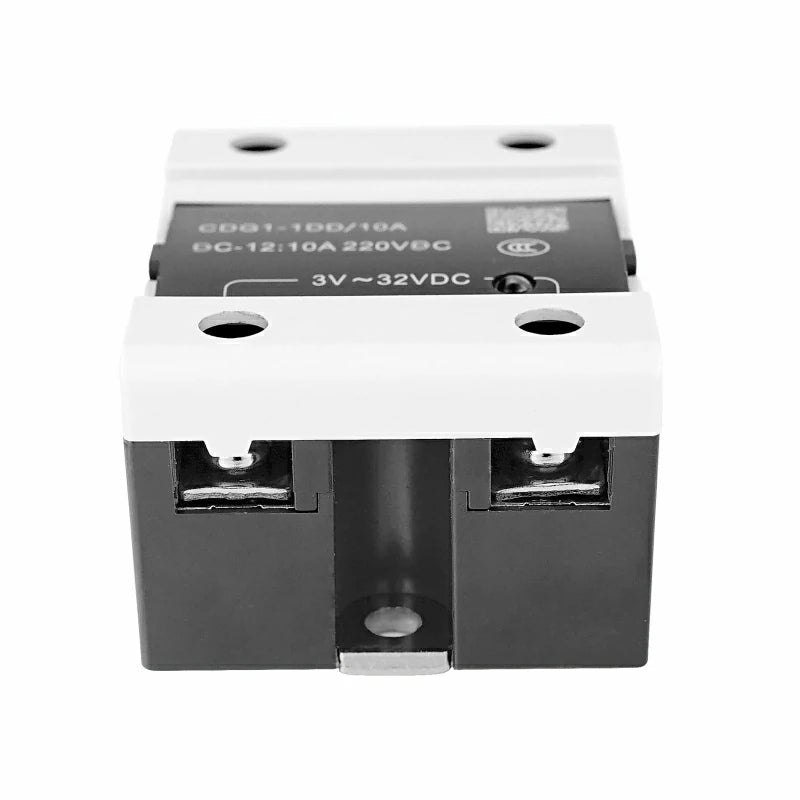

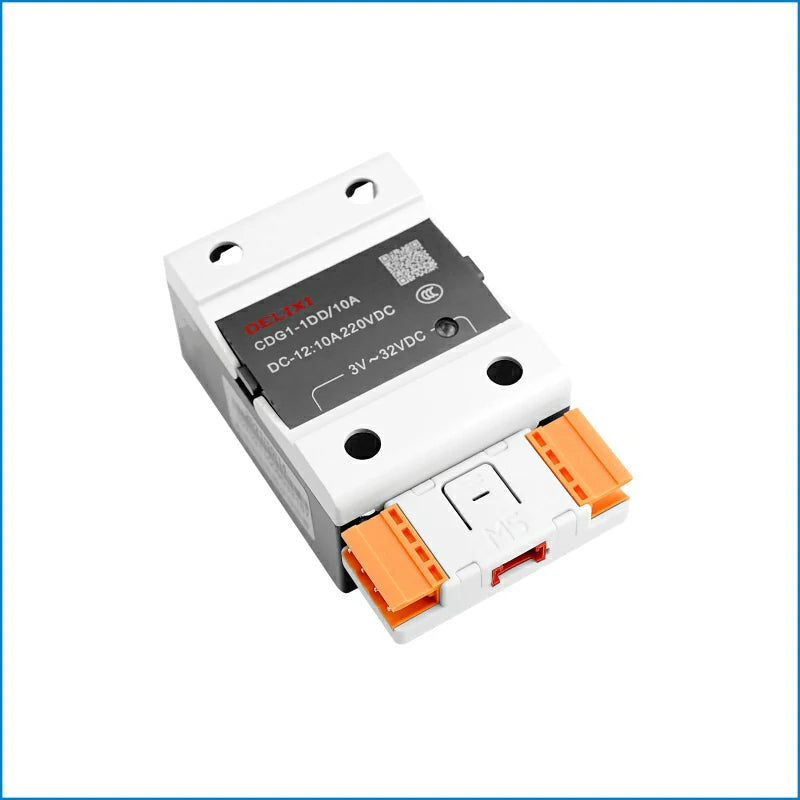

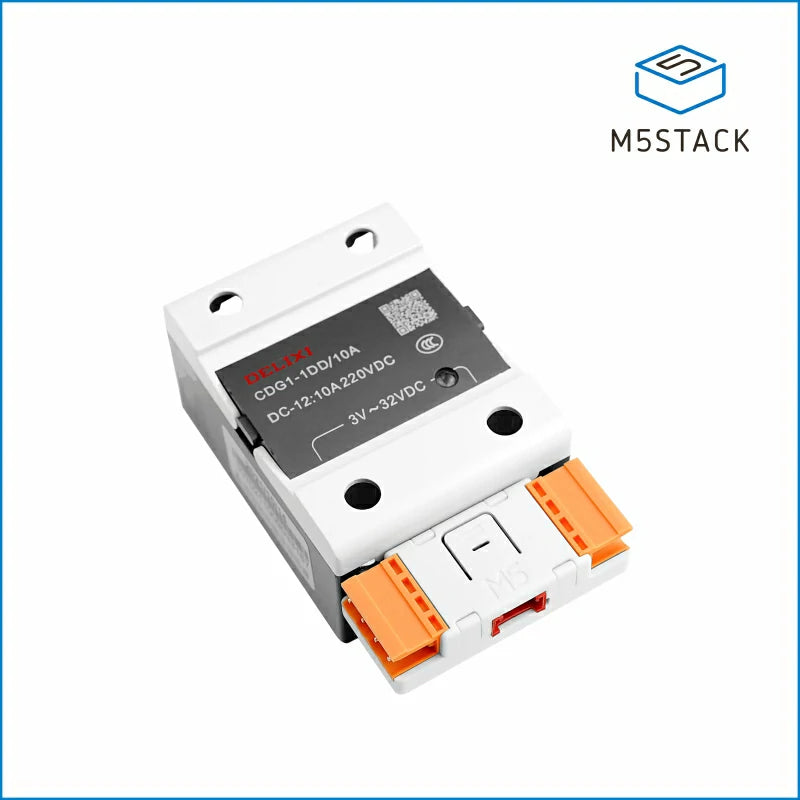

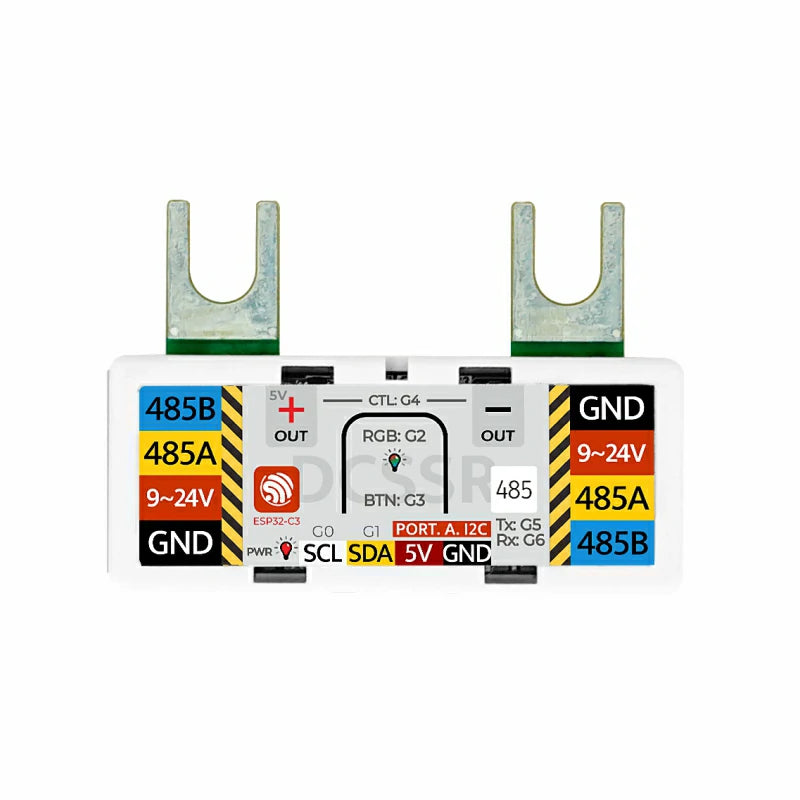

Single-phase DC SSR Unit (CDG1. 1DD-10A)

SKU:U140

Regular price $18.50

10+ In Stock

Shipping calculated at checkout.

Description

ACSSR Unit is an all-inclusive DC to DC single-phase solid-state relay controller kit that offers exceptional performance and versatility. It consists of a single-phase solid-state relay and an ESP32C3 controller board, providing a comprehensive solution for various applications.

With support for key control, I2C slave, and Modbus networking modes, this kit offers flexible operation options to suit different requirements. The integrated programmable full-color RGB LED serves as a visual indicator, providing clear state indication for easy monitoring and operation. By utilizing semiconductor switching elements, the Unit ACSSR ensures high-speed switching, extended lifespan, low switching noise, and eliminates issues such as switching sparks. It offers superior reliability compared to traditional mechanical relays.

Unit ACSSR finds wide application in digital program control devices, motor control devices, temperature control systems, data processing systems, and computer peripheral interface devices. It is specifically designed to withstand harsh environments with corrosion, humidity, or explosion-proof requirements, making it suitable for challenging industrial settings.

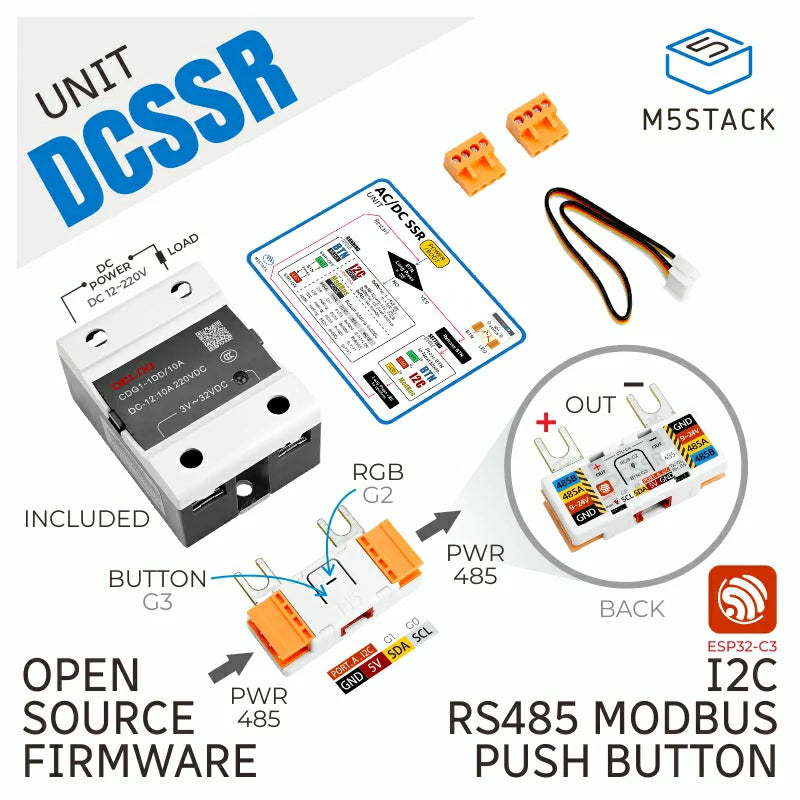

Features

  • Single-phase solid state relay
  • Three operating modes. - Push button control - I2C slave (support device I2C address configuration) - Modbus networking (supports device ID configuration)
  • Programmable full color RGB LED

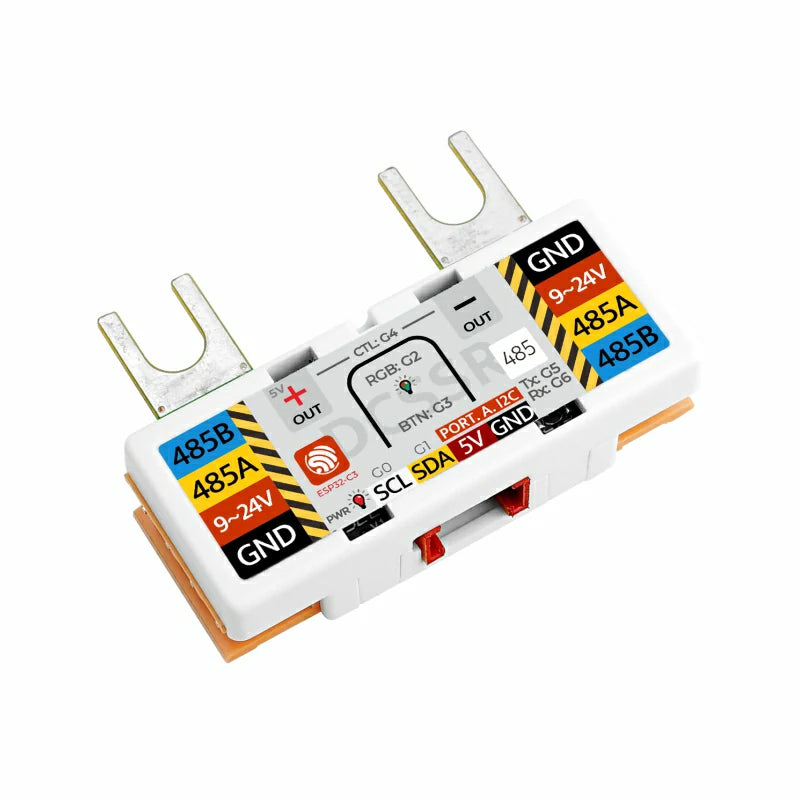

  • RS485PWR interface (support input 9-24V to power the device)

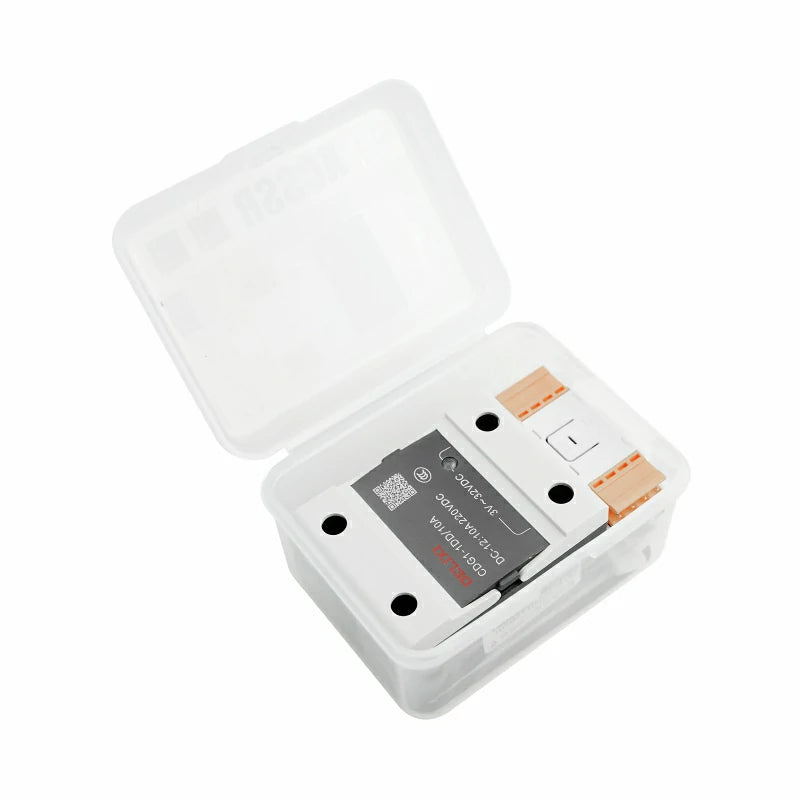

Includes

  • 1x Single Phase Solid State Relay

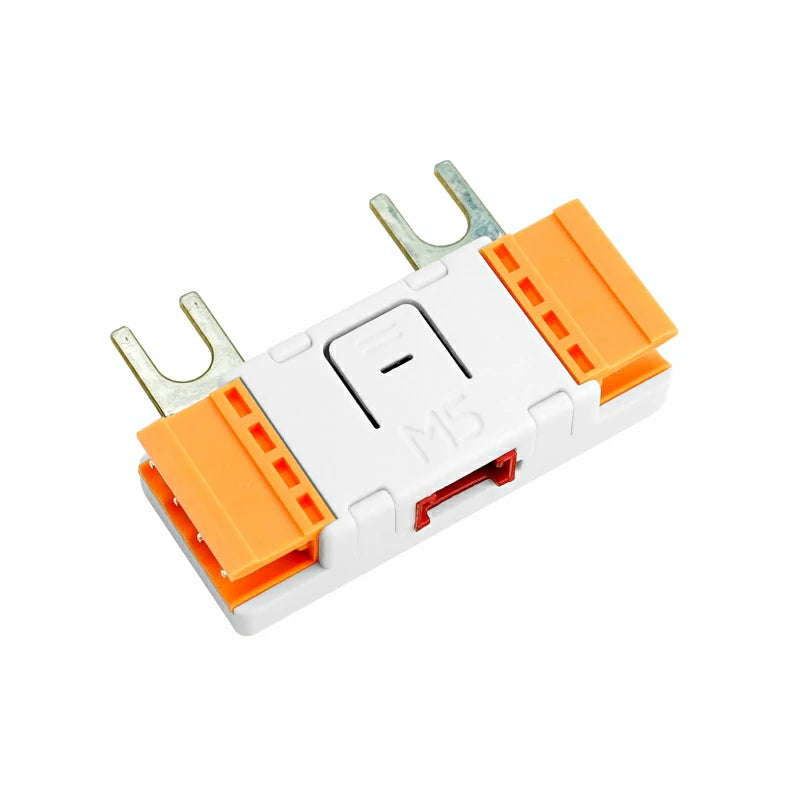

  • 1x UNIT ACSSR
  • 1x HY2.0-4P Cable (20cm)
  • 1x Communication protocol manual
  • 2x 3.96-4P Terminal Block

Applications

  • AC line interrupting
  • Motor equipment control
  • Temperature control devices

Specification

Resources Parameters
Main Controller ESP32C3
Programmable RGB LED SK6812
Load Current 10A
Input Control Voltage 3-32VDC
Load Voltage 24~220VDC
Input Control Current 5mA~20mA
Breakdown Leakage Current ≤5mA
On-state Buck ≤1.6V
Operating current safety series resistive load: 50% Inductive load: 50%
Electrical life time ≥1 million times
Indicator Light Red (Lighted: Closed / Off: Disconnected)
Product Size 80 * 45 * 31mm
Package Size 147 * 90 * 40mm
Product Weight 112.6g
Package Weight 137.8g

Schematic

schematics

Module Size

module size

Examples

Arduino

UIFlow

UIFlow Blocks

  • Set control mode ( I2C / Modbus )
  • Init I2C address
  • Get I2C RGB LED value
  • Set I2C SSR state
  • Set I2C RGB LED color
  • Set I2C address
  • Init modbus
  • Get modbus SSR status
  • Get modbus RGB LED value
  • Get modbus FW version
  • Set modbus SSR state
  • Set modbus RGB LED color
  • Set modbus address
