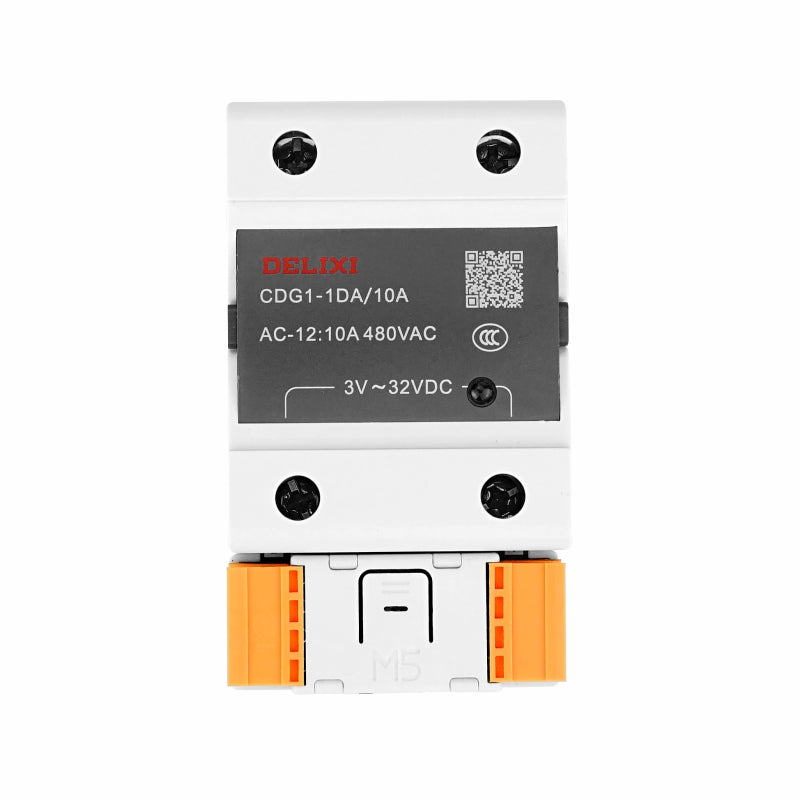

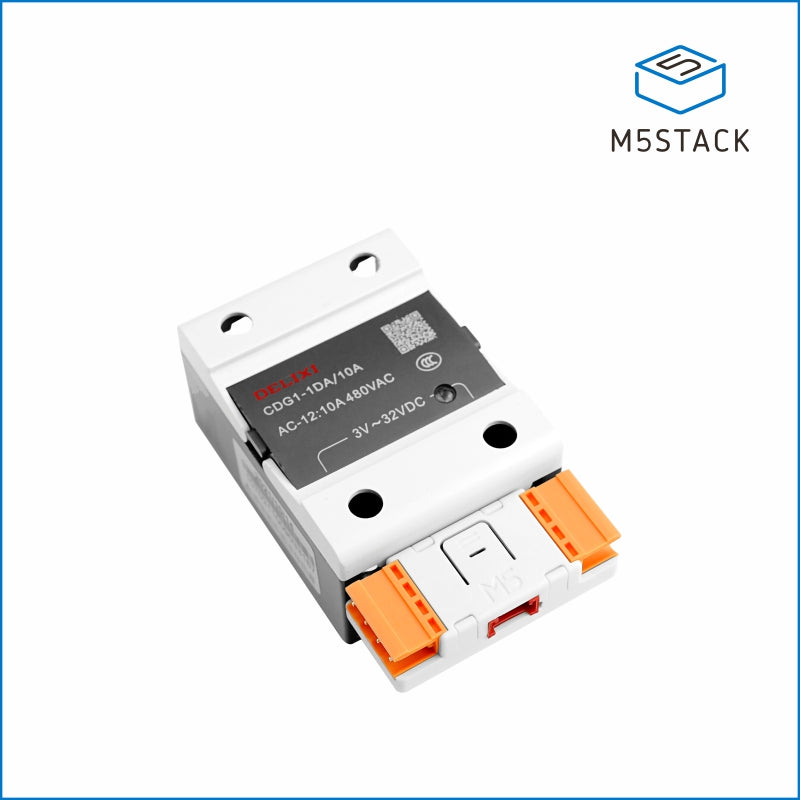

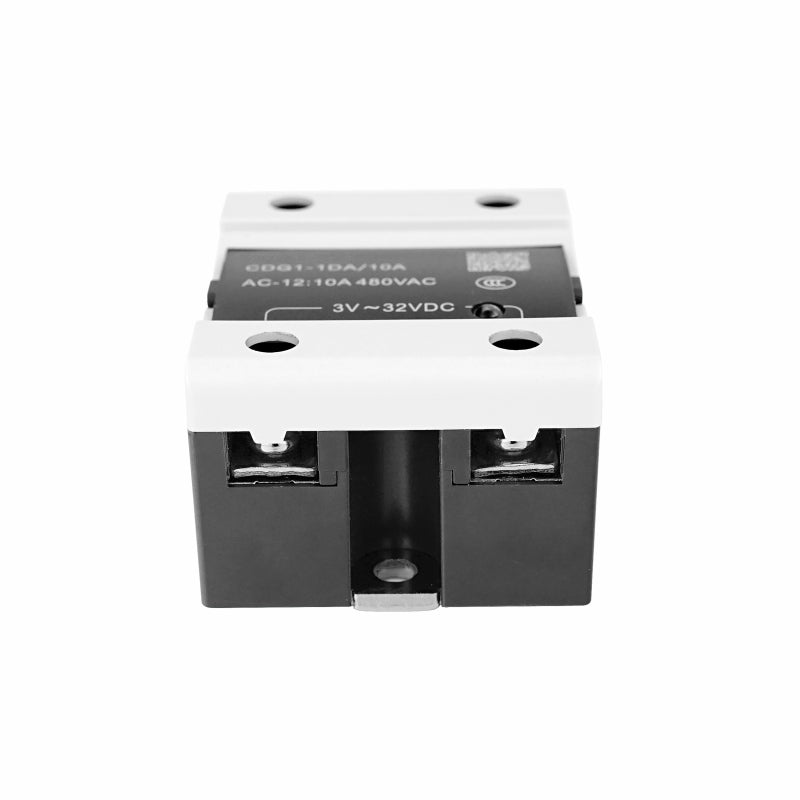

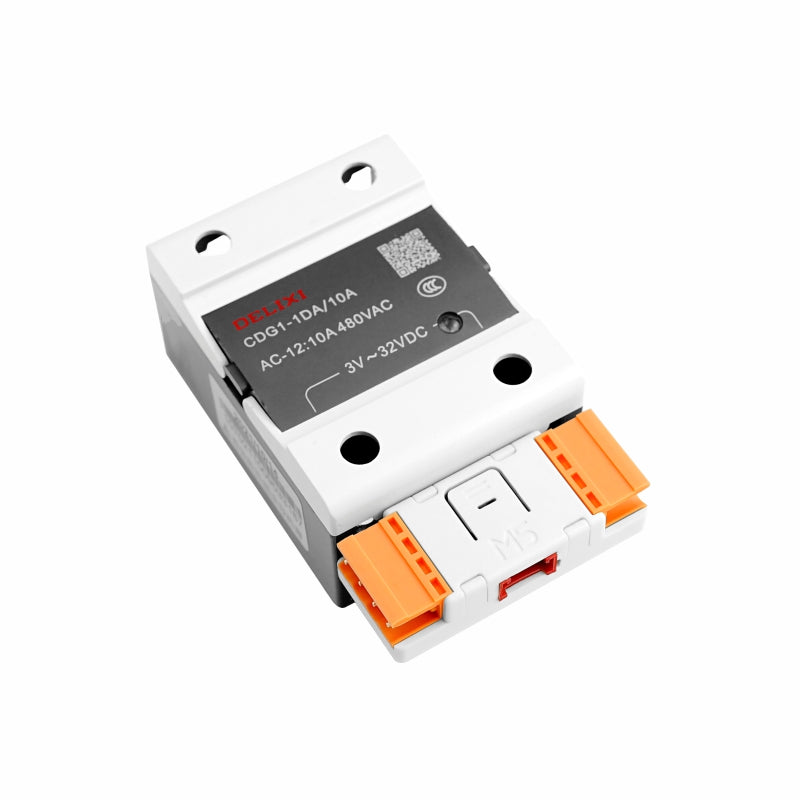

Single-phase AC SSR Unit (CDG1-1DA-10A)

SKU:U139

Regular price $18.50

10+ In Stock

Shipping calculated at checkout.
PRODUCT DETAILS

Description

ACSSR unit is a versatile DC to AC single-phase solid-state relay controller kit that includes a single-phase solid-state relay and an ESP32C3 controller board. It supports key control, I2C slave, and Modbus networking modes of operation, providing flexibility for different control systems and protocols.

By utilizing semiconductor switching elements, ACSSR unit offers a contactless switching solution with numerous advantages over mechanical relays. These advantages include high switching speed, an exceptionally long operational lifespan, low switching noise, absence of switching sparks, and superior reliability. These characteristics make it an ideal choice for applications where reliability and durability are crucial.

ACSSR unit is equipped with an integrated programmable full-color RGB LED that serves as a state indicator. This RGB LED can be programmed to display different colors, patterns, or brightness levels, providing clear visual feedback on the relay's operating status.

The unit finds wide-ranging applications in digital program control devices, motor control devices, temperature control systems, data processing systems, and computer peripheral interface devices. Its robust design makes it especially suitable for harsh environments with corrosion, humidity, or explosion-proof requirements. Additionally, it is designed to handle frequent turn-on/off cycles efficiently.

Product Features

  • Single-phase solid state relay
  • Three operating modes.
    • Push button control
    • I2C slave (support device I2C address configuration)
    • Modbus networking (supports device ID configuration)
  • Programmable full color RGB LED

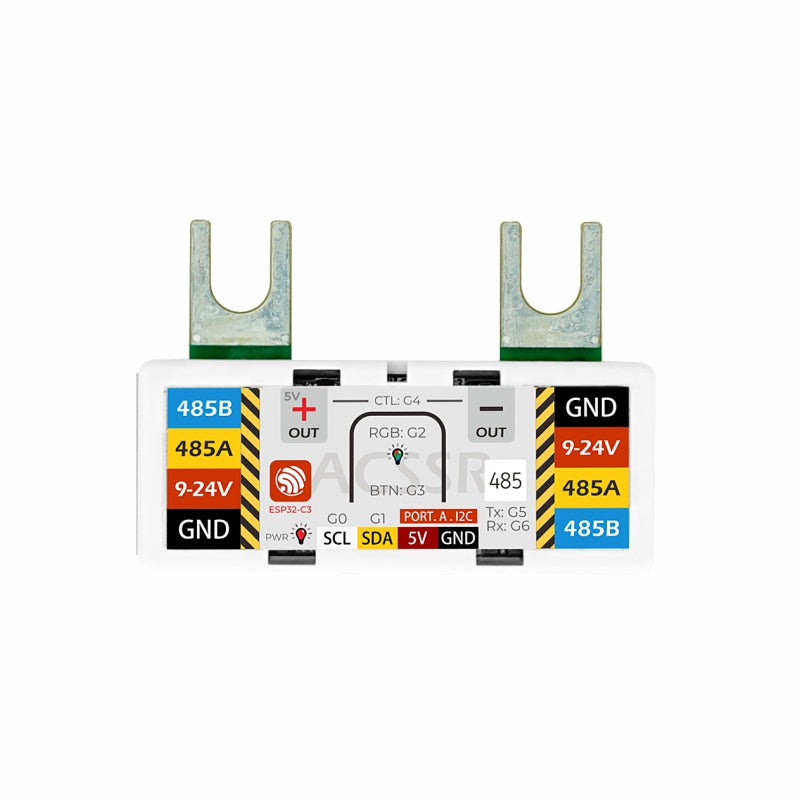

  • RS485PWR interface (support input 9-24V to power the device)

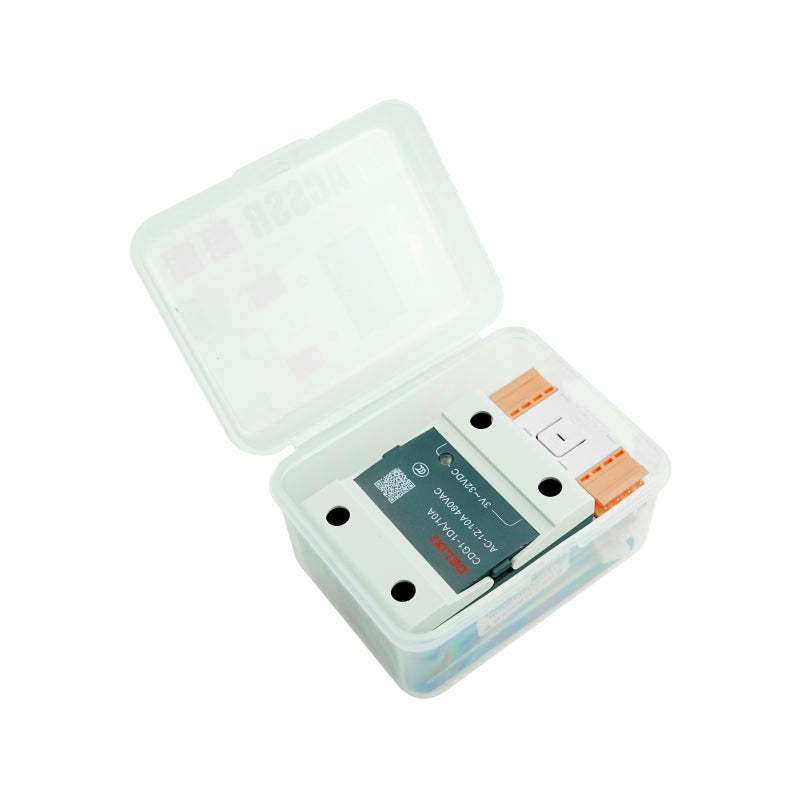

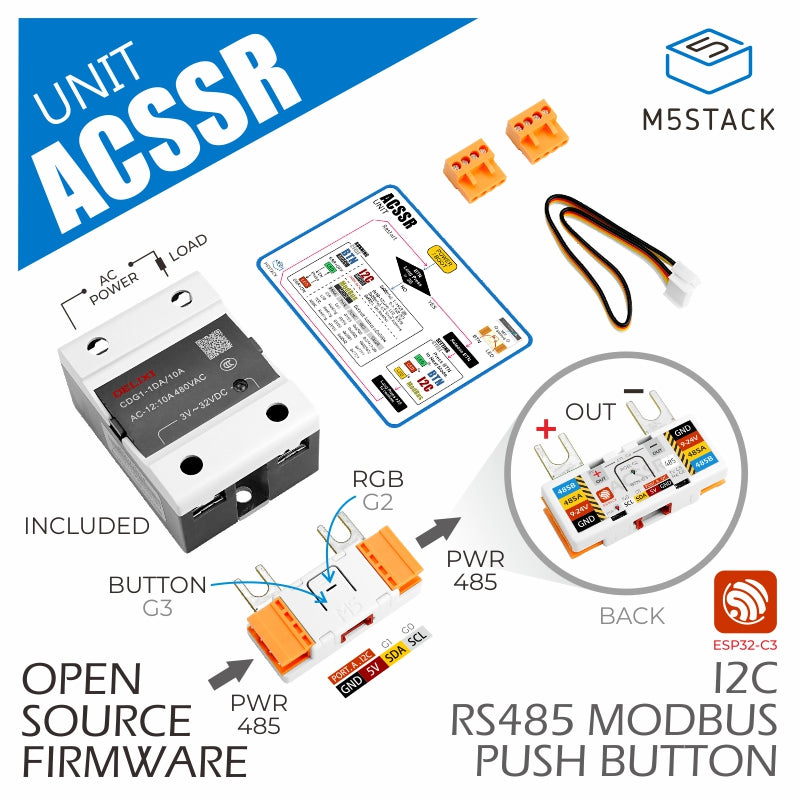

Included

  • 1x Single Phase Solid State Relay
  • 1x UNIT ACSSR
  • 2x 3.96-4P Terminal Block
  • 1x HY2.0-4P Cable (20cm)
  • 1x Communication protocol manual

Applications

  • AC line interrupting
  • Motor equipment control
  • Temperature control devices

Specifications

Specification Parameters
Main Controller ESP32C3
Programmable RGB LED SK6812
Load Current 10A
Input Control Voltage 3-32VDC
Load Voltage 24~480VAC
Input Control Current 5mA~20mA
Breakdown Leakage Current ≤5mA
On-state Buck ≤1.6V
Operating current safety series resistive load: 50% Inductive load: 50%
Electrical life time ≥1 million times
Indicator Light Red (Lighted: Closed / Off: Disconnected)
Net Weight 112.6g
Gross Weight 137.8g
Product Size 80 * 45 * 31mm
Package Size 147 * 90 * 40mm
