Description

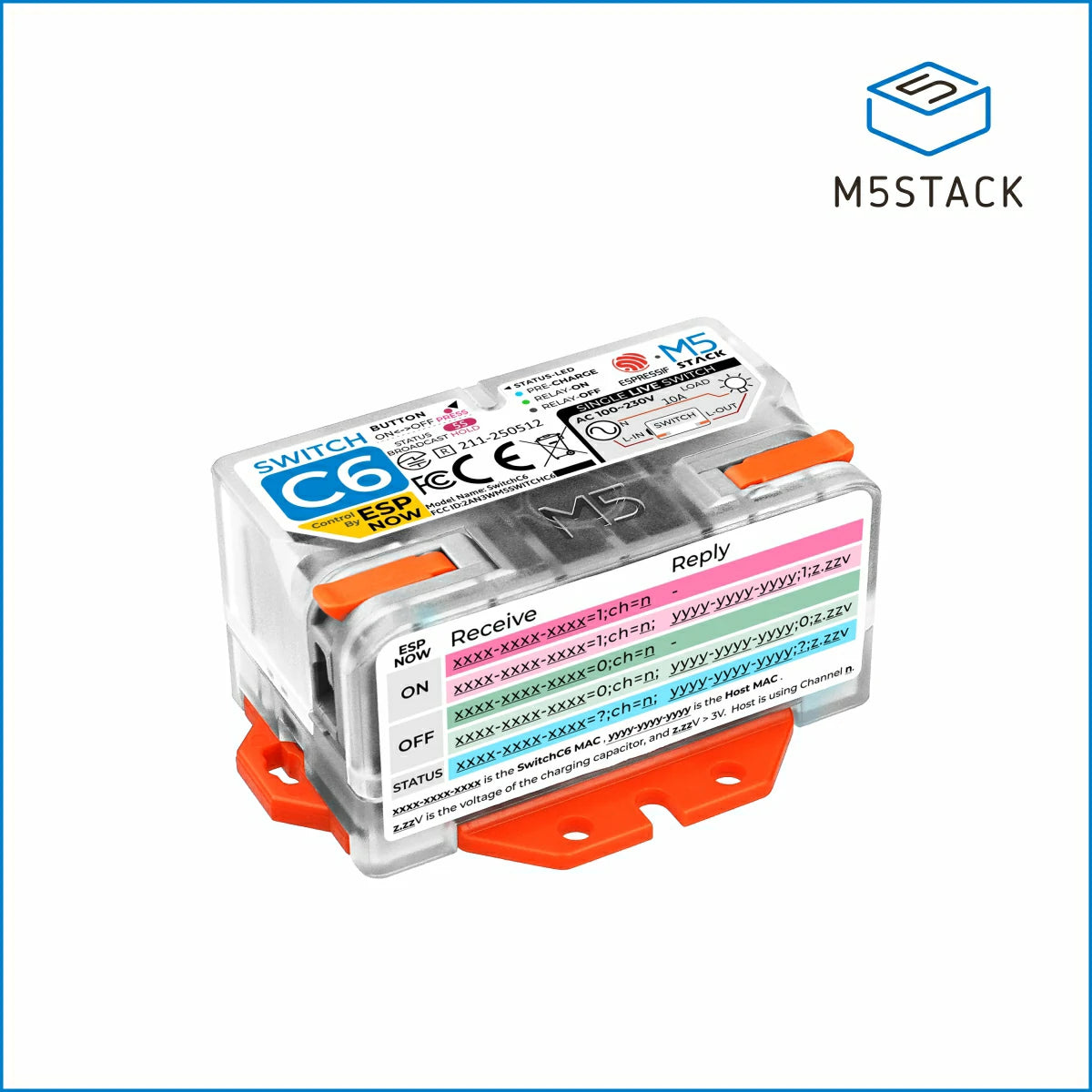

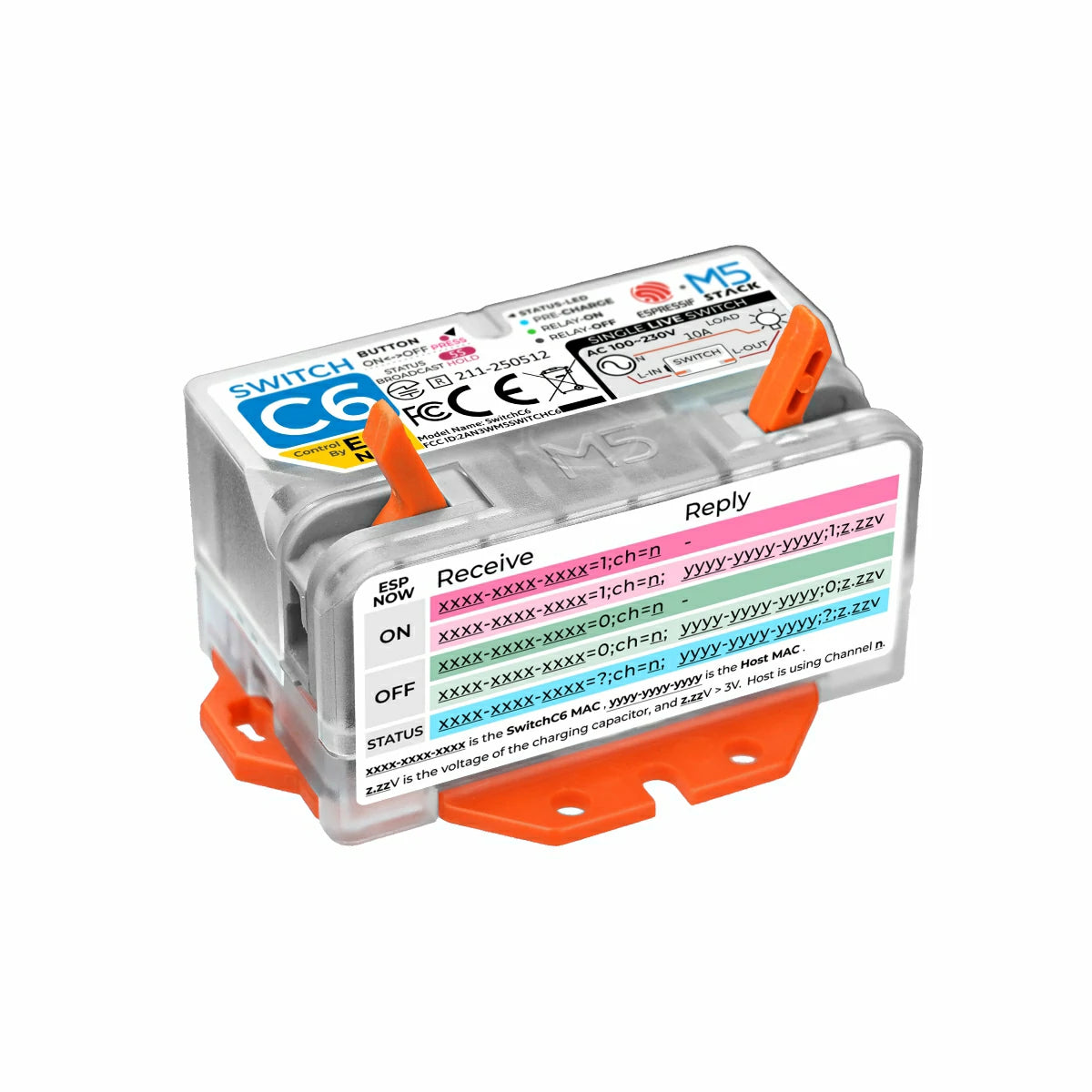

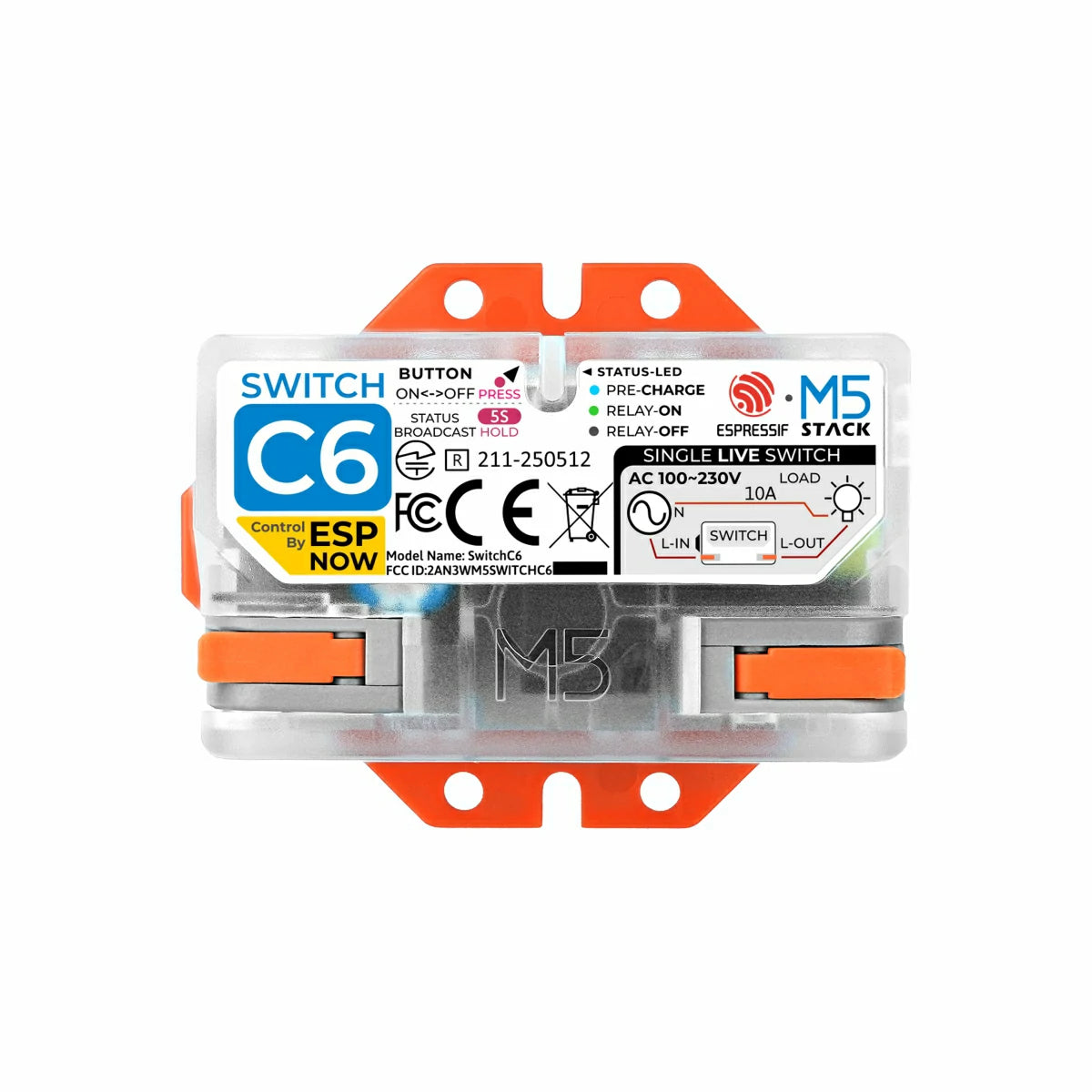

SwitchC6 is an IoT single-live wire switch controller. It integrates the ESP32-C6-MINI-1 core controller and a magnetic latching relay, supports connecting to electrical load circuits of AC 100 ~ 230V, and helps quickly build IoT smart homes. The controller comes pre-installed with ESP-NOW control firmware, and provides related control protocols and SDKs, allowing users to wirelessly control it with any ESP32 device. The back adopts a rail clip design, making it easy to install on DIN rails, suitable for embedded smart home control, upgrading single-live wire lighting circuits, and other application scenarios.
Features
- Single-live wire switch controller
- Based on ESP32-C6-MINI-1 wireless SoC
- Suitable for tungsten filament bulbs and lamps with SCR dimming support
- 2.4 GHz Wi-Fi 6
- Integrated magnetic latching relay
- Wide voltage design: compatible with AC 100 ~ 230V electrical loads

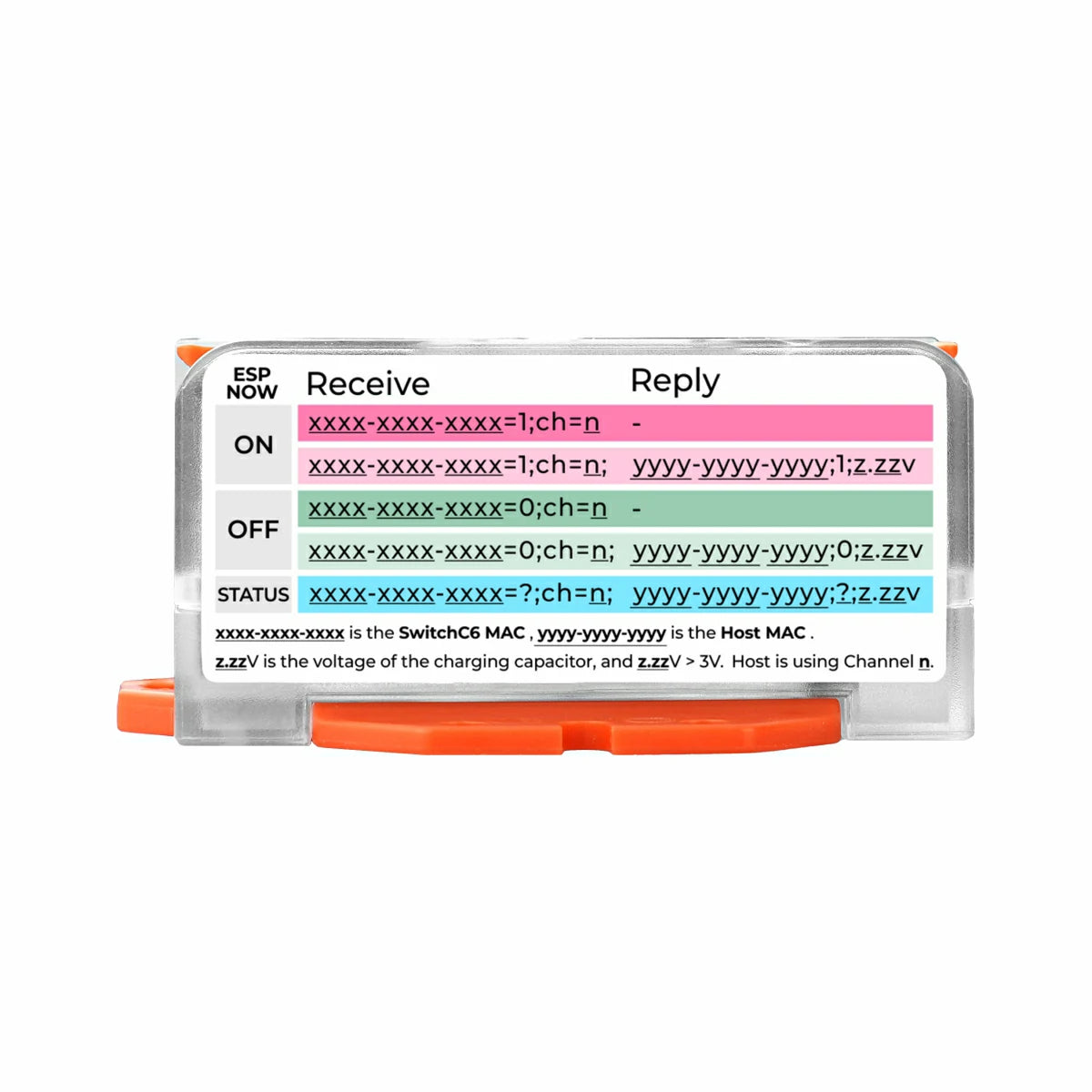

- ESP-NOW wireless communication protocol
- Status indicator light

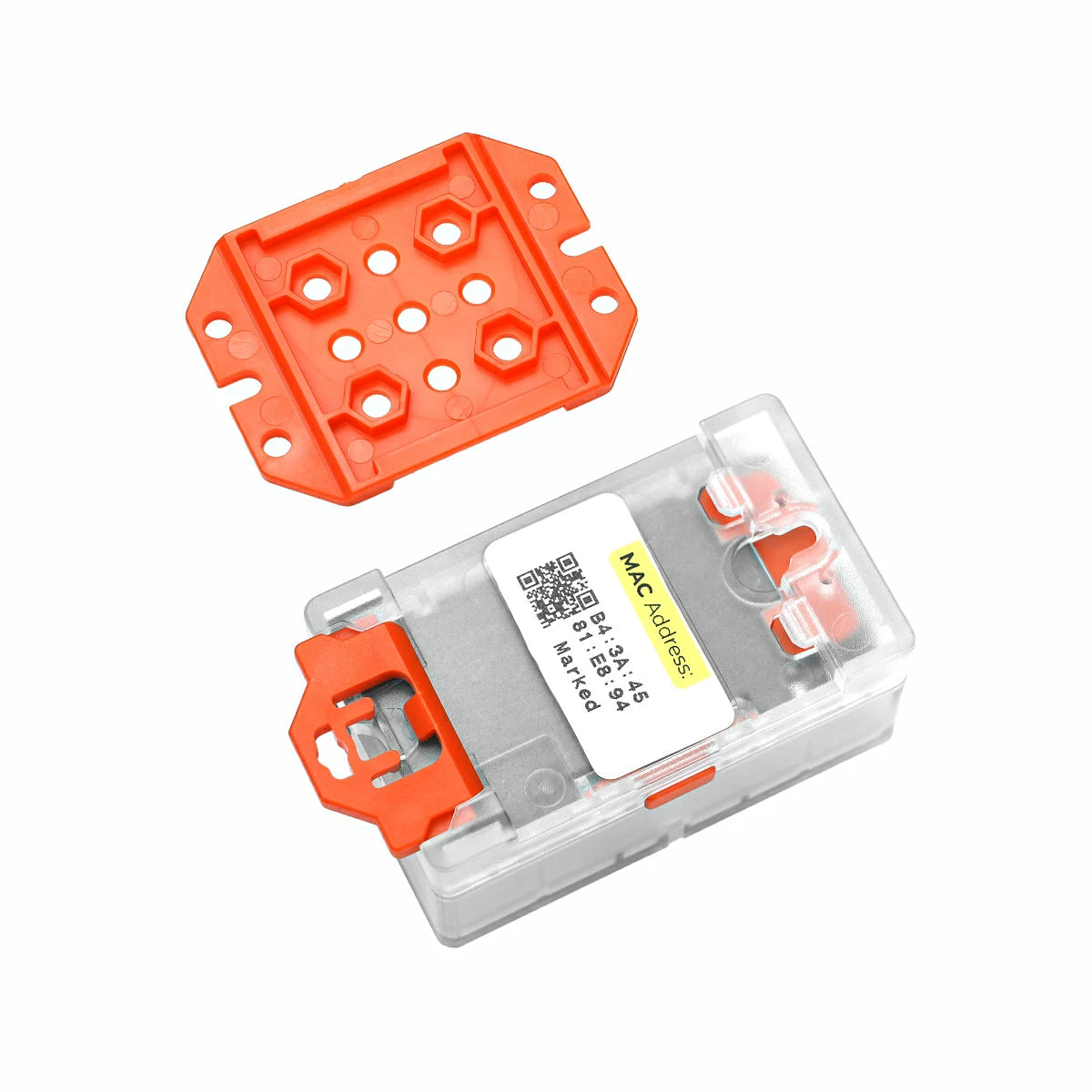

- DIN rail mounting

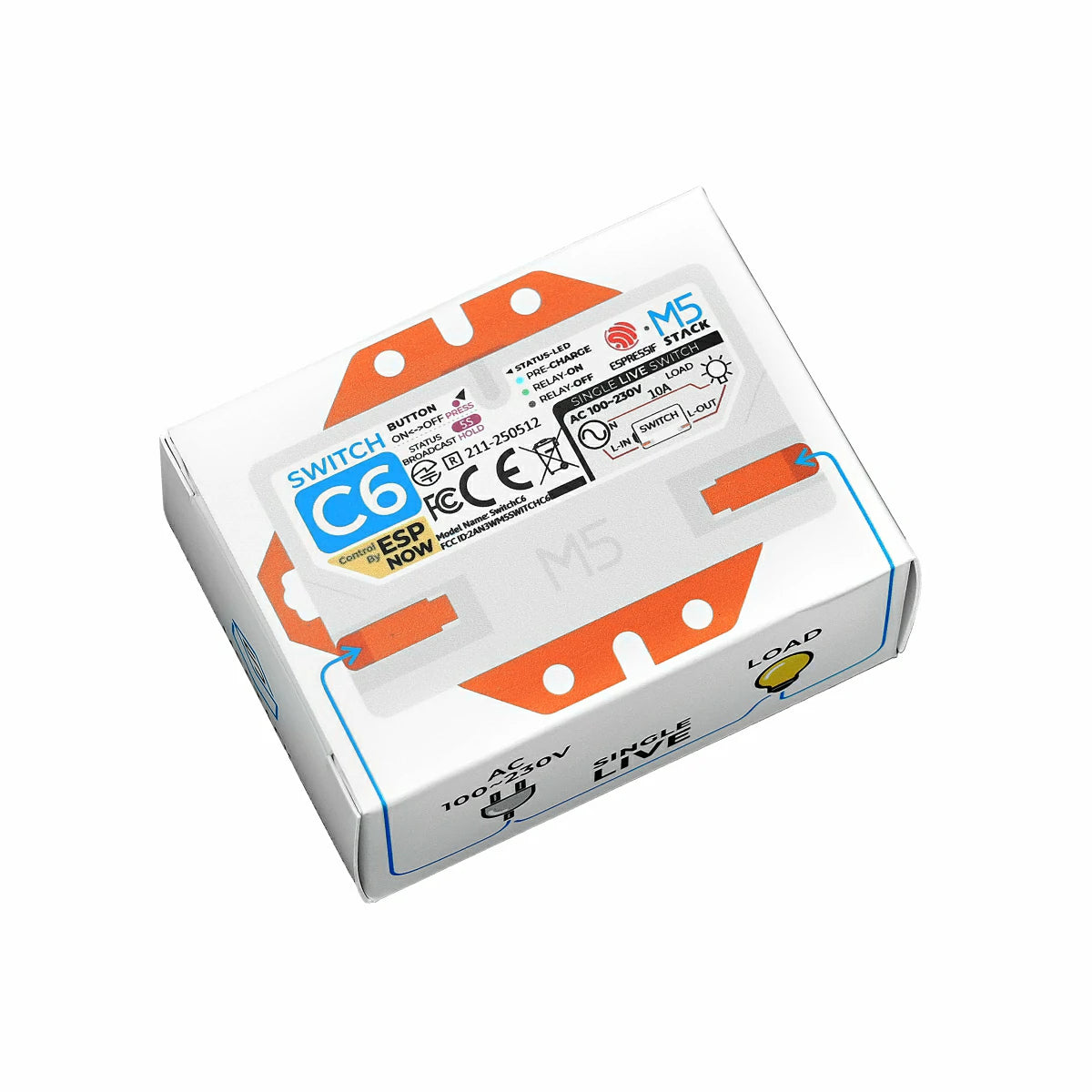

Includes
- 1 x SwitchC6
Applications
- Smart home control
- Single-live wire lighting renovation
Specifications
| Specification | Parameter |
|---|---|
| SoC | ESP32-C6-MINI-1, RISC-V 32-bit single-core processor, supports up to 160 MHz clock frequency |
| Wi-Fi | 2.4 GHz Wi-Fi 6 |
| Wireless Standard | IEEE 802.11 b/g/n/ax |
| Max Load | AC 220V@10A (2200W) / AC 110V@10A (1100W), max current limit 10A |
| Supported Voltage | AC 100 ~ 230V, 50/60Hz |
| Power Supply | Live wire only |
| Terminal Wiring Spec | Solid wire: 0.5m㎡ ~ 4m㎡ Stranded wire: 0.5mm² ~ 2.5mm² |
| Power-on State | Power-off state memory |
| Operating Temp | -10℃ ~ 60℃ |

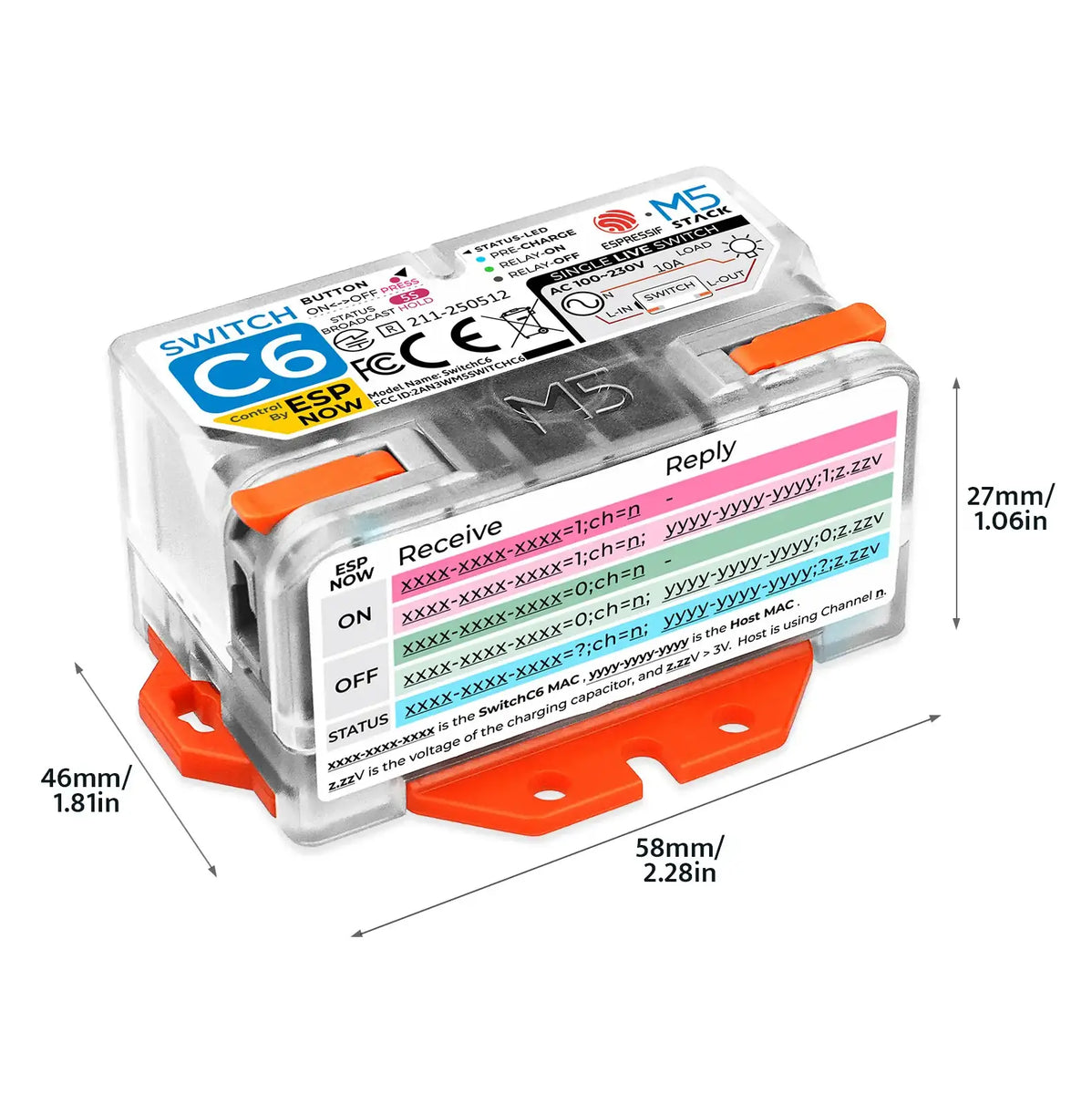

| Product Size | 58.0 x 46.0 x 27.0mm |
| Product Weight | 40.0g |
| Package Size | 63.0 x 48.0 x 28.5mm |
| Gross Weight | 47.3g |
