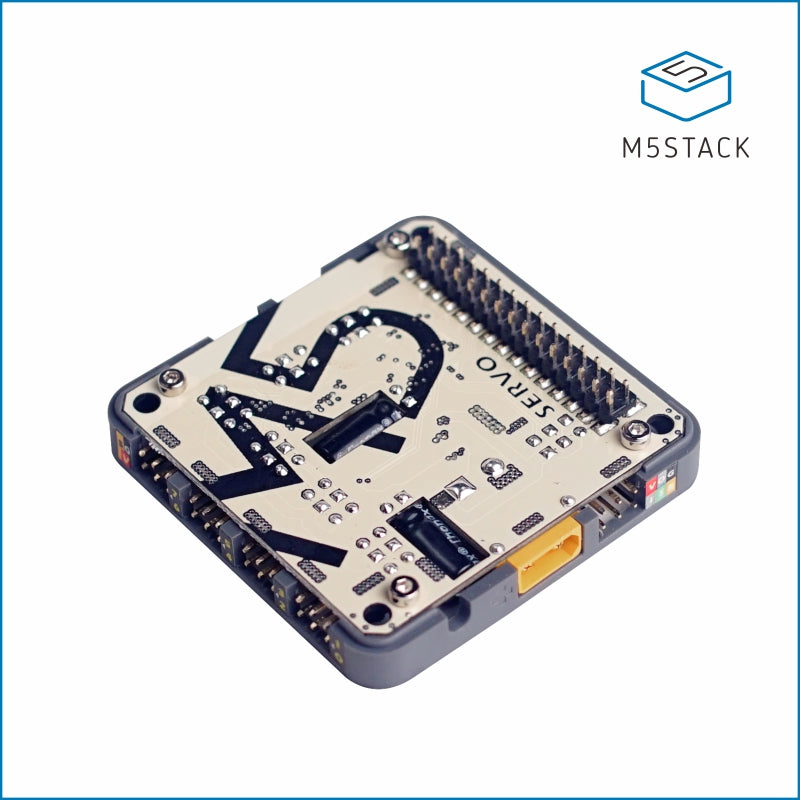

[EOL] SERVO Module Board 12 Channels

SKU:M014

Regular price $9.95

EOL

Shipping calculated at checkout.
PRODUCT DETAILS

Description

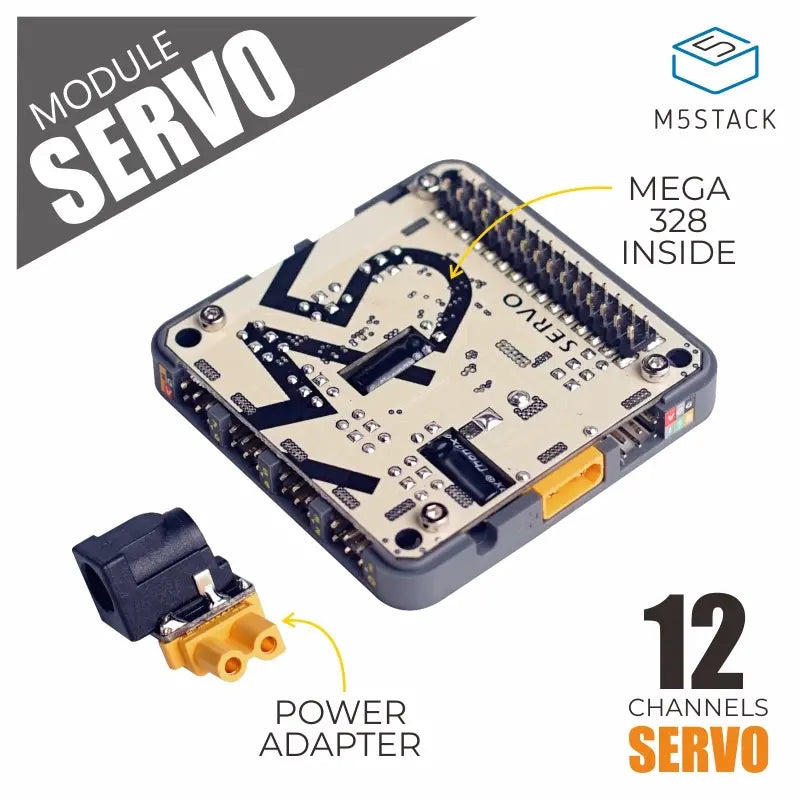

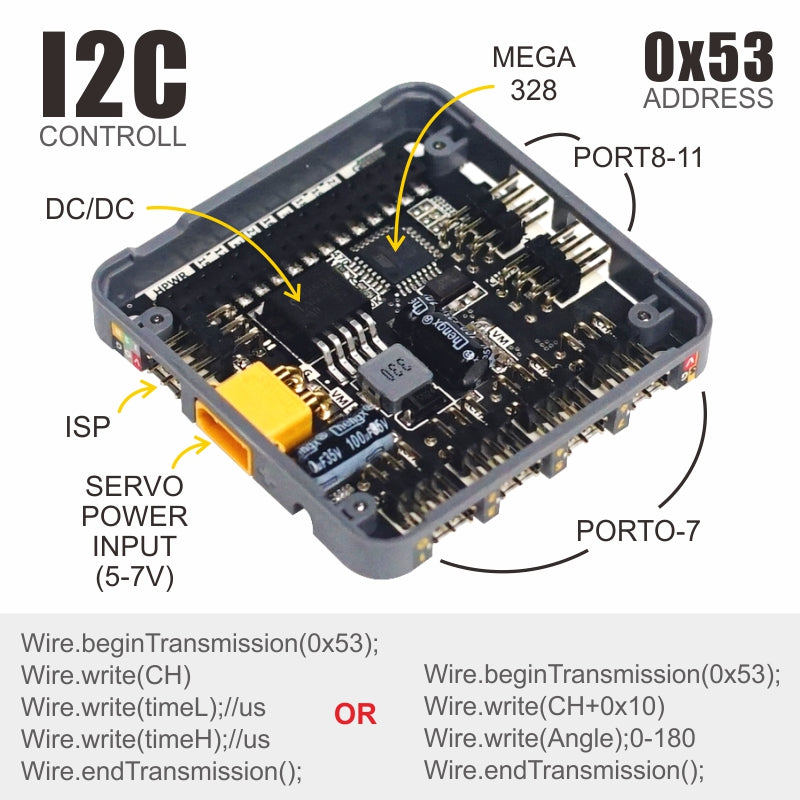

SERVO is made to implement the best, easiest way to drive Servo motors. This M5 module will make quick work of your next Servo project! It is able to drive multiple Servo motors, up to 12 channels(Max load :14W) . We also added an DC input for power supplement. Through M-BUS the DC in can automatically power the M5 core at top.Servo is powered by MEGA328 communicate via I2C(0x53).

This product is EOL now.

Product Features

  • 12x servo ports
  • DC power input: 5-7V
  • DC Connector Type: XT30 (female)
  • Power adapter interface: 5.5mm x 2.1mm

Include

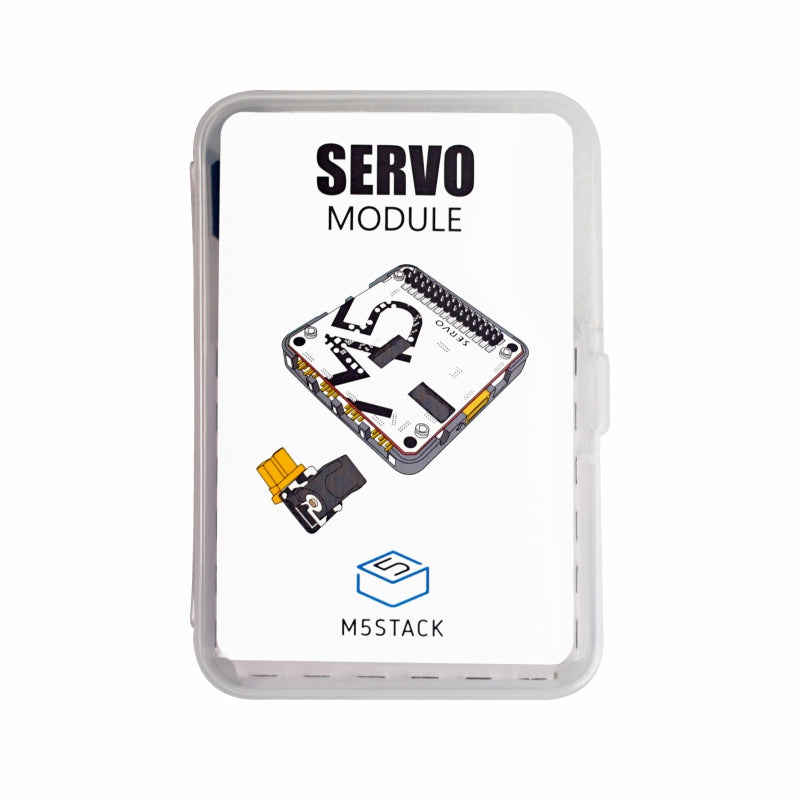

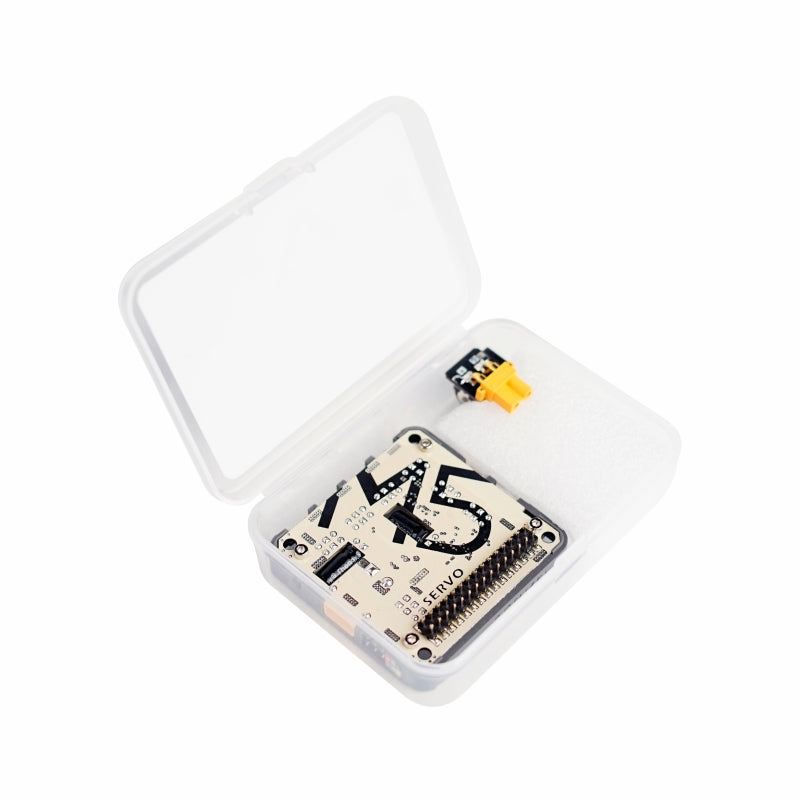

  • 1x M5Stack Servo Module
  • 1x Common Male to XT30 Male DC convertor

Applications

  • Humanoid robot
  • Bionic multi-joint robot
  • Triaxial Camera Cradle

Specification

Resources Parameter
Net weight 25g
Gross weight 45g
Product Size 54.2*54.2*12.8mm
Package Size 95*65*25mm
