Description

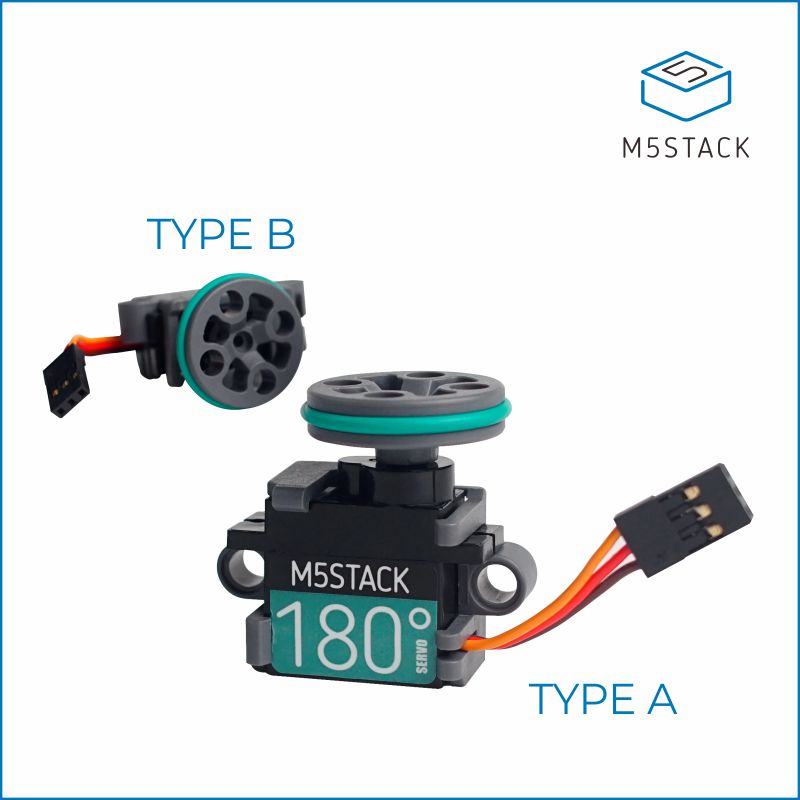

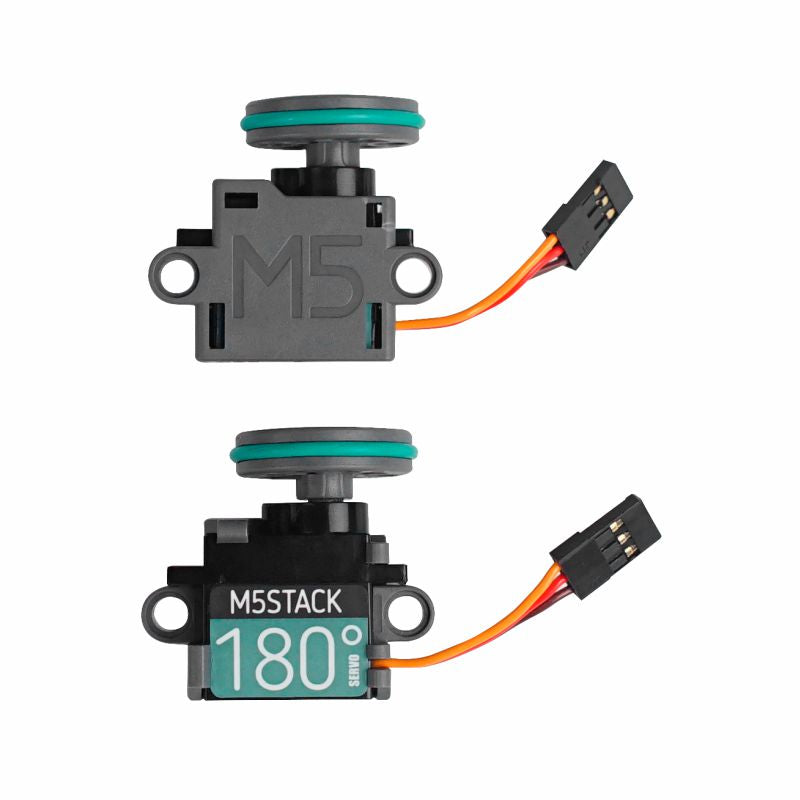

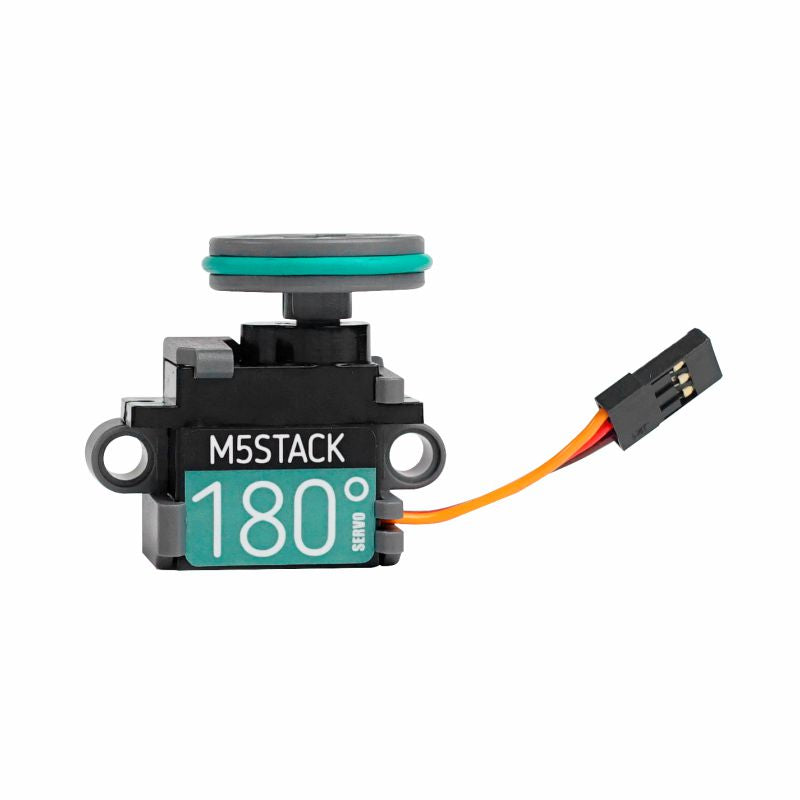

Servo Kit 180° is a 9g servo kit with a LEGO mounting bracket. The kit includes various servo accessories (servo wheels, axles, servo discs, etc.), making it easy to assemble and disassemble. The product is designed according to LEGO standards, allowing it to seamlessly integrate with LEGO series products, inspiring unlimited creativity. It can be directly connected using LEGO parts. This 180° servo is only used to control rotation angles from 0 to 180°. When using, please ensure the appropriate supply voltage to prevent stalling and avoid burning out the servo.
Features
- Micro servo system
- LEGO compatible
- Simple control
- Supports Arduino and UiFlow

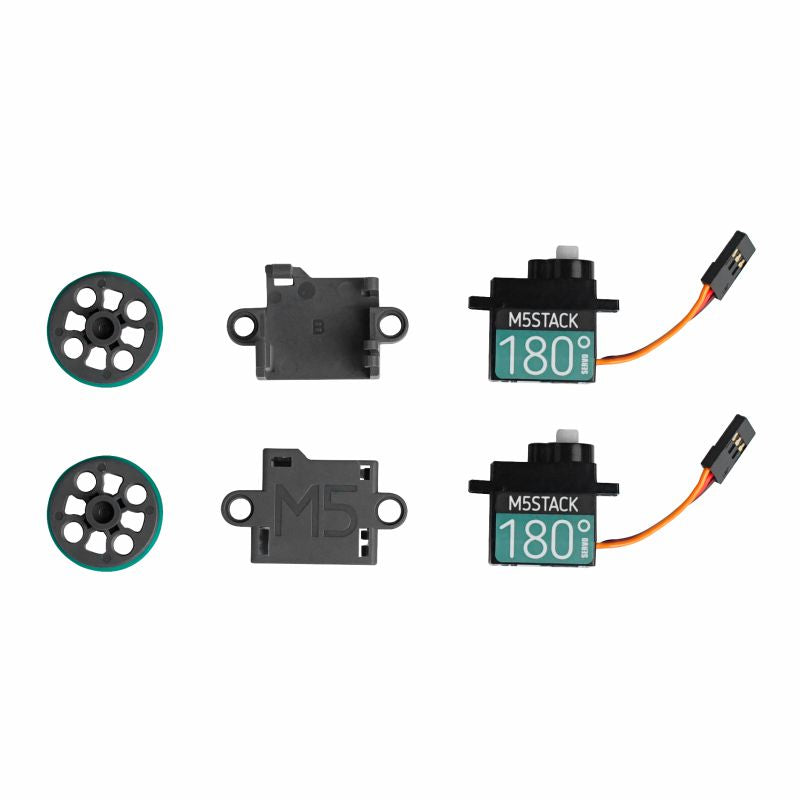

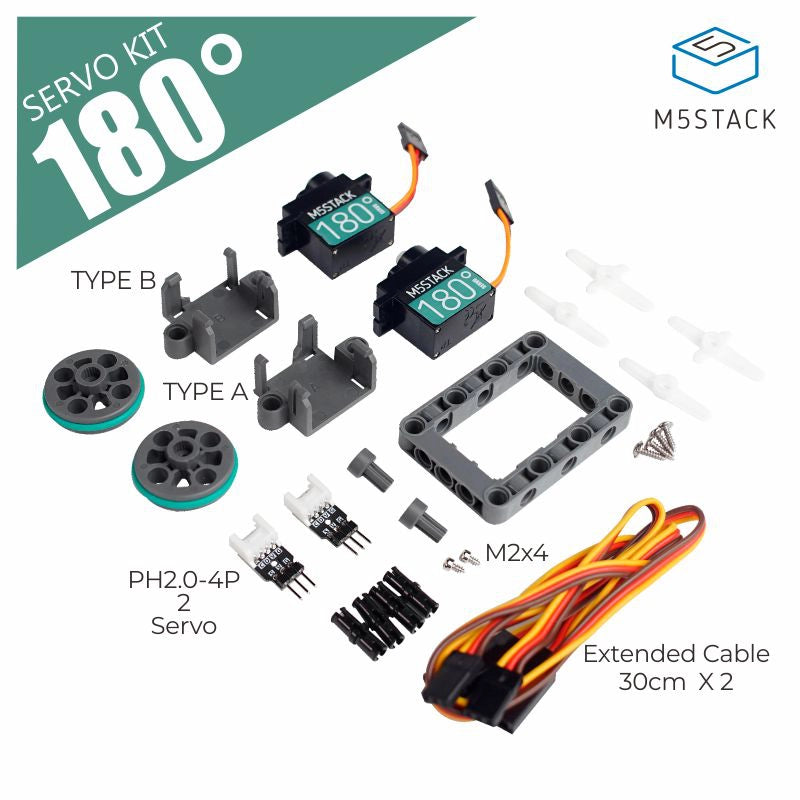

Includes
- 2 x SG90 Servo 180°
- 2 x Servo Wheels 24mm
- 2 x Hex Socket Head Self-tapping Screws M2*4mm
- 1 x Square Frame Beam Brick
- 1 x Servo Mounting Clamp A
- 1 x Servo Mounting Clamp B
- 2 x Servo Extension Cables 30cm
- 2 x Servo Disc Accessory Pack (includes several discs and screws)
- 2 x Servo Axles
- 2 x Grove to Servo Adapter
- 4 x Black Connector Pins
Specifications
| Specification | Parameter |
|---|---|
| Gear Material | Metal motor gear, plastic gearbox |
| PWM Frequency | 50Hz/0.5~2.5MS |
| Servo Weight | 9.0g |
| Torque | 1.6kg·cm/4.8V; 1.8kg·cm/6.0V |
| 180° Servo Speed | 0.1sec/60°/4.8V; 0.09sec/60°/6.0V |
| Stall Current | 750mA |
| No-load Current | 60mA |
| Gear Material | Metal motor gear, plastic gearbox |
| Cable Length | 30mm |
| Deadband | 8μm |
| Spline | 20T |
| Voltage | 4.8 ~ 6.0V |
| Product Size | 40.0 x 12.0 x 36.0mm |
| Product Weight | 48.6g |
| Package Size | 170.0 x 120.0 x 25.0mm |
| Gross Weight | 51.6g |
