PRODUCT DETAILS
Description

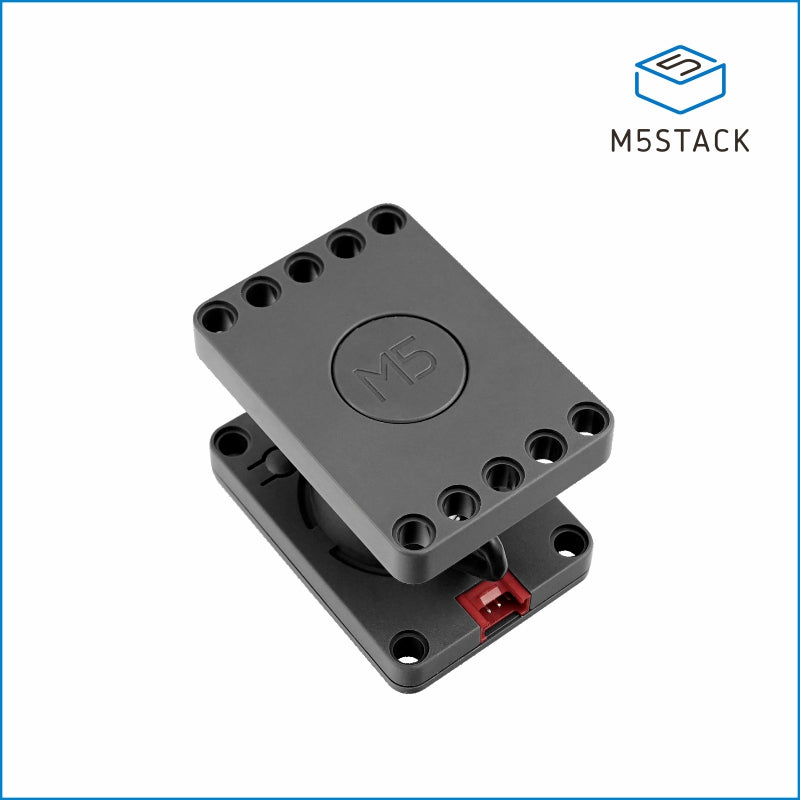

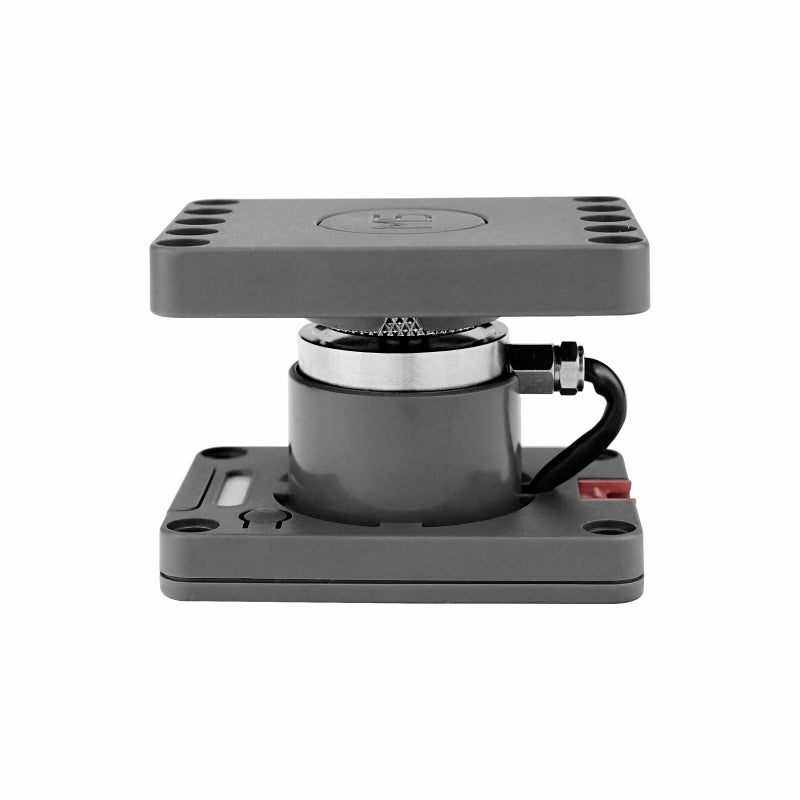

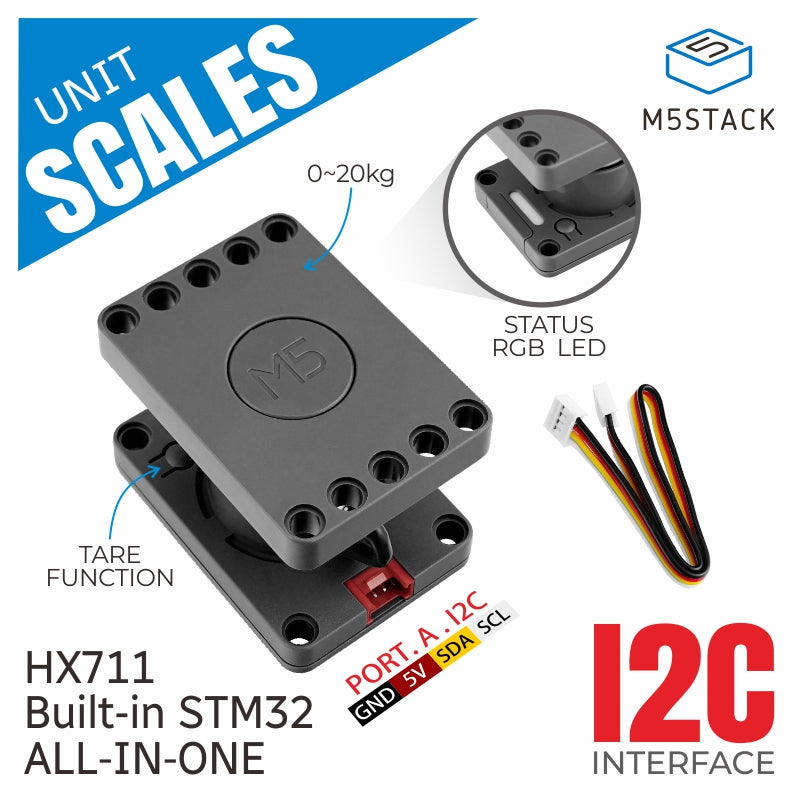

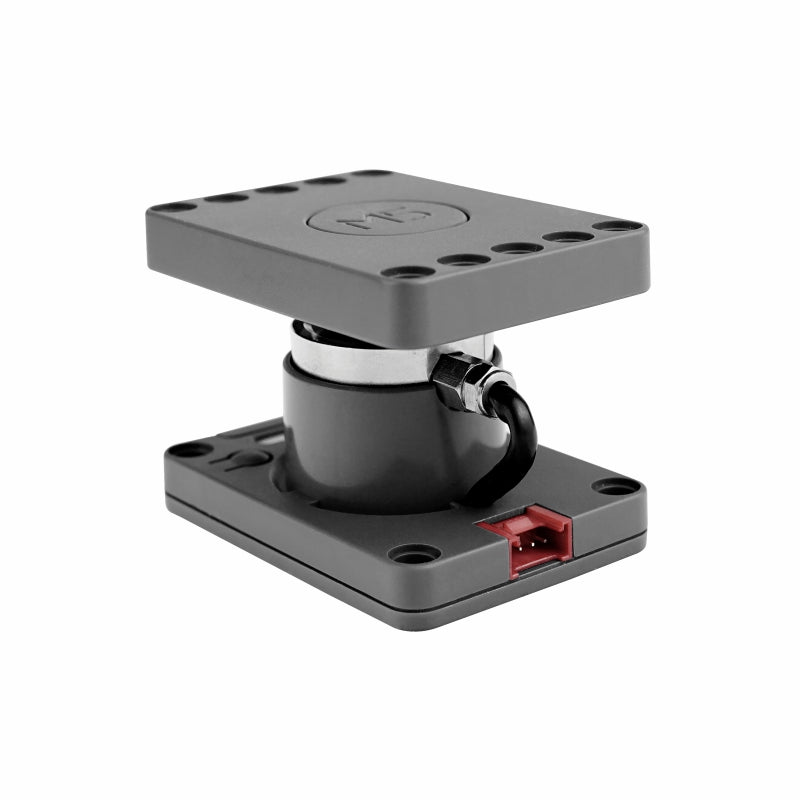

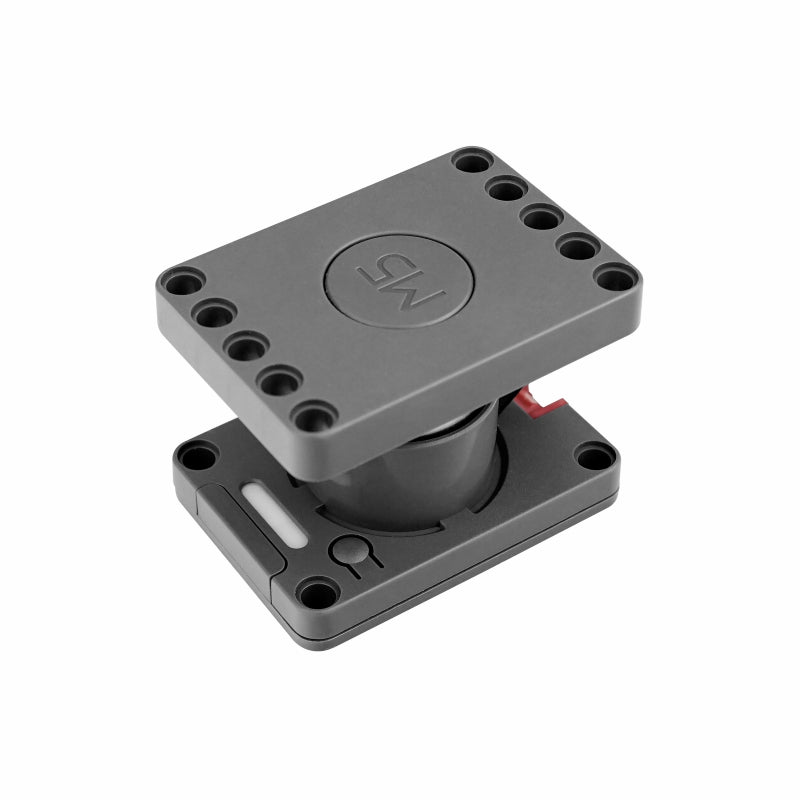

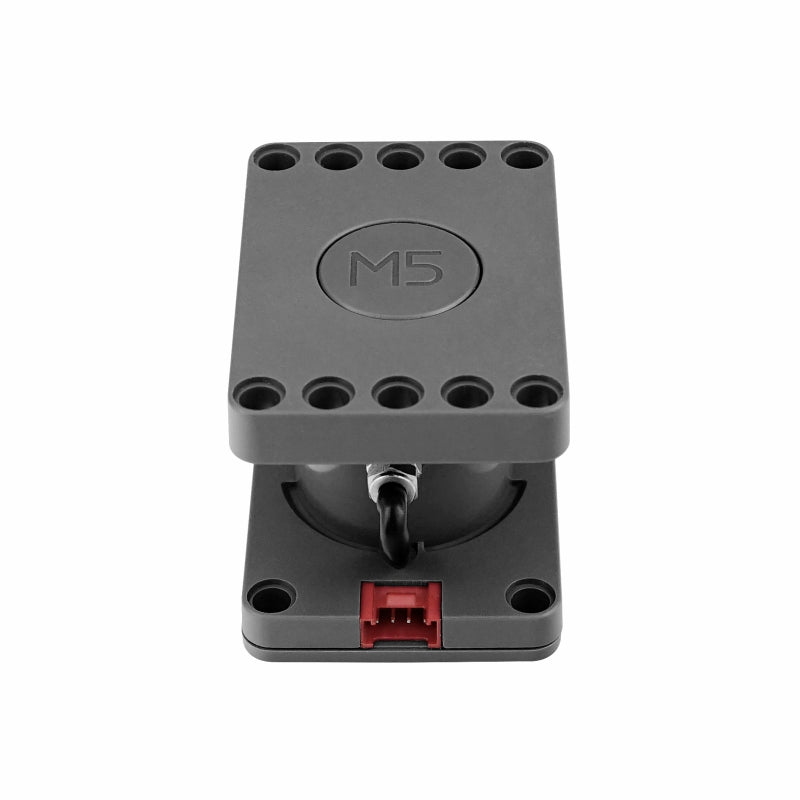

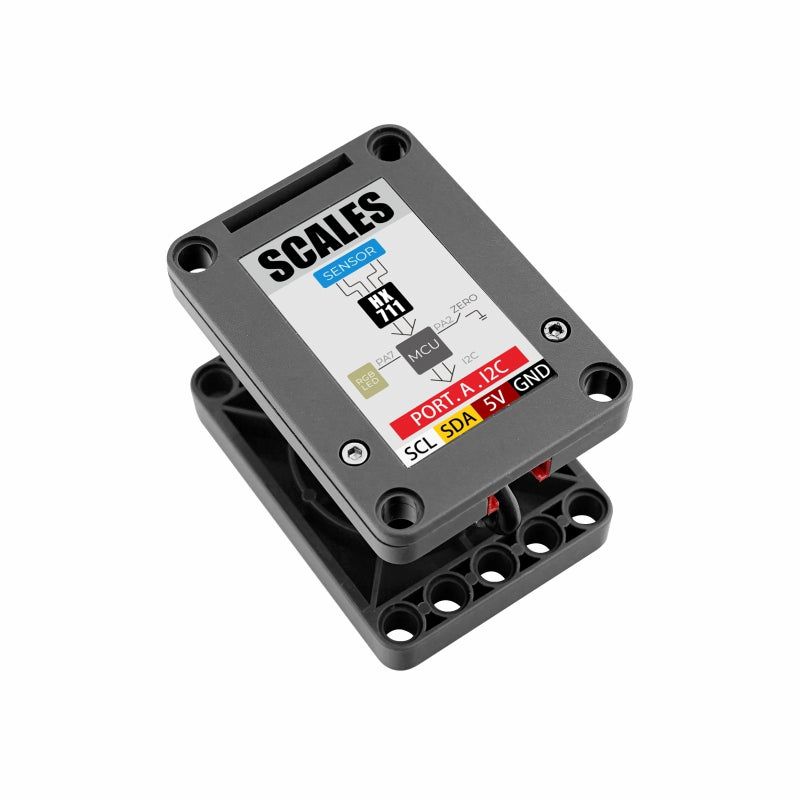

UNIT Scales is a high precision low-cost I2C port weighing sensor, with a total weighing range of 20kgs. Adopt STM32F030 as the controller, HX711 as sampling chip and 20 kgs weighing sensor. With tare button and programable RGB LED. This Unit offers the customer with a high integrated weighing solution, suitable for the applications of weighing, item counting, item movement cheking and so on.
Product Features
- HX711:
- High precision 24bit ADC
- Programmable gain amplification 32, 64 and 128
- 10SPS output data rate
- I2C port
- Development platform: Arduino, UIFlow(To be supported soon)
Included
- 1x Scales Unit
- 1x HY2.0-4P Cable (20cm)
Application
- Smart scales
- Kitchen scale
- Item counting device
Specifications

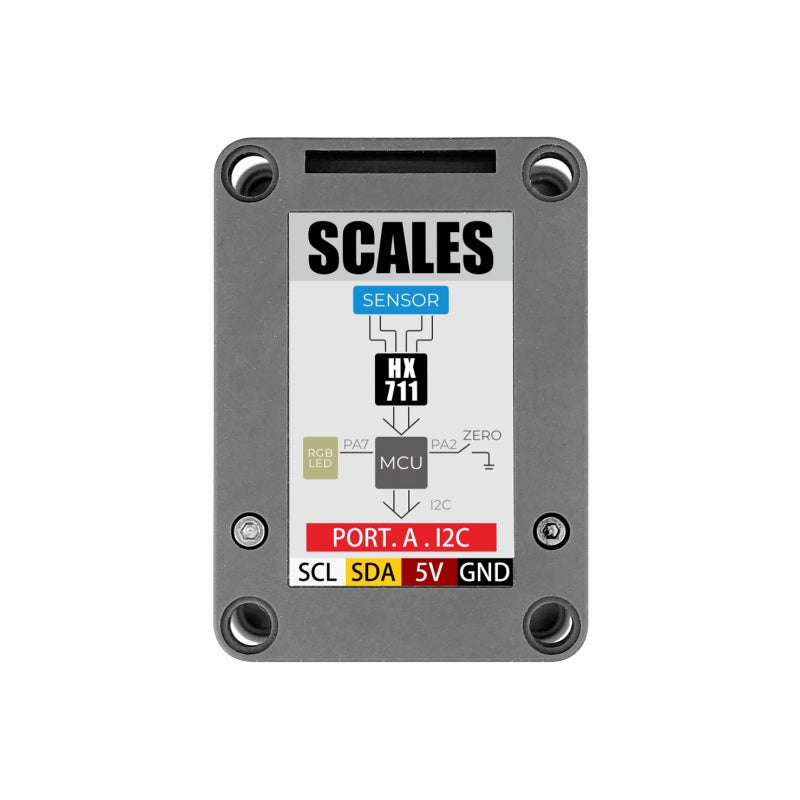

| Spec | Parameters |
|---|---|
| MCU | STM32F030 |
| ADC | HX711 |
| Communication | I2C:0x26 |
| LED | SK6812(PA7) |
| Function Button | Tare (PA2) |
| Gross Weight | 96g |
| Net Weight | 87g |
| Package Size | 56*40*41mm |
| Product Size | 42*43*58mm |
| Enclosure Material | Plastic ( PC ) |
