Description
Unit RS485 is a TTL-RS485 converter, used to convert TTL level signals to RS485 level signals. RS485 is a communication protocol standard that defines the electrical characteristics of drivers and receivers for serial communication systems. It supports multipoint systems and is used in industrial applications. When your project devices require communication control over RS485, using Unit RS485 as an interface converter is a good choice.
Features

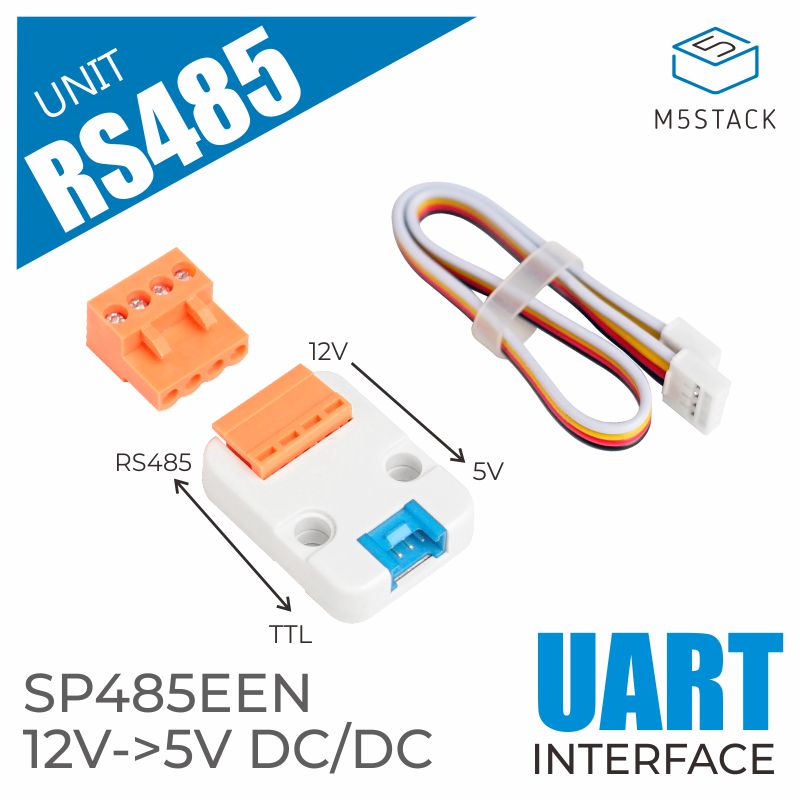

- Built-in MAX485/SP485EEN
- Input DC 12V
- Development Platforms: Arduino, UiFlow (Blockly, Python)
- 2 x LEGO compatible holes
Includes
- 1 x Unit RS485
- 1 x HY2.0-4P Grove Cable (20cm)
- 1 x VH3.96-4P Terminal
- 1 x Sticker
Applications
- Communication between devices with RS485 interface and microcontrollers in industrial equipment
Specifications
| Specification | Parameter |
|---|---|
| Product Size | 32.0 x 24.0 x 10.2mm |
| Product Weight | 5.0g |
| Package Size | 138.0 x 93.0 x 16.0mm |
| Gross Weight | 13.4g |
