Description

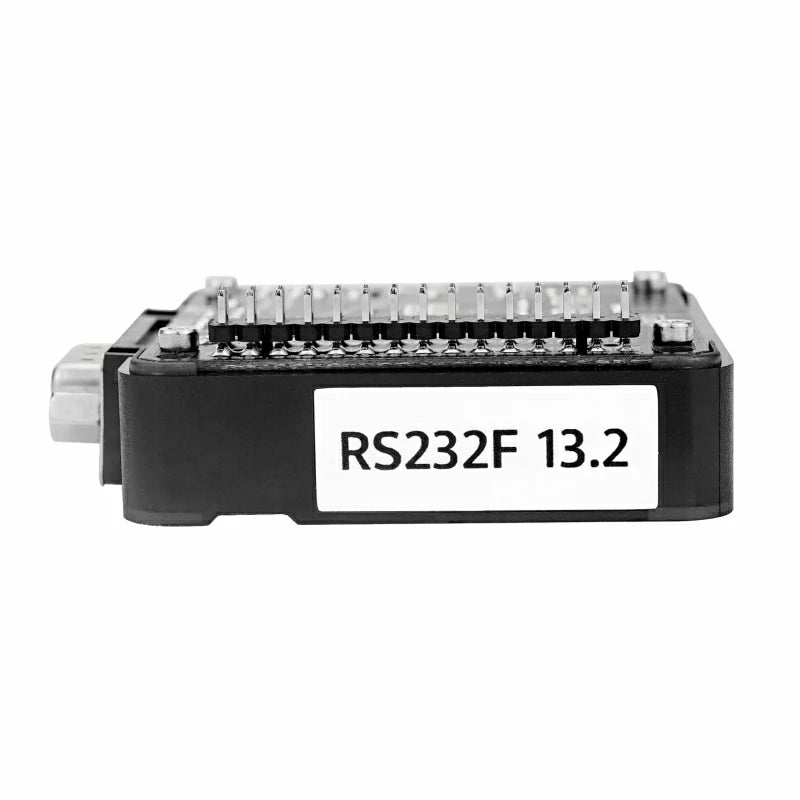

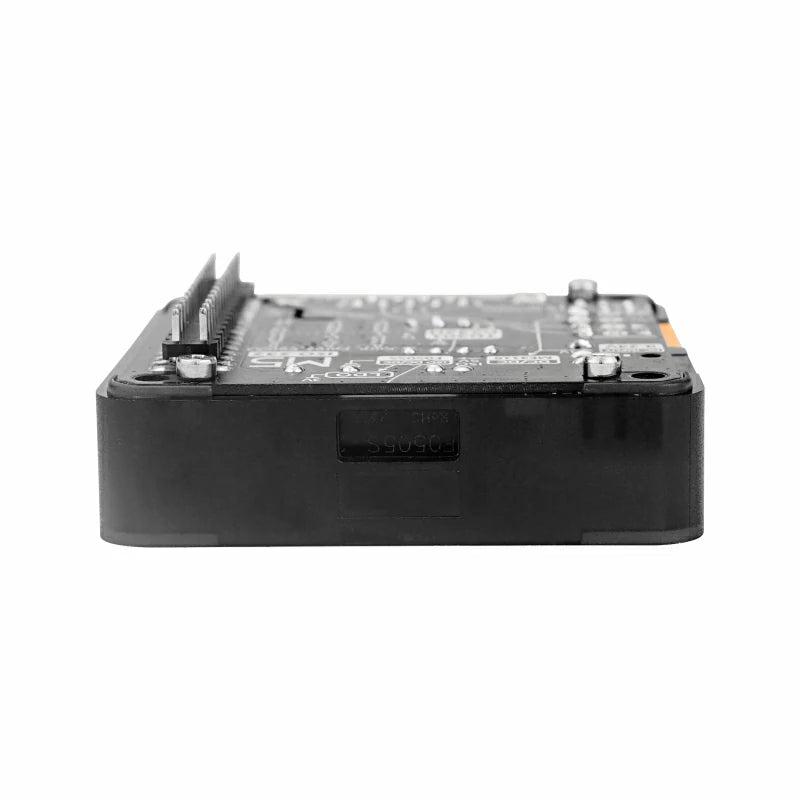

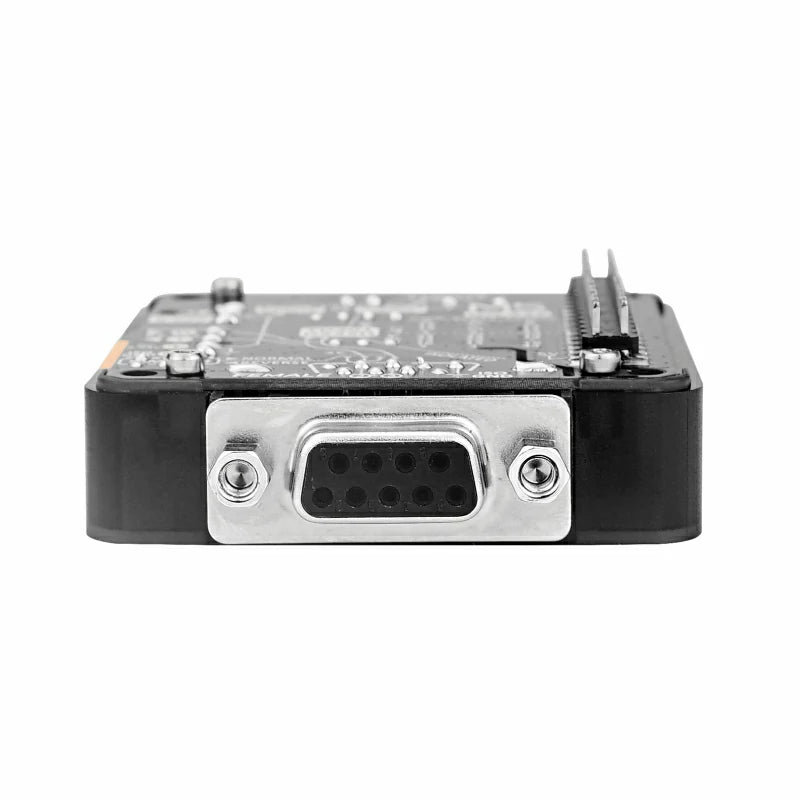

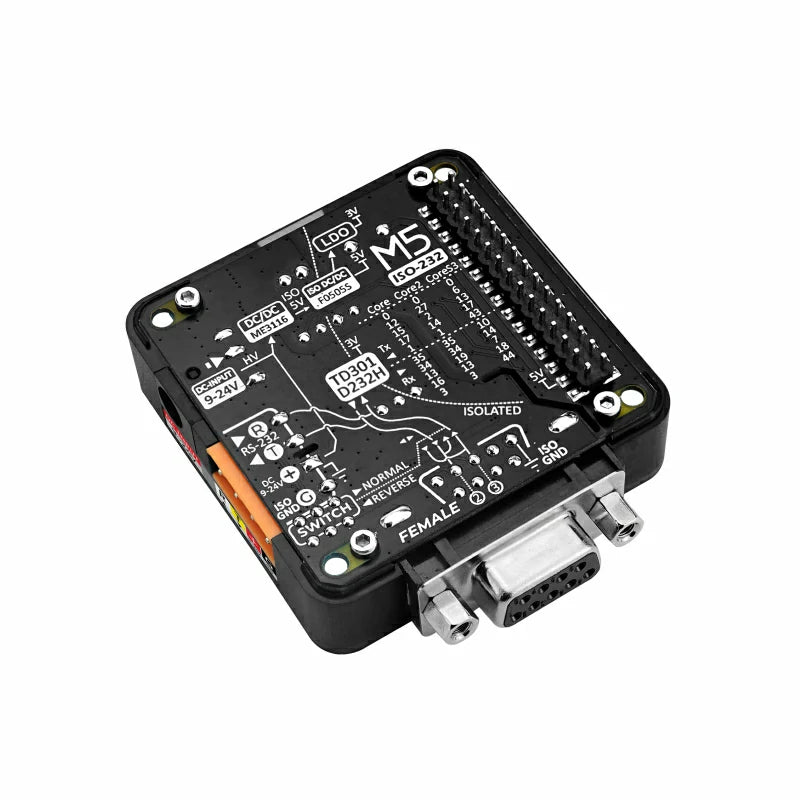

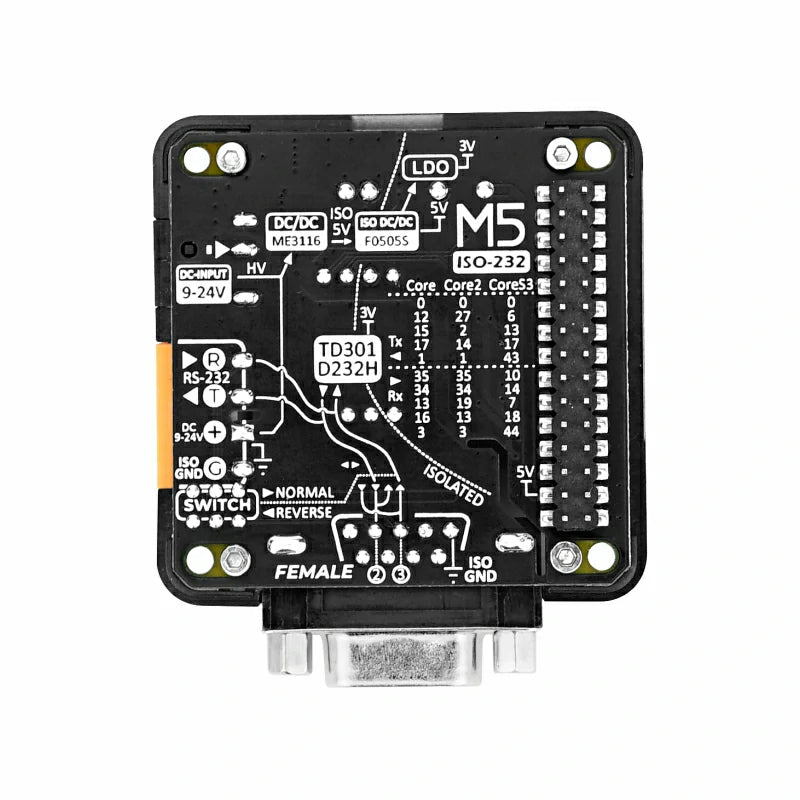

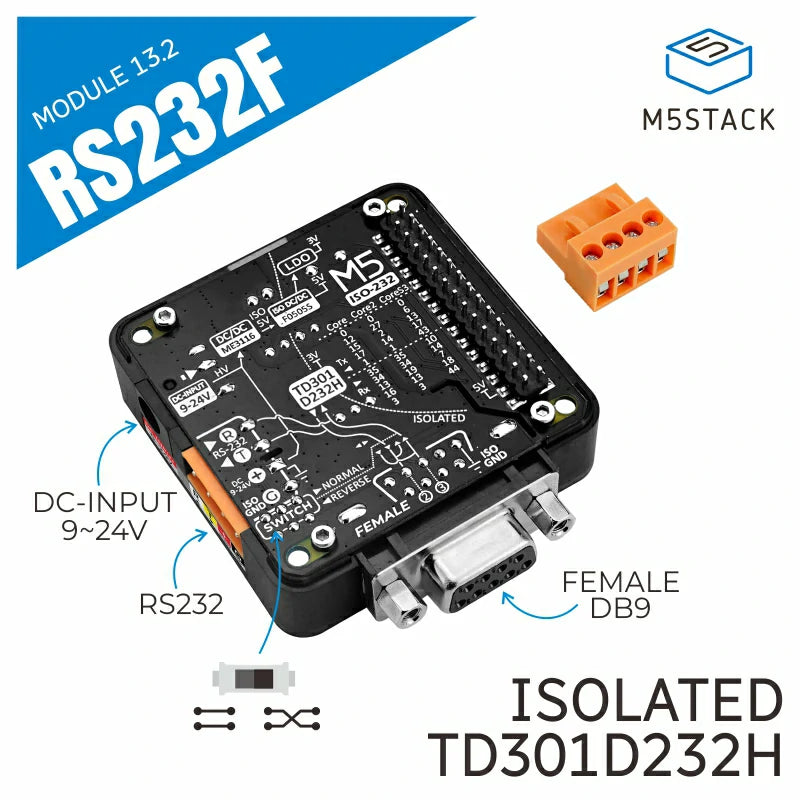

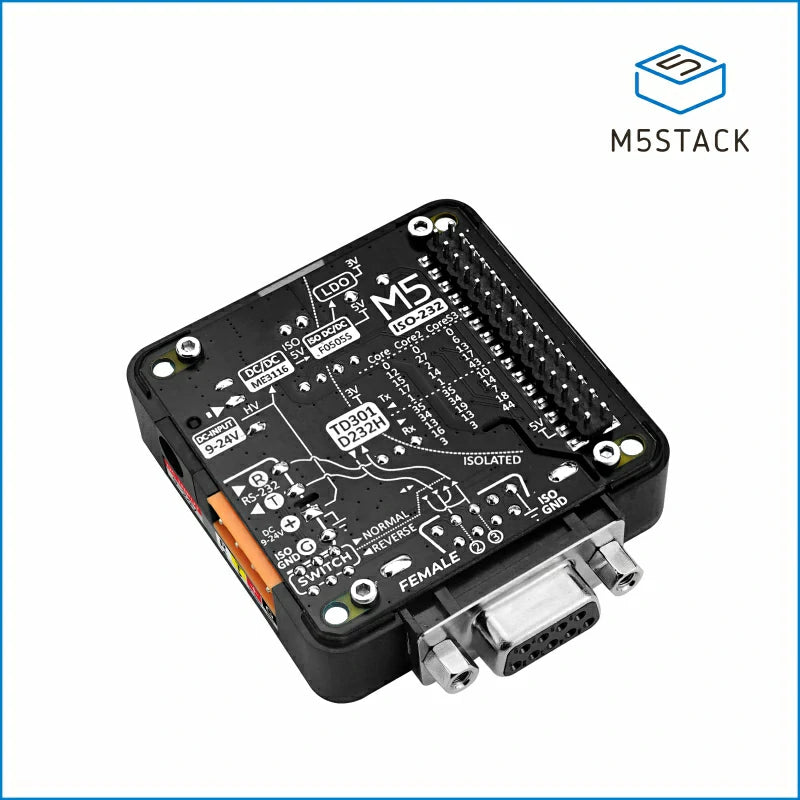

RS232F Module 13.2 is an expansion module of RS232 serial communication with isolation, using the scheme of TD301D232H serial port conversion chip + Female DB9 interface to realize the interface conversion between RS232 and TTL/CMOS logic level signals, and using F0505S-2WR3 DC-DC power module to realize electrical and noise isolation functions, toggle switch and coding switch It can realize the pass-through or cross-switching of DB9 signal lines and the switching of serial interfaces to meet different connection needs. The module has a built-in DC power input socket and a corresponding DC-DC circuit to provide power to the entire device. The product is suitable for industrial automation, instrumentation, medical equipment and communication equipment.
Features
- TD301D232H serial port chip, support full duplex, fast and reliable
- F0505S-2WR3 Electrical and noise isolation

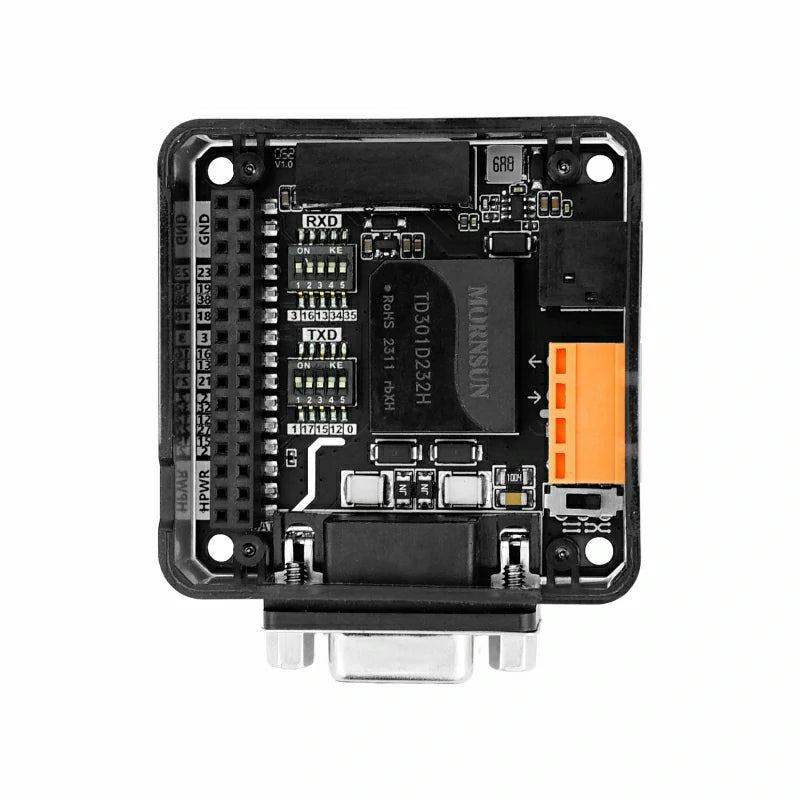

- Toggle switches and coded switches switch line sequence and GPIO
- Programming platform: Arduino, UIFlow
Includes

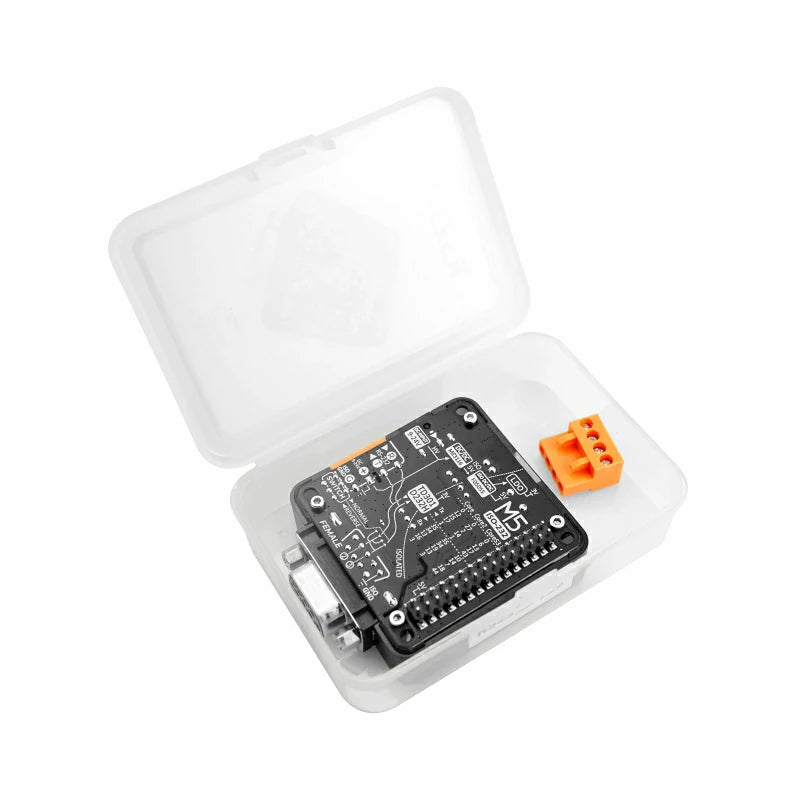

- 1 × RS232F Module 13.2
Applications
- Industrial automation
- Instrumentation
- Medical equipment
- Communication equipment
Specification

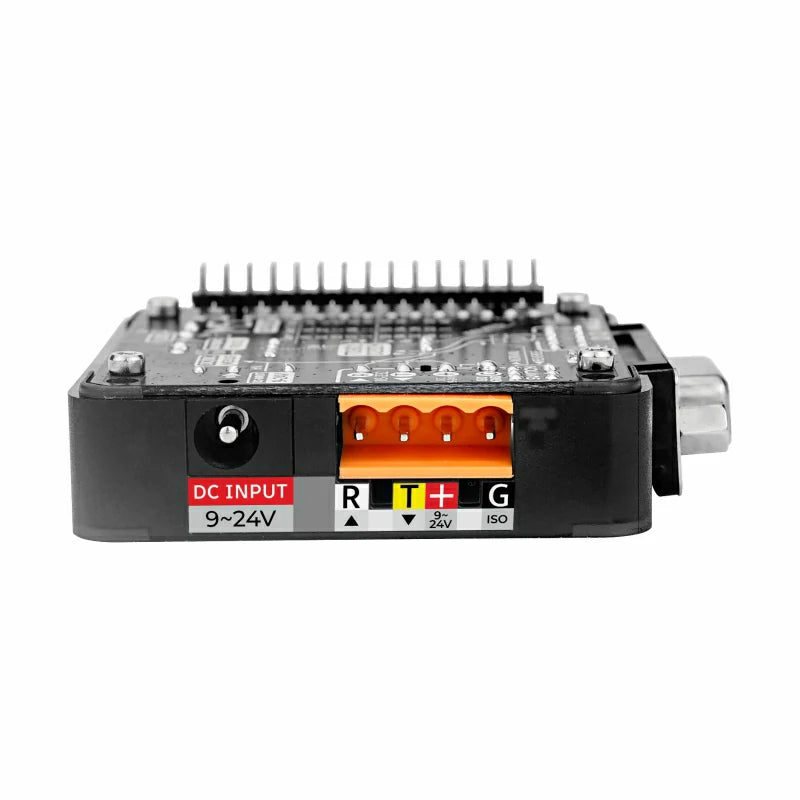

| Resources | Parameters |
|---|---|
| RS232 | TD301D232H |
| DC-DC isolation | F0505S-2WR3 |
| Communication rate | Up to 115200bps |
| Communication method | DB9 female interface with full-duplex communication and interface translation between RS232 and TTL/CMOS logic level signals |
| Operating temperature | 0-40° |
| DC power interface input voltage | 0-24V |
| Product Size | 54*54*13.2mm |

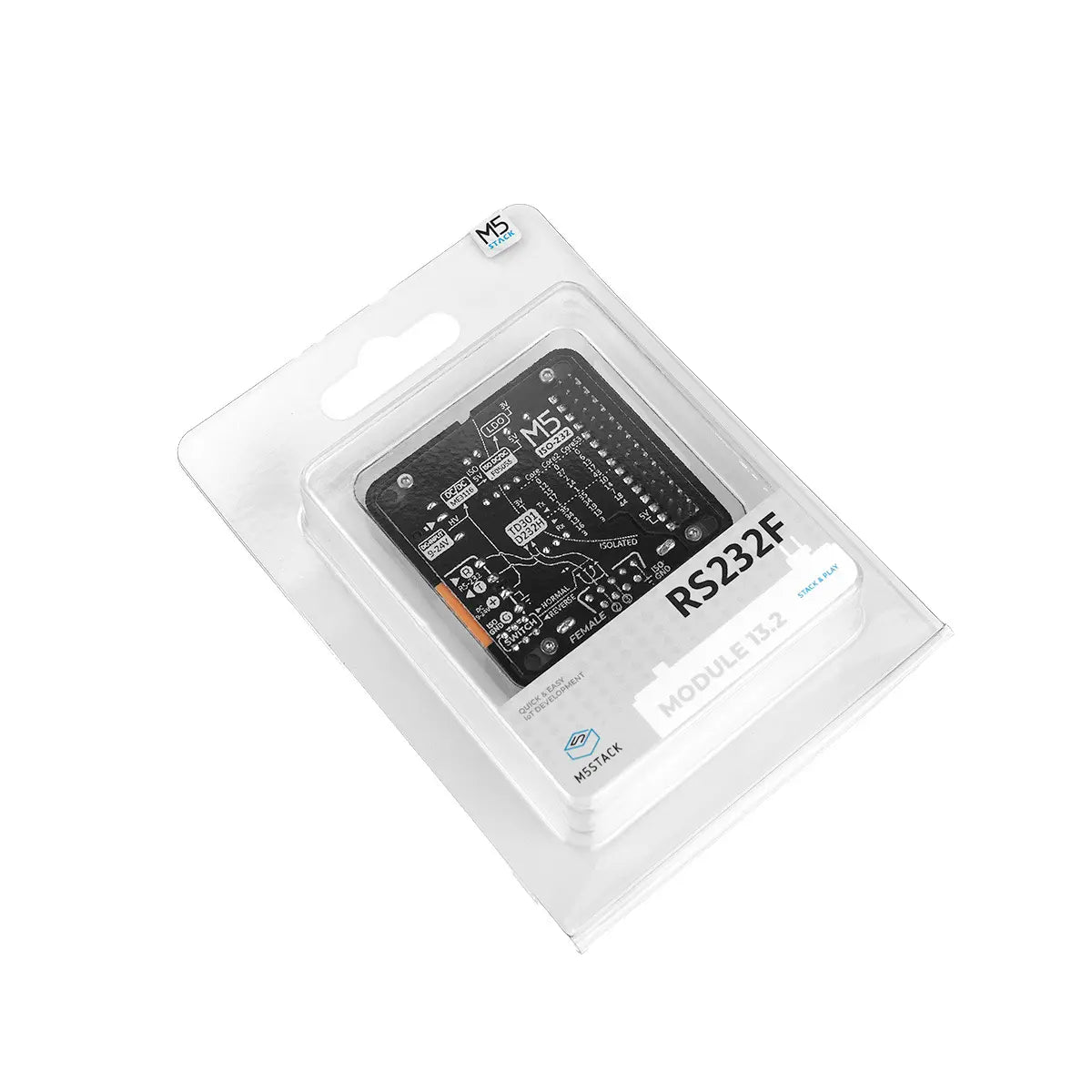

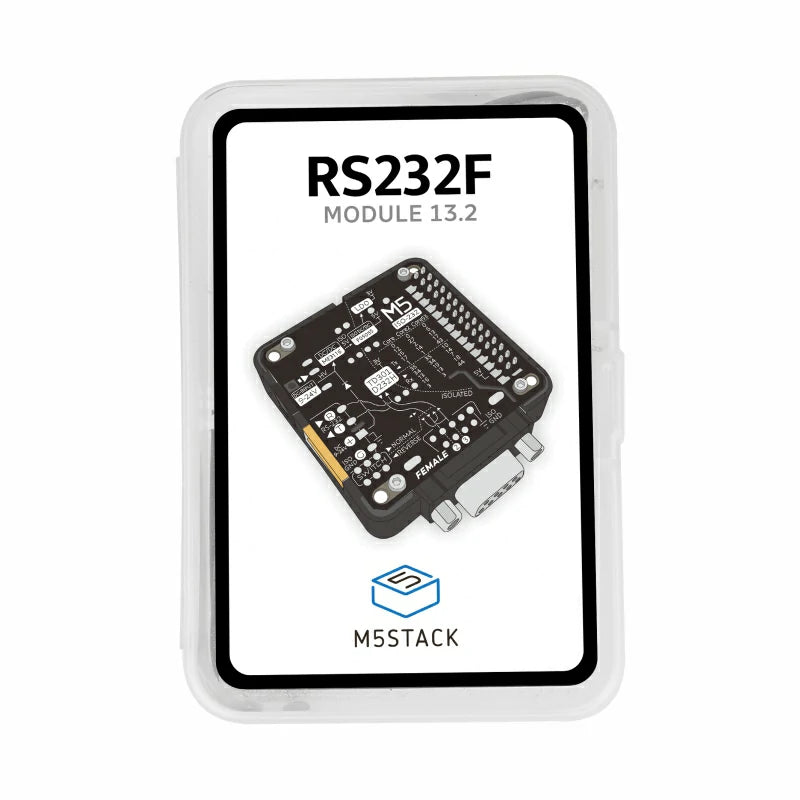

| Package Size | 88*61*21mm |
| Product Weight | 28g |
| Package Weight | 60g |
Related Link
Schematic
Module Size
Examples
Arduino
UIFlow
UIFlow Blocks
- Init
- Write text a line
- Write text
- Write raw data list
- Read all bytes
- Read characters
- Read bytes a line
- Remain cache
