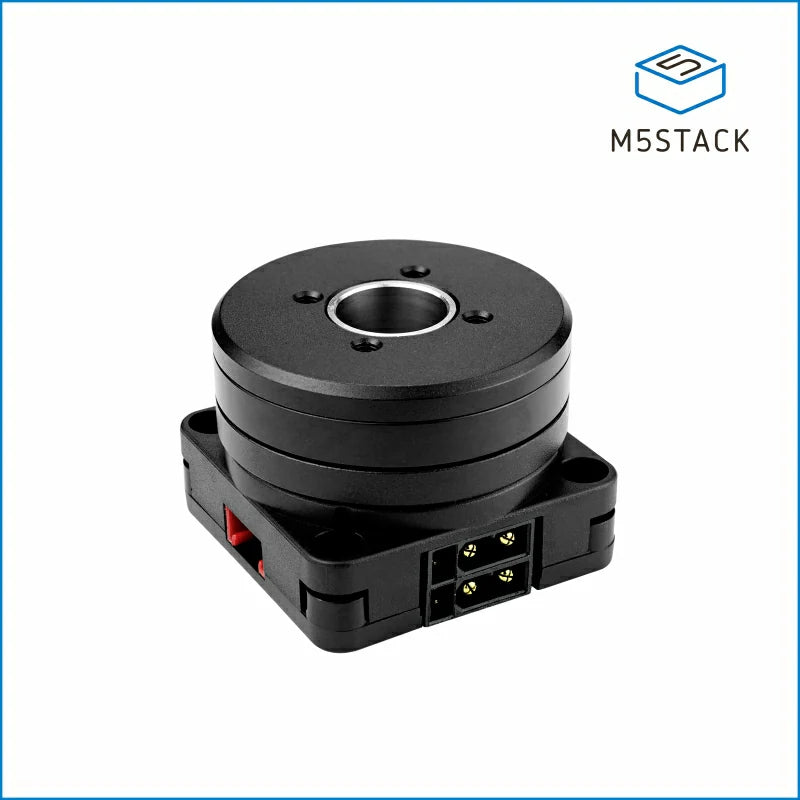

Description

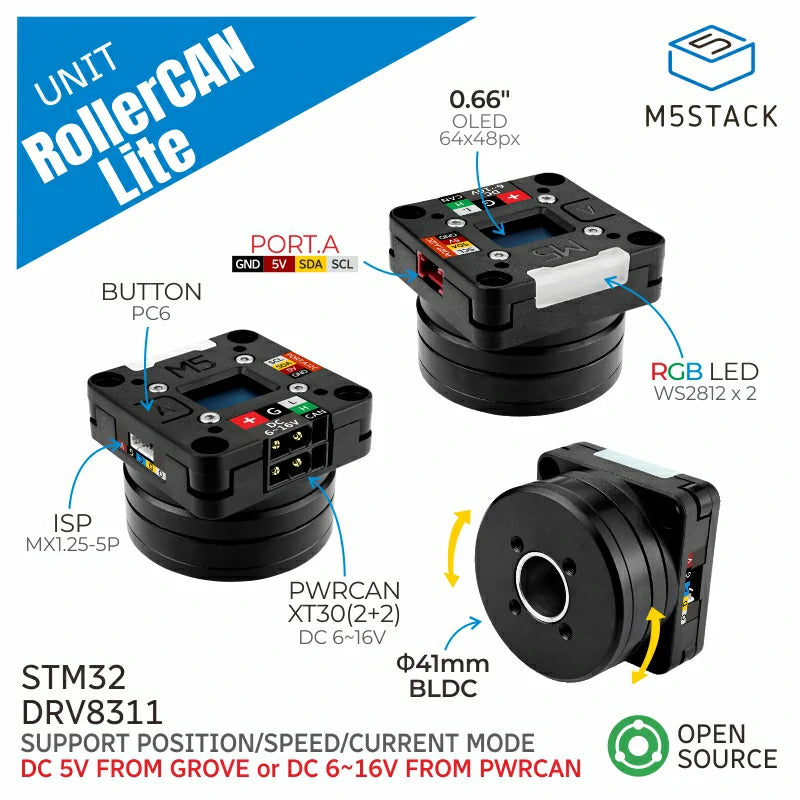

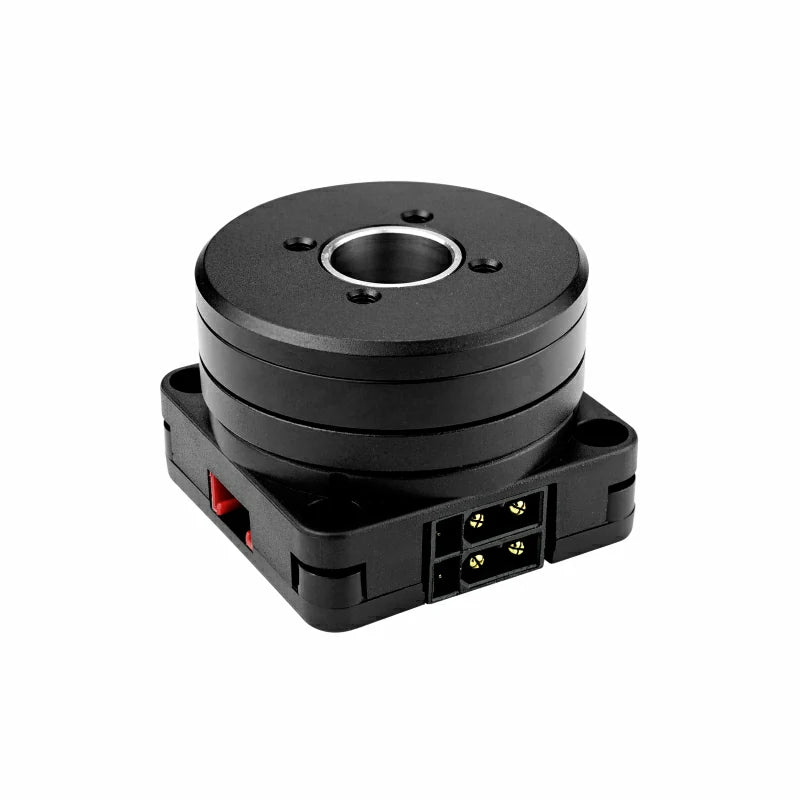

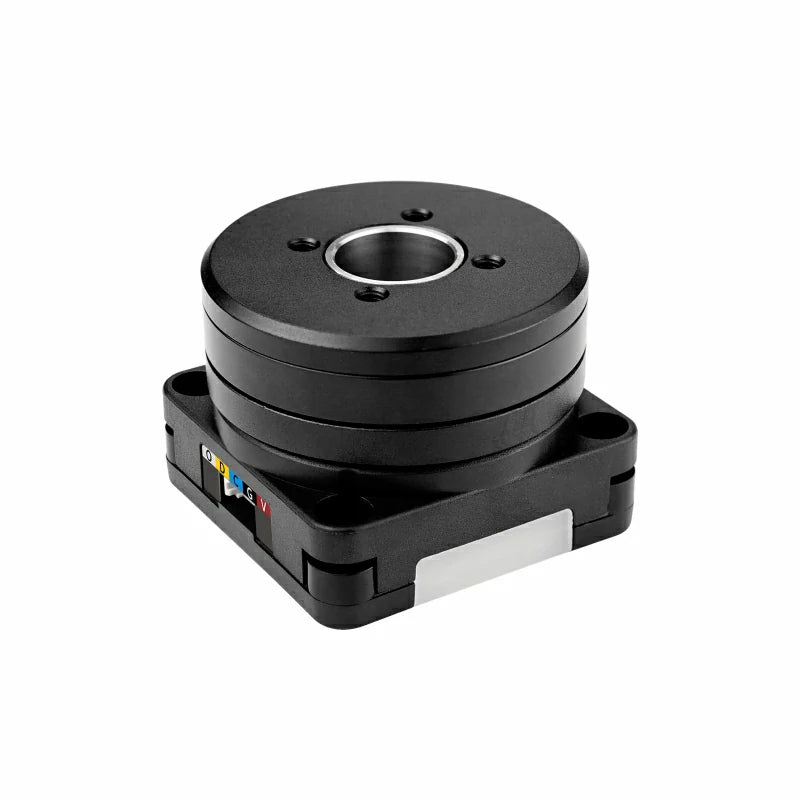

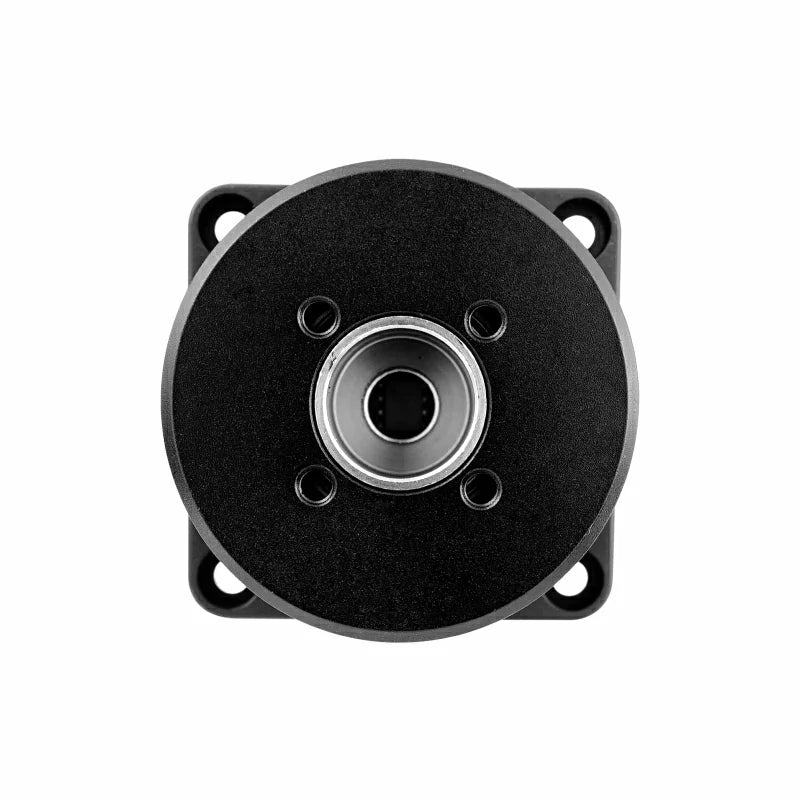

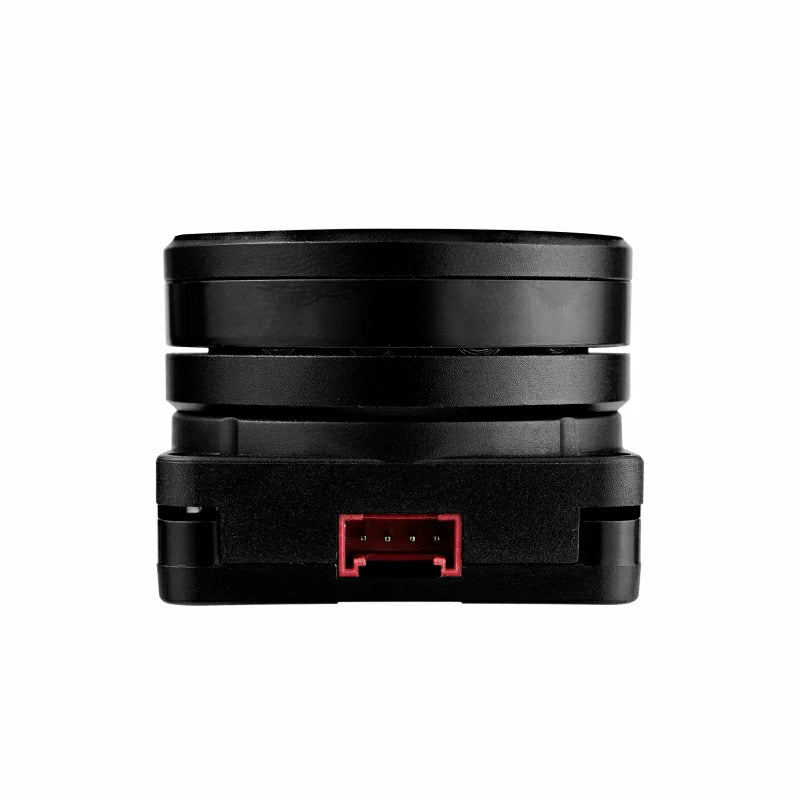

RollerCAN Lite Unit is a brushless DC motor motion control kit with multiple integrated control functions, designed for efficient motion control. It supports 6-16V DC power input (via the CAN interface) or 5V input (via the Grove interface) and can automatically adjust the power factor to ensure optimal performance. It features a built-in FOC closed-loop drive system, using a 3504 200KV brushless motor. The maximum continuous operating phase current is 0.5A without forced cooling, and 1A for short-term. The driver uses a magnetic encoder for feedback and supports current, speed, and position triple-loop control, ensuring precise control.

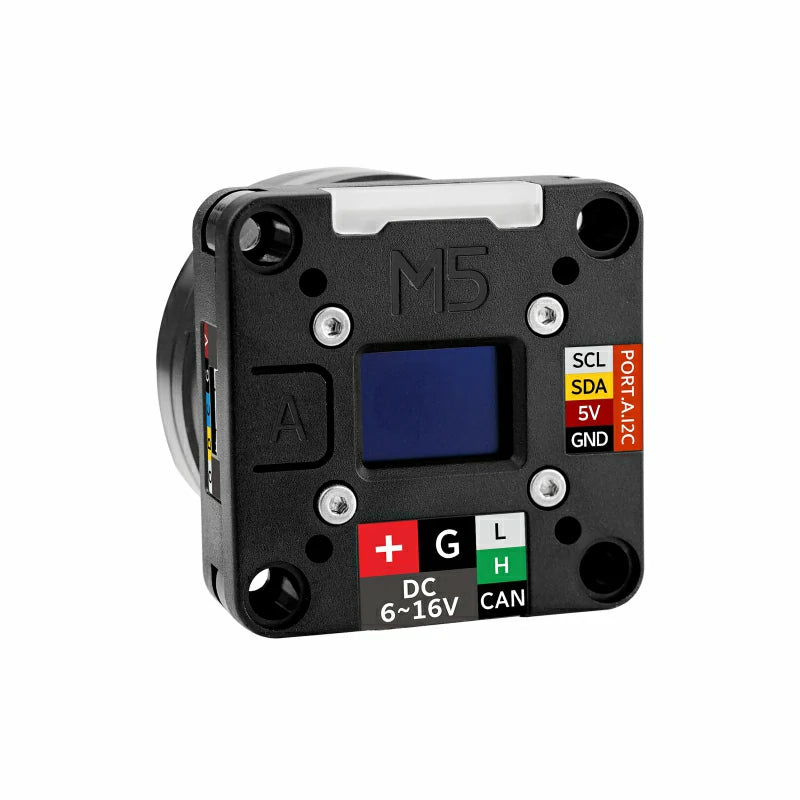

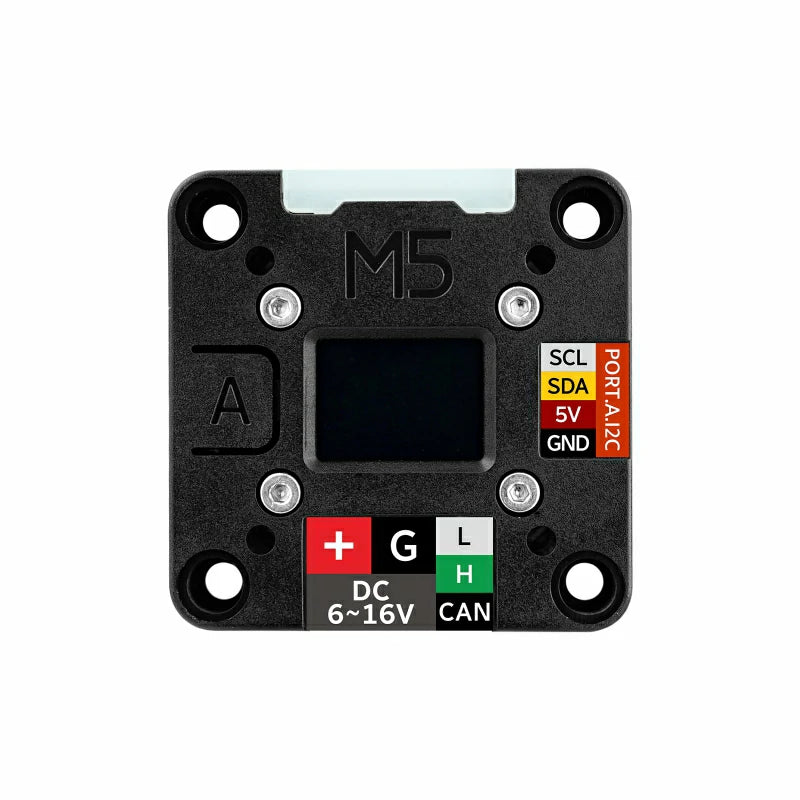

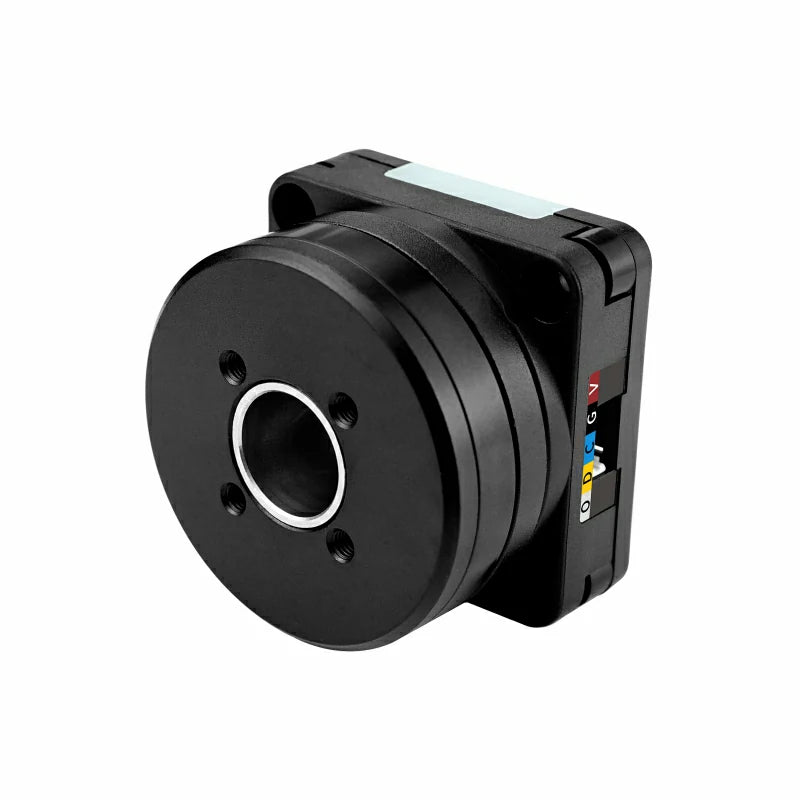

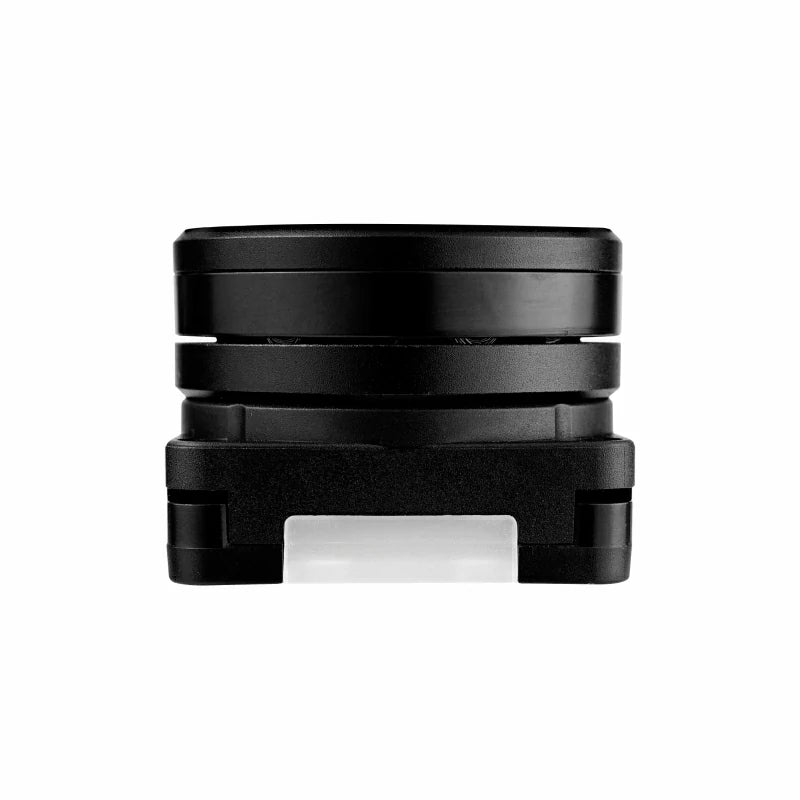

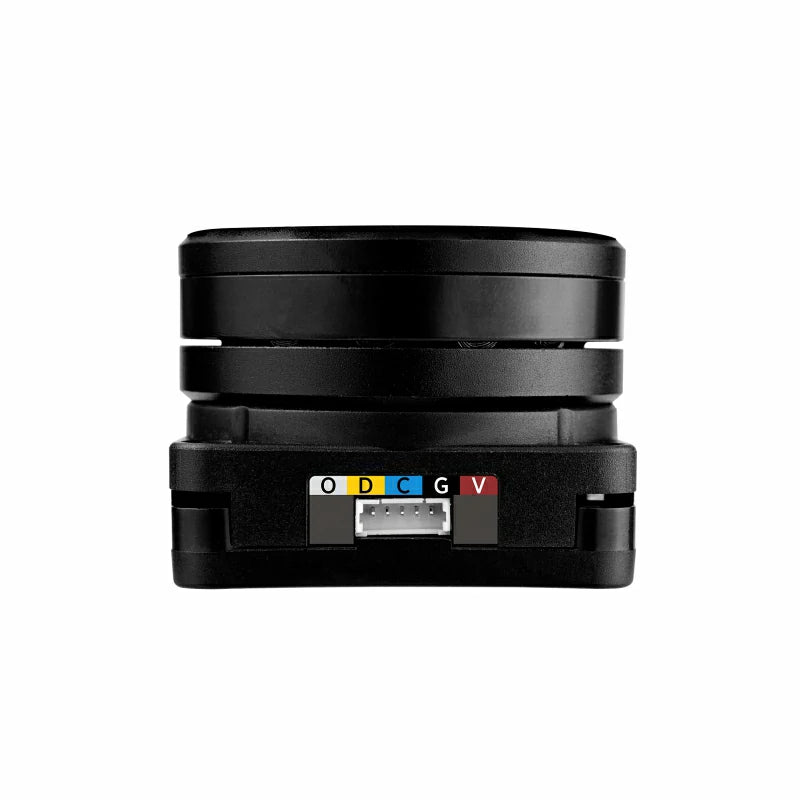

Additionally, the back of the unit is equipped with a 0.66-inch OLED display to show the device's status in real-time. It also includes an RGB indicator and function button for easy human-machine interaction. The base of the product is designed with LEGO-compatible mounting holes and M3 screw holes for quick assembly and integration. The hardware and software of RollerCAN Unit are fully open-source, supporting motion control and parameter adjustments via the CAN or I2C bus, and offering SWD and SWO debugging interfaces to enhance developer flexibility. This product is widely used in machine joints, motion control, industrial automation, and visual demonstration projects.
Features
- Brushless DC motor control
- CAN communication / I2C communication control
- Integrated OLED display
- RGB indicator light
- FOC closed-loop drive system
Package Includes

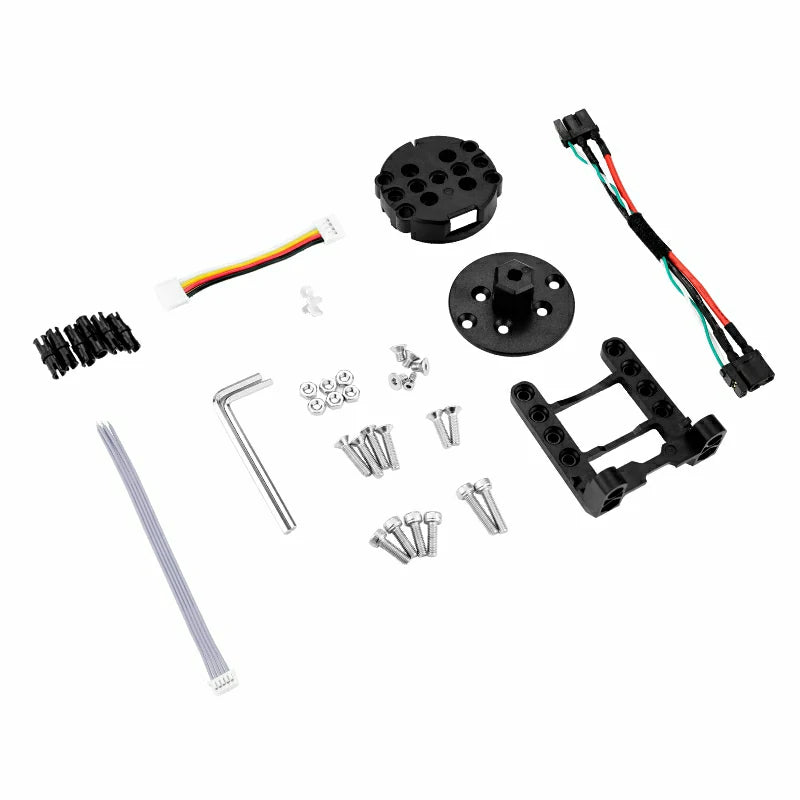

- 1x RollerCAN Lite Unit
- 1x PwrCAN Cable (10cm)
- 1x HY2.0-4P Grove cable (5cm)
- 6x friction pins
- 1x flange
- 1x bracket
- 1x hex key (2.5mm)
- 1x hex key (2mm)
- 6x M3 nuts
- 2x inner hex socket cap screws M3x14mm
- 4x inner hex socket cap screws M3x10mm
- 1x inner hex socket cap screw M2x5mm
- 4x inner hex countersunk screws M3x14mm
- 2x inner hex countersunk screws M3x12mm
- 4x inner hex countersunk screws M3x5mm
- 1x single-head terminal cable 5P debugging cable, 1.25mm pitch, 100mm length
Applications
- Robotic joint control
- Intelligent manufacturing equipment
- Visual demonstrations
Specifications
| Specification | Parameters |
|---|---|
| MCU | STM32G431CBU6 @ Cortex-M4, 128KB Flash, 32KB SRAM, 170MHz |
| Motor Type | D3504 200KV brushless motor @ diameter: 41mm |
| Driver Chip | DRV8311HRRWR |
| Angle Sensor | TLI5012BE1000 |

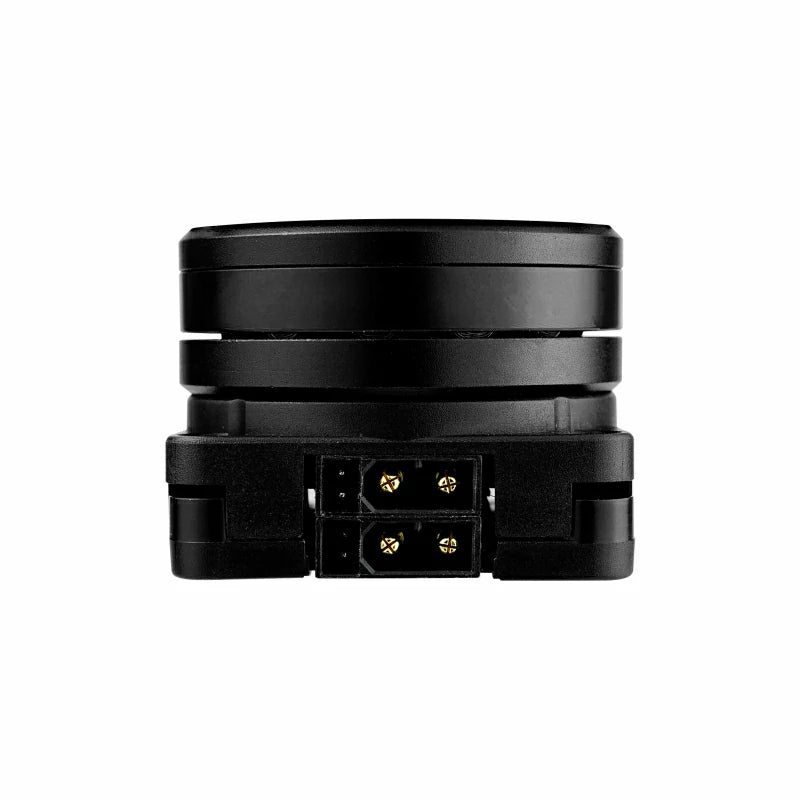

| Communication Interface | 2x CAN (XT30 interface) @ XT30 (2+2) PW-M 1x I2C (0x64) |
| Display | 0.66-inch OLED display, resolution: 64*48, SPI communication |
| RGB LEDs | 2x WS2812-2020 |
| Motor Power Supply | CAN (XT30 interface) power supply @ 6-16V Grove port DC5V power supply |
| Load | Load: 50g Motor speed: 2100rpm Current: DC16V/225mA Load: 200g Motor speed: 1400rpm Current: DC16V/601mA Load: 500g (maximum load) Motor speed: 560rpm Current: DC16V/918mA No load: DC16V/78mA |
| Standby Current | Grove port DC5V power supply @ 70mA CAN (XT30 interface) power supply DC16V @ 32mA |
| Noise Level | 48dB |
| Output Torque | Grove port DC5V power supply: 0.021N.m / 0.2kgf.cm @ 350mA current CAN (XT30 interface) DC16V power supply: 0.065N.m / 0.66kgf.cm @ 927mA current |
| Operating Temperature | 0-40°C |
| Product Dimensions | 40*40*30mm |
| Package Dimensions | 170*75*52mm |
| Product Weight | 71.9g |
| Package Weight | 150.4g |
