This product is EOL.
Description

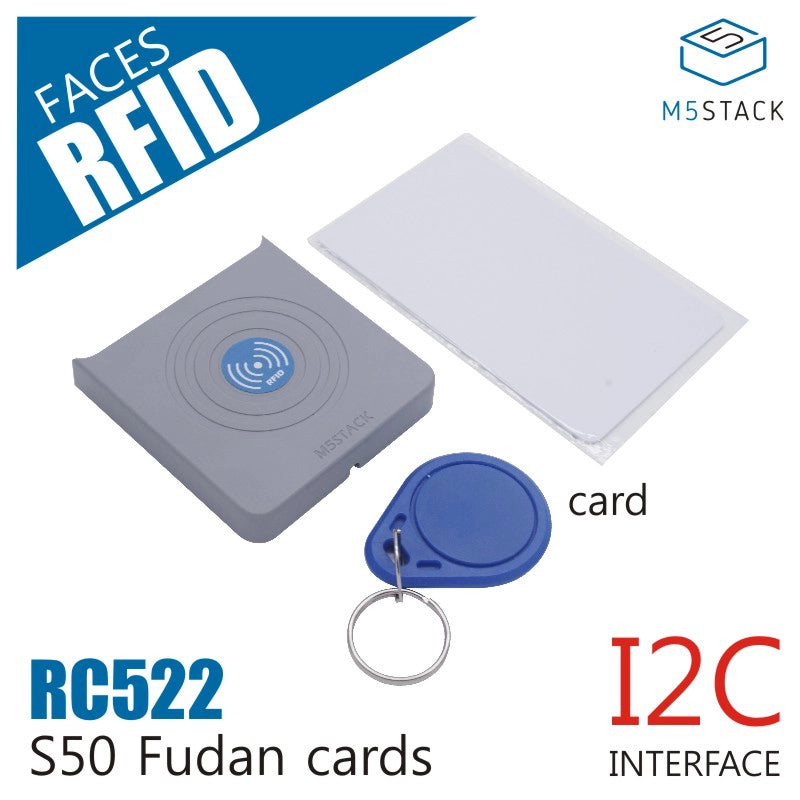

Faces RFID is a wireless radio frequency identification panel compatible with the FACE kit. It is equipped with the MFRC522 chip and operates at a frequency of 13.56 MHz. It supports multiple functions such as card reading, card writing, identification, recording, encoding, and authorization of RF cards. Utilizing magnetic field induction technology, it enables non-contact bidirectional information exchange, reading the information from the induction card and verifying it.
Features
- Compatible with FACES kit
- I2C communication protocol (0x28)
- MFRC522
Includes
- 1 x Faces RFID
- 1 x RFID card
- 1 x Fudan S50 card
Applications
- Smart home access control systems
- Vehicle management
- Intelligent transportation
- Smart bookshelves
Specifications
| Specification | Parameter |
|---|---|
| Communication Interface | I2C @0x28 |
| Operating Frequency | 13.56MHz |
| I2C Rate | Fast Mode: up to 400Kbit/s / High-Speed Mode: up to 3400Kbit/s |
| Supported Protocols | ISO14443A, MIFARE and NTAG |
| Data Retention Time | > 10 years |
| Read/Write Distance | < 20mm |
| Material | Plastic (PC) |
| Product Size | 58.2 x 54.2 x 10.0mm |
| Product Weight | 18.4g |
| Package Size | 95.0 x 65.0 x 25.0mm |
| Gross Weight | 52.0g |
