[EOL] RFID RC522 Panel for M5 Faces

SKU:A067

Regular price $8.00

EOL

Shipping calculated at checkout.
PRODUCT DETAILS

Description

FACE-RFID is a FACES kit compatible panel, with the Radio frequency identification chipset integrated on it.

Same as RFID units, it is MFRC522-based. The MFRC522 operates in the 13.56MHz frequency band and uses the modulation and demodulation principle to interact with the proximity RF card.
This unit can realize the function of the card reading and writing device, to identify and record multiple card information, to encode and authority an RF card. With FACES panel, you can have an upgrade level of RFID device with a more complete and enclosed pattern.

Communication Protocol: I2C.

This product is EOL now.

Product Features

  • FACES bottom compatible
  • Interface Serial: I2C (21/22)
  • MFRC522

Applications

  • Reader­-Tag
  • Security

Include

  • 1x FACES-RFID panel
  • 1x RFID card
  • 1x Fudan S50 card

Specification

Resources Parameter
Operating frequency 13.56MHz
I2C data rate Fast mode: up to 400 Kbit/s; High-speed mode: up to 3400 Kbit/s
Supported protocol ISO14443A, MIFARE and NTAG
Data retention time > 10 years
Reading and writing distance < 20 mm
Net weight 18.4g
Gross weight 52g
Product Size 58.2*54.2*10mm
Package Size 95*65*25mm
Material Plastic(PC)

LEARN AND DOCUMENTS

  • DOCUMENTS
  • A project to prevent access of suspect Covid-19 positive in office or community. M5Stack Core Grey, RFID unit and NCIR body temp measure
    Hello, I created an alarm panel controlled by RFID, based on a M5Stack with RFID face. Communication is done via secure MQTT over Wi-Fi.
    A minimal library book management system emulation program.

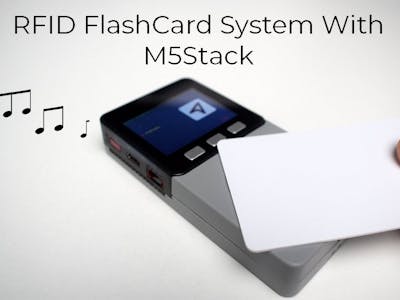

    After I recently discovered how to play WAV files on the M5Stack, I thought it would be perfect to make a flashcard system.
    As part of M5Stack COVID-19 Contest, I came up with fun idea to use blockchain and IoT to track people who checking in any places.
    A Dji Tello Drone wifi controller based on M5Stack Core
