Description

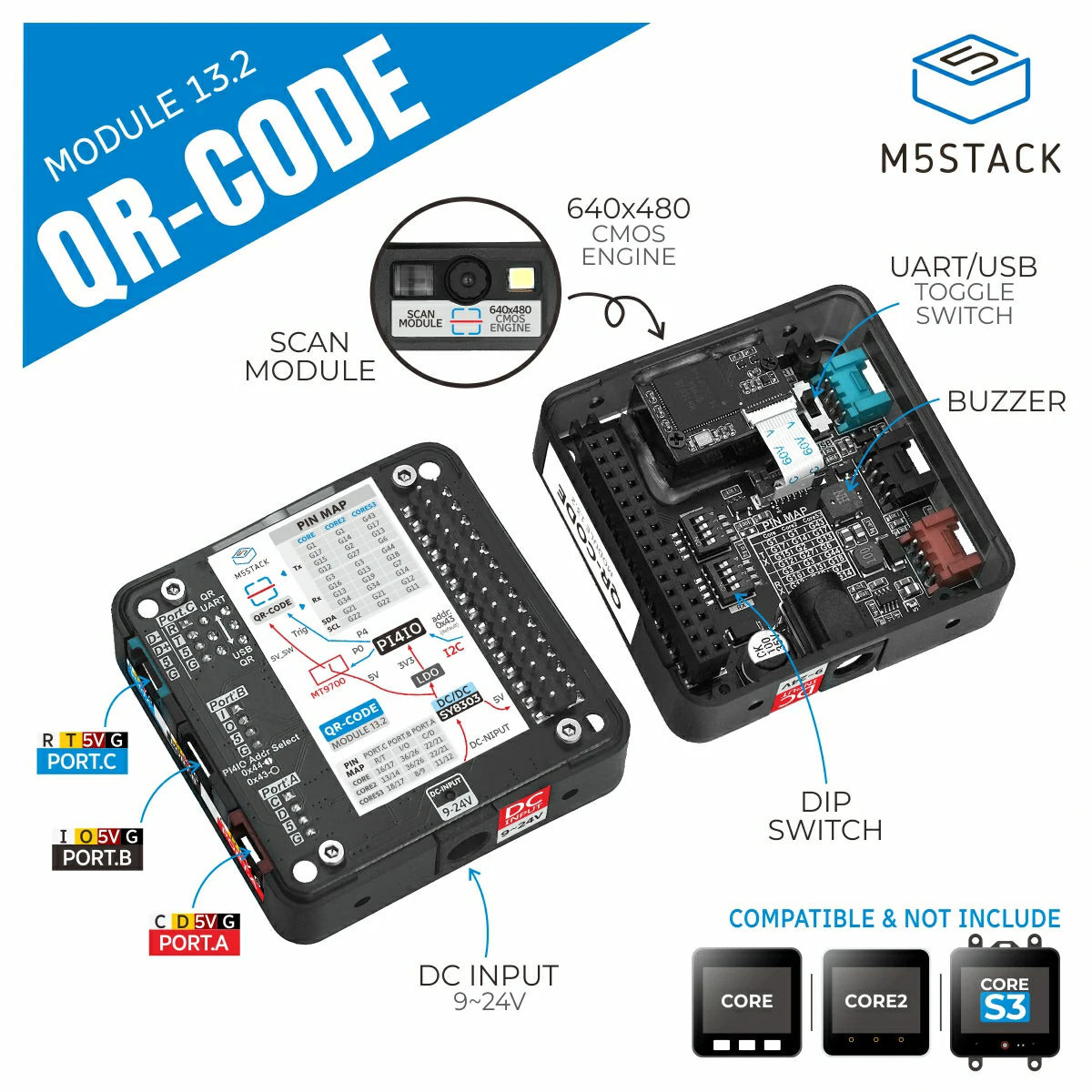

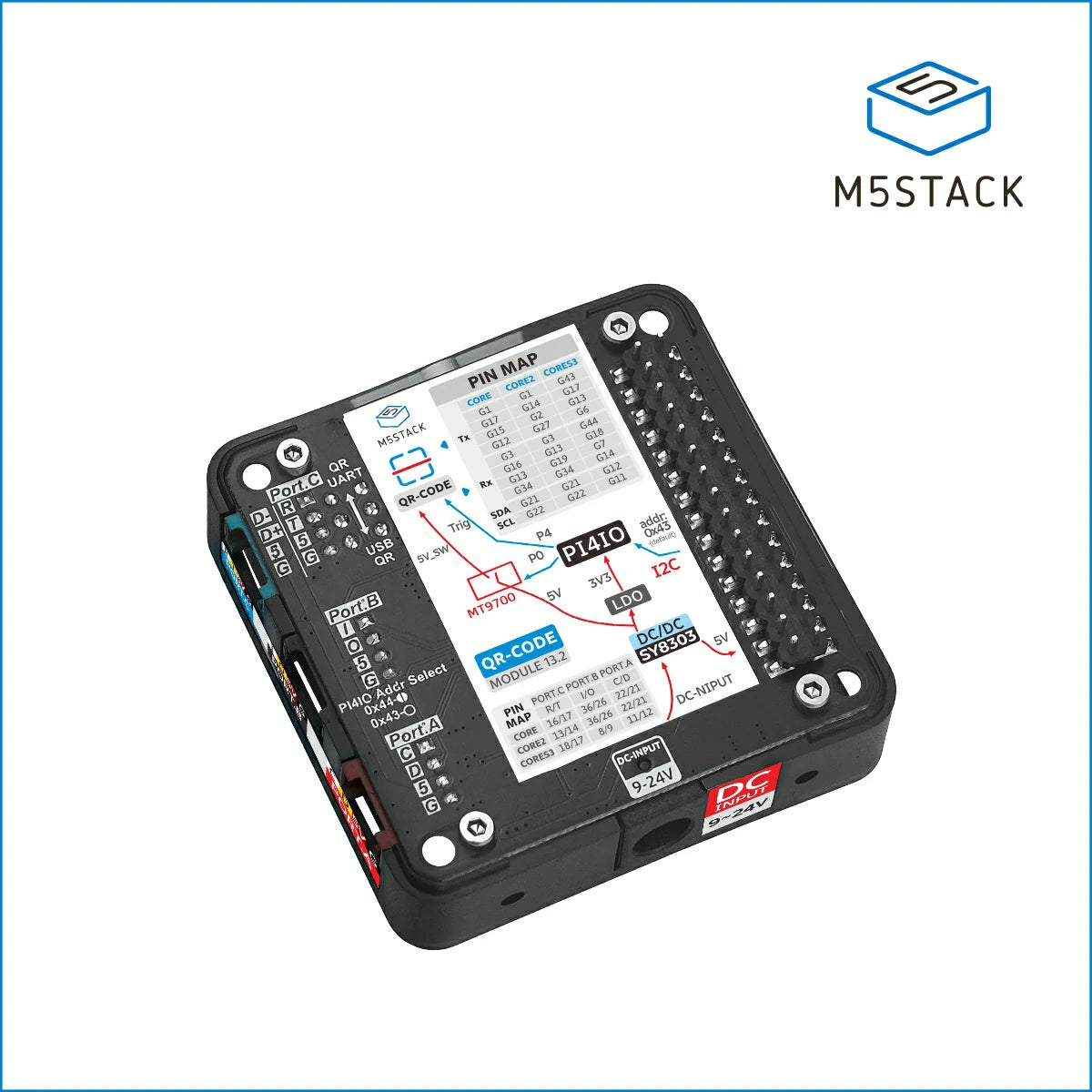

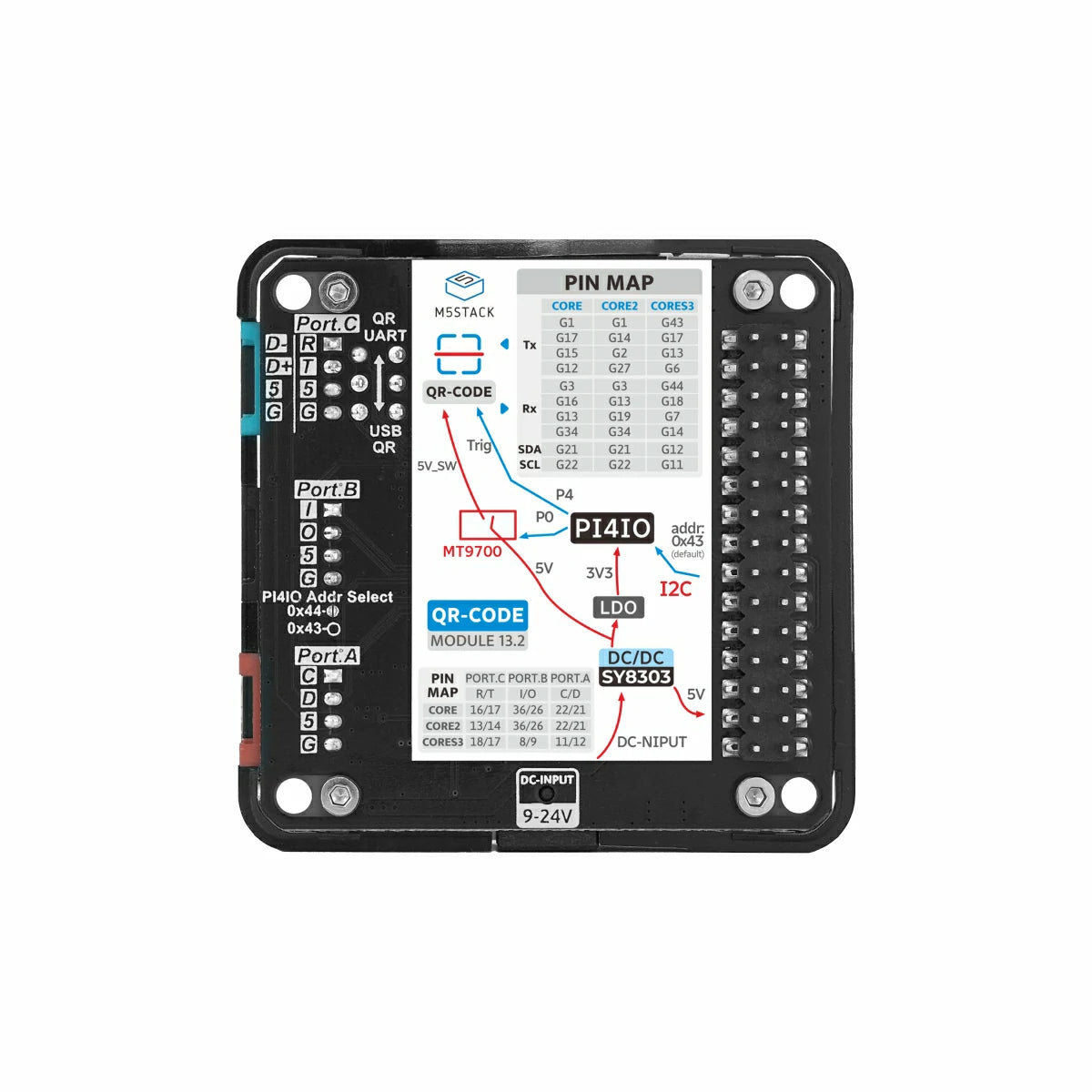

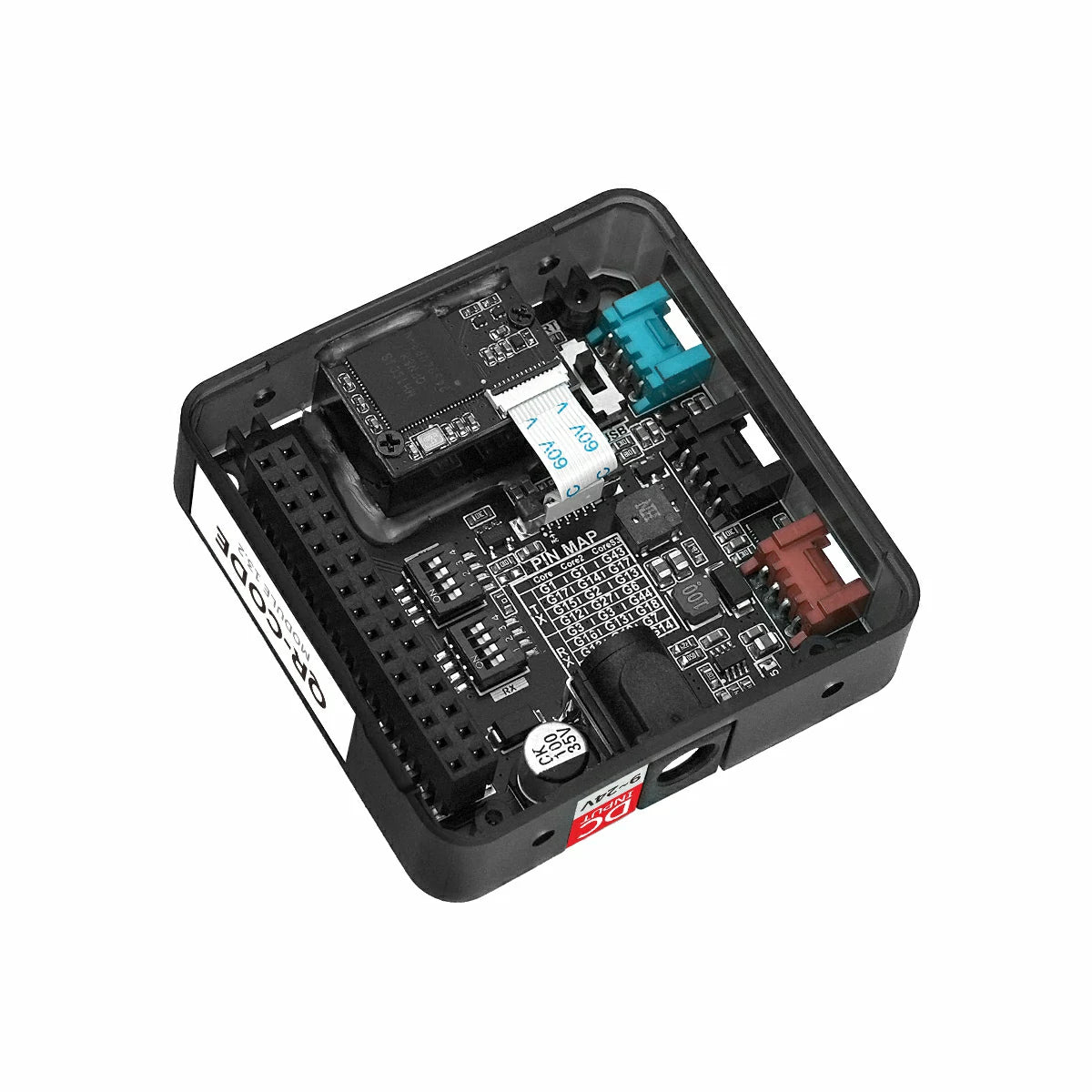

Module13.2 QRCode is a 1D/2D barcode scanning module from the M5Stack stacking module series. It integrates a CMOS barcode capture engine with a resolution of 640 x 480, supporting 3 mainstream 2D code types and 14 1D code types on the market, enabling fast and accurate recognition of barcodes printed on media such as paper and labels. A toggle switch allows switching between USB and UART communication interfaces for the QR module to communicate with external devices. The USB interface can be configured in three modes: USB virtual serial port, USB HID keyboard, and USB HID-POS. The module features a built-in buzzer for audio prompts, illumination and aiming LEDs, provides rich secondary development interfaces, and supports multiple scanning trigger modes (e.g., auto mode, continuous mode, motion sensing mode, pulse mode) for customized functionality and integrated development. It integrates a DC power input interface supporting DC 9 ~ 24V. Through the internal DC-DC step-down circuit it powers the entire device, making it suitable for logistics and warehousing, retail checkout, ticketing systems, production traceability, medical information collection, self-service terminals, and many other scenarios.
Features
- Supports 3 types of 2D codes and 14 types of 1D codes
- Built-in USB and UART interface switching switch
- Built-in buzzer sound prompt
- Built-in illumination LED
- High-resolution imaging
- Focusing and aiming function
- Multiple scanning trigger modes, such as auto and continuous modes
- DC power supply interface, wide voltage input: DC 9 ~ 24V
- Development Platform:
- Arduino
- UiFlow2
Includes
- 1 x Module13.2 QRCode
Applications
- Logistics and warehousing
- Retail checkout
- Ticketing systems
- Production traceability
- Medical information collection
- Self-service terminals
Specifications
| Specification | Parameter |
|---|---|
| IO Expansion Chip | PI4IOE5V6408 I2C@0x43 (default)/0x44 |

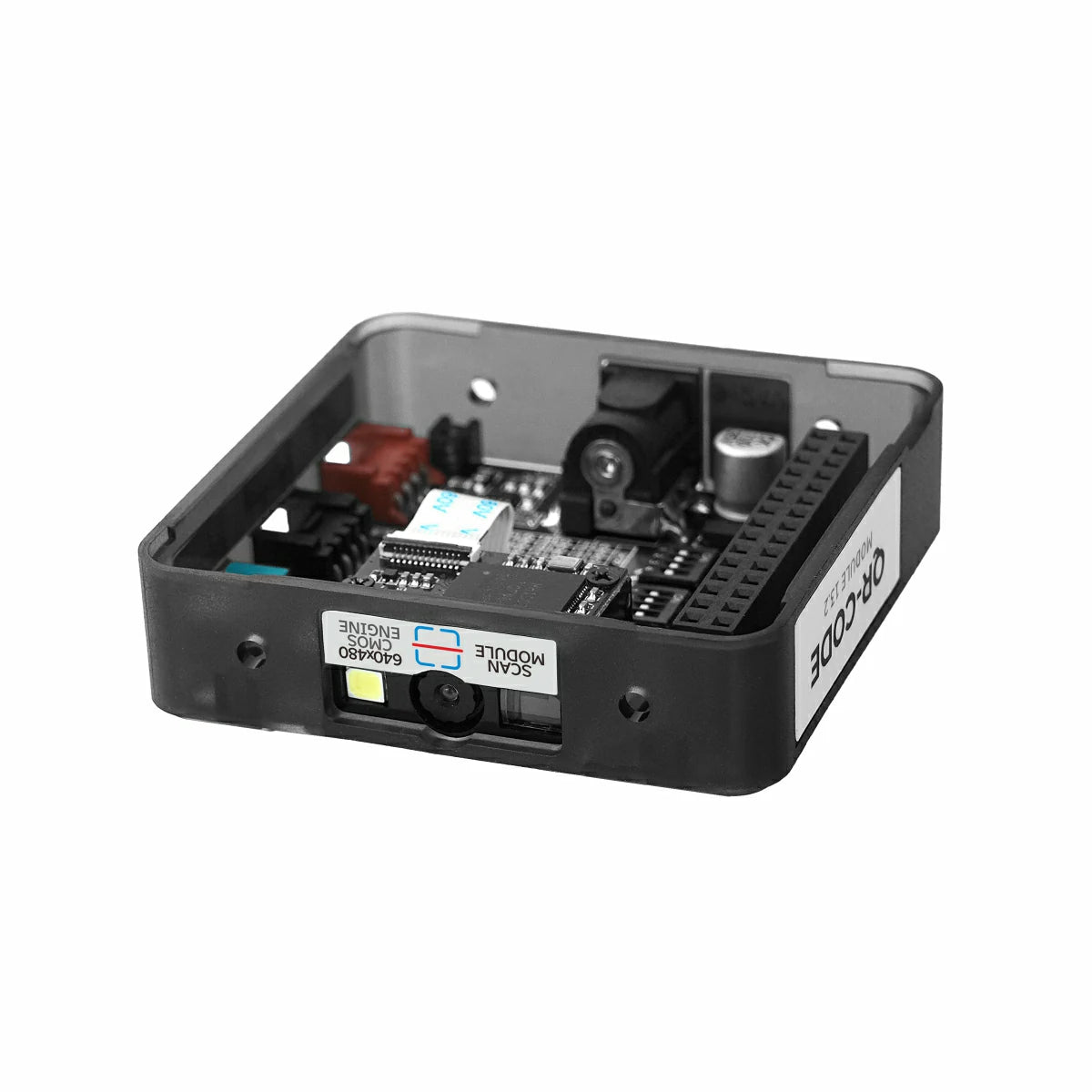

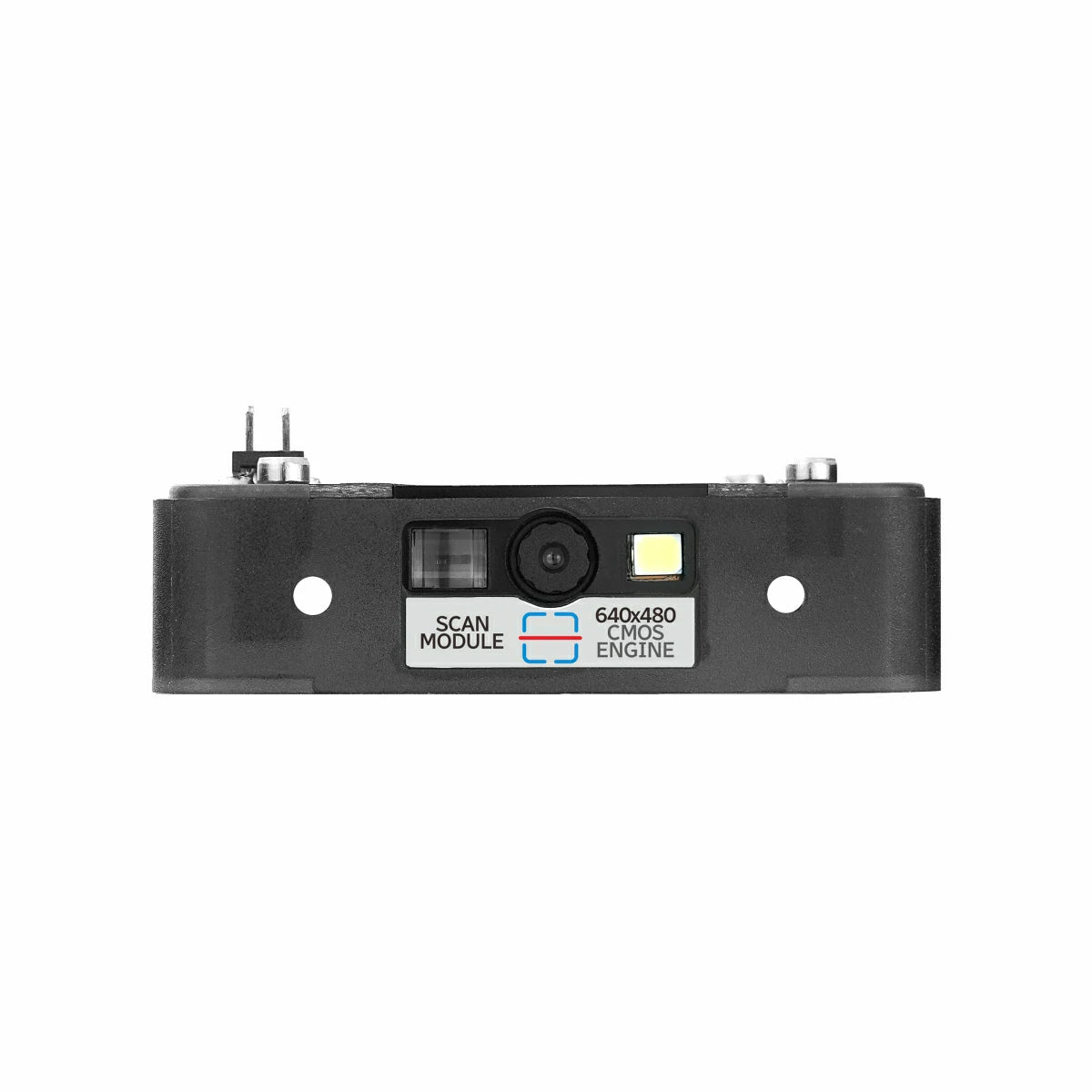

| Sensor | 640 x 480 CMOS |
| Illumination | White LED |
| Aiming | Red LED |
| Supported 2D Codes | PDF417, QR Code, Data Matrix |
| Supported 1D Codes | Code11, Code39, Code93, Code128, EAN-13, EAN-8, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI, GS1 Databar |
| Depth of Field | 50 ~ 160 mm |
| Reading Accuracy | ≥ 5 mil |
| Print Contrast | ≥ 20 % |
| Scan Angle | Pitch ±55°, Skew ±55° |
| Communication Interface | USB or UART communication; the USB interface can be connected to a PC via a Grove to USB-C accessory |

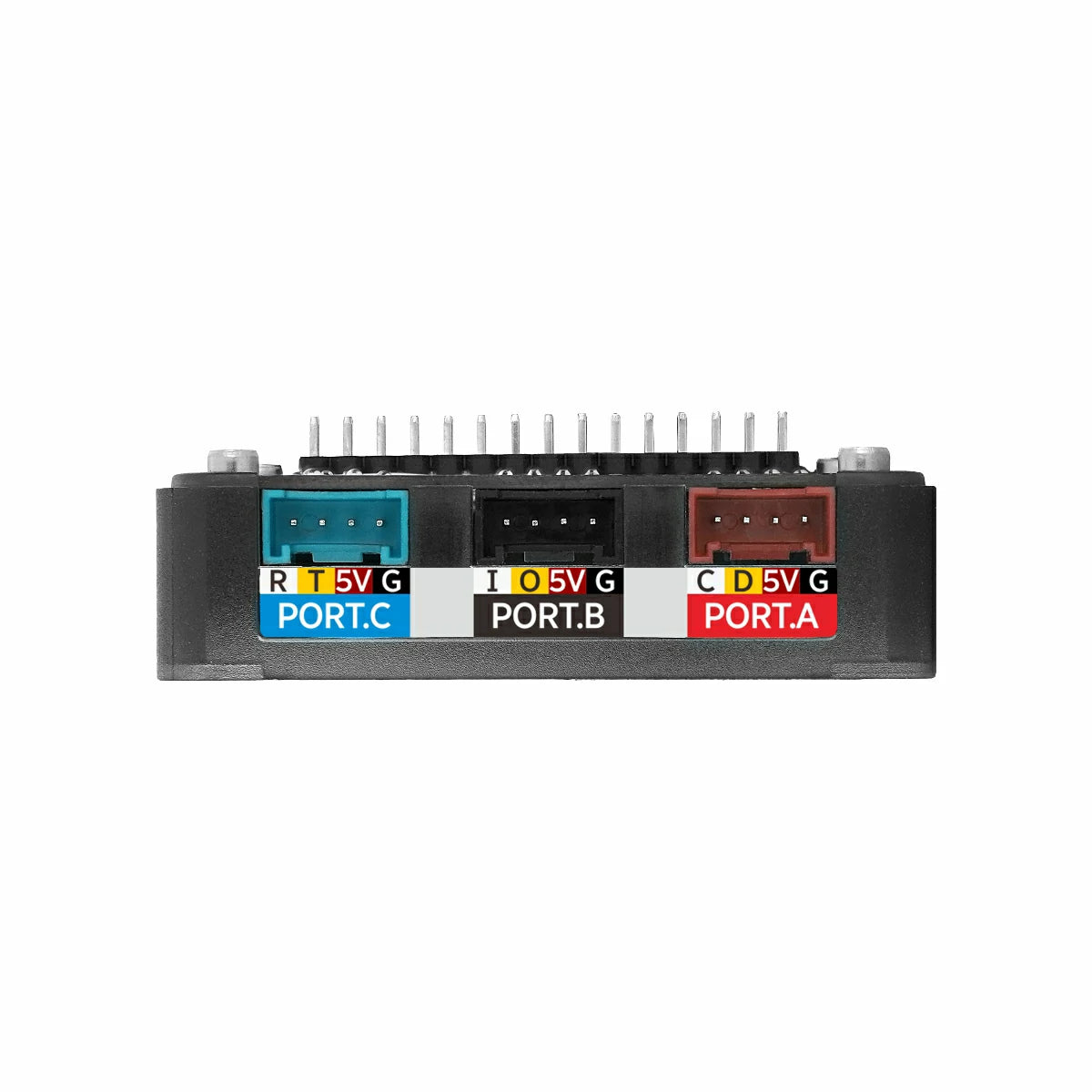

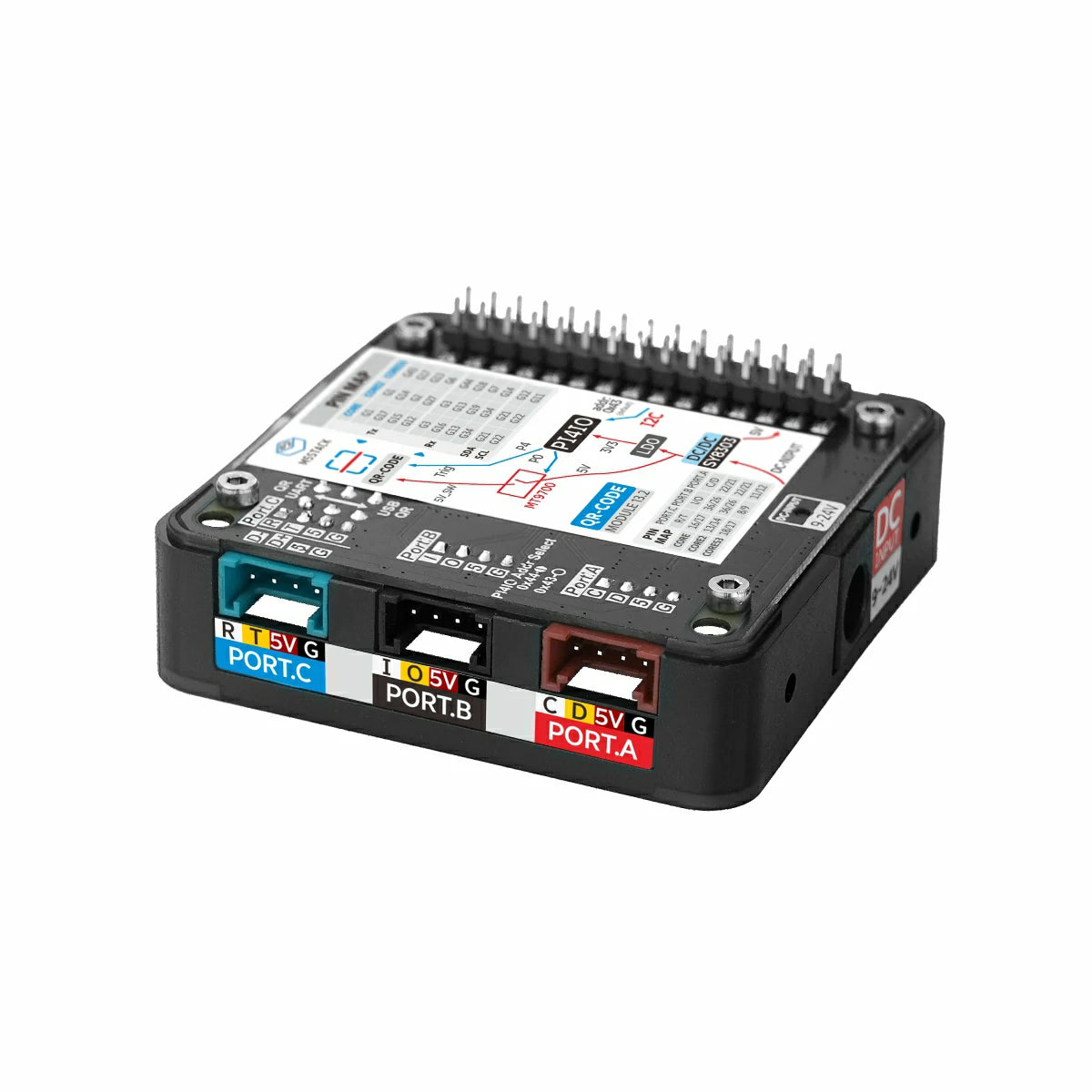

| Expansion Interface | 3 Grove ports: PORT.A, PORT.B, PORT.C |

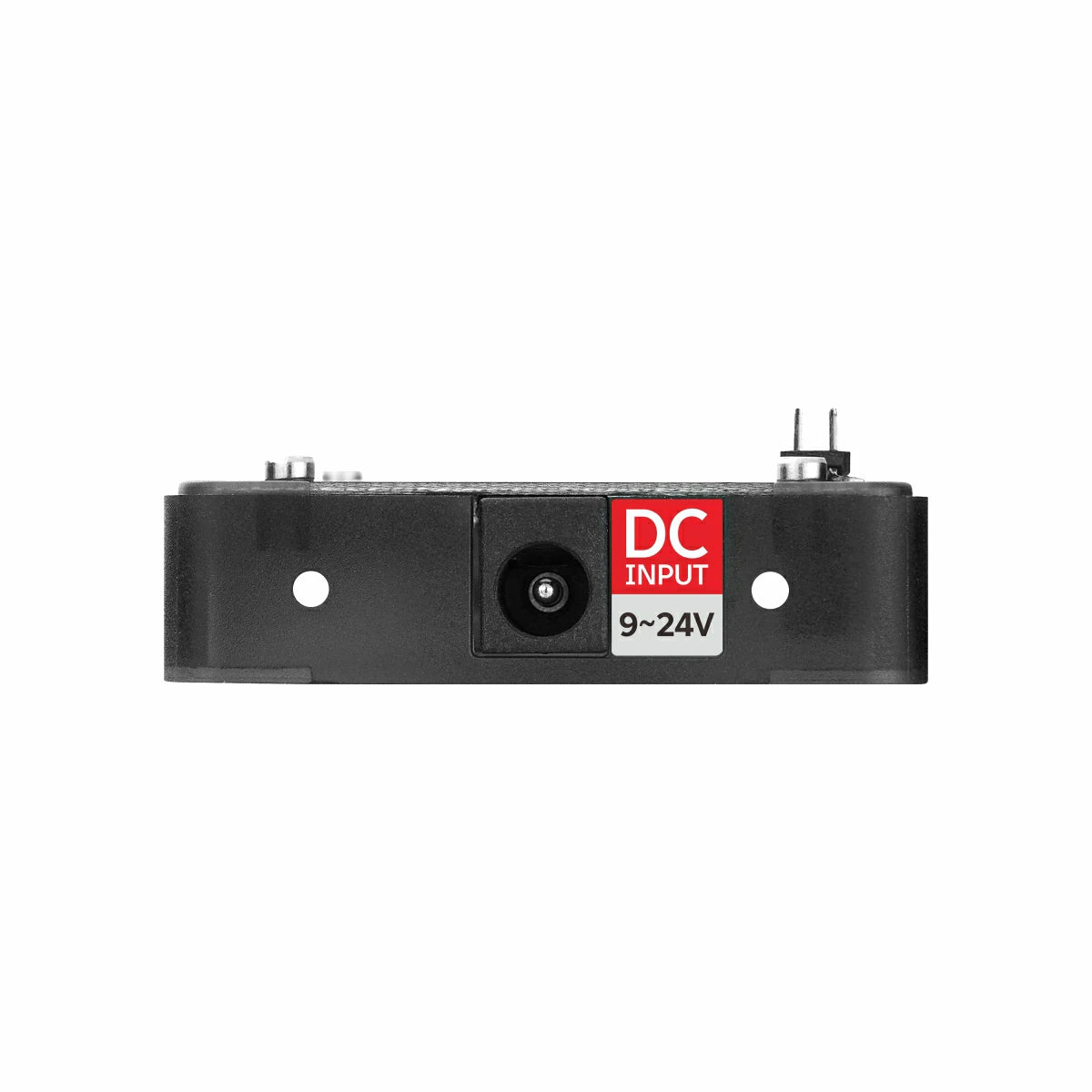

| DC Power Input Interface | Input voltage: DC 9 ~ 24V, spec: 5.5 x 2.1 mm, polarity: center positive, outer negative |
| Operating Current (with Core2) | DC 5V module off 5.04V@74.42 mA, on 5.09V@255.84 mA DC 9V module off 9.09V@98.93 mA, on 9.10V@153.44 mA DC 12V module off 10.49V@79.96 mA, on 10.38V@124.54 mA |
| Product Size | 54.0 x 54.0 x 19.7 mm |
| Product Weight | 22.9 g |
| Package Size | 138.0 x 93.5 x 22.5 mm |
| Gross Weight | 38.8 g |
