Puzzle Unit 8x8 LED Matrix (WS2812E)

SKU:U193

Regular price $7.50

Out Of Stock

Shipping calculated at checkout.

Description

Unit-Puzzle is a multi-color light control unit consisting of an 8x8 RGB array made up of 64 WS2812E RGB LEDs. Each LED is separated by an isolation structure to prevent interference between adjacent lights, ensuring the light effect is clearer and purer. The product features two onboard Grove connectors—one for input signal and the other for output, with a connecting piece included for linking multiple Puzzle units to extend the lighting display area. The Grove interface also includes an IO port for connecting other M5 devices, such as a potentiometer, to enable more interactive control functions. Unit-Puzzle is compact, easy to install, and features an M2 mounting hole on the bottom for secure fixing. The product dimensions are just 24*24*15mm. This product is suitable for applications such as smart lighting, decorative displays, and interactive installations.

LED Brightness
Continuous high brightness may cause damage; it is recommended to use 10% brightness to reduce heat and power consumption.

Product Features

  • 8x8 WS2812 RGB LED matrix
  • Grid isolation design
  • Dual Grove connectors
  • 2x LEGO-compatible holes
  • Programming platforms: Arduino, UIFlow, ESP-IDF, etc.

Included

  • 1x Unit-Puzzle
  • 1x HY2.0-4P Cable (20CM)
  • 1x Expansion connector
  • 1x Parameter sticker

Applications

  • Smart lighting
  • Decorative displays
  • Interactive installations

Specifications

Specification Parameter
RGB LED Type WS2812E-1313 @ 8x8 matrix
LED Quantity 64 LEDs (8x8 matrix)
Single LED Power Approx. 6mW (brightness 8%, white)
Standby Current DC 5V @ 14.27mA
Operating Current DC 5V @ 93.99mA (brightness 8%, white)
Supply Voltage DC 5V
Interface Type 2 Grove connectors (for data and expansion)
Supported Colors 16.7 million colors
Control Method Supports serial data control (single wire control)

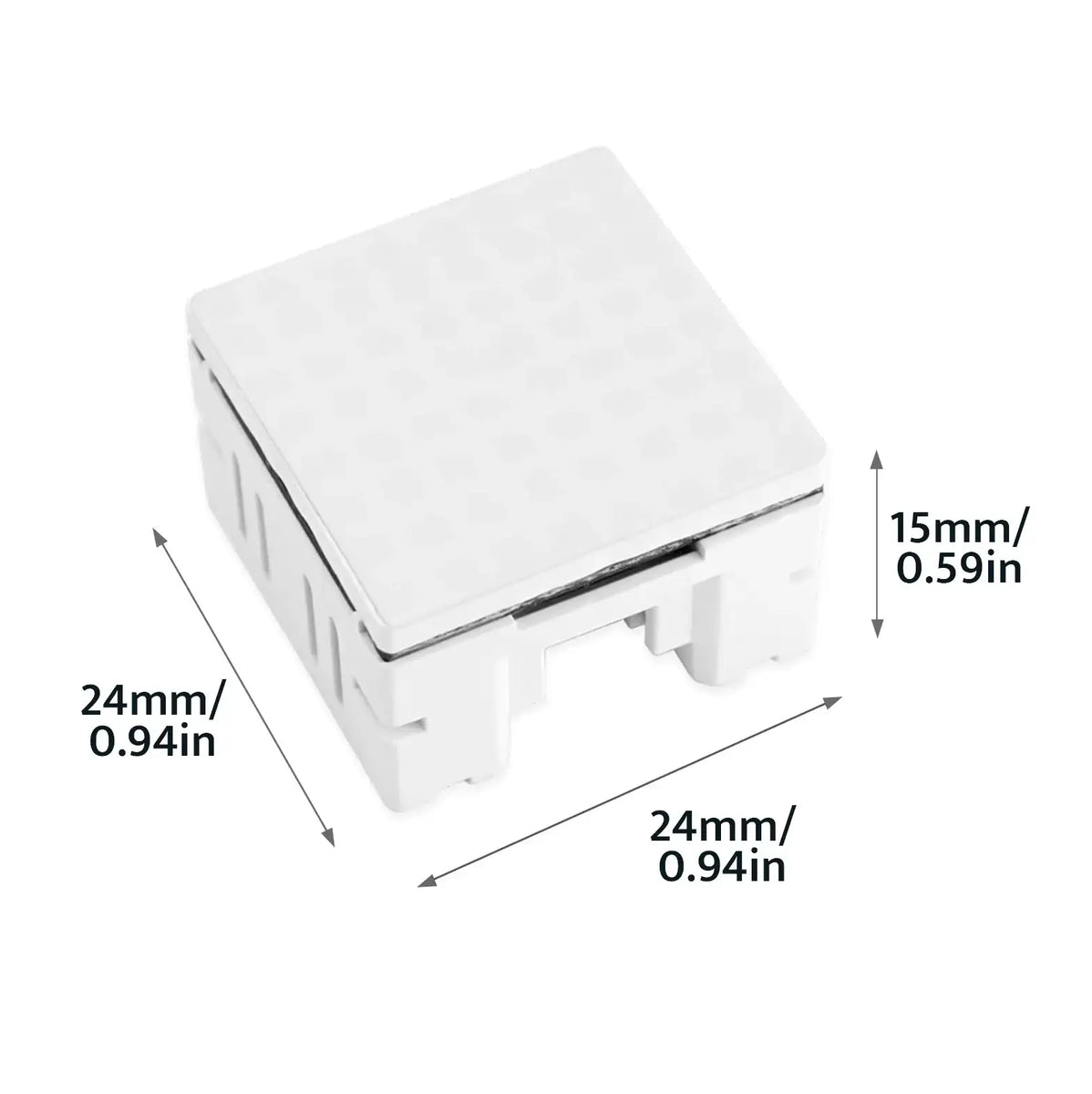

Product Dimensions 24*24*15mm
Packaging Dimensions 136*92*17mm
Product Weight 6.3g
Packaging Weight 12.5g
