[EOL] PuppyC (W/O M5StickC)

SKU:K035

Regular price $14.50

EOL

Shipping calculated at checkout.
PRODUCT DETAILS

Description

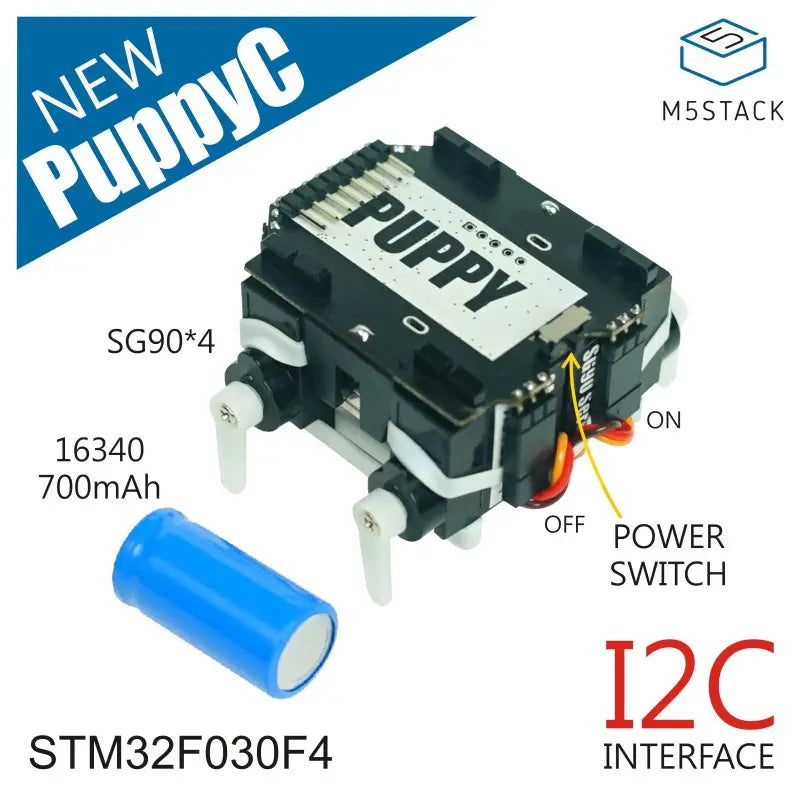

PuppyC is a programmable four-legged robot base compatible with M5StickC. It contains the STM32F030F4 micro controller,Four SG90 micro servos, a battery holder and an independent switch.

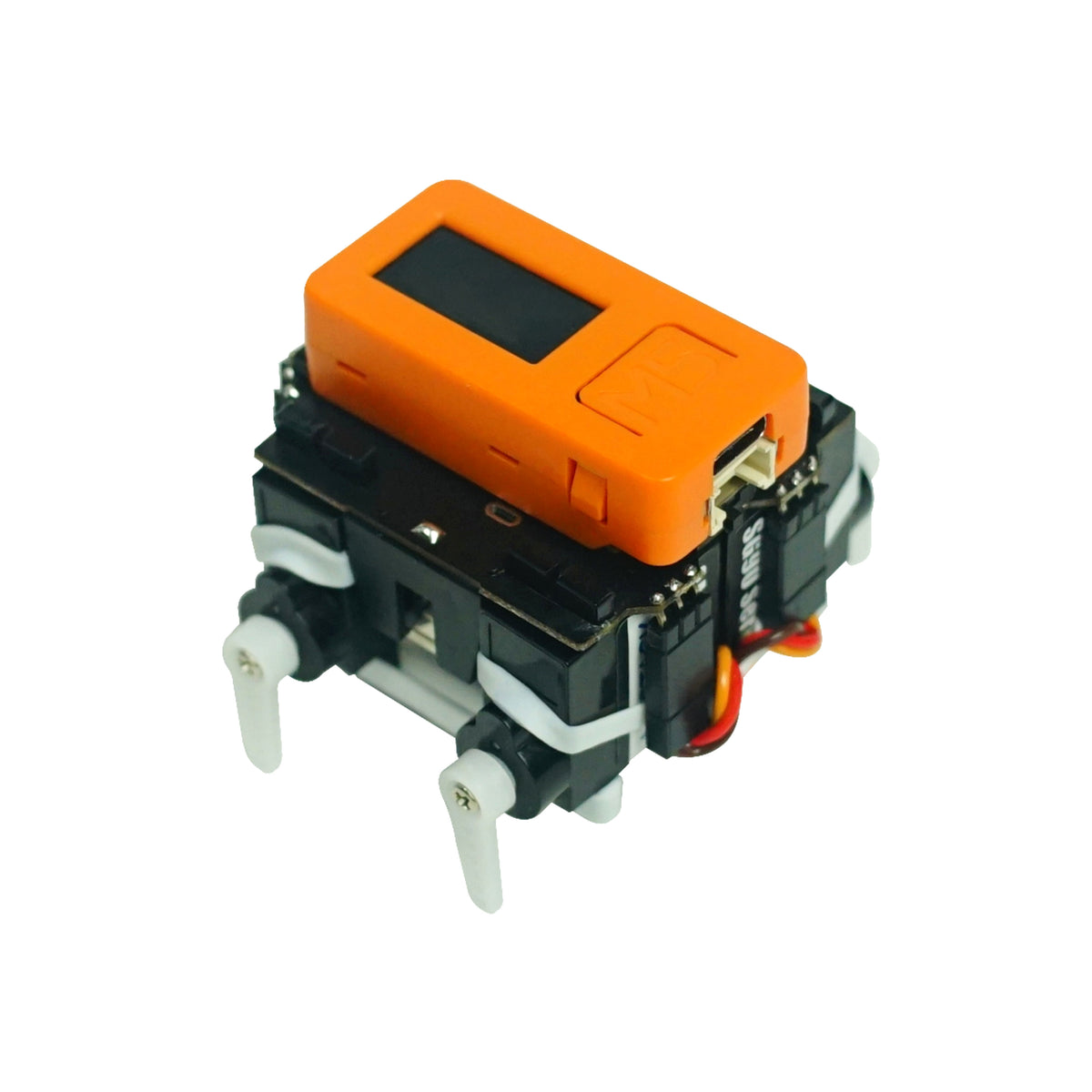

PuppyC base needs to be used in conjunction with the M5StickC controller.After the StickC is programmed, it communicates with PuppyC through the I2C protocol (0x38) to control the steering motion.

It walks slowly and is easy to control.Due to the small contact area, the movement is slow and the frictional force is as large as possible even on a soft surface.

This product is EOL now.

Product Features

  • Programmable robot
  • Servo controller
  • Four-legs walking
  • Servo angle range:0-180°

Applications

  • Robotic pet
  • Remote Control Robot
  • Smart and cognitive toys

Include

  • 1x PuppyC base
  • 1x 16340 Battery(700mAh)

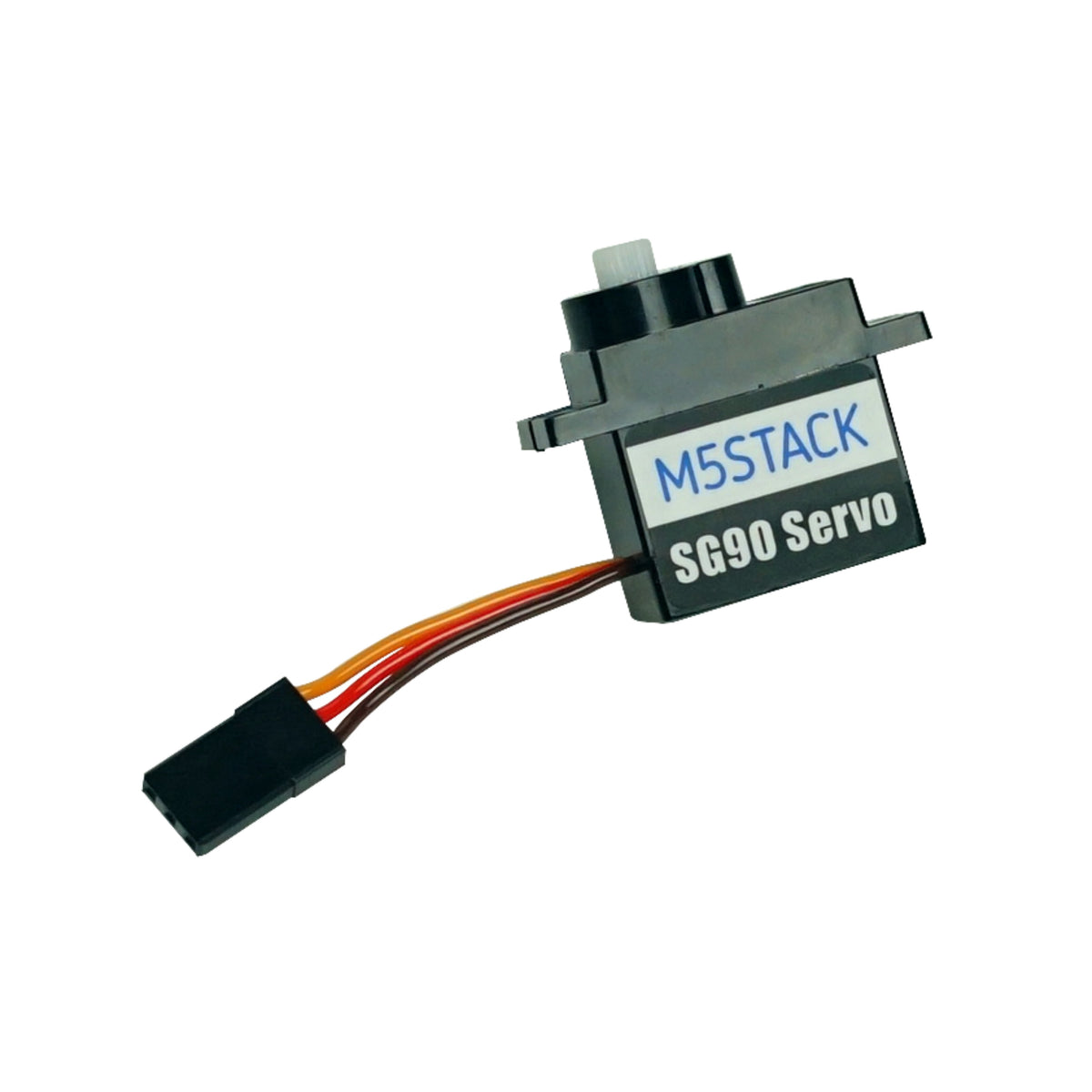

  • 4x SG90 Servo

Specification

Resources Parameter
Communication protocol I2C:0x38
Net weight 58g
Gross weight 108g
Product Size 52*60*35mm
Package Size 106*66*42mm
